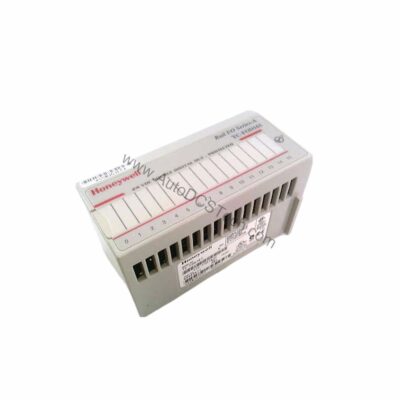

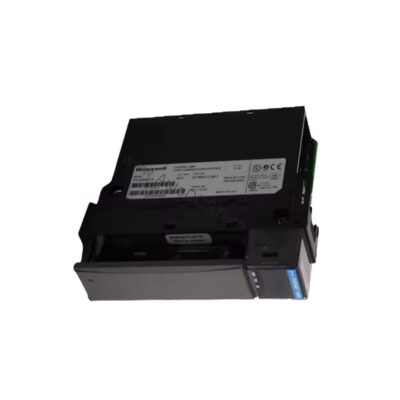

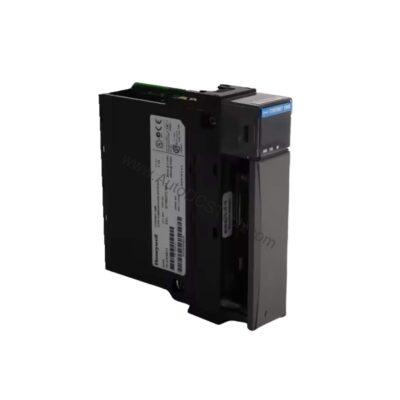

Honeywell TC-FOD321 32-Channel 24Vdc Source Digital Output Module

Technical Specifications Breakdown

Key parameters for the TC-FOD321 are listed below for quick reference:

Industry Applications

This module fits in process plants and discrete manufacturing lines where multiple outputs need to be controlled from a single point. For example, in a packaging line, the TC-FOD321 can drive 32 different actuators or indicators, reducing panel space and wiring. Its fast response—OFF to ON in 0.5ms—makes it suitable for high-speed sorting applications.

In oil and gas facilities, the Class I Division 2 and Zone 2 certifications allow installation in hazardous areas without special enclosures, cutting installation costs. The group isolation (2 groups of 16) lets you power different loads from separate supplies, improving fault isolation.

Installation & Setup Guidance

Mount the module on a standard DIN rail. Use 12 gauge (4mm2) stranded wire maximum with insulation rated 75C or higher. Ensure the external DC power supply is within 10-31.2Vdc, with no more than 5% AC ripple. Connect the user wiring to the appropriate terminals, respecting group separation. After wiring, verify channel status via the 32 yellow LEDs.

Maintenance & Reliability

Periodically inspect the module for dust accumulation and ensure ambient temperature stays within 0-55C. Check that all terminal screws are tight. The module is designed for long service life, but environmental factors like humidity (5-95% non-condensing) and vibration (up to 5g) should be monitored. For shock, the module withstands 30g operating and 50g non-operating.

The Evolution of High-Density Digital Outputs

Industrial control systems have evolved from simple relay panels to compact, high-density modules that pack more I/O into smaller footprints. The Honeywell TC-FOD321 represents this shift—a 32-channel digital output module designed for space-constrained applications that demand reliable switching and clean signal delivery.

This module delivers 24Vdc sourcing outputs with protection, making it a solid choice for controlling solenoids, indicator lamps, and small motor contactors. Its DIN-rail mount simplifies panel layout, while group isolation reduces wiring complexity.

Compatibility & Integration

The TC-FOD321 is a Honeywell product, designed to integrate with Honeywell control systems. It uses Flexbus current of 80mA maximum, which is typical for Honeywell I/O buses. Ensure your system supports this module's power requirements and communication interface.

Selection Guide & Purchasing Advice

When selecting a digital output module, consider channel count, current rating, and environmental certifications. The TC-FOD321 offers 32 channels with 14A per channel, making it a high-density option. For availability and lifecycle status, contact AutoDCSTech. They can confirm stock and provide competitive pricing.

Troubleshooting & Common Issues

If a channel fails to turn on, check the ON-state voltage (minimum 10Vdc) and current (minimum 1mA). If the output is shorted, the protection feature may limit current. Verify the external power supply voltage and ripple. If the module is unresponsive, check the Flexbus connection and power dissipation (5.3W max). For persistent issues, consult the Honeywell manual or contact AutoDCSTech for support.
