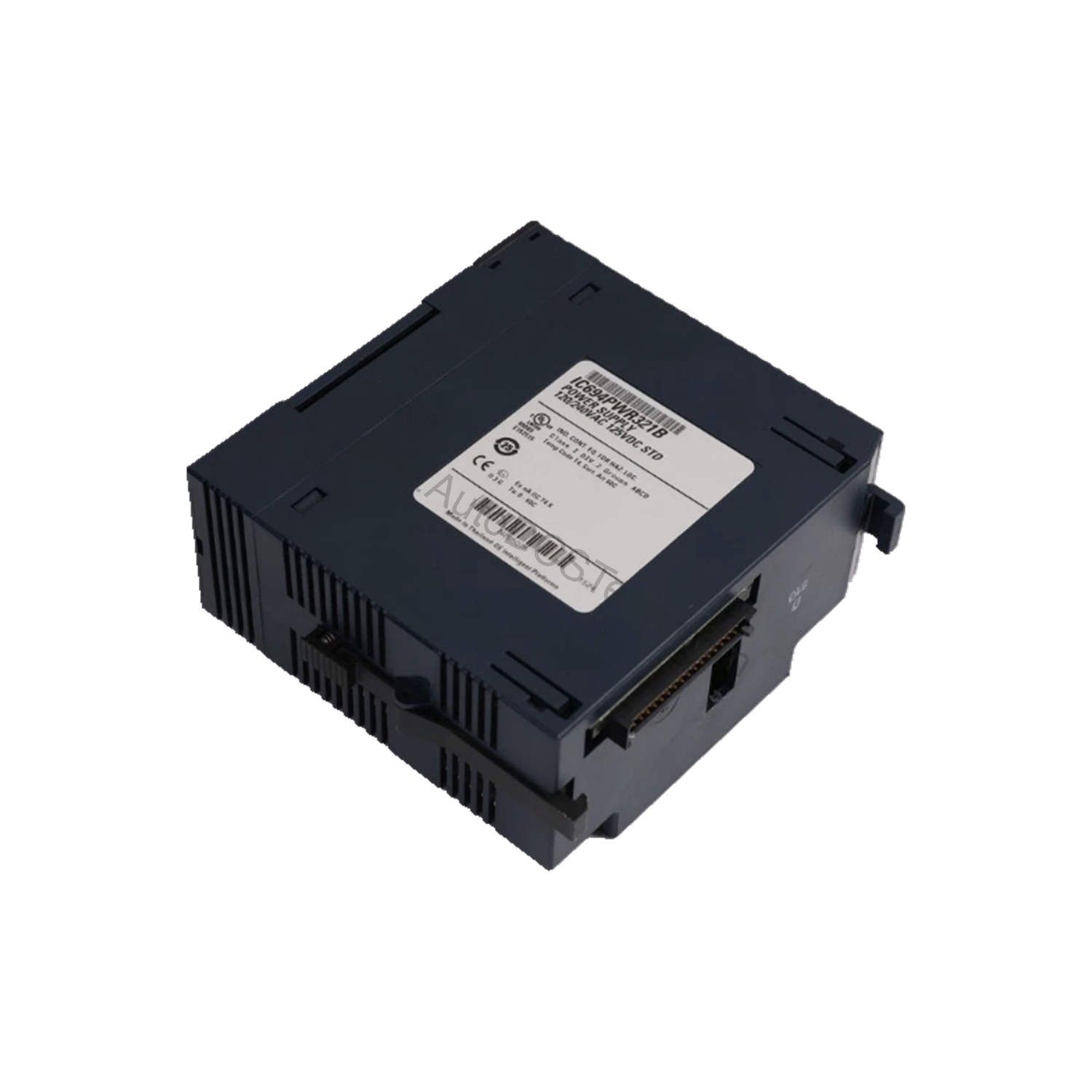

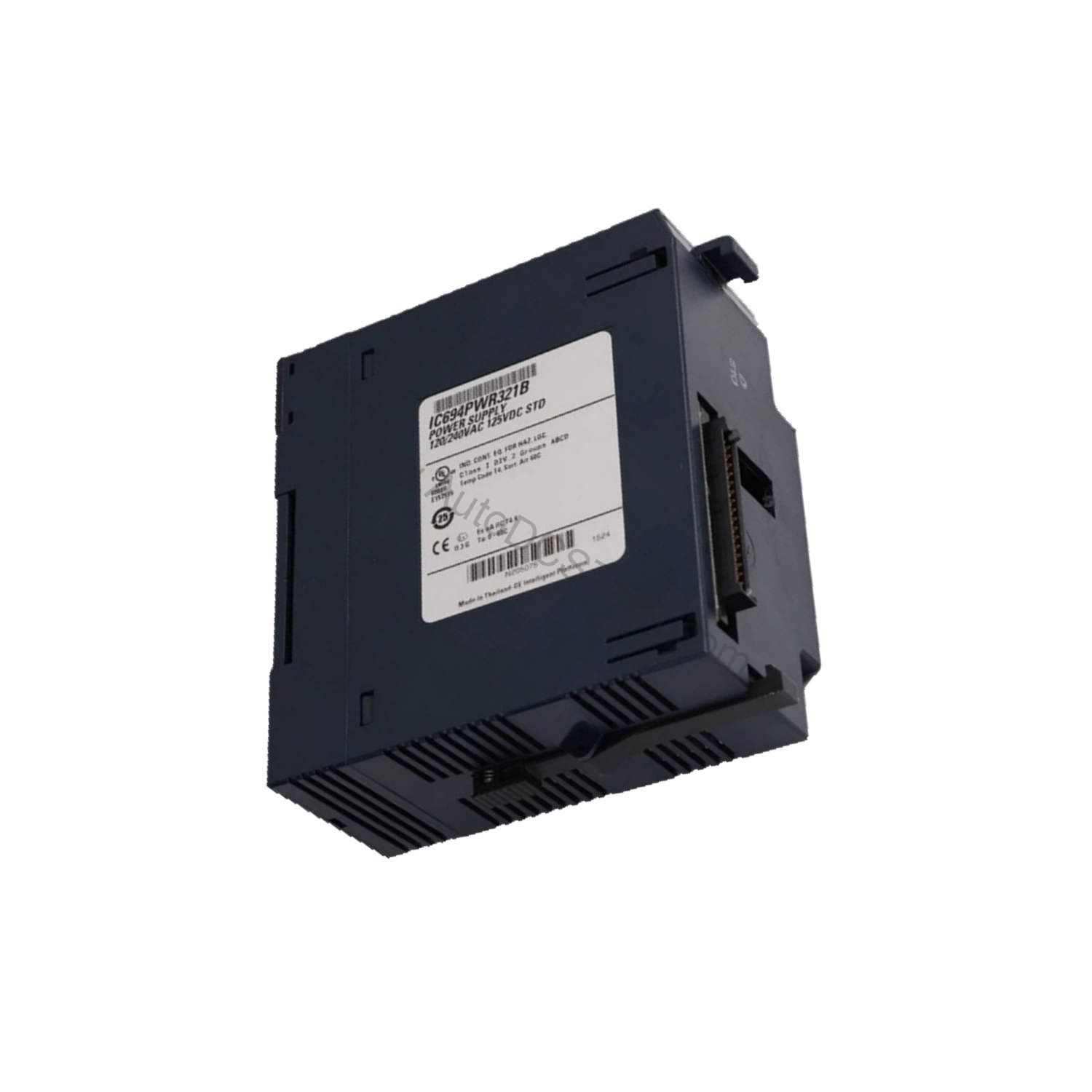

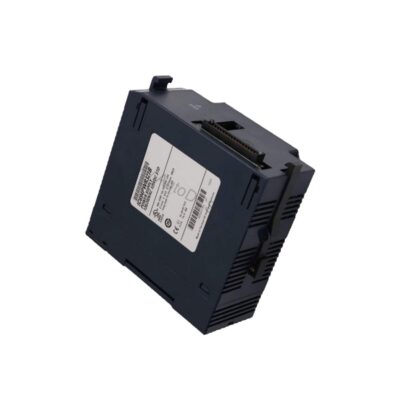

IC694PWR321B GE PACSystems RX3i Power Supply Module 85-264V AC

What Is the IC694PWR321B Power Supply?

The IC694PWR321B is a standard-capacity power supply module engineered for the GE PACSystems RX3i backplane. Originally manufactured by GE Fanuc and now owned by Emerson, this module converts a wide AC or DC input into a regulated 5 V DC logic rail. Consequently, it powers I/O modules and backplane communications with engineering-grade precision. If your RX3i rack loses logic power or exhibits unstable module behavior, the IC694PWR321B addresses the root cause by providing a verified, wide-range input stage.

IC694PWR321B Electrical Specifications and Input Flexibility

Industrial power sources vary significantly across facilities. Therefore, the IC694PWR321B accepts 85-264 V AC at 50/60 Hz, covering both 120 V AC and 240 V AC nominal systems without manual switching. For DC-powered cabinets, the module also accepts 100-300 V DC, rated at 125 V DC. This dual-input capability eliminates the need for separate power supply variants. Additionally, input power draw is specified at 90 VA maximum on AC and 50 W maximum on DC, allowing accurate load calculations for enclosure thermal design.

Addressing Backplane Power Failures with the IC694PWR321B

A common failure mode in RX3i systems is intermittent module dropout caused by marginal input voltage or aging power supplies. The IC694PWR321B mitigates this by maintaining regulation across a 85-264 V AC window, which tolerates significant line sag. Furthermore, the 5 V DC output feeds the backplane logic directly, so any degradation in this rail affects every installed module. Therefore, when troubleshooting unexplained I/O faults, verify the IC694PWR321B output and input connections first. The IP20 rating means the module requires a clean, dry enclosure environment, consistent with typical control cabinet practice.

Installation and Environmental Considerations

Mount the IC694PWR321B in a PACSystems RX3i backplane slot following the rack's power budget guidelines. Because the module measures 145 × 34 × 140 mm, it occupies a standard RX3i I/O slot footprint. Ensure the operating ambient remains between 0 and +60°C, and maintain relative humidity between 5 and 95% non-condensing. Storage from -40 to +85°C is acceptable for spares. For precise electrical specifications and slot compatibility, contact AutoDCSTech with your exact requirements for precise matching.
