Introduction

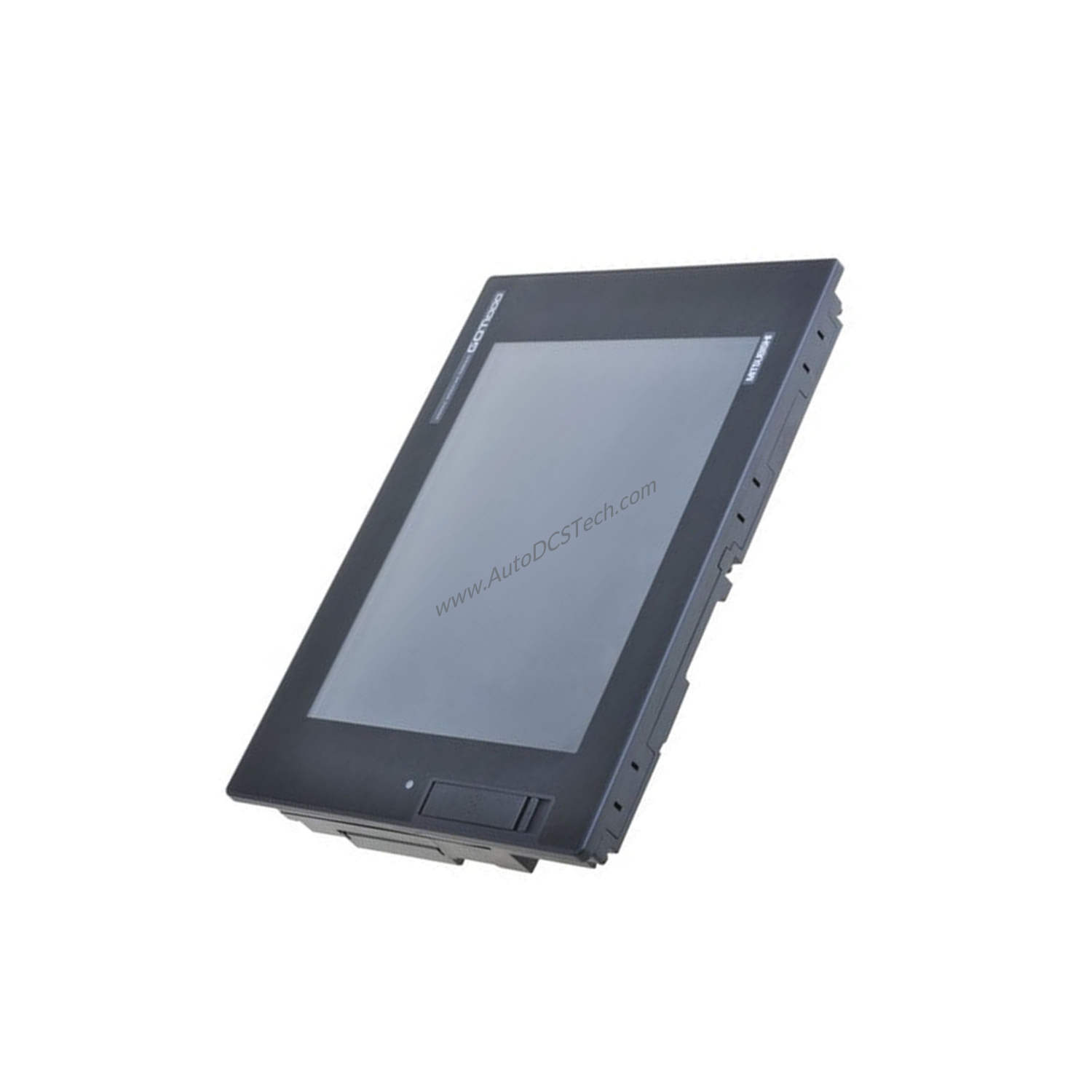

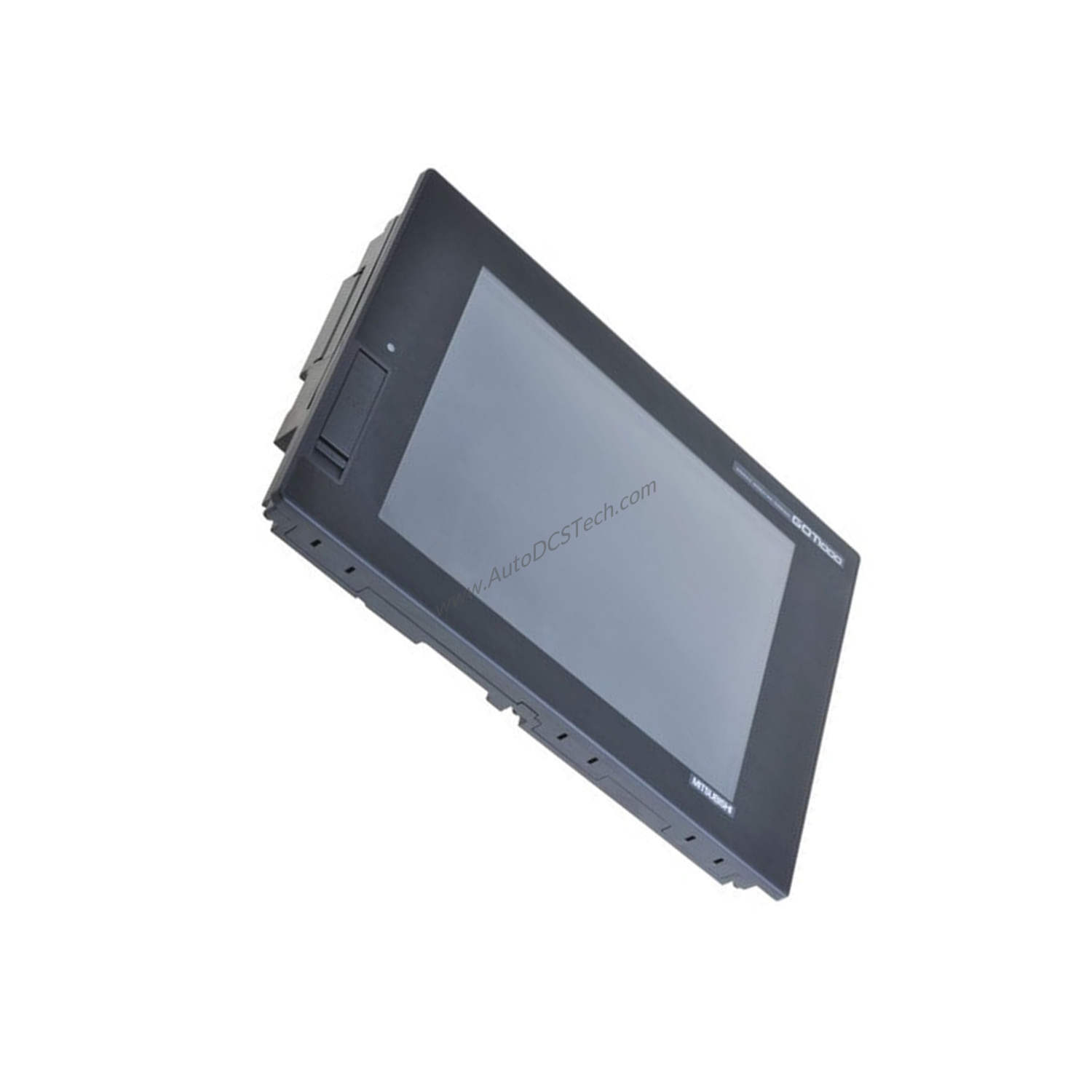

When you need a reliable operator interface for demanding industrial environments, the Mitsubishi GT1685M-STBA from the GOT1000 series GT16 delivers. This 12.1-inch TFT color LCD HMI combines high brightness, wide viewing angles, and a durable analog resistive touch panel. It is built for applications where clear visualization and responsive control are critical.
Technical Specifications Breakdown
The GT1685M-STBA offers a 12.1-inch screen with SVGA resolution of 800 × 600 dots. The display size measures 246 (W) × 184.5 (H) mm, providing ample space for detailed process graphics. It supports 65536 colors for vivid, easy-to-read screens. The viewing angle extends to 80 degrees left and right, 60 degrees up, and 80 degrees down, ensuring visibility from various operator positions. LCD brightness is rated at 470 Cd/m² with 8 levels of adjustment, and the backlight uses a replaceable cold-cathode tube with a lifespan of approximately 50,000 hours or more at 25 °C ambient temperature. The touch panel is analog resistive film type, requiring a minimum key size of 2 × 2 dots and supporting one point touch only. It has a lifespan of one million times or more under 0.98 N operation force. Built-in flash memory of 15 MB stores project data and OS, with a write endurance of 100,000 times.
Industry Applications
This HMI is ideal for manufacturing lines, packaging machinery, and process control systems where operators need to monitor and adjust parameters in real time. The high brightness and wide viewing angle make it suitable for environments with varying ambient light. The robust touch panel withstands repeated use in production floors. For example, in a bottling plant, the GT1685M-STBA can display line status, alarm logs, and production counts, allowing quick operator response.
Installation & Setup Guidance
Mount the GT1685M-STBA in a panel cutout following the dimensions provided in the manual. Ensure adequate clearance for ventilation and cable connections. Connect the power supply according to the applicable standards (UL /cUL, CE, KC, ABS, BV, DNV, LR, NK, RINA, GL). Use the built-in flash memory to load project data via the GOT1000 programming software. Configure the backlight OFF and screen save time settings to extend the backlight lifespan. The human sensor detects presence up to 1 meter with a detection range of 70 degrees up, down, left, and right, enabling automatic screen wake-up.
Maintenance & Reliability
Regularly inspect the backlight and touch panel for wear. The cold-cathode tube is replaceable, reducing long-term ownership costs. The touch panel rated for one million operations ensures reliable performance in high-cycle applications. Keep the display clean using a soft, dry cloth. Verify that the ambient temperature stays within the specified range to maximize component life. The built-in flash memory with 100,000 write cycles supports frequent project updates without degradation.
Compatibility & Integration
The GT1685M-STBA is part of the Mitsubishi GOT1000 series GT16, compatible with Mitsubishi PLCs and other automation devices. It supports multiple communication protocols through optional interface modules (not included). The human sensor feature allows integration with energy-saving automation schemes. For system integration, consult the GOT1000 series manual for network configuration.
Selection Guide & Purchasing Advice
Before ordering, verify that your application requires a 12.1-inch SVGA display with analog resistive touch. Confirm that the operating environment meets the product standards (UL, CE, KC, etc.). The shipping weight is 4.0 kg. For current lifecycle status and availability, contact SpareTechPLC. We stock the GT1685M-STBA and can advise on compatible accessories.
Frequently Asked Questions
Q1: What is the display resolution of the GT1685M-STBA?
A: The resolution is SVGA 800 × 600 dots.
Q2: How many colors can the GT1685M-STBA display?
A: It supports 65536 colors.
Q3: What type of touch panel does the GT1685M-STBA use?
A: It uses an analog resistive film type touch panel.
Q4: What is the built-in flash memory capacity?
A: The built-in flash memory is 15 MB.
Q5: Is the backlight replaceable?
A: Yes, the cold-cathode tube backlight is replaceable.
