Product Overview

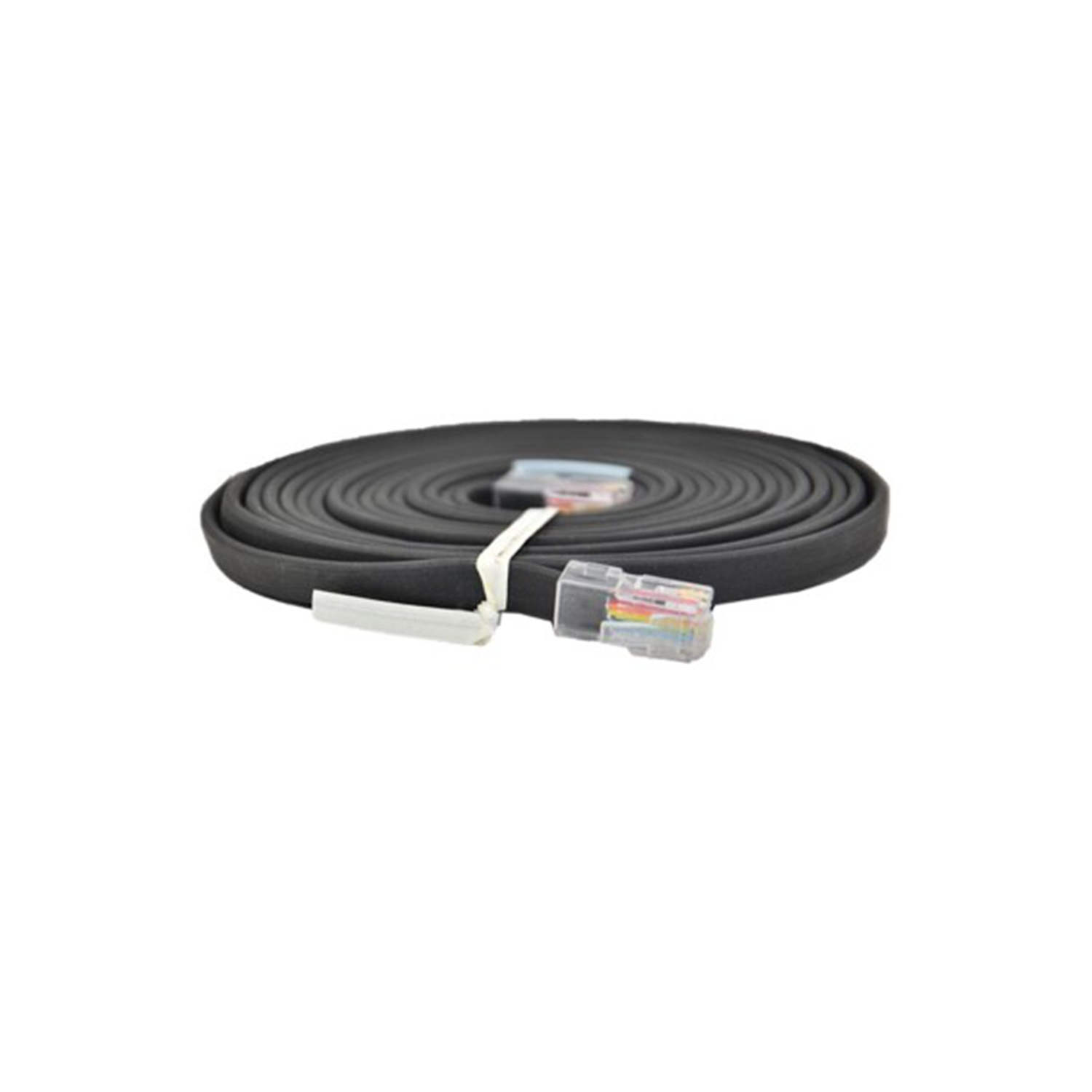

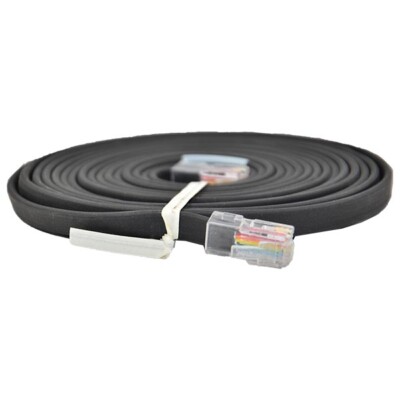

In industrial automation, a failing I/O link can halt production and cause costly downtime. The Schneider 110XCA17102 is a specialized cable engineered for the Modicon Quantum series, serving as a critical spare part for I/O expansion links and module connections. This component ensures efficient data handling and system integration, providing a reliable backbone for your control architecture.
Technical Specifications Breakdown
Key parameters for the 110XCA17102 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Quantum |
| Part Number | 110XCA17102 |
| Weight | 0.25 lbs (0.11 kg) |
| Component Type | Cable |
| Length | 3 meters |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Operating Humidity | 80% RH without condensation |
| Maximum Storage Humidity | 80% RH without condensation |
| Environment | Clean indoor environment with no corrosive chemicals |
| Operating Altitude | Up to 1000 meters above sea level |
Industry Applications
This cable excels in structured industrial settings where reliable I/O expansion is paramount. For example, in a manufacturing plant using Modicon Quantum controllers, the 110XCA17102 connects remote I/O racks to the main CPU, enabling real-time data acquisition without signal degradation. Its 3-meter length provides flexibility for cabinet layouts, while the clean indoor environment requirement ensures long-term performance in controlled areas. In water treatment facilities, this spare part minimizes replacement downtime, supporting continuous operation.
Installation & Setup Guidance
When installing this I/O module cable, ensure the operating environment stays within 0 to 40 degrees Celsius and humidity below 80% RH without condensation. Route the cable away from high-voltage lines to avoid electromagnetic interference. Secure both connectors firmly to prevent accidental disconnection. For optimal performance, avoid bending the cable beyond its natural radius and use cable ties to manage slack.
Maintenance & Reliability
Inspect the cable periodically for physical damage, especially at connector ends. Keep the installation area clean and free of corrosive chemicals, as specified. Storage conditions should remain below 50 degrees Celsius with humidity under 80% RH. Since this is a passive component, no regular calibration is needed, but visual checks every six months help ensure reliability.
Compatibility & Integration
The 110XCA17102 is designed specifically for the Modicon Quantum series, supporting I/O expansion links and I/O module connections. It integrates seamlessly with existing Quantum backplanes and remote I/O adapters. Verify that your system firmware supports this cable revision before installation.
Selection Guide & Purchasing Advice
When selecting a spare I/O cable, verify the part number matches your system requirements. The 110XCA17102 is a genuine Schneider Electric accessory, ensuring compatibility and performance. At SpareTechPLC, we stock this cable for immediate shipment. Please verify current lifecycle status and availability with SpareTechPLC before ordering to ensure it meets your project timeline.
Troubleshooting & Common Issues
If communication errors occur after installation, check that both ends of the cable are fully seated. Inspect for bent pins or debris in the connectors. Ensure the operating temperature remains between 0 and 40 degrees Celsius, as extreme heat can degrade signal quality. If the issue persists, test with a known-good cable to isolate the problem.
