Product Overview

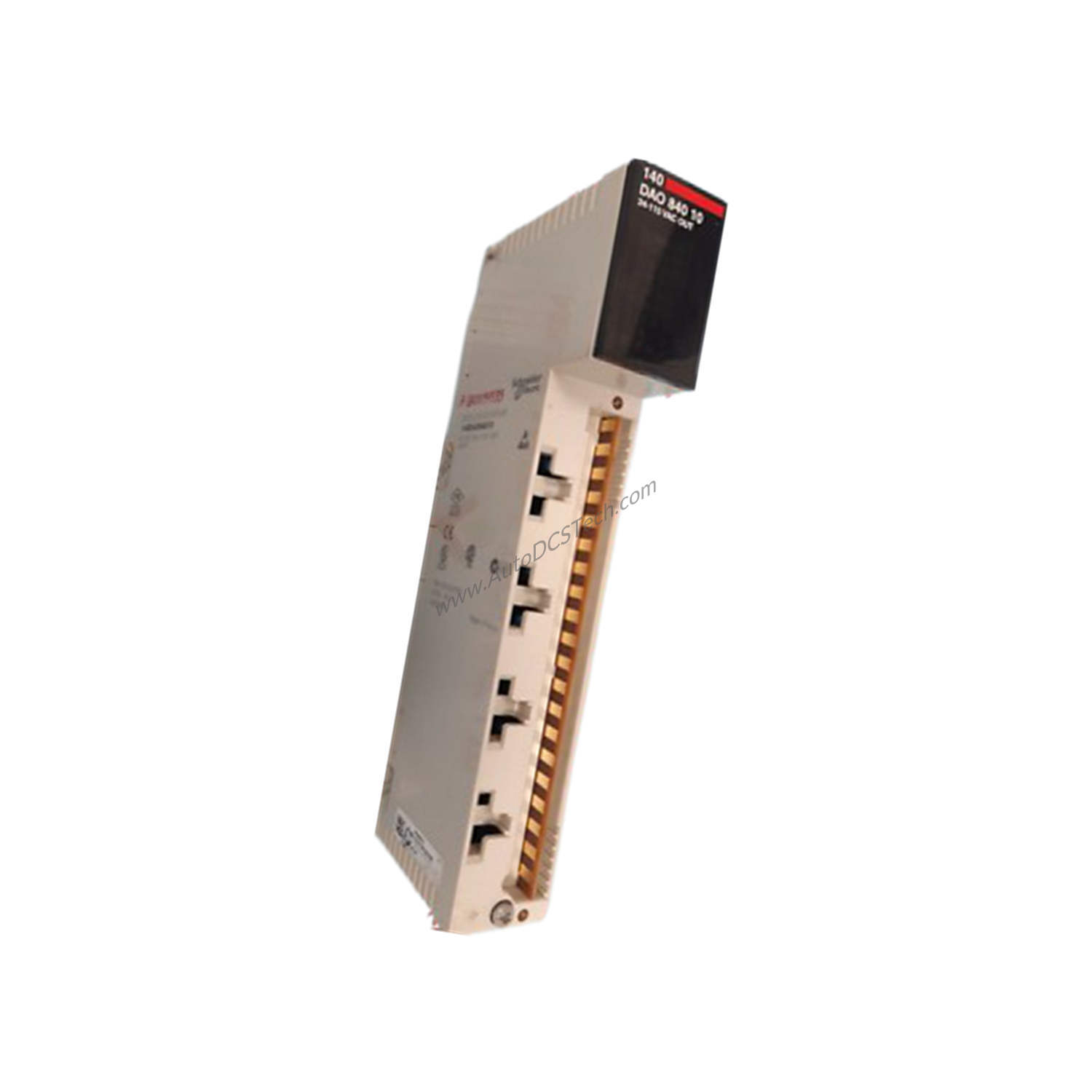

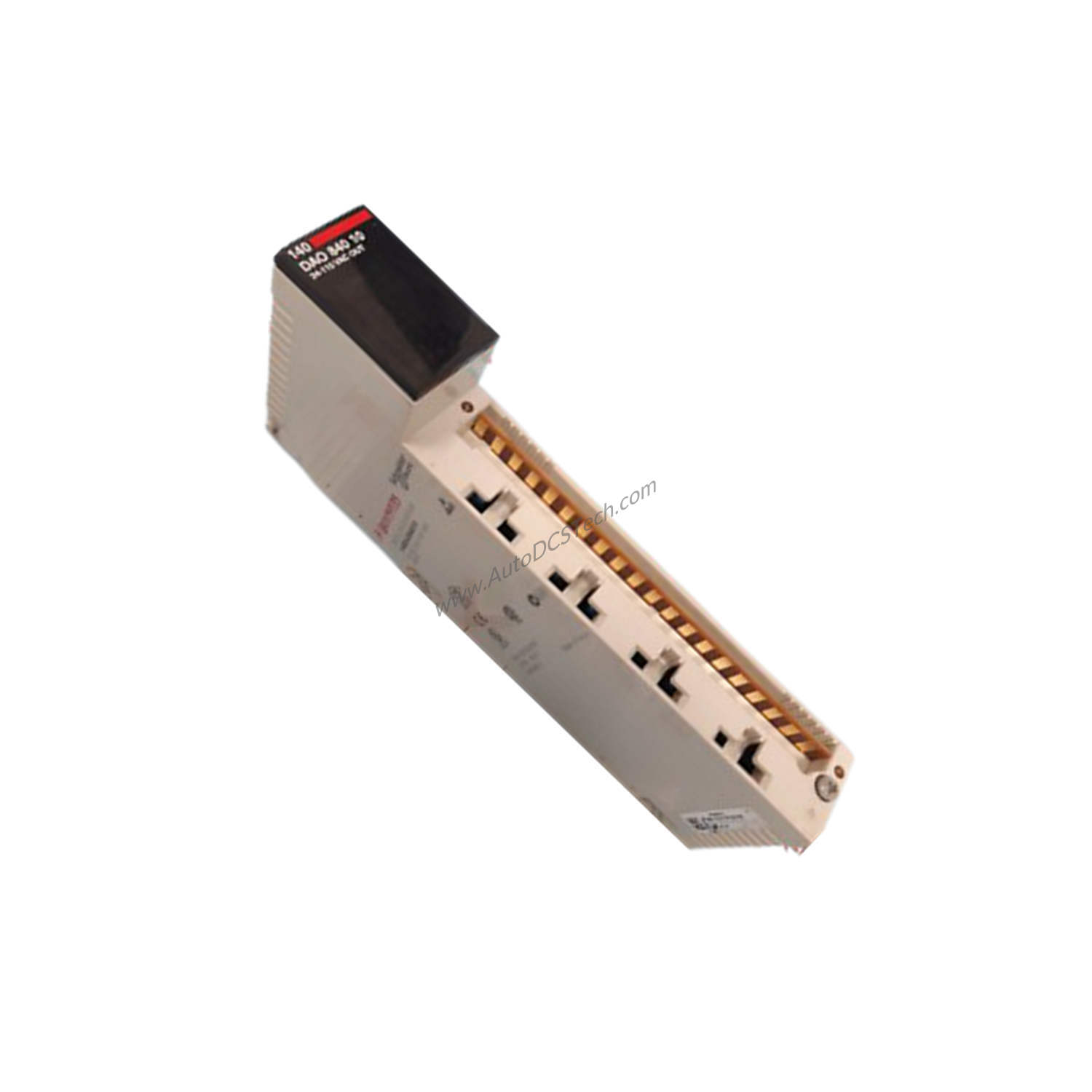

Industrial automation systems often face the challenge of reliably controlling multiple AC loads in harsh environments. The Schneider Electric 140DAO84010, part of the Modicon Quantum series, solves this by providing 16 isolated discrete output channels. Each channel delivers 20 to 132V AC, ensuring clean switching for motors, valves, and indicators. This module is designed for engineers who need robust, rack-mountable output control with minimal voltage drop.
Technical Specifications
Key parameters for the 140DAO84010 are listed below for quick reference:
- Output Type: Discrete Outputs
- Number of Channels: 16 Channels
- Discrete Output Voltage: 20 to 132V AC
- Isolated Outputs: Yes
- Supply Frequency: 47-63 Hz
- Maximum Voltage Drop: 1.5V
- Groups of Channels: 16 Groups
- Absolute Maximum Output: 156V at 10 s AC, 200V at 1 Cycle AC
- DV/dt Rating: 400V/rms
- Operating Temperature Range: 0°C to 60°C
- Storage Temperature Range: -40°C to 85°C
- Mounting Type: Rack Mountable
- Maximum Relative Humidity: 95% Without Condensation
- CE Marking: Yes
These values are sourced directly from the manufacturer's specifications.
Industry Applications
1. Discrete Control in Manufacturing Lines
In assembly or packaging lines, the 140DAO84010 switches AC solenoids and contactors. Its 16 isolated channels allow each output to control a separate device, reducing wiring complexity. The 1.5V maximum voltage drop ensures efficient power delivery even over long cable runs.
2. HVAC System Management
For building automation, this module operates within 0°C to 60°C, making it suitable for equipment rooms. The 47-63 Hz supply frequency matches global power standards, and the 95% non-condensing humidity tolerance handles damp environments.
3. Process Control Redundancy
In critical processes, the isolated outputs prevent ground loops. The 400V/rms DV/dt rating protects against transient surges, while the 156V/200V absolute maximum output handles short overvoltage events without damage.
Installation & Setup Guidance
Mount the 140DAO84010 in any standard Modicon Quantum rack. Follow these steps:
- Ensure the rack is powered off before insertion.
- Align the module with the backplane connector and push firmly until latched.
- Connect AC loads to the terminal block, respecting the 20-132V AC range.
- Configure the addressing in your control software using 1 output word per module.
- Verify that the supply frequency matches your local grid (47-63 Hz).
Do not exceed the absolute maximum output of 156V for 10 seconds or 200V for one cycle.
Maintenance & Reliability
Inspect the module quarterly for dust accumulation on the rack and connectors. The operating temperature range of 0°C to 60°C should be maintained; ensure adequate ventilation. The storage temperature range of -40°C to 85°C allows safe off-site storage. Keep relative humidity below 95% without condensation to prevent corrosion.
Compatibility & Integration
The 140DAO84010 integrates seamlessly with the Modicon Quantum automation platform. It uses standard backplane communication and requires 350 mA bus current. The module is CE marked, confirming compliance with European directives.
Selection Guide & Purchasing Advice
When selecting a discrete output module, consider channel count, voltage range, and isolation. The 140DAO84010 offers 16 isolated AC channels at 20-132V AC. For availability and lifecycle status, contact SpareTechPLC. We stock genuine Schneider parts and can advise on replacements or upgrades.
Troubleshooting & Common Issues
- Output not switching: Check the supply frequency (47-63 Hz) and output voltage (20-132V AC). Verify the bus communication LED (green) is lit.
- External fault LED (red) on: Inspect the load for short circuits or overcurrent. The module has internal RC protection.
- High voltage drop: Measure the voltage at the load; if exceeding 1.5V, check wiring gauge and connections.
- Module not recognized: Ensure the rack is powered and the module is fully seated. Check bus current requirement of 350 mA.
