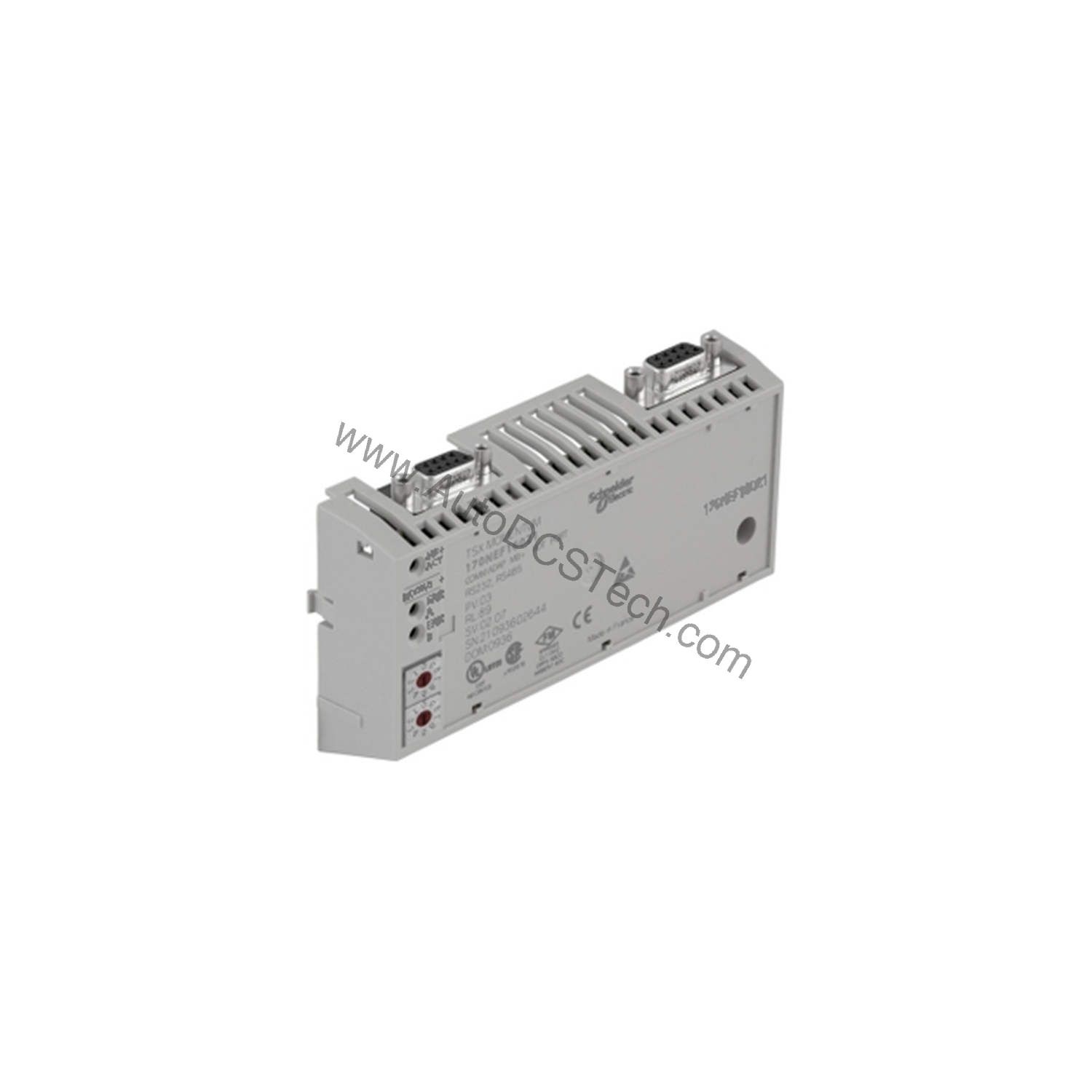

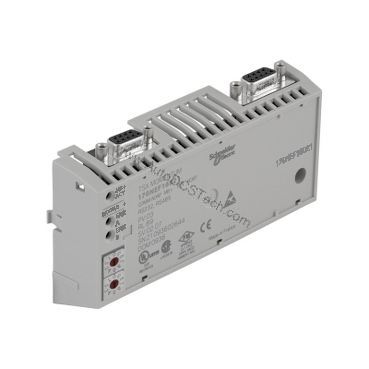

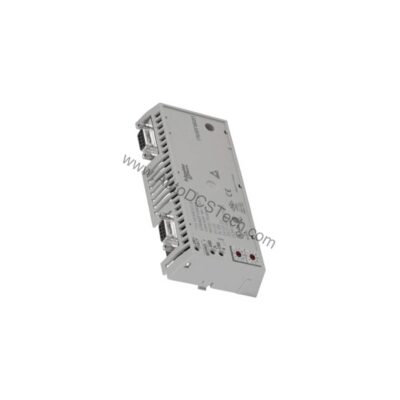

Schneider 170PNT11020C Modbus Plus Communication Adapter for Modicon Momentum

Technical Specifications Breakdown

Key parameters for the 170PNT11020C are listed below for quick reference:

Industry Applications for the Modbus Plus Adapter

Manufacturing Line Integration

In automotive or packaging lines, multiple PLCs and drives must share real-time data. The 170PNT11020C enables seamless connection of up to 31 devices per segment over a multidrop network. Its 1 Mbit/s rate supports fast I/O updates, reducing downtime in high-speed production.

Building Automation and SCADA

For large facilities like airports or data centers, the adapter's 5000 m cable length allows centralized monitoring of distributed HVAC, lighting, and power systems. The IP20 rating makes it suitable for clean indoor electrical rooms.

Installation and Setup Guidance

Mount the adapter in a dry, indoor location within an IP20-rated enclosure. Use a standard SUB-D9 connector for the Modbus Plus network. Ensure the total cable length does not exceed 5000 m per segment. Terminate the network properly at both ends to avoid reflections. The LED indicators provide immediate visual status of power and communication activity.

Maintenance and Reliability

The 170PNT11020C requires minimal maintenance. Periodically inspect the SUB-D9 connection for corrosion or loose pins. Keep ambient humidity below 80% non-condensing to prevent moisture damage. Operating altitude is limited to 1000 m; for higher installations, consult Schneider for derating guidelines. The 8 kV electromagnetic field resistance ensures stable operation in industrial environments with heavy machinery.

Robust Communication for Distributed Control Networks

In complex industrial environments, reliable data exchange between controllers and field devices is critical. The Schneider 170PNT11020C communication adapter, part of the Modicon Momentum series, addresses this need with a dedicated Modbus Plus interface. This component ensures deterministic, high-speed communication at 1 Mbit/s, making it suitable for real-time control applications where latency must be minimized.

Compatibility and Integration

This adapter is designed exclusively for the Modicon Momentum platform and uses the Modbus Plus protocol. It is not compatible with Modbus TCP or other fieldbuses without additional gateways. The multidrop topology supports up to 31 nodes per segment, making it suitable for medium-sized networks. For larger systems, multiple segments can be bridged.

Selection Guide and Purchasing Advice

When selecting a communication adapter, verify that your controller supports Modbus Plus. The 170PNT11020C is a reliable choice for new installations or as a replacement in existing Modicon Momentum networks. AutoDCSTech stocks this part and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If the LED indicators show no activity, check the SUB-D9 cable for continuity and proper termination. Ensure the network has exactly two terminators. If communication errors occur, verify that no more than 31 devices are connected per segment. Electromagnetic interference can be mitigated by using shielded twisted-pair cable and proper grounding. For persistent issues, consult the Modbus Plus installation manual.
