Introduction

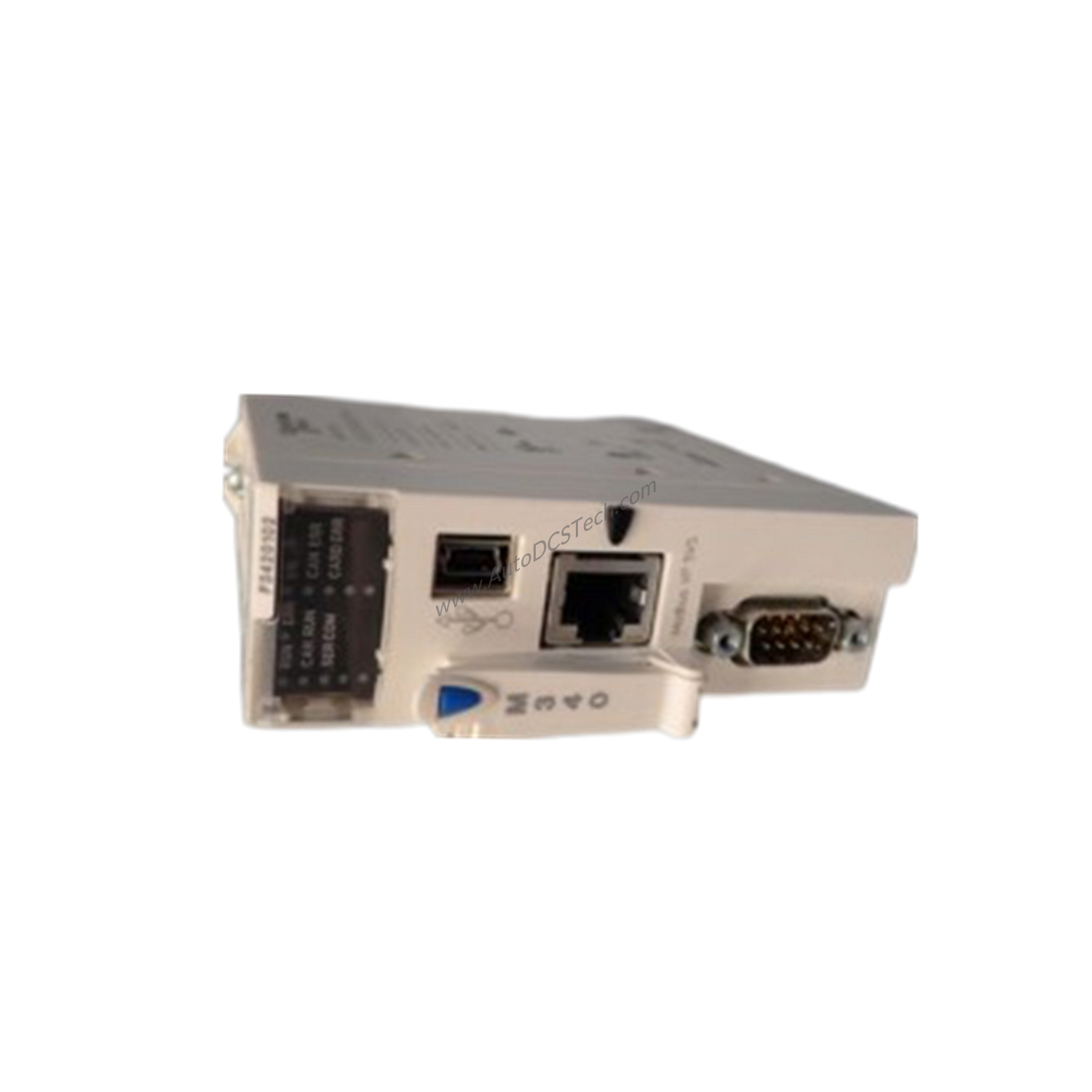

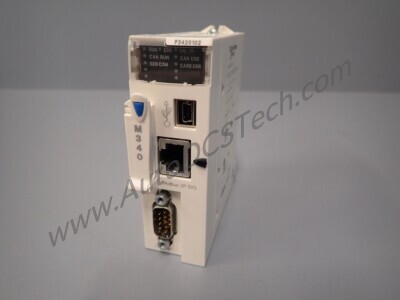

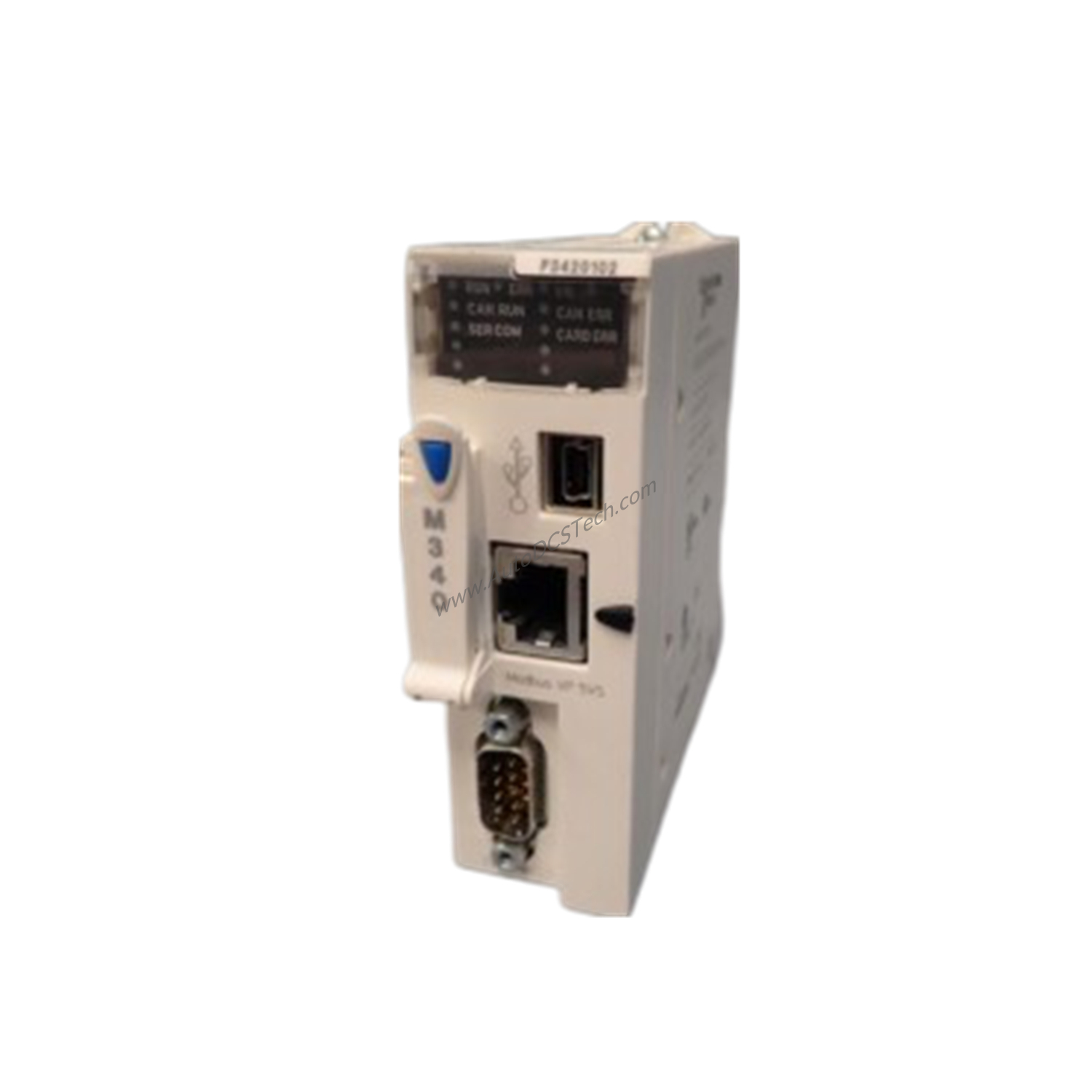

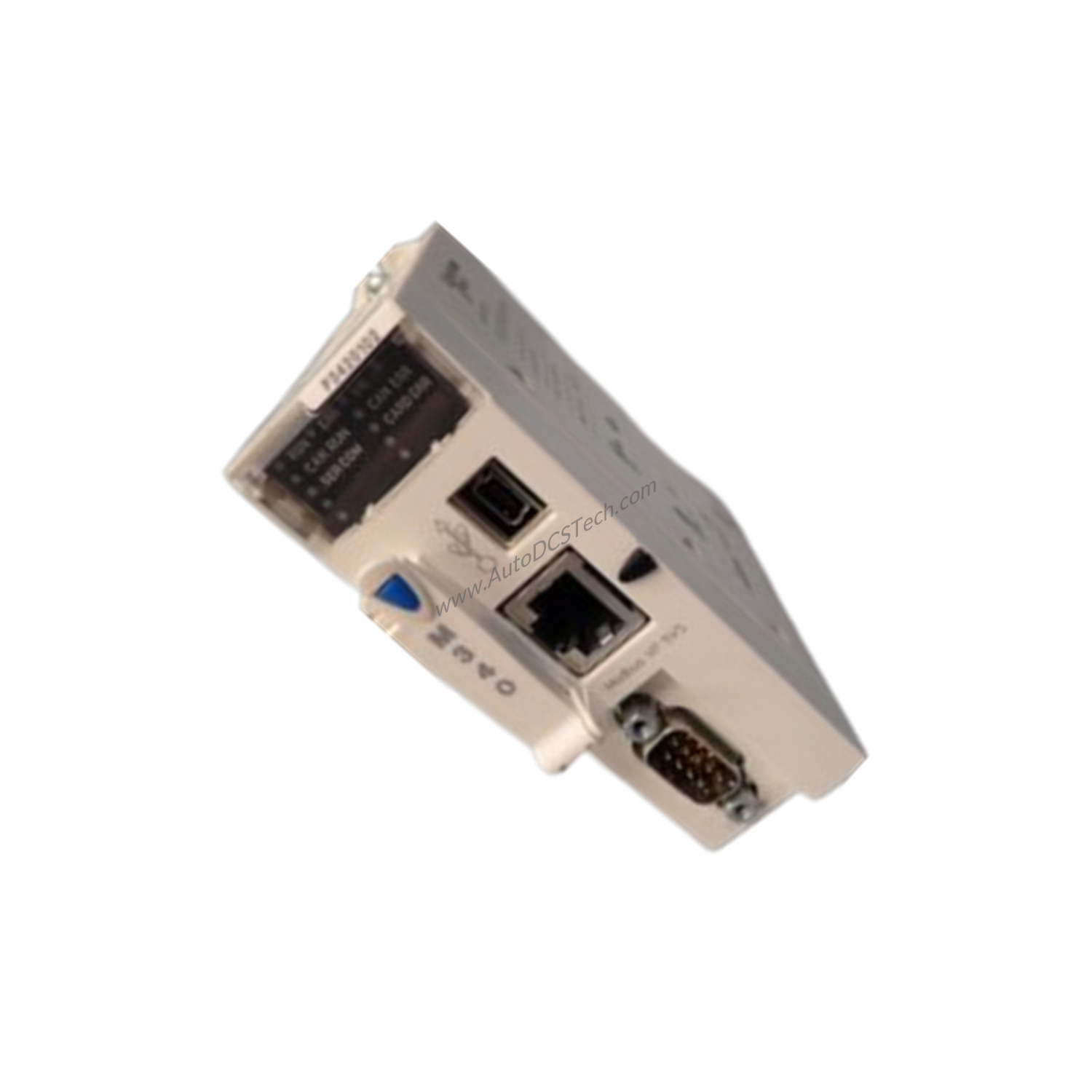

In the evolving landscape of industrial automation, the demand for scalable and flexible control solutions has never been greater. The Schneider BMXP3420102 processor module, part of the Modicon M340 platform, addresses this need by offering robust processing capabilities for mid-range applications. Designed to handle up to 1024 discrete I/O and 256 analog I/O in multi-rack configurations, this module empowers engineers to build efficient systems for manufacturing, process control, and infrastructure management.
Technical Specifications Breakdown
The BMXP3420102 delivers impressive performance metrics that ensure reliable operation in demanding environments. Key specifications include:
- I/O Capacity: Supports 1024 discrete I/O in multi-rack configuration and 704 discrete I/O in single-rack configuration. Analog I/O capacity reaches 256 in multi-rack and 66 in single-rack setups.
- Processing Speed: Executes Boolean instructions in 0.12 µs, single-length words in 0.25 µs, and floating-point operations in 1.16 µs, enabling fast control loops.
- Memory: Internal RAM totals 4096 kB, with 256 kB dedicated to data and 3584 kB for program constants and symbols. A supplied memory card (BMXRMS008MP) backs up programs, constants, symbols, and data.
- Communication: Integrated non-isolated serial links support Modbus RTU/ASCII and character mode via RS232C or RS485, with baud rates from 0.3 to 19.2 kbit/s. A CANopen master bus (SUB-D 9) operates at 20 kbit/s to 1 Mbit/s, managing up to 63 server devices.
- Environmental Ratings: Operates in ambient air temperatures from 32 to 140 °F (0 to 60 °C) with relative humidity of 10 to 95% without condensation. IP20 degree of protection ensures suitability for control cabinet installations.
Industry Applications
The BMXP3420102 excels in discrete manufacturing and process control environments. For example, in a packaging line, its 1024 discrete I/O capacity manages numerous sensors and actuators, while the fast Boolean execution (0.12 µs) ensures precise timing for high-speed operations. In a water treatment facility, the 256 analog I/O channels handle flow and pressure transmitters, and the Modbus communication integrates seamlessly with SCADA systems. The CANopen interface enables motion control for independent axes, making it ideal for conveyor systems or robotic cells.
Installation & Setup Guidance
Mount the BMXP3420102 processor module on a Modicon M340 rack using the internal power supply via the rack. Ensure the rack is properly grounded and that ambient temperature stays within 32 to 140 °F (0 to 60 °C). Connect the non-isolated serial links using RJ45 connectors for Modbus or character mode communication. For CANopen, use a SUB-D 9 connector with two twisted shielded pairs. Verify that the bus length does not exceed the specified limits: for CANopen at 1 Mbit/s, keep cable runs under 65.6 ft (20 m). After installation, check the status LEDs: green RUN LED for processor operation, red ERR LED for faults, and yellow SER COM for Modbus activity.
Maintenance & Reliability
Routine inspection of the BMXP3420102 ensures long-term reliability. Periodically verify that the ambient temperature remains within 32 to 140 °F (0 to 60 °C) and that humidity stays between 10 and 95% without condensation. Check the status LEDs regularly—if the red ERR or I/O LEDs illuminate, investigate potential faults. The module’s IP20 protection requires installation in a clean, dry control cabinet. Follow manufacturer guidelines for any cleaning or servicing to avoid damaging sensitive electronics.
Compatibility & Integration
The BMXP3420102 integrates with the Modicon M340 automation platform and supports multiple communication protocols. It connects via Modbus (RTU/ASCII) and CANopen, enabling interoperability with a wide range of devices. The module can manage up to 2 Ethernet communication modules and 4 AS-Interface modules, expanding its connectivity. It also supports up to 63 CANopen server devices, making it suitable for distributed control architectures. For programming and diagnostics, the USB port (12 Mbit/s) provides direct access.
Selection Guide & Purchasing Advice
Before purchasing the BMXP3420102, verify that your application requires the I/O capacity and communication features this module offers. Ensure compatibility with your existing Modicon M340 rack and power supply. The module supports up to 4 racks and 11 slots, so plan your system layout accordingly. At SpareTechPLC, we stock this processor module and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q1: What is the maximum number of discrete I/O the BMXP3420102 can handle?
A: In a multi-rack configuration, it supports up to 1024 discrete I/O. In a single-rack configuration, it supports up to 704 discrete I/O.
Q2: What communication protocols does the BMXP3420102 support?
A: It supports Modbus (RTU/ASCII) and CANopen, with integrated non-isolated serial links for RS232C and RS485.
Q3: What is the execution time for Boolean instructions?
A: The BMXP3420102 executes Boolean instructions in 0.12 µs, ensuring fast processing for control tasks.
Q4: What is the operating temperature range for this module?
A: It operates in ambient air temperatures from 32 to 140 °F (0 to 60 °C).
Q5: Does the BMXP3420102 come with a memory card?
A: Yes, it is supplied with a BMXRMS008MP memory card for backup of programs, constants, symbols, and data.
