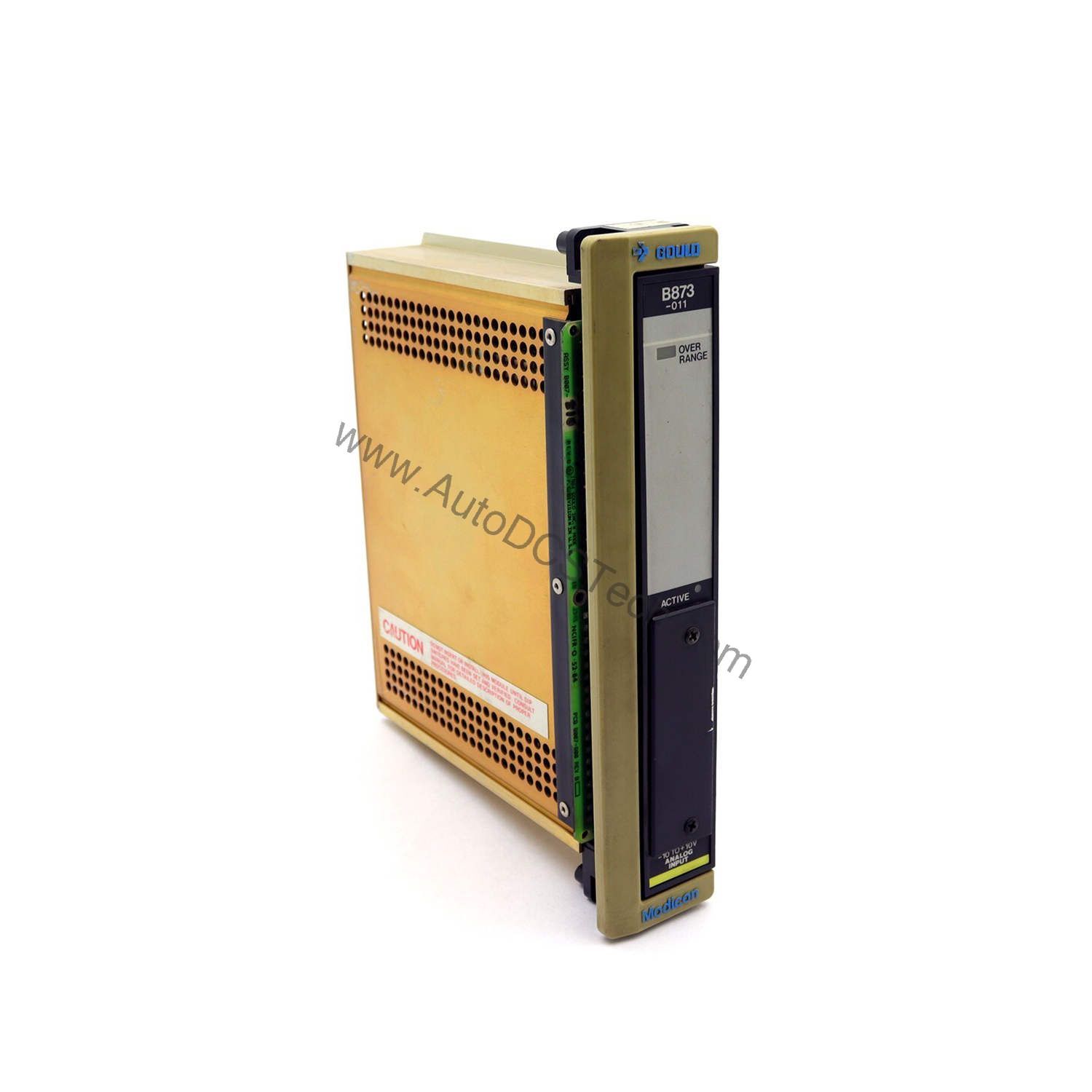

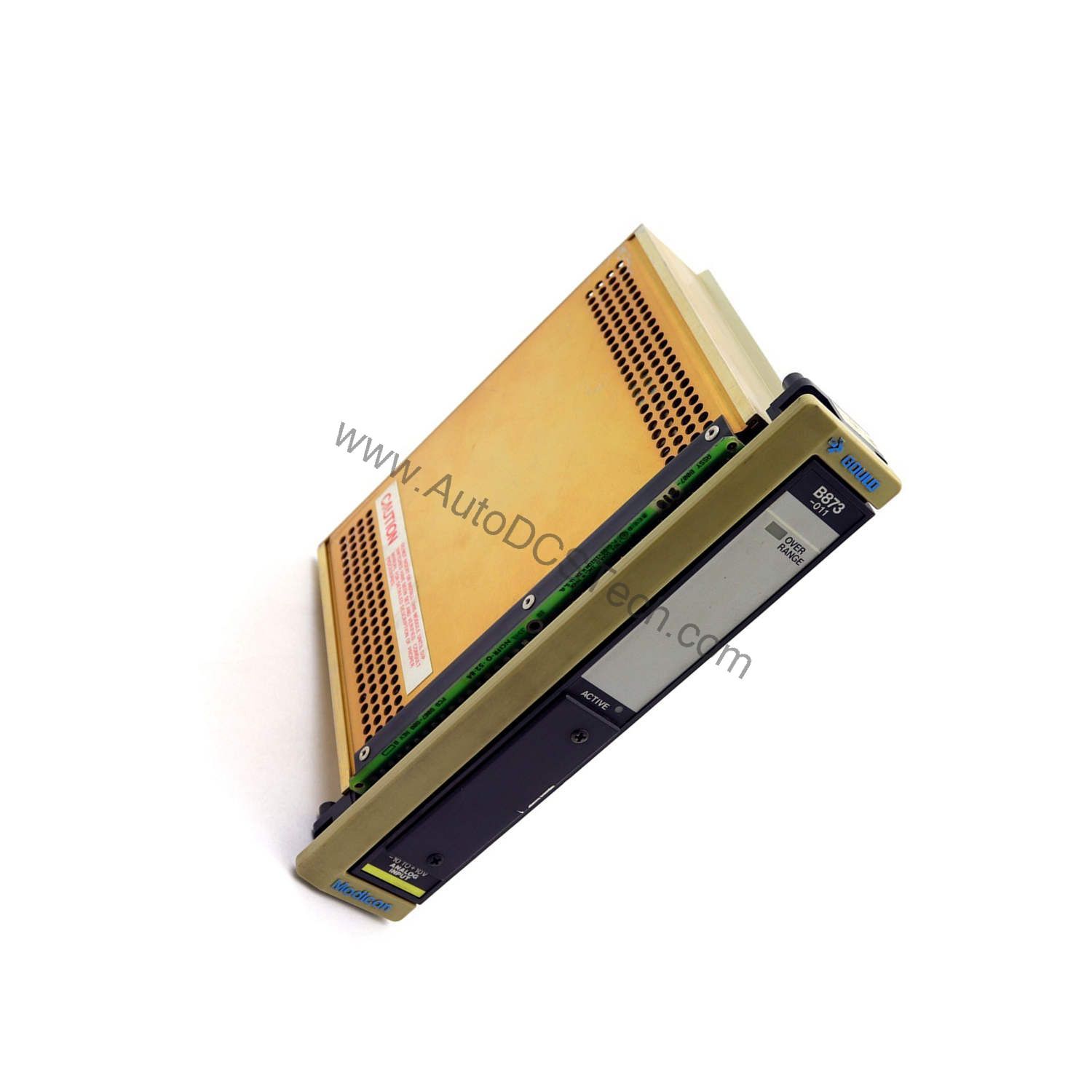

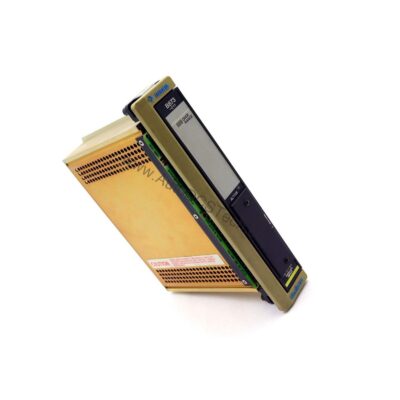

Schneider Modicon AS-B873-011 Analog Input Module 4 Points 10V

Technical Specifications Breakdown

Key parameters for the AS-B873-011 are listed below for quick reference:

Industry Applications and Cost Benefits

Process Control in Harsh Environments

In manufacturing plants where ambient temperatures range from 0 to 60 degrees Celsius, the AS-B873-011 reliably handles analog inputs from sensors. Its 4-20 mA current loop compatibility ensures accurate signal transmission over long distances, reducing signal noise and the need for expensive repeaters. This lowers total cost of ownership.

Building Automation Systems

For HVAC or lighting control, the module's 10 V voltage rating and 4-20 mA range allow direct connection to standard transducers. The IP20 protection class makes it suitable for clean, enclosed control panels, avoiding the cost of higher-rated enclosures.

Installation and Setup Guidance

Mount the AS-B873-011 securely in a Modicon backplane. Ensure ambient temperature stays between 0 and 60 degrees Celsius and humidity below 80% RH non-condensing. Use shielded twisted-pair cables for analog inputs to minimize electromagnetic interference. Do not exceed the 10 V voltage rating or the 20 mA maximum current.

Maintenance and Reliability

Periodically inspect the module for dust accumulation, as IP20 does not prevent all particle ingress. Clean with a dry, lint-free cloth. Verify that operating altitude remains below 1000 meters to avoid derating. The module's 80% RH storage humidity tolerance allows safe storage in typical warehouse conditions.

Cost-Effective Analog Signal Processing with the AS-B873-011

Industrial automation often requires precise measurement of analog signals such as temperature, pressure, or flow. The Schneider Modicon AS-B873-011 input module offers a cost-effective solution for capturing these signals, reducing the need for multiple discrete components and simplifying system design. By integrating four analog input points into a single module, you lower wiring costs and panel space requirements.

Compatibility and Integration

This input module integrates directly with Schneider Modicon programmable logic controllers. Its four analog input points share a common architecture with other Modicon I/O modules, simplifying system expansion and reducing spare parts inventory.

Selection Guide and Purchasing Advice

When selecting the AS-B873-011, verify that your application requires 4 analog inputs with 10 V and 4-20 mA capability. For cost-sensitive projects, this module offers a balanced trade-off between performance and price. AutoDCSTech stocks this module and can provide lifecycle status and availability information.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
