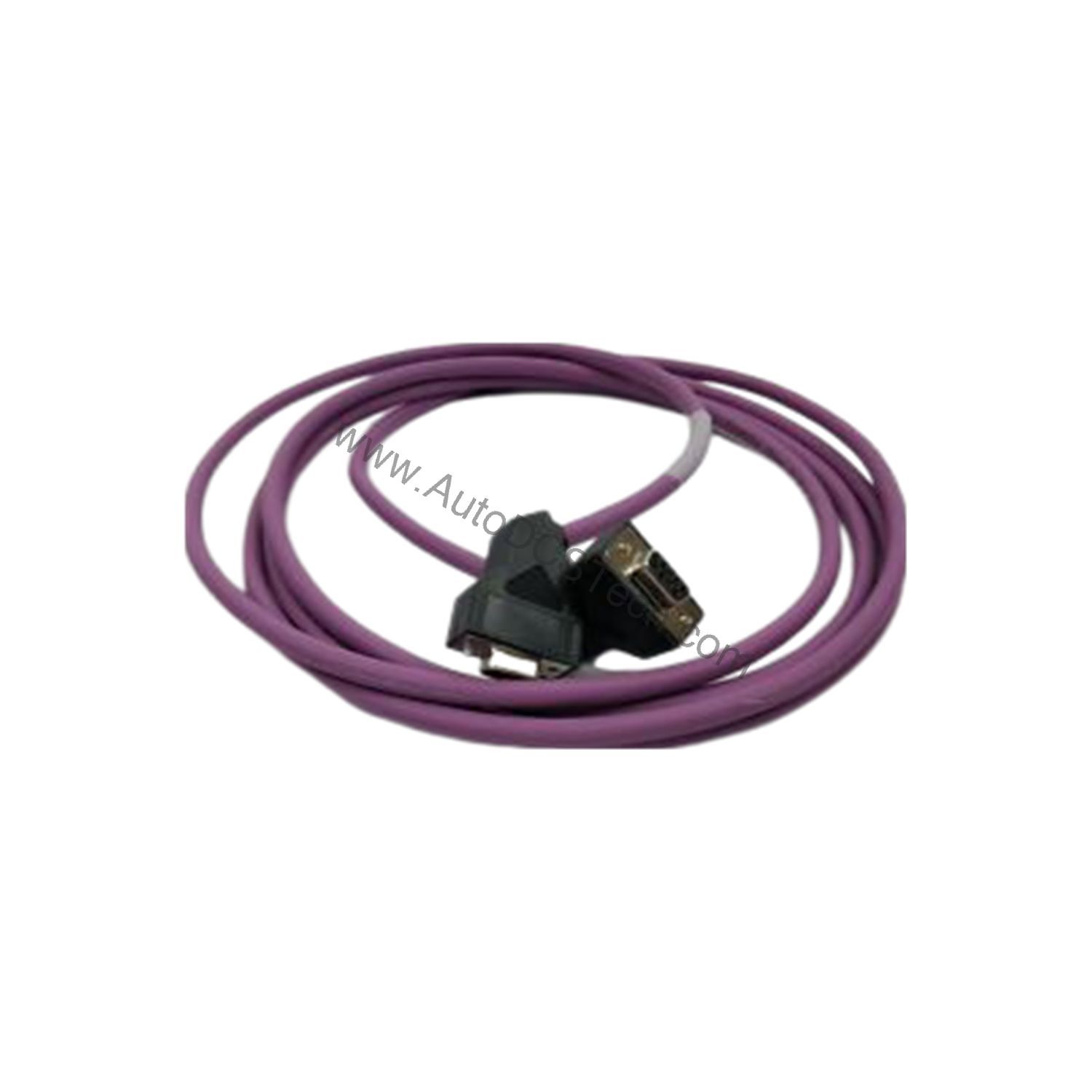

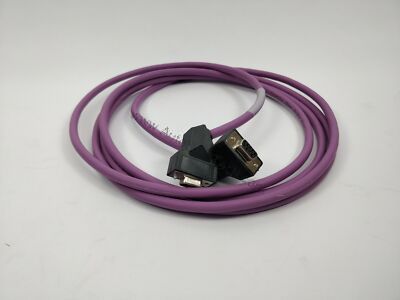

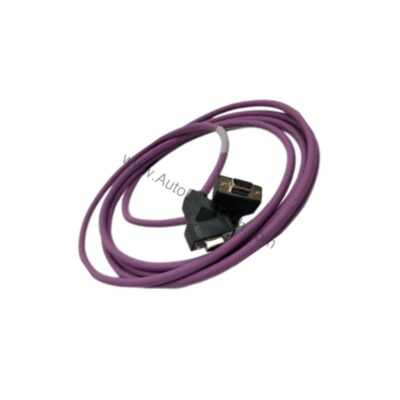

Schneider TSXCANCADD3 CANopen Cordset with SUB-D9 Connectors, 3m

Technical Specifications Breakdown

Key parameters for the TSXCANCADD3 are listed below for quick reference:

Industrial Applications and Use Cases

The 3-meter length provides flexibility for cabinet-to-machine connections while maintaining signal integrity. Its IP20 rating makes it suitable for use in clean, dry control cabinets where protection from dust and accidental contact is required.

Installation and Setup Guidance

When installing the TSXCANCADD3, ensure that the SUB-D9 connectors are firmly seated and the locking screws are tightened to prevent accidental disconnection. Route the cable away from high-voltage power lines to avoid noise coupling. For optimal performance, use the cordset within the specified CANopen network topology and termination requirements.

Maintenance and Reliability

Periodically inspect the connectors for signs of wear, corrosion, or damage. Keep the IP20-rated connectors free from dust and moisture. The molded design provides strain relief and protects internal wiring, reducing the need for frequent replacements. Store spare cordsets in a clean, dry environment.

Reliable CANopen Bus Connection with Schneider TSXCANCADD3

Industrial automation networks demand robust and dependable cabling to ensure uninterrupted communication. The Schneider TSXCANCADD3 CANopen cordset provides a pre-assembled, high-integrity solution for connecting devices on a CANopen bus. This standard cordset features molded female SUB-D9 connectors, offering a secure and shielded connection that minimizes signal degradation and electromagnetic interference in harsh industrial environments.

Compatibility and Integration

The TSXCANCADD3 is designed for use with Schneider Electric CANopen devices and other CANopen-compatible equipment. It supports standard CANopen communication protocols and is CE marked for compliance with European directives. Verify compatibility with your specific device models before installation.

Selection Guide and Purchasing Advice

When selecting a CANopen cordset, consider cable length, connector type, and environmental protection. The TSXCANCADD3 offers a standard 3-meter length with female SUB-D9 connectors, suitable for many typical installations. For custom lengths or different connector configurations, consult AutoDCSTech for alternative options. This model is available for purchase at AutoDCSTech, a trusted supplier of industrial automation parts.

Troubleshooting and Common Issues

If communication errors occur, first check that the connectors are fully seated and the cable is not damaged. Verify that the CANopen network is properly terminated and that the baud rate matches the device settings. If problems persist, test with a known-good cordset to isolate the issue. The TSXCANCADD3 is a passive component; most communication issues stem from network configuration or device faults.
