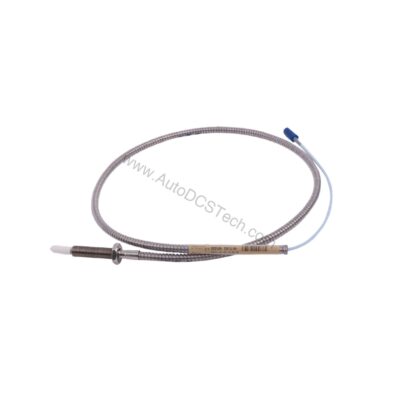

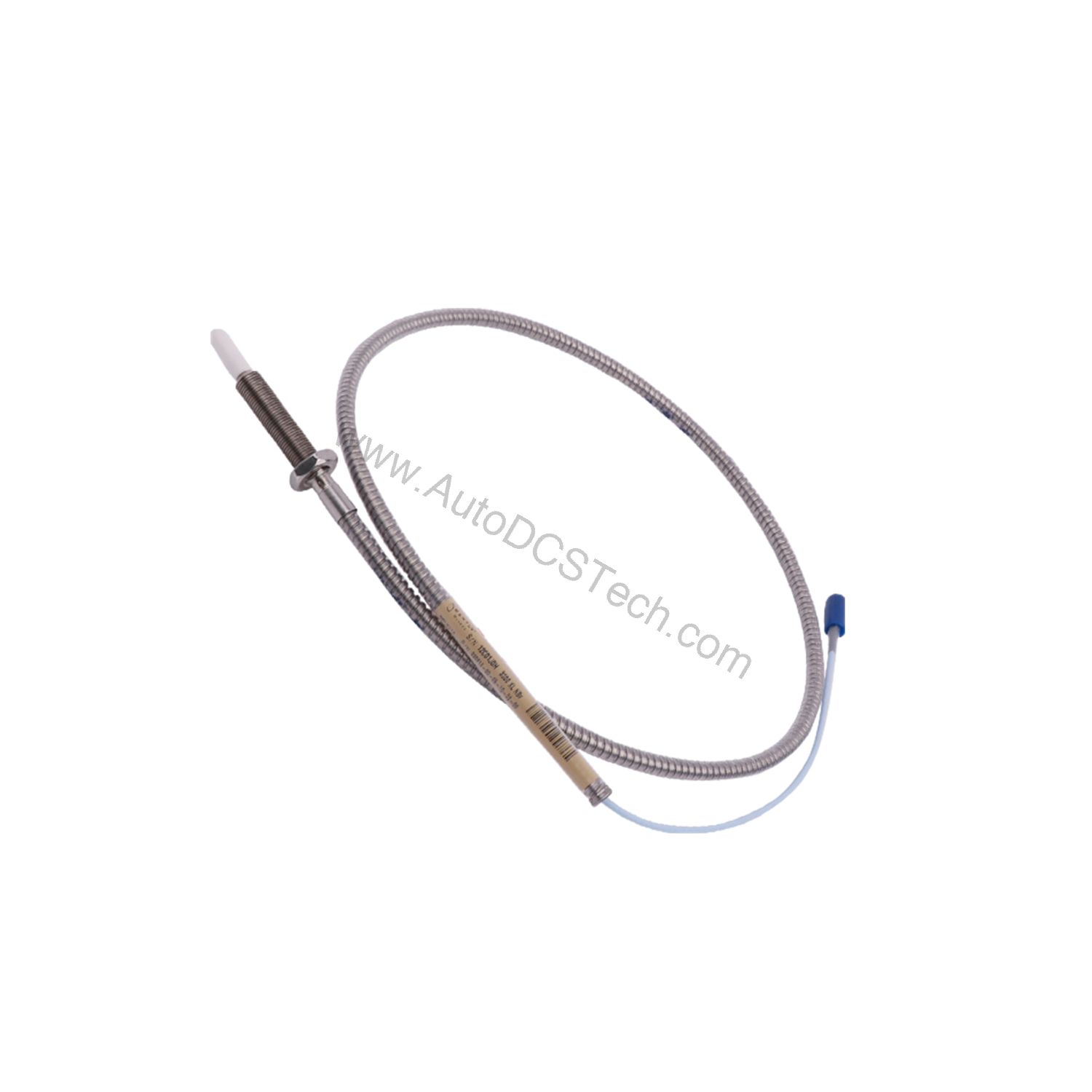

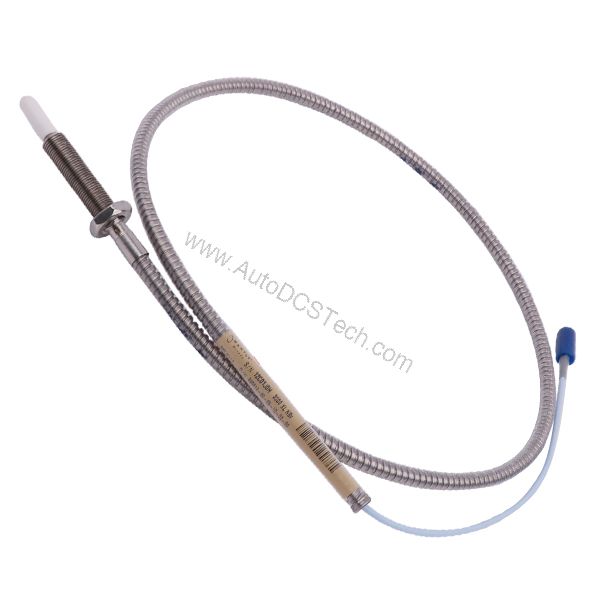

330910-07-23-10-02-00 1.0m Cable Bently Nevada Proximity Probe

Overview of the 330910-07-23-10-02-00 Proximity Probe

When rotating machinery experiences unexpected vibration, the 330910-07-23-10-02-00 provides the precise measurement needed to diagnose issues early. This Bently Nevada 3300 NSv proximity probe is engineered for continuous monitoring in demanding industrial environments. With a 1.0 metre total length and miniature coaxial ClickLoc connector, it integrates seamlessly into existing monitoring systems.

The probe features an M10x1 thread with stainless steel armor, ensuring durability in harsh conditions. Its operating temperature range of -52°C to +177°C makes it suitable for a wide variety of applications. As a maintenance engineer, you need reliable data to prevent unplanned downtime—this probe delivers exactly that.

Key Features and Technical Specifications

• Part of the 3300 NSv series, model 330910, with M10X1 thread and armor.
• Unthreaded length of 70 mm, overall case length of 230 mm, and total length of 1.0 metre (39 inches).
• Miniature coaxial ClickLoc connector with standard cable for secure, quick installation.
• Probe tip material: polyphenylene sulfide (PPS); probe case material: AISI 304 stainless steel.
• 75 Ω coaxial cable with FEP insulation, available in lengths of 0.5, 1, 5, or 7 meters.
• Probe DC resistance from center conductor to outer conductor: 4.2 ± 0.5 ohms (for 1.0 m probe).
• Operating and storage temperature range: -52°C to +177°C (-62°F to +351°F).
• Minimum bend radius: 25.4 mm (1.0 in), with or without SST armor.
• Probe weight: approximately 14 to 150 g (0.5 to 5.3 oz).

The 330910-07-23-10-02-00 is designed for reliable performance in vibration monitoring. Its robust construction and precise electrical characteristics ensure accurate readings, which are critical for predictive maintenance programs.

Why Choose the 330910-07-23-10-02-00 for Your Machinery?

This proximity probe excels in applications where shaft vibration and position must be monitored continuously. The M10x1 thread allows for straightforward mounting, while the armored cable protects against mechanical damage. The ClickLoc connector simplifies installation and reduces the risk of connection failure.

Compared to other probes, the 330910-07-23-10-02-00 offers a balanced combination of sensitivity and durability. Its temperature rating covers extreme conditions, making it a versatile choice for turbines, compressors, and pumps. For maintenance teams, this means fewer false alarms and more accurate trend data.

Installation and Setup Tips

Proper installation is essential for accurate measurements. Follow these guidelines:

• Ensure the unthreaded length (70 mm) is at least 20 mm less than the case length to avoid interference.
• Use the recommended torque values: 11.3 N•m (100 in•lb) for the probe case, and finger tight for the connector (max 0.56 N•m).
• Maintain the minimum bend radius of 25.4 mm to prevent cable damage.
• Verify the probe tip is clean and free from debris before mounting.

Always consult the Bently Nevada installation manual for detailed instructions specific to your machine train.

Maintenance and Reliability

Regular inspection of the probe and cable is recommended to ensure long-term reliability. Check for signs of wear, especially at the connector and bend points. The stainless steel case and PPS tip resist corrosion and chemical attack, extending service life.

Because the probe operates over a wide temperature range, it can withstand thermal cycling without degradation. However, sustained exposure below -34°C (-30°F) may affect the pressure seal, so avoid such conditions if possible. Periodic verification of the probe's DC resistance (4.2 ± 0.5 ohms) can help detect early faults.

Compatibility and Integration

The 330910-07-23-10-02-00 is designed to work with Bently Nevada monitoring systems that accept 3300 NSv proximity probe inputs. The miniature coaxial ClickLoc connector ensures a secure connection to extension cables or monitors. For specific compatibility details, refer to the system's documentation or contact AutoDCSTech.

Product Support and Availability

The 330910-07-23-10-02-00 is available from AutoDCSTech, a trusted supplier of industrial automation parts. We offer new, original factory-packed units with a 12-month warranty. Contact our team for current availability and lead times.
