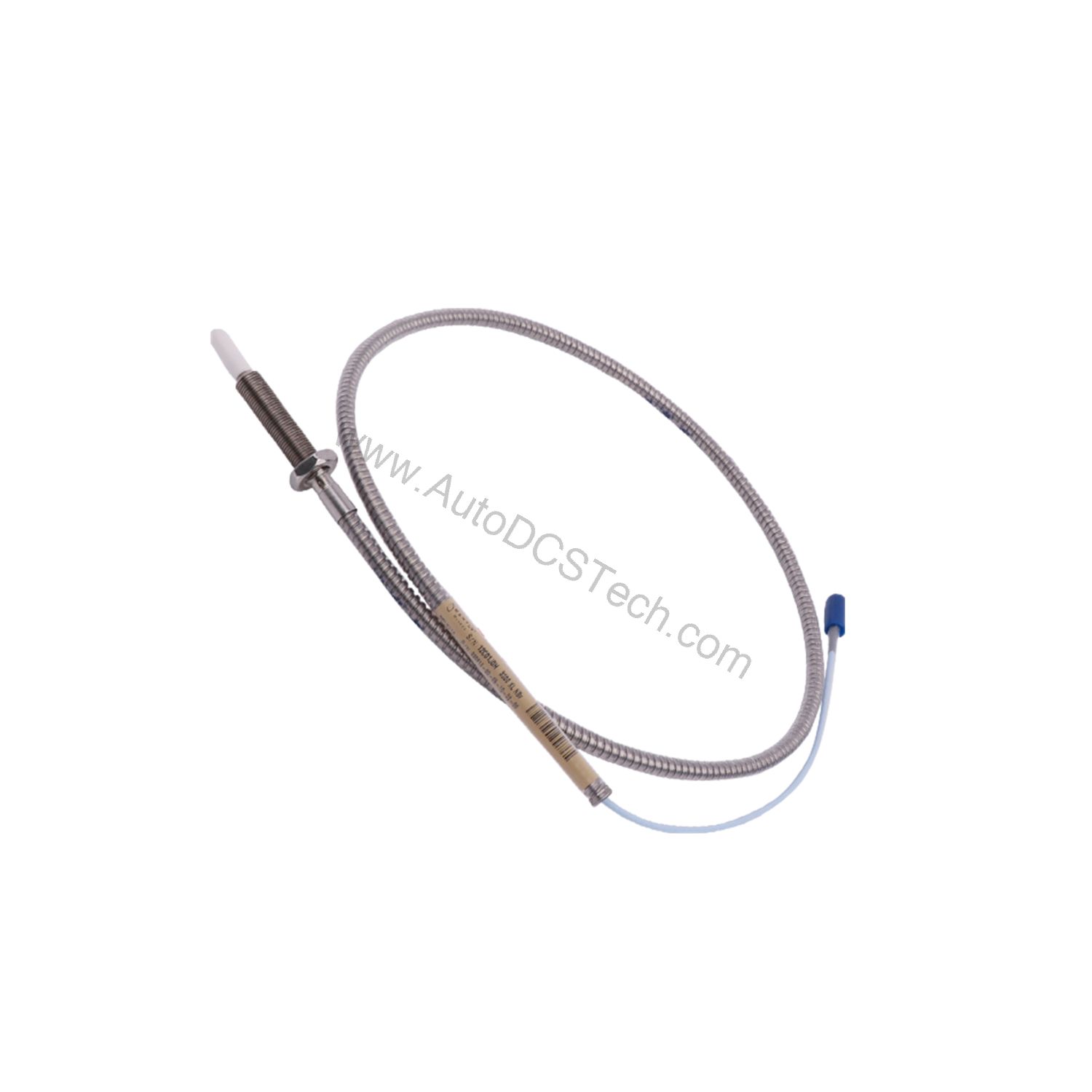

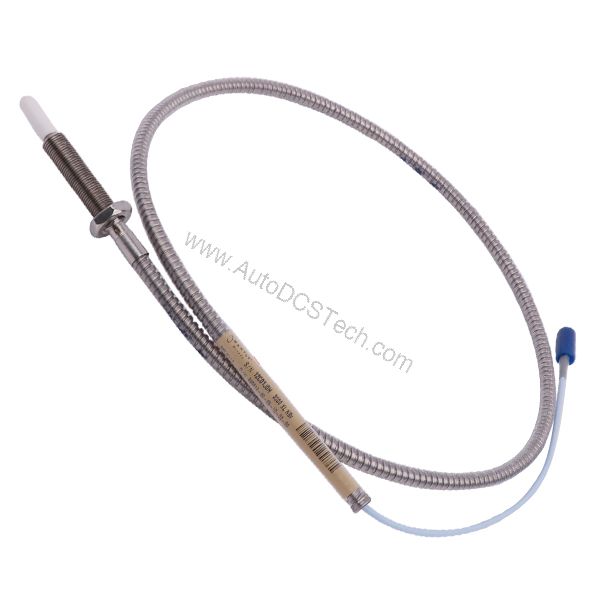

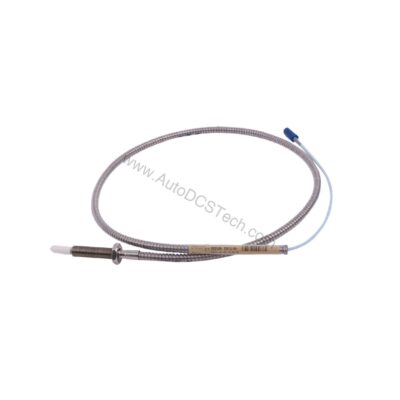

330910-07-23-50-02-00 5m Cable Bently Nevada Proximity Probe

Introduction to the 330910-07-23-50-02-00

When machine vibration threatens uptime, the 330910-07-23-50-02-00 provides precise shaft displacement data. This Bently Nevada 3300 NSv proximity probe is engineered for continuous monitoring in demanding industrial environments. Its robust design and accurate readings help maintenance teams detect issues early, reducing unplanned downtime.

Key Features and Technical Specifications

The 330910-07-23-50-02-00 is part of the 3300 NSv series, featuring an M10X1 threaded case with armor. Below are the core specifications extracted from the official datasheet:

• Total Length: 5.0 meters (16.4 feet) – ensures flexible installation.
• Connector: Miniature coaxial ClickLoc connector with standard cable.
• Probe DC Resistance: 5.3 ± 0.7 ohms (center to outer conductor).
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Probe Case Material: AISI 304 stainless steel (SST) for corrosion resistance.
• Cable Specification: 75 Ω coaxial, FEP insulated, available in 0.5, 1, 5, or 7 meters.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Minimum Bend Radius: 25.4 mm (1.0 in) – flexible routing.
• Probe Weight: Approximately 14 to 150 g (0.5 to 5.3 oz).

These specifications ensure reliable performance in high-vibration environments. The 5.0-meter cable length offers installation flexibility, while the armored case protects against mechanical damage.

Applications and Use Cases

This proximity probe is ideal for monitoring shaft vibration in rotating machinery such as turbines, compressors, and pumps. In these applications, accurate displacement measurements are critical for predictive maintenance. For example, a maintenance engineer can use the 330910-07-23-50-02-00 to track rotor vibration trends, enabling early detection of bearing wear or misalignment. Consequently, this helps avoid catastrophic failures and extends equipment life.

Installation and Setup

Proper installation is essential for accurate readings. The probe features an M10X1 thread with a maximum thread engagement of 15 mm. Recommended torque for the probe case is 11.3 N•m (100 in•lb), with a maximum of 33.9 N•m (300 in•lb). For the connector, finger-tight is recommended, with a maximum torque of 0.56 N•m (5 in•lb). Ensure the unthreaded length is at least 20 mm less than the case length to avoid interference. Always follow the manufacturer's installation manual for precise positioning.

Maintenance and Reliability

Regular inspection of the probe and cable is recommended to ensure consistent performance. Check for physical damage, especially on the armor and connector. Verify that the probe tip is clean and free from debris. The operating temperature range of -52°C to +177°C allows use in harsh environments, but prolonged exposure below -34°C may affect the pressure seal. Therefore, periodic checks are advised. Following these practices helps maintain measurement accuracy and prolongs probe life.

Compatibility and Integration

The 330910-07-23-50-02-00 is designed to work with Bently Nevada monitoring systems, such as the 3300 series. Its standard 75 Ω coaxial cable ensures compatibility with existing signal conditioning modules. For integration details, refer to the official Bently Nevada documentation or contact AutoDCSTech for guidance.

Troubleshooting Common Issues

If readings are erratic, first check the cable for cuts or kinks. Verify the connector is securely attached. Also, ensure the probe tip is within the specified gap range. If the problem persists, measure the probe DC resistance; it should be 5.3 ± 0.7 ohms. Any deviation may indicate internal damage. In such cases, consult the manufacturer's troubleshooting guide.

Product Support and Availability

The 330910-07-23-50-02-00 is available from AutoDCSTech in new, original factory packaging. It comes with a 12-month factory warranty. For current availability and lifecycle status, please contact AutoDCSTech before ordering.
