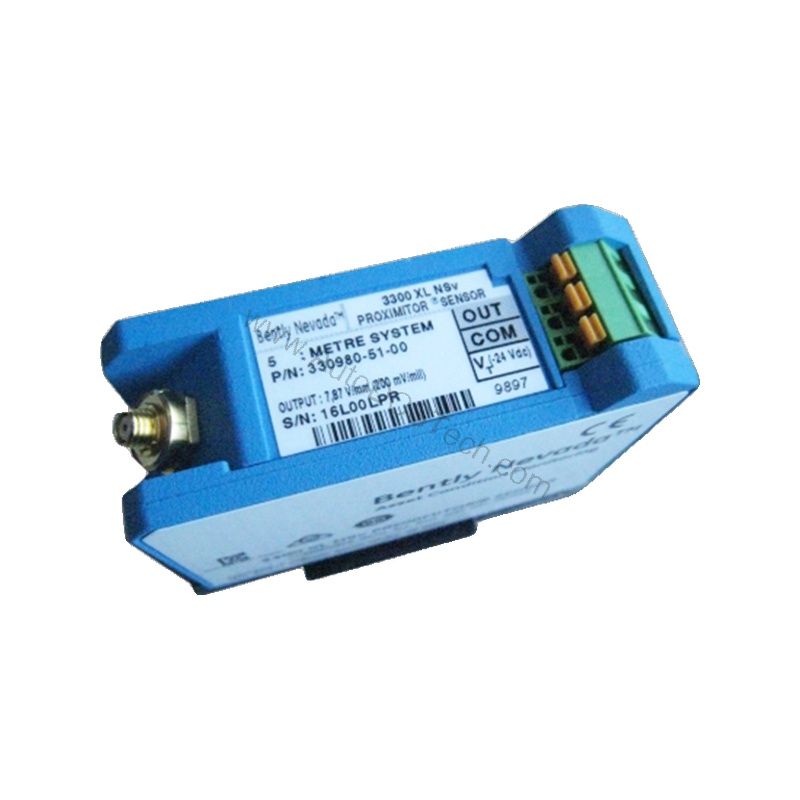

330980-51-05 5m DIN Mount NSv Proximitor Sensor

Introduction to the 330980-51-05 NSv Proximitor Sensor

When machinery vibration threatens uptime, the 330980-51-05 from Bently Nevada provides precise, continuous monitoring. This NSv Proximitor Sensor is engineered for high-density installations where space is limited but reliability is critical. With a 5.0-meter (16.4 feet) system length and DIN-rail mounting option, it integrates seamlessly into existing protection racks.

Part of the 3300 XL family, the 330980-51-05 shares the proven performance of the 3300 XL 8 mm Proximitor Sensor but adds a thin, space-saving design. This makes it ideal for retrofits and new builds where panel density matters. The sensor's improved RFI/EMI immunity ensures stable readings even near high-frequency radio sources, reducing false trips and maintenance calls.

Key Features and Technical Specifications

The 330980-51-05 is built around a compact A380 aluminum housing that weighs just 255 g (9 oz). This lightweight construction simplifies mounting and reduces mechanical stress on DIN rails. The sensor accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe with extension cable, making it versatile for various rotor and shaft monitoring applications.

• System Length: 5.0 meters (16.4 feet) – covers most machine train spans without extra cabling.
• Mounting: DIN-rail or traditional panel mount – flexible for cabinet layouts.
• Power Supply: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers.
• Output Resistance: 50 Ω – ensures stable signal transmission to monitoring systems.
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage – maintains accuracy across supply variations.
• Operating Temperature: -52°C to +100°C (-62°F to +212°F) – suitable for harsh industrial environments.
• Storage Temperature: -52°C to +105°C (-62°F to +221°F) – safe for long-term storage.
• Relative Humidity: 100% condensing, non-submersible when connectors are protected – tested to IEC 68-2-3 damp heat.

One standout feature is the SpringLoc terminal strips. They require no special tools, speeding up field wiring and reducing installation errors. This directly lowers labor costs and minimizes downtime during setup.

Cost-Efficiency Through Design

Every specification of the 330980-51-05 contributes to a lower total cost of ownership. The DIN-rail mounting reduces cabinet space, which can cut enclosure costs by up to 20% in high-density layouts. The RFI/EMI immunity eliminates the need for additional shielding or special mounting considerations, saving both material and engineering time.

The sensor's low power consumption (12 mA maximum) reduces load on power supplies, allowing more channels per supply unit. This is a direct cost saving in multi-channel monitoring systems. Additionally, the wide operating temperature range (-52°C to +100°C) means the sensor can be placed closer to the machine, shortening cable runs and reducing signal degradation.

With a sensitivity drift of less than 2 mV/V, the 330980-51-05 maintains calibration longer, reducing the frequency of recalibration and associated labor. This stability translates into fewer false alarms and less unplanned maintenance, which are the biggest hidden costs in vibration monitoring.

Installation and Setup

Installing the 330980-51-05 is straightforward. The DIN-rail clip allows quick snap-on mounting without screws. For panel mounting, two screw holes are provided. SpringLoc terminals accept solid or stranded wire from 14 to 22 AWG, and the spring mechanism ensures a gas-tight connection that resists vibration loosening.

When wiring, maintain proper polarity: the sensor requires a negative supply voltage (-17.5 Vdc to -26 Vdc). Ensure the power supply is stable and within the specified range to avoid reduced linear range. For barrier installations, the supply must be between -23 Vdc and -26 Vdc. Always follow the Bently Nevada manual for exact terminal assignments and torque requirements.

After mounting, verify the probe gap to 1.0 mm (40 mils) for optimal linearity. The system is calibrated for a Bently Nevada AISI 4140 steel target that is 31 mm (1.2 in) diameter or larger. Using a different target material will affect accuracy and interchangeability.

Maintenance and Reliability

The 330980-51-05 is designed for long-term reliability with minimal upkeep. The A380 aluminum housing resists corrosion, and the sealed electronics protect against moisture and dust. Periodic inspection should include checking the DIN-rail clip for secure fit and verifying that terminal connections remain tight.

Because the sensor has no moving parts, wear is negligible. The main failure points are external: cable damage or probe tip contamination. Regularly inspect the probe cable for cuts or abrasions, especially where it bends near the machine. Keep the probe tip clean and free of metal chips.

Environmental factors like extreme temperature or humidity are well within the sensor's rated range, so no special precautions are needed. However, if the sensor is exposed to condensing humidity, ensure connectors are properly sealed. Following these simple steps will maximize service life and minimize replacement costs.

Compatibility and Integration

The 330980-51-05 works with Bently Nevada 3300 RAM and 3300 NSv Proximity Probes. It outputs a voltage signal proportional to gap, which can be fed into Bently Nevada monitors such as the 3500 series or third-party systems that accept 0 to -24 Vdc signals. The 50 Ω output resistance ensures compatibility with most PLC and DCS analog input modules.

For new installations, the DIN-rail version simplifies integration into existing cabinets. The sensor's RFI/EMI immunity means it can be placed near variable frequency drives (VFDs) and other noise sources without performance degradation. This flexibility reduces layout constraints and can shorten cable paths.

Always verify that the probe and extension cable lengths match the 5.0-meter system length. Using mismatched lengths can affect calibration. For barrier applications, confirm that the barrier resistance is within the specified supply range.

Troubleshooting Common Issues

If the output voltage is unstable, first check the power supply. The sensor requires -17.5 Vdc to -26 Vdc; operation at a more positive voltage than -23.5 Vdc can reduce linear range. Measure the supply at the sensor terminals, not at the power source, to account for voltage drop.

If the signal is noisy, verify that the probe cable is not routed near high-frequency sources. Although the sensor has improved RFI/EMI immunity, excessive noise can still couple into the cable. Use shielded cable and ensure proper grounding.

If the sensor does not respond, check the probe gap. The system is calibrated for a 1.0 mm gap; if the gap is too large or too small, the output will be out of range. Also, confirm that the probe tip is clean and that the target is the correct material (AISI 4140 steel).

Product Support and Availability

The 330980-51-05 is available through AutoDCSTech, your trusted industrial automation parts supplier. We stock this model and can provide technical support for selection and integration. Contact our team for current pricing and lead times.
