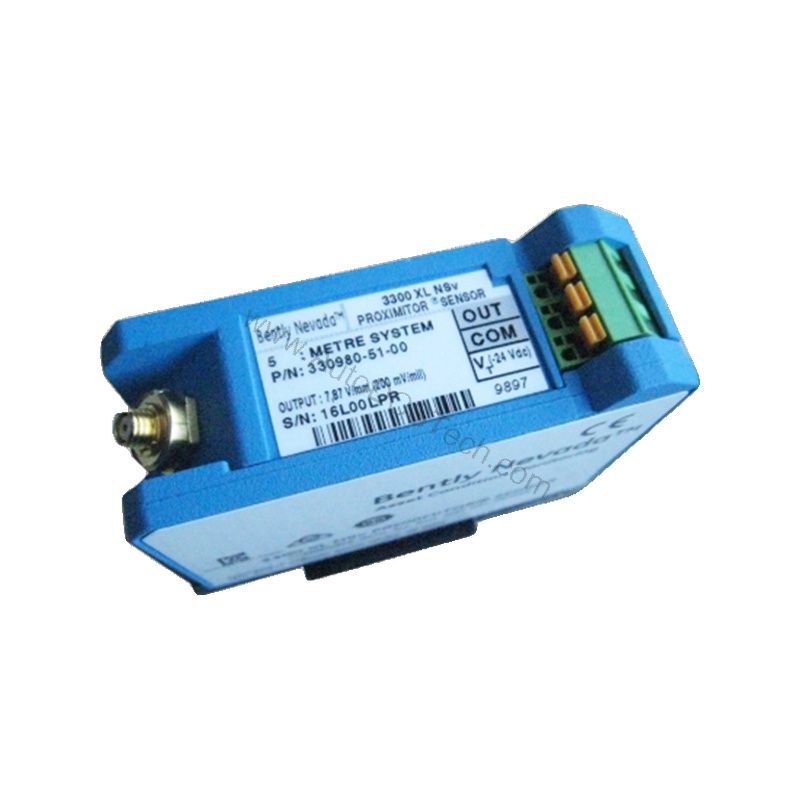

330980-50-CN 5m Cable Bently Nevada NSv Proximitor Sensor

Introduction to the 330980-50-CN

When a rotating machine experiences unexpected vibration, the consequences can be costly. The 330980-50-CN from Bently Nevada provides a reliable solution. This NSv Proximitor Sensor is designed for continuous monitoring. It helps detect shaft vibration and position. This sensor is part of the 3300 XL family. It offers a compact, thin design. This allows for flexible mounting. You can use it in high-density DIN-rail installations. Alternatively, you can use a traditional panel mount. The 5.0 metre system length provides installation flexibility. This model is a country-specific version. It meets specific regional requirements.

Key Features and Technical Specifications

The 330980-50-CN delivers precise performance. It accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe. The sensor includes an extension cable. This setup ensures accurate measurement. The sensor operates on a power supply. It requires -17.5 Vdc to -26 Vdc without barriers. With barriers, it needs -23 Vdc to -26 Vdc. Maximum current consumption is 12 mA. This efficiency helps reduce power demands. The output resistance is 50 Ω. This ensures stable signal transmission. The sensor has improved RFI/EMI immunity. This prevents nearby high-frequency radio signals from causing issues. It also achieves European CE mark approvals. This is without special mounting considerations. The Proximitor Sensor material is A380 aluminum. It weighs 255 g (9 oz). The operating temperature range is -52°C to +100°C. Storage temperature is -52°C to +105°C. It can handle 100% condensing humidity. This is tested to IEC 68-2-3 damp heat.

Performance Metrics

• System Length: 5.0 metres (16.4 feet)
• Mounting: Panel mount
• Power Supply: -17.5 Vdc to -26 Vdc (without barriers)
• Current Consumption: 12 mA maximum
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change per volt change
• Operating Temperature: -52°C to +100°C
• Storage Temperature: -52°C to +105°C

Real-World Applications

In industrial settings, machine health is critical. The 330980-50-CN excels in various applications. It is ideal for monitoring turbines, compressors, and pumps. These machines often operate in harsh environments. The sensor's robust design ensures reliable operation. Its improved RFI immunity is beneficial in plants with variable frequency drives. These drives can generate electromagnetic interference. The sensor's thin profile allows for space-saving installations. This is especially useful in retrofit projects. Many facilities upgrade their monitoring systems. The 330980-50-CN fits easily into existing panels. This reduces installation time and cost.

Installation and Setup

Proper installation is essential for accurate readings. The 330980-50-CN offers flexible mounting options. You can mount it on a DIN rail or a panel. The SpringLoc terminal strips simplify wiring. They require no special tools. This speeds up the installation process. It also ensures a secure connection. When mounting, ensure proper clearance. This prevents interference with other components. Follow the manufacturer's guidelines for probe gap. The standard gap is 1.0 mm (40 mils). This is for calibration with a Bently Nevada AISI 4140 steel target. The target should be 31 mm (1.2 in) diameter or larger. Always verify the power supply voltage. It must be within the specified range. This ensures optimal linear range.

Maintenance and Reliability

Regular maintenance keeps the sensor performing well. The 330980-50-CN is designed for long-term reliability. Its A380 aluminum housing is durable. It can withstand harsh industrial conditions. The sensor operates over a wide temperature range. This makes it suitable for extreme environments. To maintain accuracy, inspect the sensor periodically. Check for any physical damage. Ensure all connections are tight. The sensor's RFI immunity reduces signal degradation. This leads to fewer false readings. Consequently, you experience less downtime. This translates to cost savings over time. The sensor's low power consumption also reduces energy costs. Overall, the 330980-50-CN offers excellent value.

Compatibility and Integration

The 330980-50-CN integrates seamlessly with Bently Nevada monitoring systems. It accepts 3300 RAM or 3300 NSv Proximity Probes. This compatibility ensures easy upgrades. You can replace older sensors without major changes. The sensor works with extension cables. This allows for flexible probe placement. The output signal is compatible with standard monitoring equipment. This simplifies system integration. For detailed compatibility information, consult the official documentation. AutoDCSTech can assist with any questions.

Common Issues and Troubleshooting

Like any precision instrument, the 330980-50-CN may encounter issues. One common problem is incorrect power supply. If the voltage is too positive, the linear range reduces. Ensure the supply is within -17.5 Vdc to -26 Vdc. Another issue is improper probe gap. This can lead to inaccurate readings. Always set the gap to 1.0 mm (40 mils) for calibration. Electrical noise can also affect performance. The sensor's improved RFI immunity mitigates this. However, ensure proper grounding. If you experience erratic readings, check all connections. Loose terminals can cause intermittent signals. The SpringLoc terminals help prevent this. If problems persist, consult the manual. AutoDCSTech can provide technical support.
