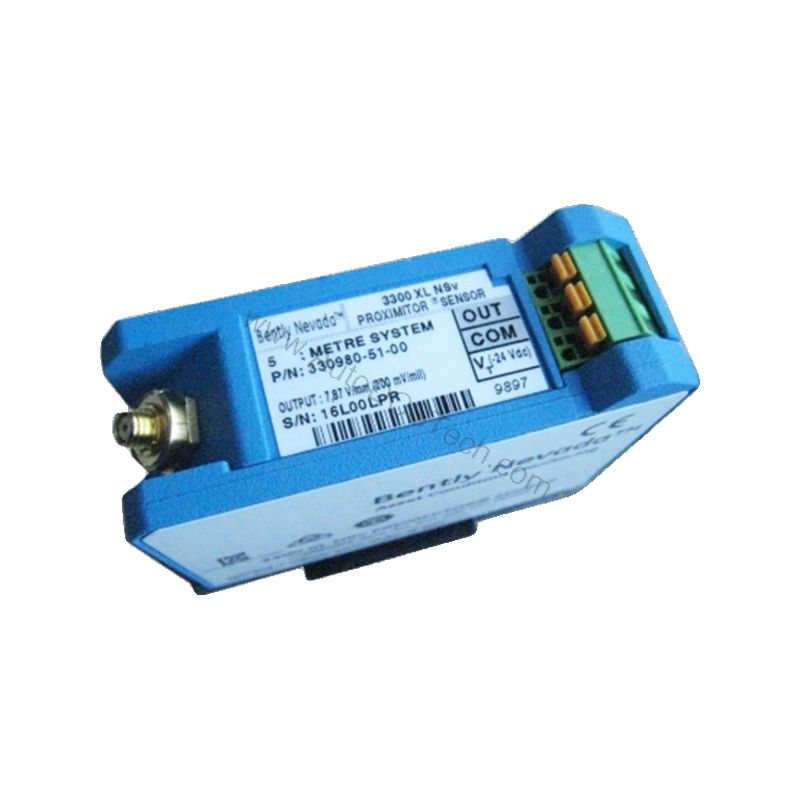

330980-50-00 Bently Nevada NSv Proximitor Sensor 5m

Introduction to the 330980-50-00 Bently Nevada NSv Proximitor Sensor

When you need precise vibration measurement in rotating machinery, the 330980-50-00 from Bently Nevada delivers dependable performance. This NSv Proximitor Sensor is designed for high-density DIN-rail or traditional panel mount installations. Its thin profile and robust construction make it a versatile choice for industrial environments.

With a 5.0-meter (16.4 feet) system length, this sensor integrates seamlessly into your existing monitoring setup. The panel mount option simplifies installation, reducing downtime during setup. Engineers trust this model for its consistent output and immunity to electrical interference.

Key Features and Technical Specifications

The 330980-50-00 is engineered with several features that enhance its performance in demanding applications. Below are the critical specifications extracted from the datasheet:

• Model: NSv Proximitor Sensor
• Total Length and Mounting: 5.0 metre (16.4 feet) system length, panel mount
• Agency Approval Option: 00 - Not required
• Proximitor Sensor Material: A380 aluminum
• Proximitor Sensor Weight: 255 g (9 oz)
• Input: Accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable
• Power Supply: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω
• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Relative Humidity: 100% condensing, nonsubmersible when connectors are protected; tested to IEC 68-2-3 damp heat

These specifications ensure reliable operation in harsh conditions. The improved RFI/EMI immunity allows the sensor to achieve European CE mark approvals without special mounting considerations. This immunity also prevents nearby high-frequency radio signals from adversely affecting the transducer system.

Real-World Applications and Use Cases

In petrochemical plants, the 330980-50-00 monitors shaft vibration on pumps and compressors. Its compact design fits into tight panels, making it ideal for retrofit projects. Additionally, the sensor's wide temperature range supports outdoor installations in extreme climates.

For power generation facilities, this sensor provides accurate data for predictive maintenance programs. By detecting early signs of bearing wear, engineers can schedule repairs before catastrophic failure occurs. The high immunity to RFI ensures stable readings even near variable frequency drives.

Installation and Setup Guidance

Mounting the 330980-50-00 is straightforward thanks to the SpringLoc terminal strips. These terminals require no special tools, speeding up field wiring connections. The panel mount option allows secure attachment to existing enclosures, while the DIN-rail version offers flexible placement.

When installing, ensure the probe gap is set to 1.0 mm (40 mils) for optimal performance. Use a Bently Nevada supplied AISI 4140 steel target for calibration. The system accuracy specifications apply only when using this target type.

Maintenance and Reliability

Regular inspection of the sensor and its connections helps maintain measurement accuracy. Because the sensor is exposed to environmental factors like humidity, verify that connectors remain protected to prevent condensation issues. The aluminum housing resists corrosion, extending service life.

Periodically check the power supply voltage to ensure it stays within the required range. Operation at a more positive voltage than -23.5 Vdc can reduce the linear range. Following these simple practices minimizes downtime and prolongs the sensor's operational life.

Compatibility and Integration

The 330980-50-00 works with Bently Nevada 3300 RAM or 3300 NSv proximity probes and extension cables. This compatibility ensures seamless integration into existing Bently Nevada monitoring systems. The sensor outputs a voltage signal that interfaces with standard vibration monitors.

For systems requiring intrinsic safety barriers, the sensor operates with barriers at -23 Vdc to -26 Vdc. This flexibility allows use in hazardous areas when properly configured. Always consult the official Bently Nevada documentation for barrier selection and wiring details.

Troubleshooting Common Issues

If you encounter erratic readings, first check the probe gap and target material. Incorrect gap or non-standard targets can affect accuracy. Next, verify the power supply voltage is within the specified range. A supply voltage outside -17.5 Vdc to -26 Vdc may cause output errors.

RFI interference is unlikely due to the sensor's improved immunity, but ensure that cables are routed away from high-voltage lines. If problems persist, inspect the SpringLoc terminals for loose connections. For advanced diagnostics, refer to the manufacturer's manual.

Product Support and Availability

The 330980-50-00 is available through AutoDCSTech. As an industrial automation parts supplier, AutoDCSTech ensures genuine Bently Nevada products and timely delivery. Contact AutoDCSTech for current pricing and lead times.
