Introduction to the Siemens 3UF7932-0AA00-0 Connecting Cable
When your SIRIUS motor management system needs a reliable link between the basic unit and its measuring or expansion modules, the 3UF7932-0AA00-0 provides a precise 0.5-meter flat connection cable. This cable is engineered for the system interface, ensuring signal integrity between components. As part of the Siemens SIRIUS family, this connecting cable supports the modular architecture that industrial automation demands.
In modern plants, downtime is costly. A secure connection cable minimizes signal loss and reduces the risk of intermittent faults. The 3UF7932-0AA00-0 is designed to maintain stable communication, which directly translates to fewer production interruptions and lower maintenance costs.
Key Features and Technical Specifications

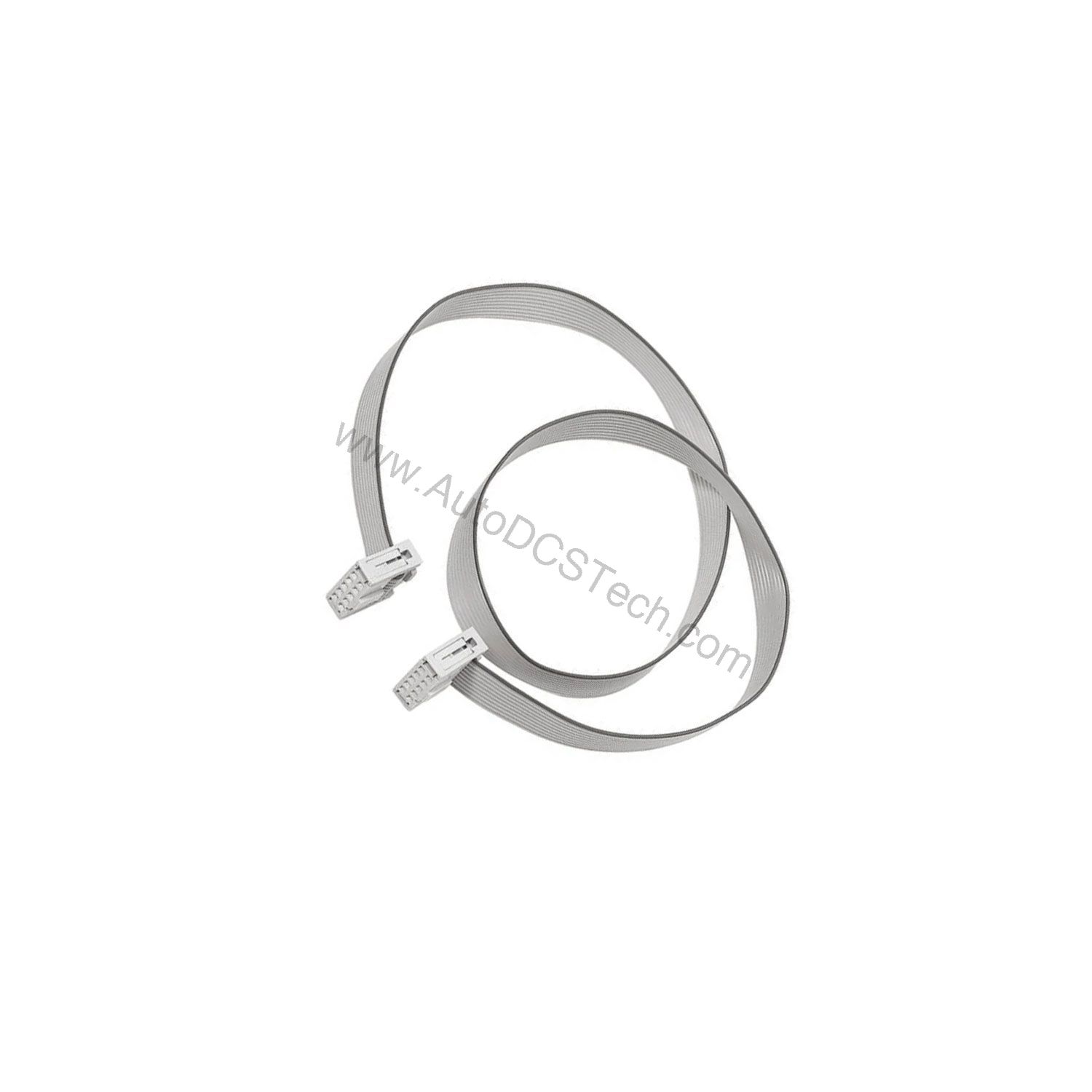

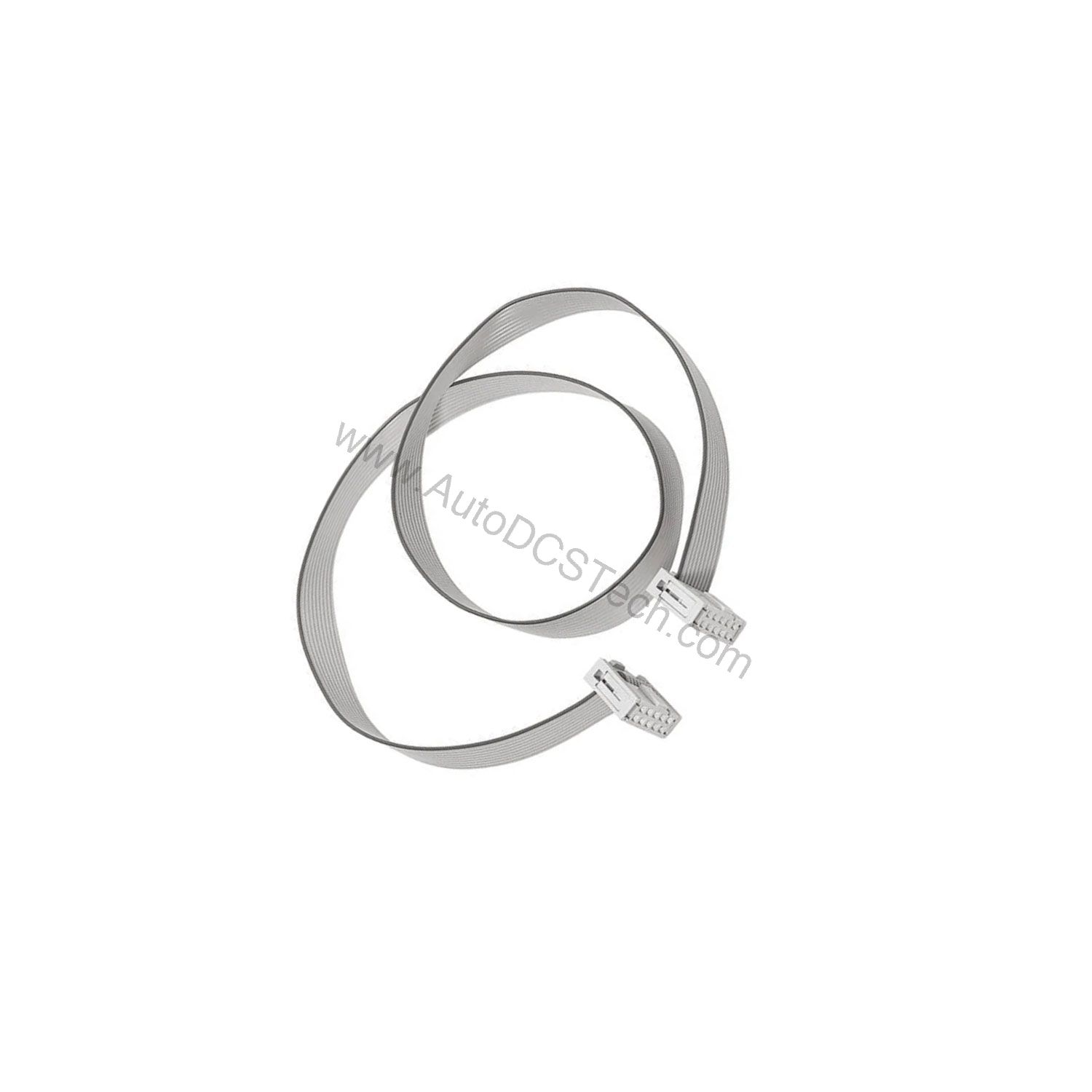

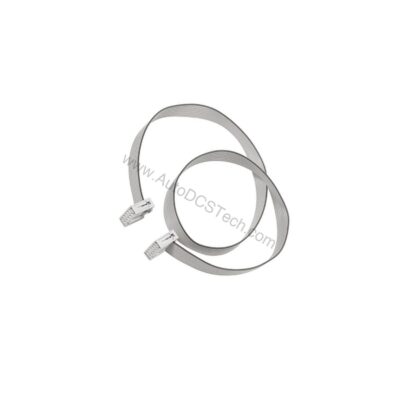

The 3UF7932-0AA00-0 is a flat connecting cable with a length of 0.5 meters. It is specifically intended for connecting the basic unit to current/voltage measuring modules, operator panels, or expansion modules via the system interface. This cable is part of the SIRIUS product line, known for robust industrial components.
- Length: 0.5 meters – ideal for compact panel layouts.
- Design: Flat cable – saves space and simplifies routing.
- Ambient temperature (storage): -40 °C to +80 °C – withstands harsh warehouse conditions.
- Ambient temperature (operating): -25 °C to +60 °C – reliable in typical industrial environments.
- Ambient temperature (transport): -40 °C to +80 °C – safe during shipping.
- Relative humidity (operating): 5% to 95% – suitable for humid process areas.
These specifications ensure the cable performs consistently across a wide range of conditions. The operating temperature range of -25 °C to +60 °C covers most factory floors, while the storage and transport ranges allow for safe handling in cold or hot climates. The humidity tolerance up to 95% makes it viable for washdown or coastal facilities.
Applications and Use Cases
In motor control centers, the 3UF7932-0AA00-0 connects the SIRIUS basic unit to a current measuring module, enabling accurate current monitoring. For voltage monitoring, it links to a voltage measuring module, helping to detect phase loss or undervoltage conditions. When an operator panel is used, this cable provides the data path for local status display and control. Additionally, it connects expansion modules, allowing the system to grow as process requirements change.
Because the cable is flat, it fits into tight wiring ducts and reduces clutter, which simplifies maintenance and troubleshooting. The robust temperature range means it can be installed near motors or other heat sources without premature degradation. By maintaining a secure connection, the cable helps avoid false alarms and nuisance trips, which reduces unplanned downtime and associated costs.
Installation and Setup
Installing the 3UF7932-0AA00-0 is straightforward. First, ensure the system is de-energized. Then, align the flat cable connector with the system interface port on the basic unit. Gently push until it clicks into place. Repeat the process on the measuring module, operator panel, or expansion module. The 0.5-meter length is sufficient for adjacent mounting, but for longer distances, consider a different cable length (if available).
Always route the cable away from sharp edges and high-voltage lines to avoid mechanical damage and electromagnetic interference. Use cable ties to secure the flat cable, but avoid over-tightening, which could stress the connectors. After installation, verify the connection by powering up and checking the module status indicators. If the system does not recognize the module, reseat the cable and check for bent pins.
Maintenance and Reliability
Routine inspection of the 3UF7932-0AA00-0 is minimal but important. Periodically check the cable for cuts, abrasions, or signs of heat damage. Ensure the connectors are fully seated and free of dust or corrosion. The cable's wide temperature range and humidity tolerance reduce the risk of premature failure, but environmental factors like chemical exposure or mechanical stress can still affect performance.
By keeping the cable in good condition, you extend the life of the entire SIRIUS system. A faulty connection can cause intermittent signals, leading to incorrect motor protection or process data. Regular checks help avoid these issues, saving money on replacement parts and labor.
Compatibility and Integration
The 3UF7932-0AA00-0 is designed for the SIRIUS system interface. It connects the basic unit to current/voltage measuring modules, operator panels, or expansion modules. This cable is not a general-purpose cable; it is specifically engineered for SIRIUS components. For other connection needs, consult the Siemens SIRIUS catalog or contact AutoDCSTech.
When integrating multiple modules, ensure the total cable length and routing do not exceed the system's specifications. The flat design helps maintain signal integrity by reducing crosstalk. This compatibility ensures that your motor management system operates as a cohesive unit, improving overall efficiency.
Troubleshooting and Common Issues
If the system fails to detect a module, first check the cable connection. A loose or partially inserted connector is a common cause. Inspect the cable for visible damage, such as cuts or crushed areas. If the cable has been bent sharply, it may have internal breaks. Also, verify that the cable is the correct type for the interface; using a non-SIRIUS cable could cause communication errors.
Another issue is moisture ingress. Although the cable is rated for 95% relative humidity, prolonged exposure to condensation can corrode contacts. Ensure the enclosure is properly sealed. If problems persist, test with a known-good cable to isolate the issue. If the cable is faulty, replace it with a genuine Siemens 3UF7932-0AA00-0 to maintain system reliability.
Product Support and Availability
The 3UF7932-0AA00-0 is available from AutoDCSTech. We stock genuine Siemens parts to ensure your system runs reliably. Contact our team for current pricing and delivery options. Please verify the lifecycle status of this part with AutoDCSTech before ordering, as availability may vary.
Availability & Condition at AutoDCSTech
| Part Number | 3UF7932-0AA00-0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
