Allen-Bradley 1791DS-IB12 Safety Input Module Overview

Product Overview

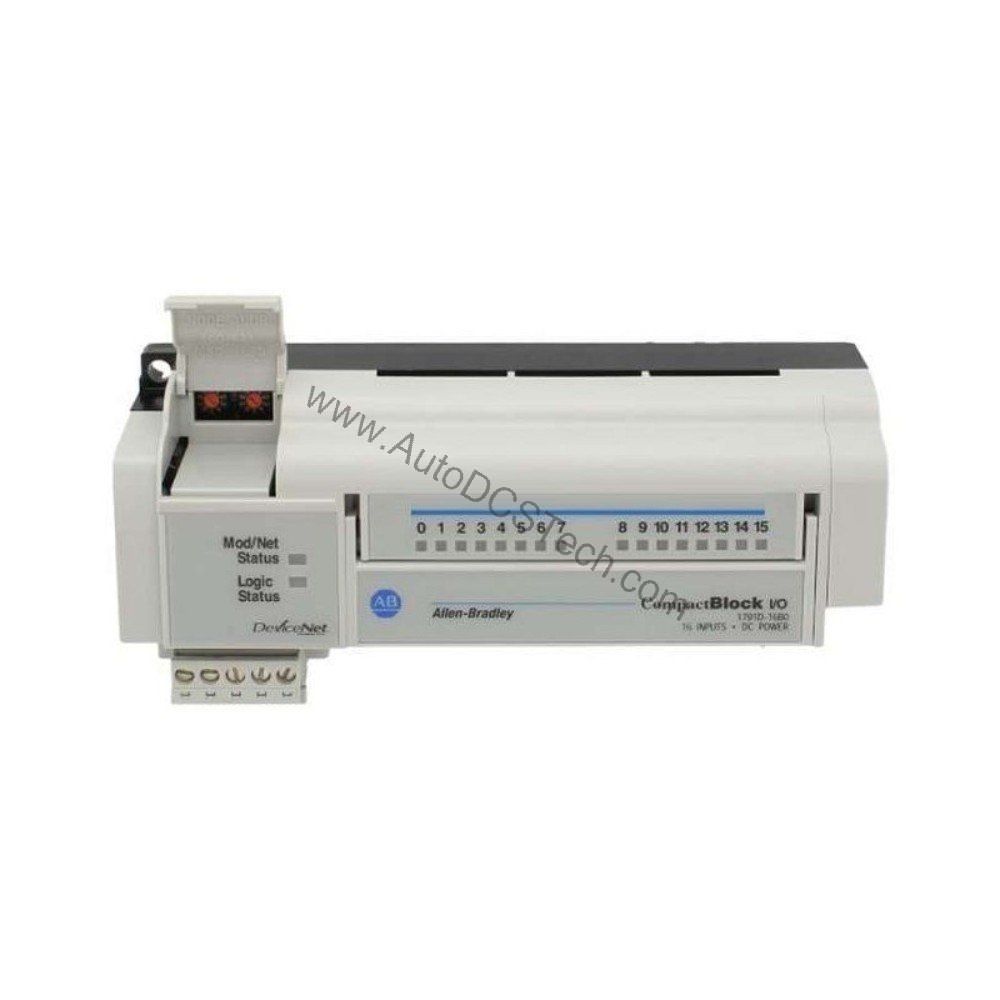

The Allen-Bradley 1791DS-IB12 is a safety input module from the Guard I/O 1791ES and 1791DS series. It provides 12 single-channel input channels for monitoring safety devices in industrial automation systems. Designed for DIN Rail mounting, this module includes a DIN Rail attachment hook for easy installation. It carries North American Hazardous Location approval, making it suitable for use in potentially explosive environments.

Technical Specifications Breakdown

Key parameters for the 1791DS-IB12 are listed below for quick reference:

Industry Applications

Its 12 single-channel inputs allow connection of multiple safety devices while maintaining reliable signal integrity. The module's 20.4 to 26.4 Volts DC I/O power supply voltage range ensures stable operation even with minor voltage fluctuations common in industrial environments. For maintenance engineers, this module reduces wiring complexity by consolidating safety inputs into a single unit, simplifying troubleshooting and reducing downtime.

Installation & Setup Guidance

Mount the 1791DS-IB12 on a standard DIN rail using the integrated attachment hook. Ensure the I/O power supply voltage is within the specified 20.4 to 26.4 Volts DC range. Connect safety input devices to the 12 input channels, verifying that the on-state input voltage is at least 11 Volt DC and off-state voltage does not exceed 5 Volts DC. The module's input current is 6 mA, with a maximum off-state current of 1 mA. No enclosure is provided, so install in a suitable cabinet to protect against environmental contaminants.

Maintenance & Reliability

Periodically inspect the module for signs of damage or contamination. Verify that the DIN Rail attachment hook remains secure. Check input connections for tightness and signs of corrosion. The module's power consumption of 110 mA at 24 Volts DC should be factored into your power budget to ensure reliable long-term operation. Given its North American Hazardous Location approval, follow all local safety codes when servicing in hazardous areas.

Compatibility & Integration

The 1791DS-IB12 is part of the Guard I/O 1791ES and 1791DS series, designed for integration with Allen-Bradley safety systems. It communicates via DeviceNet, as indicated by its CompactBlock DeviceNet designation. The module includes 4 current sourcing test outputs for diagnostic purposes, with a rated output current of 0.7 A and a maximum residual voltage of 1.2 Volts. Communications power supply voltage ranges from 11 to 25 Volts DC, with a communications current consumption of 110 mA at 24 Volts DC.

Selection Guide & Purchasing Advice

When selecting a safety input module, consider the number of inputs required and the environmental conditions. The 1791DS-IB12 offers 12 single-channel inputs with North American Hazardous Location approval, making it a robust choice for safety-critical applications. At AutoDCSTech, we stock this module and can assist with availability and lifecycle status inquiries. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the module fails to power on, check the I/O power supply voltage between 20.4 and 26.4 Volts DC. For input channel issues, verify that the on-state input voltage exceeds 11 Volt DC and off-state voltage is below 5 Volts DC. If communications are lost, confirm the DeviceNet network power supply is within 11 to 25 Volts DC and that the module's communications current consumption of 110 mA is within the network power budget. For persistent faults, consult the Allen-Bradley documentation for the Guard I/O series.
