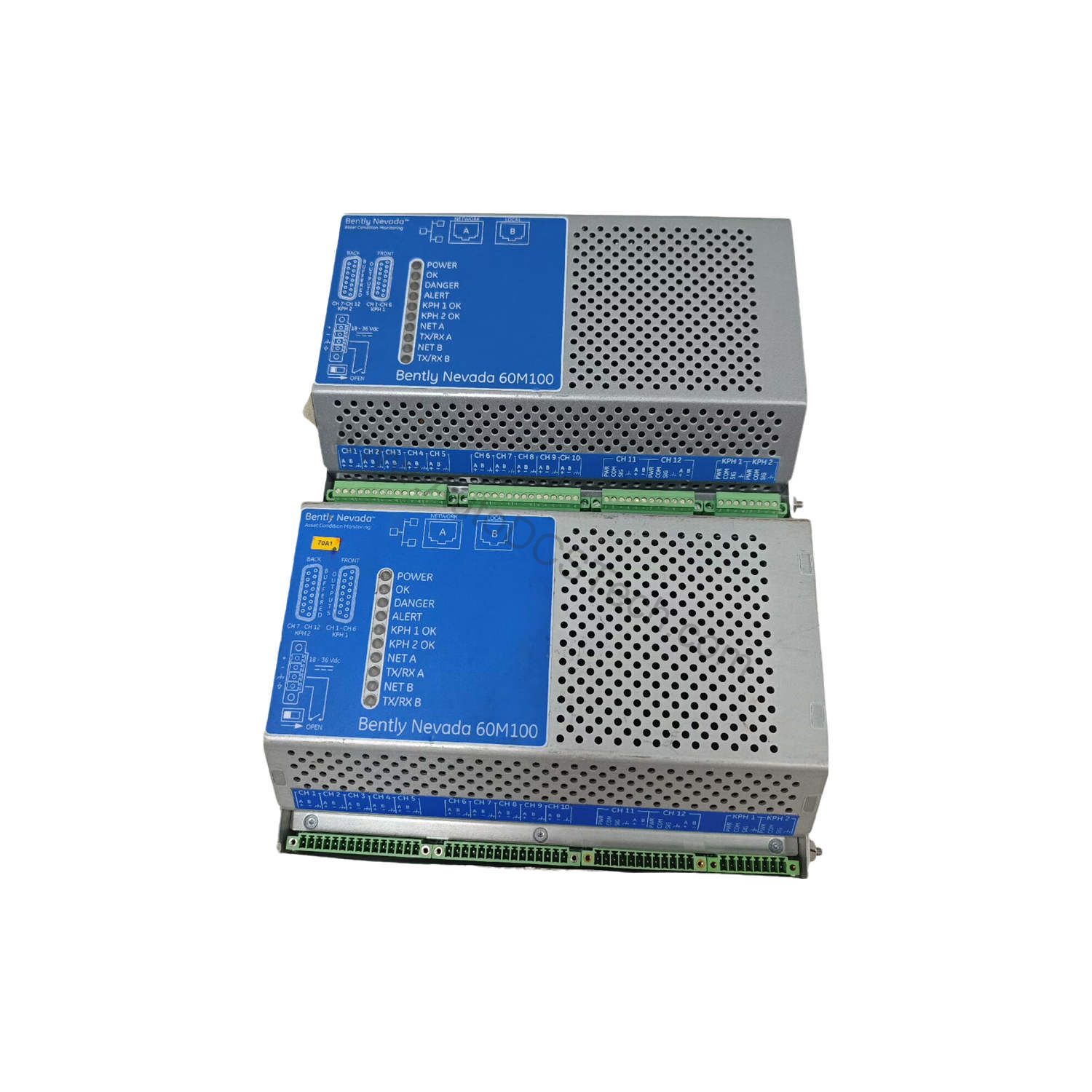

60M100-00 Bently Nevada Wind Condition Monitor

Introduction: The Evolution of Wind Turbine Condition Monitoring

Wind energy has grown from a niche power source into a cornerstone of modern electricity generation. As turbines grew taller and more powerful, the need for reliable, continuous condition monitoring became critical. Early systems offered basic vibration readings, but they lacked the depth needed to protect complex drivetrains. The 60M100-00 from Bently Nevada represents a significant step forward in this evolution. It combines high-resolution data acquisition with intelligent alarming, giving operators the insight they need to prevent failures and optimize maintenance schedules.

This monitor is engineered for the demanding environment of a wind turbine nacelle. It accepts up to 12 dynamic signals and 2 Keyphasor signals, allowing comprehensive coverage of the main bearing, gearbox stages, and generator bearings. With a dynamic range of 110 dB and a bandwidth of 0 to 40 kHz, it captures both low-frequency tower sway and high-frequency gear mesh vibrations. The result is a complete picture of machine health, delivered in real time.

Key Features and Technical Specifications

The 60M100-00 is packed with features designed for accuracy and reliability. Here are the core specifications that define its performance:

• Input Power: 18 Vdc to 36 Vdc, with a maximum current draw of 1.7 A.
• Inrush Current: Maximum 2.7 A for less than 5 ms.
• Module Inputs: Up to 12 dynamic signals and 2 Keyphasor signals.
• Dynamic Range: 110 dB at a sampling rate of 102.4 ksps.
• Signal-to-Noise Ratio: 110 dB at 102.4 ksps.
• A/D Conversion: Sigma-Delta, 24 bits nominal.
• Bandwidth: 0 to 40 kHz.
• Outputs: Two independent Ethernet ports (Net A and Net B), both 10/100 BaseT.
• Buffered Signal Outputs: Two 15-pin DSUB connectors with 550 ohm output impedance.
• Accuracy: Direct pk or rms within ±0.5% of full-scale typical, ±1.1% worst case.
• Operating Temperature: -40 °C to +70 °C (-40 °F to 158 °F).
• Storage Temperature: -45 °C to +85 °C (-49 °F to 185 °F).
• Relative Humidity: 0% to 95% non-condensing.
• Dimensions: 8.88 x 5.89 x 2.17 inches (225 x 150 x 55 mm).
• Weight: 1.4 kg (3 lbs).

One of the most distinctive features is the five-mode alarming system based on generator power. This allows the monitor to adapt its alarm thresholds to the turbine's operating state, reducing false alarms and catching subtle changes that might otherwise go unnoticed.

Applications and Use Cases

The 60M100-00 is designed specifically for wind turbines. It monitors the main bearing, gearbox stages, and generator bearings, providing early warning of developing faults. For example, it can detect gear tooth wear through high-resolution synchronous enveloped spectrums. It also monitors tower sway, a critical parameter for structural integrity. The monitor's ability to handle multiple signal types makes it suitable for both onshore and offshore installations, where reliability is paramount.

In a typical scenario, the monitor continuously collects waveform data and calculates key metrics like kurtosis and crest factor. When a measurement exceeds the warning or alarm setpoint, the monitor latches the alarm and updates the status LEDs. This immediate feedback allows maintenance crews to respond quickly, preventing minor issues from becoming major failures.

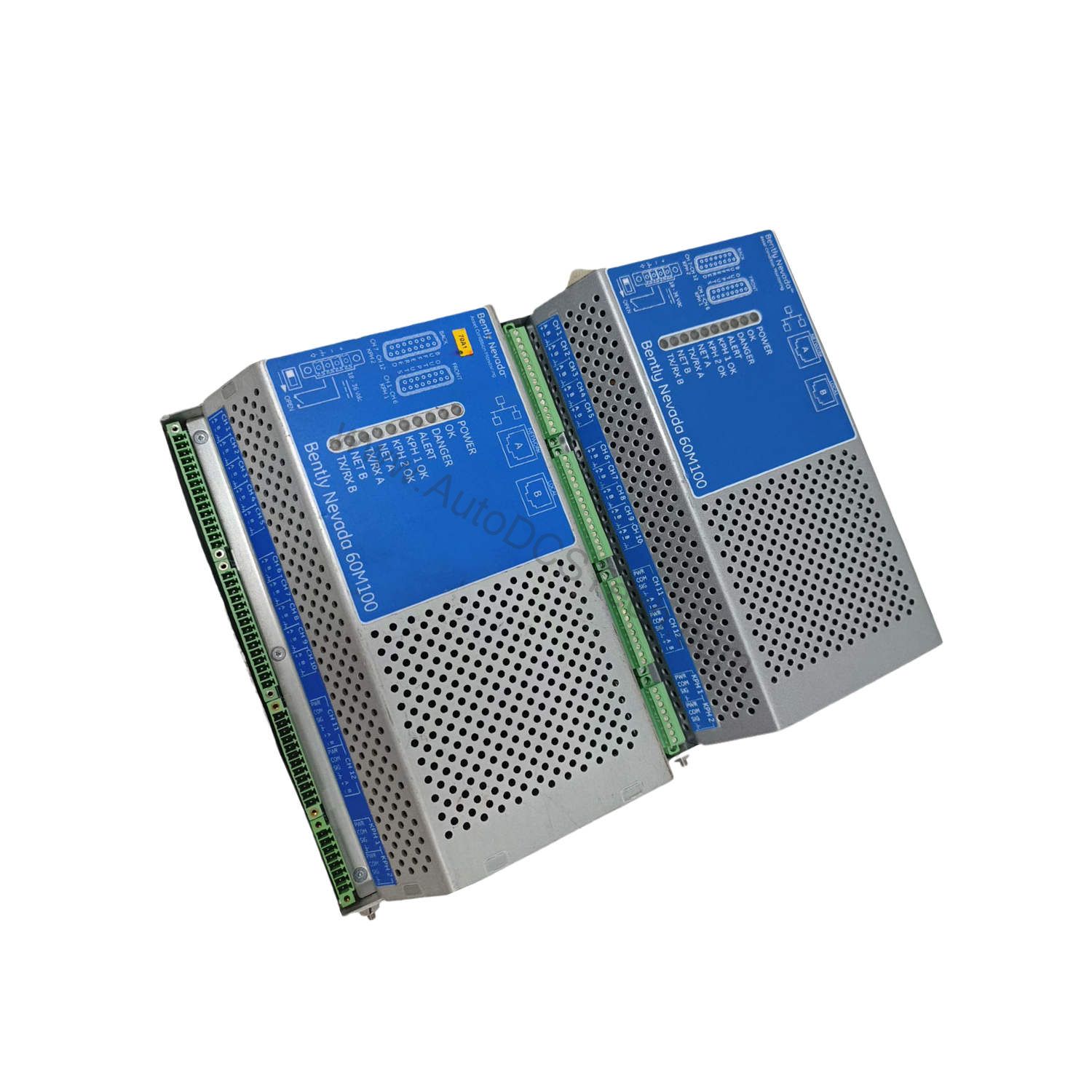

Installation and Setup

Installing the 60M100-00 is straightforward. The unit mounts on a standard DIN rail, simplifying enclosure integration. Before mounting, ensure the power supply provides a stable 18-36 Vdc and can handle the 1.7 A maximum current. Connect the dynamic sensors to the appropriate input channels, and the Keyphasor signals to the dedicated inputs. The two Ethernet ports provide network redundancy or separation: Net A is a DHCP port, while Net B uses a local static IP. This flexibility allows for secure remote access and data integration.

When wiring the buffered signal outputs, use the 15-pin DSUB connectors with 550 ohm impedance. Always follow the manufacturer's wiring diagram to avoid ground loops or signal degradation. After installation, verify that the POWER and OK LEDs are lit, indicating proper operation.

Maintenance and Reliability

Regular maintenance of the 60M100-00 is minimal but important. Periodically inspect the DIN rail mounting to ensure it remains secure. Check all cable connections for tightness and signs of wear. The operating temperature range of -40 °C to +70 °C allows installation in harsh environments, but avoid exposing the unit to condensing humidity. The monitor's solid-state design, with no moving parts, contributes to its long-term reliability.

For optimal performance, keep the firmware updated as recommended by Bently Nevada. The 12-month factory warranty provides peace of mind, but proper care will extend the service life well beyond that.

Compatibility and Integration

The 60M100-00 integrates seamlessly into wind turbine control systems. Its two Ethernet ports allow connection to plant networks and local HMIs. The DHCP port (Net A) simplifies initial setup, while the static IP port (Net B) ensures stable addressing for SCADA integration. The monitor supports a range of transducers, including TurningPoint TP100 accelerometers, Turck Ni8-M18T-AP6X7M proximity sensors, and Bently Prox Probes. This compatibility makes it easy to retrofit into existing monitoring systems.

Troubleshooting Common Issues

If the 60M100-00 does not power up, check the input voltage and current. The unit requires 18-36 Vdc and draws up to 1.7 A. If the POWER LED is off, verify the supply and wiring. If the OK LED is off, the system may have detected a fault; check the DANGER and ALERT LEDs for specific conditions. For network issues, confirm the Ethernet cable connections and IP settings. If the Keyphasor LEDs are not triggering, verify the sensor gap and signal strength. For persistent problems, consult the official Bently Nevada documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 60M100-00 is available from AutoDCSTech as a new, original unit in factory packing. It comes with a 12-month factory warranty. For ordering or technical questions, contact AutoDCSTech. Please verify current lifecycle status and availability before placing an order.
