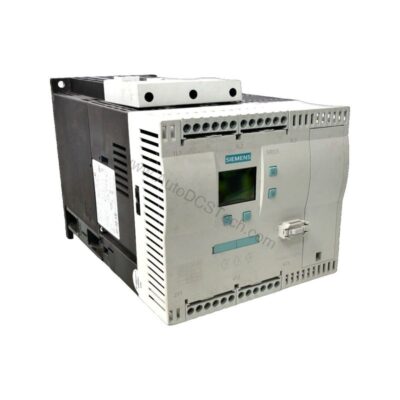

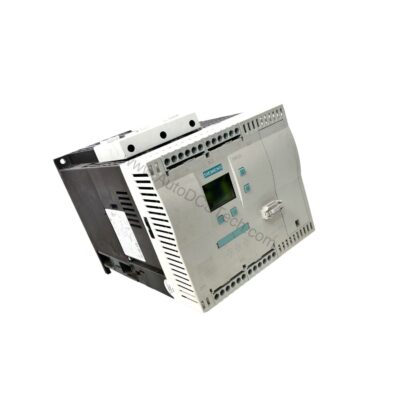

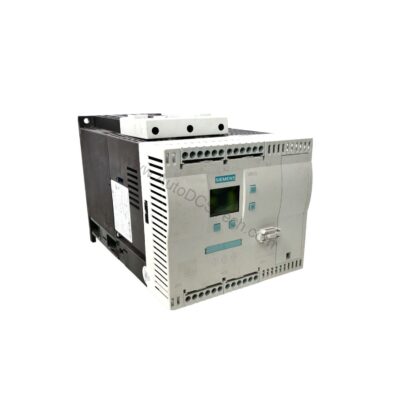

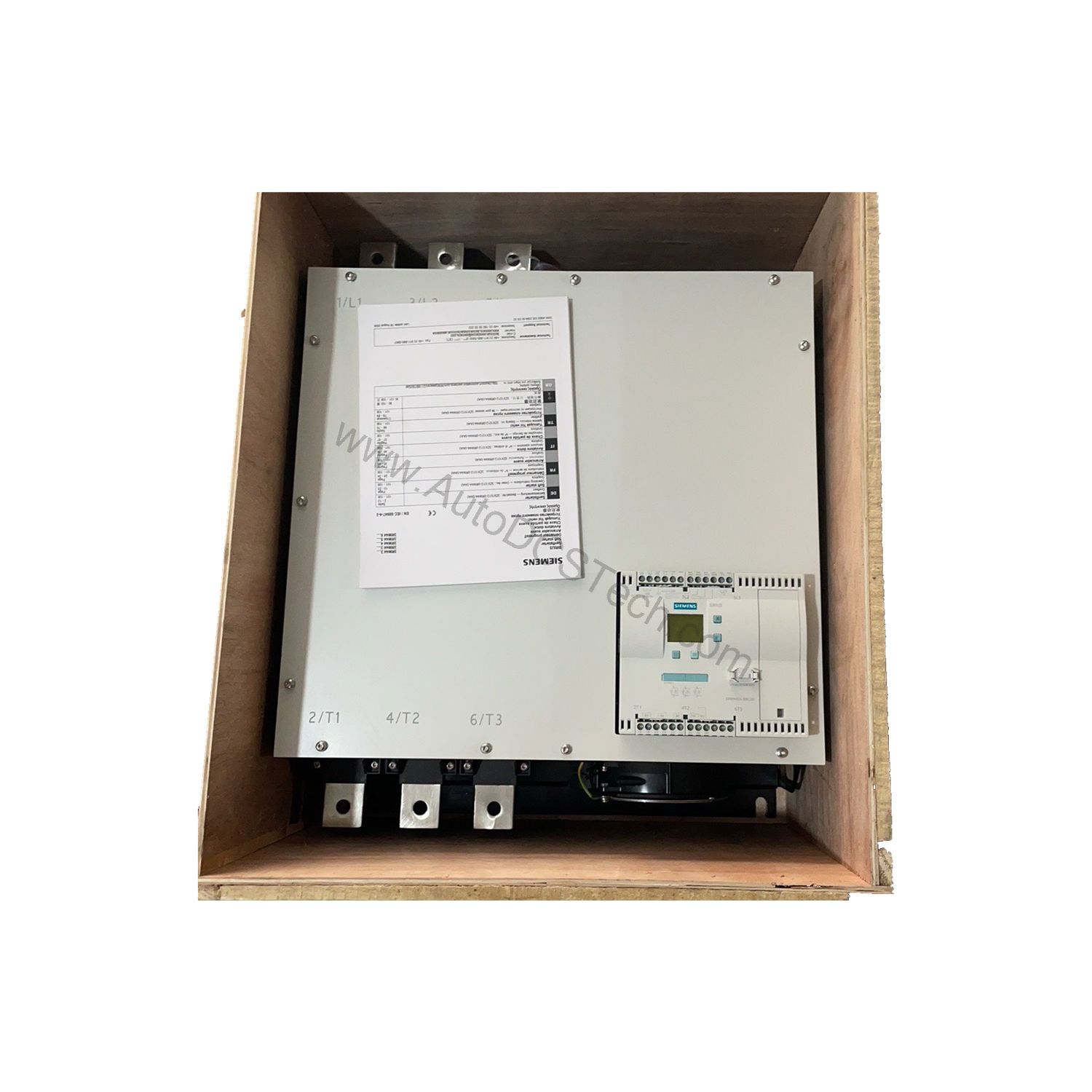

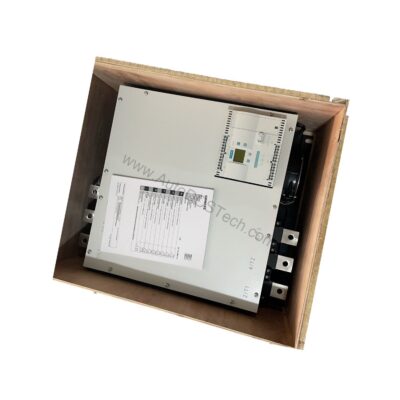

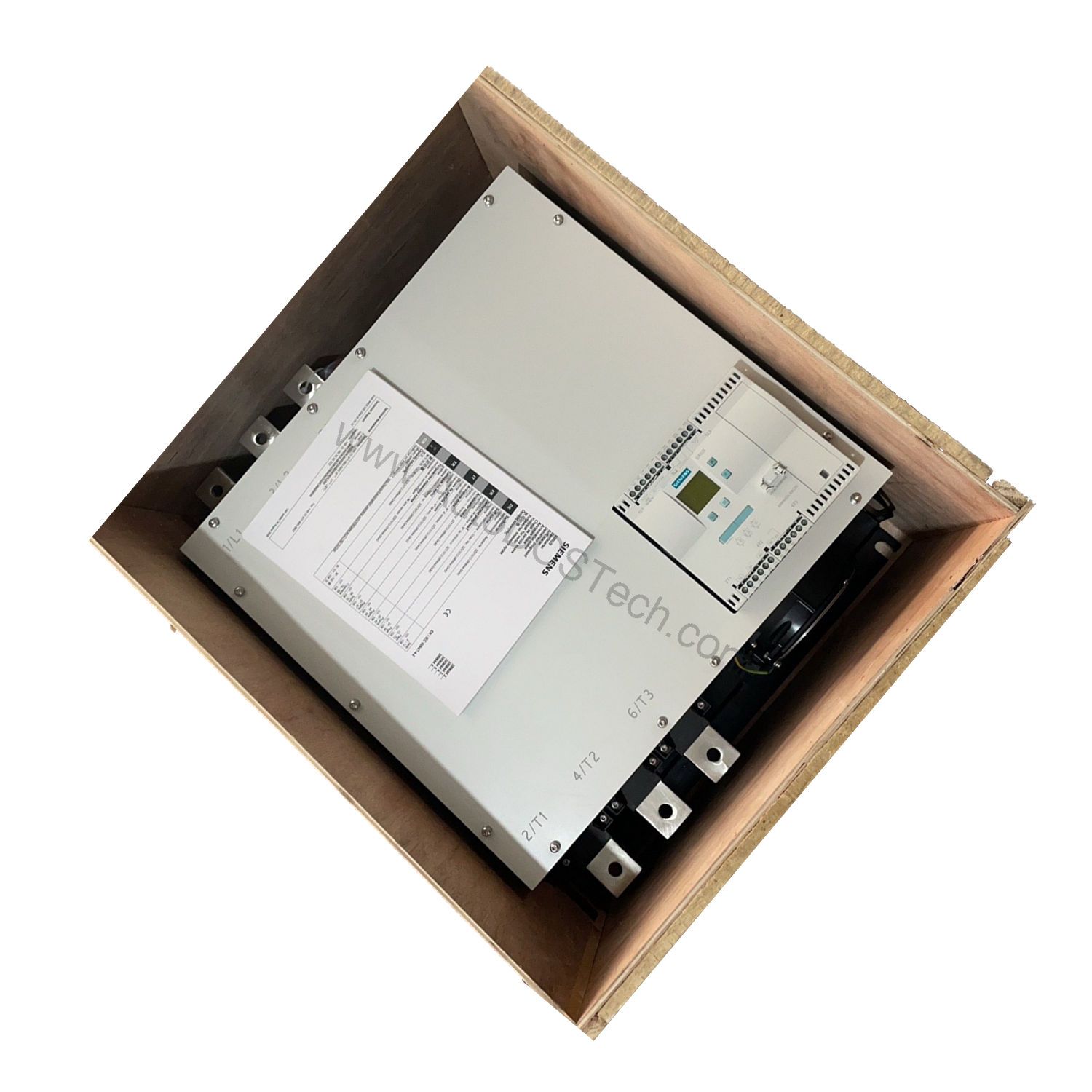

3RW4453-6BC44 551A 315kW SIRIUS Soft Starter

Introduction to the Siemens 3RW4453-6BC44 SIRIUS Soft Starter

When motor starting demands precise control and reliability, the 3RW4453-6BC44 from Siemens delivers. This SIRIUS soft starter is engineered for high-feature applications, combining an integrated bridging contact system with thyristors to ensure smooth acceleration and deceleration. With a rated operating current of 551A at 40°C and an emitted mechanical power of 315kW at 400V in standard circuit, it handles substantial loads with ease.

Designed for three-phase squirrel-cage motors, the 3RW4453-6BC44 supports both standard and inside-delta circuit configurations. In inside-delta mode, it delivers up to 954A and 560kW at 400V, making it a versatile choice for heavy-duty industrial environments. Its robust construction and screw terminals simplify installation, while the IP00 protection class suits controlled electrical rooms.

Key Features and Technical Specifications

The 3RW4453-6BC44 offers a comprehensive set of features that enhance motor protection and operational flexibility. Below are the core specifications extracted from the official datasheet:

• Rated operating current (at 40°C): 551A (standard circuit)
• Rated operating current (at 40°C, inside-delta): 954A
• Emitted mechanical power (at 400V, standard): 315kW
• Emitted mechanical power (at 400V, inside-delta): 560kW
• Operating voltage: 200–460V AC (standard and inside-delta)
• Control supply voltage: 230V AC (at 50/60Hz)
• Operating frequency: 50–60Hz
• Dimensions (W×H×D): 510mm × 640mm × 290mm
• Weight: 67kg
• Protection class: IP00

One distinctive spec is the adjustable current limitation, which allows precise control of motor starting current, reducing mechanical stress and extending equipment life. Additionally, the integrated motor overload protection and thermal resistor evaluation safeguard the motor from overheating, ensuring long-term reliability.

Applications and Use Cases

This soft starter is ideal for conveyors, pumps, fans, and compressors where controlled starting is critical. In a typical pumping station, the 3RW4453-6BC44 reduces water hammer by gradually ramping up the motor, preventing pipeline damage. Similarly, in conveyor systems, it minimizes belt slippage and mechanical wear, enhancing overall system uptime.

Thanks to its inside-delta capability, the soft starter suits high-inertia loads like large centrifugal fans or crushers, where starting torque requirements are high. Its wide operating voltage range (200–460V) makes it adaptable to various global power systems, and the adjustable current limitation allows fine-tuning for specific motor characteristics.

Installation and Setup

Proper installation is essential for optimal performance. The 3RW4453-6BC44 uses screw fixing for mounting and can be rotated ±90° on a vertical plane, offering flexibility in cabinet layout. Maintain the specified clearances: 100mm upward, 5mm sideways, and 75mm downward to ensure adequate ventilation and heat dissipation.

For main circuit connections, the unit accepts busbar connections with conductor cross-sections from 50 to 240 mm² (finely stranded) or 70 to 240 mm² (stranded). Auxiliary and control circuits use screw-type terminals, supporting solid conductors of 2×(0.5–2.5 mm²) and finely stranded with ferrule of 2×(0.5–1.5 mm²). Ensure all connections are torqued to manufacturer specifications to avoid overheating.

Maintenance and Reliability

Regular inspection is key to long service life. Because the soft starter uses thyristors and an integrated bridging contact system, there are no mechanical contacts to wear out, reducing maintenance frequency. However, ambient temperature affects performance: at 50°C the rated current derates to 494A, and at 60°C to 438A. Ensure adequate cooling and avoid exceeding the maximum operating temperature of 60°C.

Periodically check for dust accumulation on the heatsink and verify that all electrical connections remain tight. The device includes self-protection features like intrinsic device protection and motor overload protection, which minimize the risk of damage. For any issues, consult the official Siemens manual or contact AutoDCSTech for support.

Comparison with Similar Soft Starters

When comparing the 3RW4453-6BC44 with other soft starters in the SIRIUS family, its key differentiators are the high current ratings and inside-delta capability. For instance, a typical soft starter rated at 200A might handle only 110kW at 400V, whereas this unit delivers 315kW in standard mode and 560kW in inside-delta mode. This makes it suitable for larger motors without needing a bypass contactor.

Another advantage is the integrated bridging contact system, which reduces power loss during operation. At 40°C, the typical active power loss is only 159W, improving energy efficiency compared to models that require external contactors. The wide voltage tolerance (±15% negative, ±10% positive) provides stability against grid fluctuations, ensuring consistent performance.

Common Issues and Troubleshooting

One common issue with soft starters is nuisance tripping due to incorrect current settings. The 3RW4453-6BC44 offers an adjustable rated current from 110A upward, allowing precise matching to the motor's full-load current. If the motor trips frequently, verify that the current limitation is set correctly and that the ambient temperature is within the derating curve.

Another potential problem is overheating, especially in confined spaces. Ensure that the mounting clearances are respected and that airflow is not obstructed. The device includes a fault signal display, which helps in diagnosing issues quickly. For persistent faults, refer to the official troubleshooting guide or contact AutoDCSTech for expert assistance.

Support and Availability

The 3RW4453-6BC44 is available at AutoDCSTech, a trusted industrial automation parts supplier. Contact us for current pricing and lead times. We offer fast shipping and reliable support to keep your operations running smoothly.
