Introduction to the 6ES7195-7HD10-0XA0

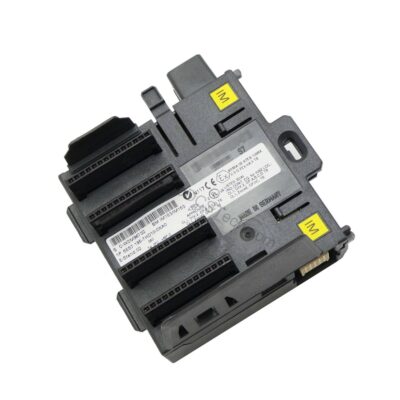

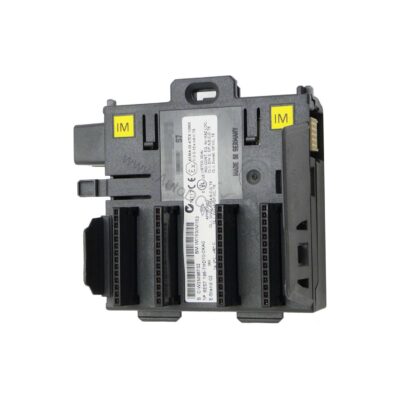

When a production line demands uninterrupted operation, the 6ES7195-7HD10-0XA0 from Siemens becomes a critical component. This SIMATIC DP bus module is engineered specifically for ET 200M distributed I/O systems, enabling the secure mounting of two IM 153-2 interface modules. Its primary purpose is to support removal and insertion of modules during RUN mode, which minimizes downtime and keeps processes running smoothly.

Built with a compact footprint of 97 mm width, 92 mm height, and 30 mm depth, this module fits neatly into standard ET 200M racks. Weighing approximately 133 g, it adds minimal load to the mounting structure. As a maintenance engineer, you will appreciate how this module simplifies service tasks without compromising system integrity.

Key Features and Technical Specifications

The 6ES7195-7HD10-0XA0 is not just a passive carrier; it is a functional element that ensures reliable electrical and mechanical connection. Below are the key parameters extracted from the official datasheet:

• Product Type: SIMATIC DP bus module for ET 200M
• Compatibility: Holds two IM 153-2 modules
• Hot-swap Support: Enables removal and insertion during RUN operation
• Width: 97 mm
• Height: 92 mm
• Depth: 30 mm
• Weight: Approximately 133 g

One distinctive aspect of this module is its explicit design for two IM 153-2 modules. This redundancy capability is essential for high-availability systems, as it allows one interface module to be serviced while the other maintains communication. The hot-swap feature directly reduces unplanned stoppages, a key concern in continuous processes.

Applications and Use Cases

In industrial automation, the 6ES7195-7HD10-0XA0 finds its place in plants that rely on ET 200M remote I/O. Typical applications include chemical processing, automotive manufacturing, and material handling systems where distributed control is necessary. For example, in a bottling line, the ability to replace an IM 153-2 without shutting down the entire line translates to higher throughput and lower operational costs.

Maintenance teams can perform routine checks or firmware updates on one module while the other continues to handle communication, ensuring continuous data flow to the PLC.

Installation and Setup

Installing the 6ES7195-7HD10-0XA0 is straightforward, but precision matters. Begin by verifying that the ET 200M base unit is properly grounded and that the bus module is aligned with the mounting slots. Slide the module into place until it clicks securely, ensuring the backplane connectors are fully engaged.

When inserting the IM 153-2 modules, always confirm that the locking mechanisms are engaged. For hot-swap operations, follow the manufacturer's guidelines to avoid any electrical stress. It is recommended to label the module and its associated I/O cards clearly, which simplifies future maintenance and reduces the risk of incorrect insertion.

Maintenance and Reliability

From a maintenance perspective, the 6ES7195-7HD10-0XA0 requires minimal attention, but periodic inspection is wise. Check the module for any signs of physical damage, loose connections, or contamination. Because it supports hot-swapping, you can replace an IM 153-2 quickly, but always ensure that the replacement module is compatible and that the bus module itself is in good condition.

Environmental factors such as vibration, temperature, and humidity can affect any electronic component. Although the module is robust, it is prudent to keep the enclosure clean and within specified operating conditions. Regular inspection of the backplane contacts can prevent intermittent faults that are difficult to diagnose.

Compatibility and Integration

The 6ES7195-7HD10-0XA0 is designed exclusively for the Siemens ET 200M system. It is compatible with any IM 153-2 interface module, which are used to connect the ET 200M to PROFIBUS DP networks. This bus module does not include the IM modules themselves; you must order them separately.

When integrating this module into an existing system, verify that your PLC and network configuration support the redundancy features you intend to use. The module itself does not require separate power, as it draws from the backplane. Always consult the official Siemens documentation for detailed integration steps.

Common Issues and Troubleshooting

Although the 6ES7195-7HD10-0XA0 is reliable, occasional issues can arise. A common problem is poor contact due to improper seating of the IM 153-2 modules. If you experience intermittent communication errors, reseat the modules and check that the bus module is firmly locked.

Another issue is physical damage to the backplane connectors, which can occur if modules are inserted with excessive force. Always insert modules straight and evenly. If you suspect a fault, inspect the bus module visually and, if necessary, replace it with a new unit. Remember that hot-swapping is supported, but you should never remove a module while the system is in a critical state unless you have a redundant configuration.

Product Support and Availability

AutoDCSTech offers the 6ES7195-7HD10-0XA0 as a stocked item. Contact our team to confirm current availability and lead times. We are committed to helping you maintain your automation systems with genuine Siemens components.
