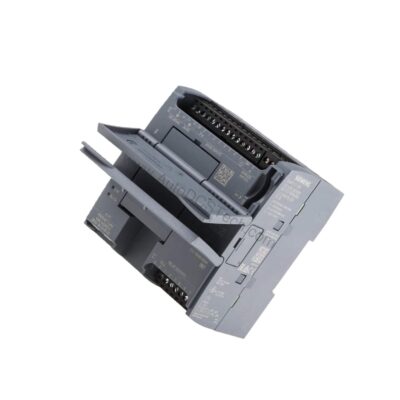

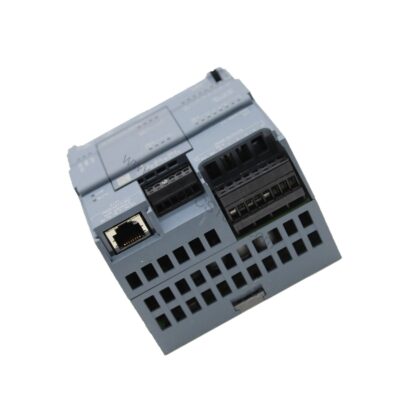

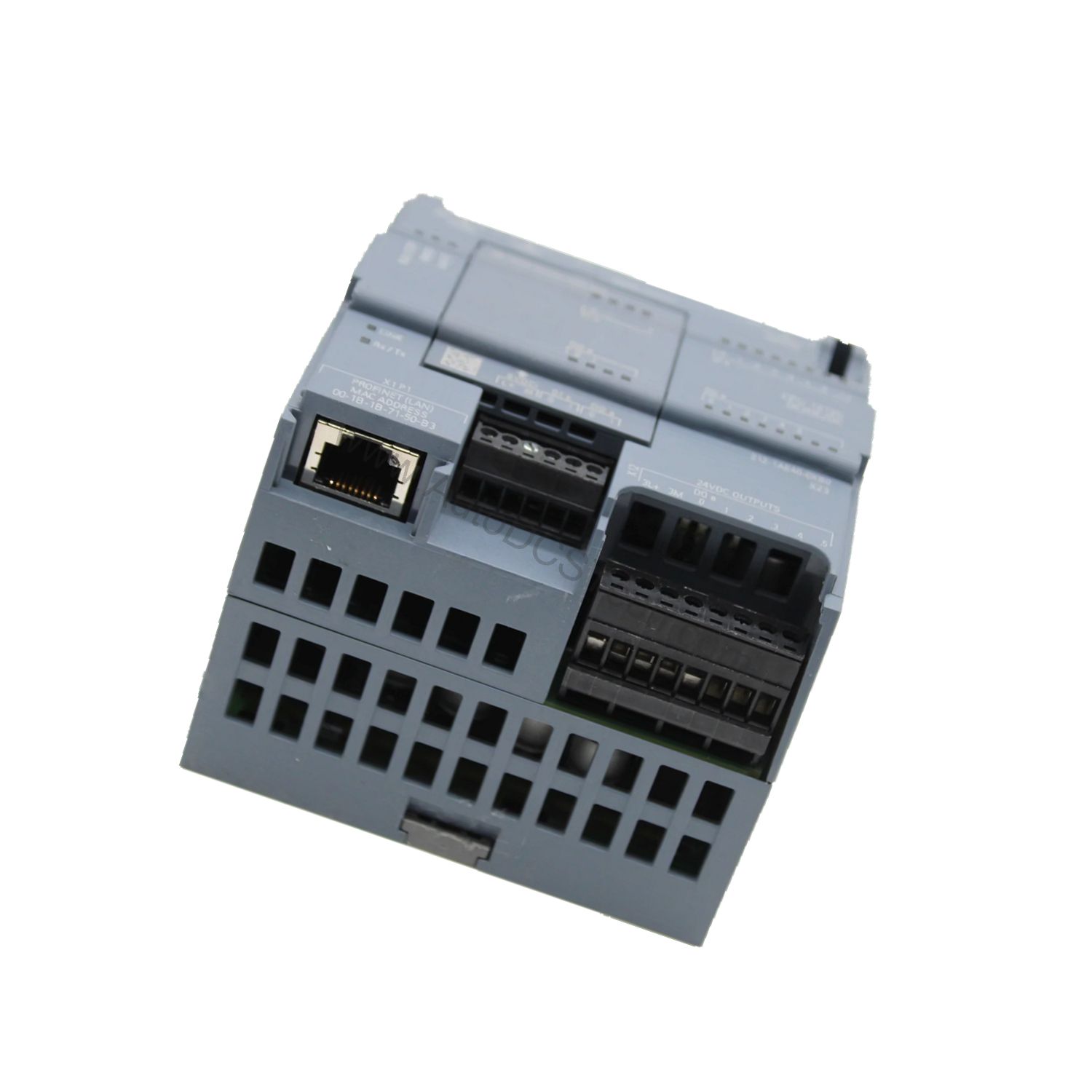

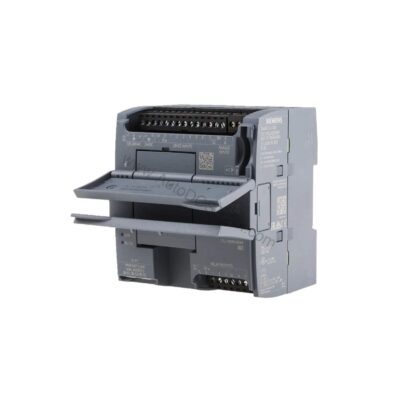

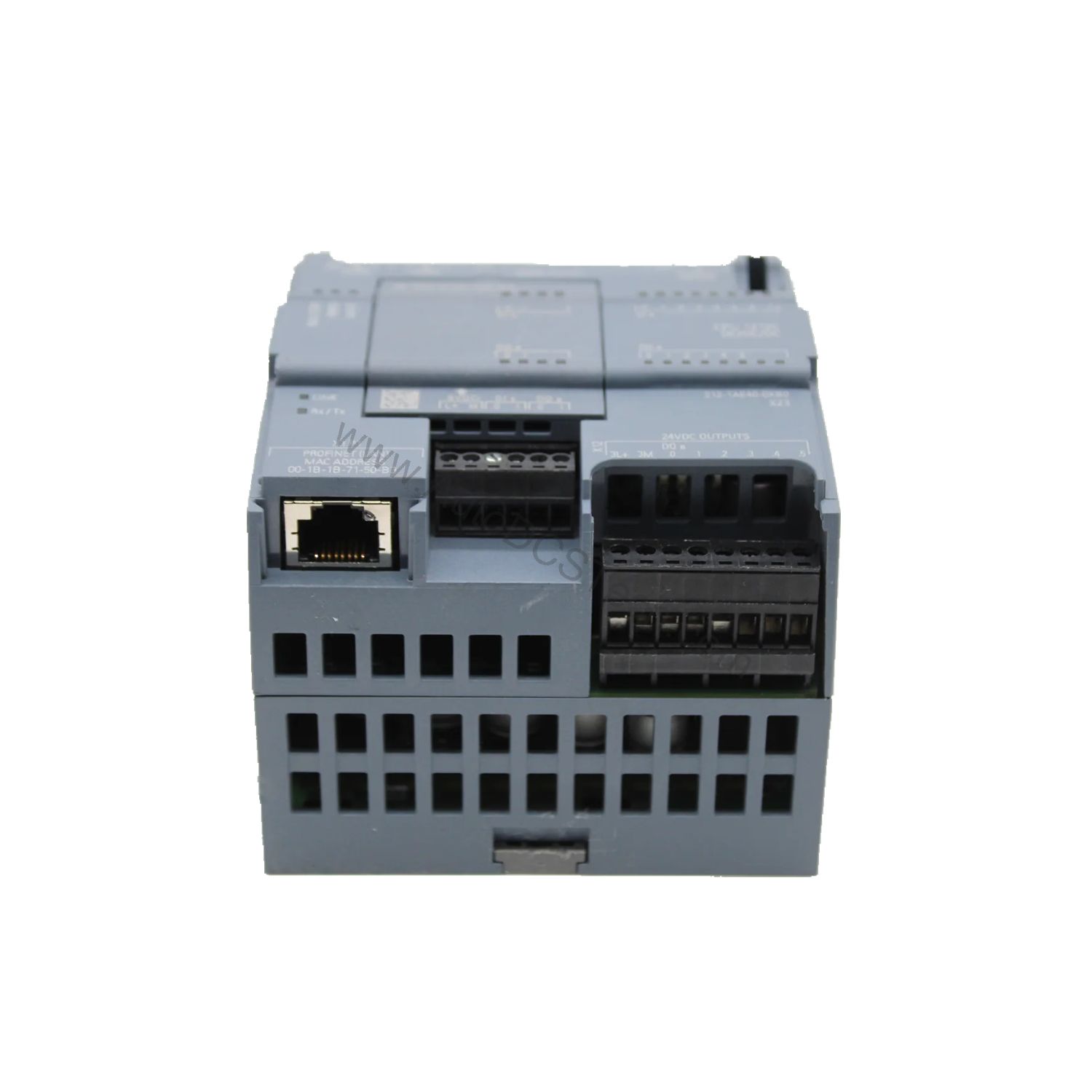

6ES7212-1HD30-0XB0 CPU 1212C DC/DC/Relay 8 DI 6 DO

Key Features and Technical Specifications

The 6ES7212-1HD30-0XB0 includes a robust set of onboard I/O and memory features. Below are the core specifications that define its performance.

• Onboard Digital Inputs: 8 digital inputs rated at 24 V DC, with 4 usable for high-speed counting (HSC).
• Onboard Digital Outputs: 6 relay outputs, each rated for 2 A resistive load.
• Onboard Analog Inputs: 2 analog inputs accepting 0 to 10 V DC signals.
• Program/Data Memory: 25 KB integrated work memory, with 1 MB load memory.
• Supply Voltage: DC 20.4 to 28.8 V, rated at 24 V DC.
• Current Consumption: Typical 175 mA, maximum 1.2 A at 24 V DC.
• Power Loss: Typically 9 W.
• Processing Times: 0.1 µs for bit operations, 12 µs for word operations, 18 µs for floating point arithmetic.
• Interface: PROFINET with Ethernet physics, supporting TCP/IP and ISO-on-TCP.
• Degree of Protection: IP20.

One distinctive spec is the high-speed counting capability. With 3 counters at 100 kHz and 1 at 30 kHz in single-phase mode, this CPU can handle fast pulse signals. Therefore, it suits applications like speed monitoring or position counting without extra hardware.

Installation and Setup Guidance

Proper installation is critical for reliable operation. The 6ES7212-1HD30-0XB0 mounts on a standard DIN rail or directly to a wall. Ensure adequate clearance for ventilation, as the unit dissipates up to 9 W of power. Moreover, follow the permissible ambient temperature ranges: 0 °C to 55 °C for horizontal mounting and 0 °C to 45 °C for vertical mounting.

For wiring, use shielded cables for analog inputs, with a maximum length of 100 m. For digital inputs, shielded cables can run up to 500 m, while unshielded cables are limited to 300 m. Relay outputs have similar cable length limits: 500 m shielded and 150 m unshielded. Always verify the supply voltage is within the 20.4 V to 28.8 V DC range before powering up.

Maintenance and Reliability Considerations

Routine maintenance helps extend the life of the 6ES7212-1HD30-0XB0. Because relay outputs have a mechanical lifespan of 10 million cycles (or 100,000 at rated load), periodic inspection of switching operations is advisable. Additionally, the unit’s EMC immunity, tested to IEC 61000-4-2, ensures stable operation in electrically noisy environments. However, always follow the manufacturer’s manual for detailed maintenance procedures.

Environmental factors also matter. The CPU can operate in up to 95% relative humidity without condensation. For storage, it tolerates temperatures from -40 °C to 70 °C. Therefore, avoid exposing the unit to condensing moisture or extreme thermal swings during transport or storage.

Why the 6ES7212-1HD30-0XB0 Solves Compact Control Challenges

When space is tight and reliability is non-negotiable, the 6ES7212-1HD30-0XB0 delivers a compact CPU solution. This Siemens SIMATIC S7-1200 controller integrates digital and analog I/O, making it a strong fit for small machines and standalone processes. This CPU addresses that by combining processing power, onboard I/O, and communication in one 90 mm wide unit.

Additionally, the 6ES7212-1HD30-0XB0 operates on a 24 V DC supply with a permissible range of 20.4 V to 28.8 V DC. This wide tolerance helps maintain stable operation even with fluctuating line voltages. Consequently, it reduces the risk of unexpected shutdowns in industrial environments.

Troubleshooting Common Issues

If the CPU fails to start, first check the supply voltage. The permissible range is 20.4 V to 28.8 V DC. A voltage outside this range can cause erratic behavior. Also, verify that the load voltage L+ is within the specified limits (5 V to 250 V DC). For output issues, remember that relay outputs have no internal short-circuit protection; external fusing is required.

Another common issue is communication failure. The 6ES7212-1HD30-0XB0 supports PROFINET as an IO controller. Ensure the Ethernet cable is properly connected and that the device is configured with the correct IP address. If using TCP/IP or ISO-on-TCP, verify the protocol settings.

Availability and Support

The 6ES7212-1HD30-0XB0 is available from AutoDCSTech. As a spare part, it is ready to ship for your automation needs. Contact AutoDCSTech for current lifecycle status and availability before ordering.
