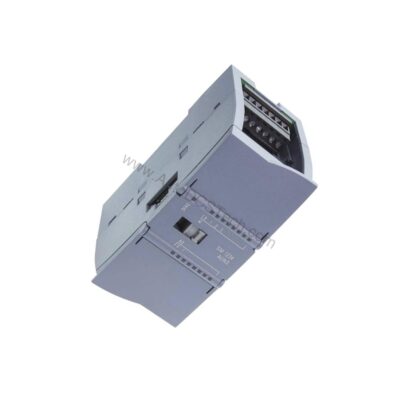

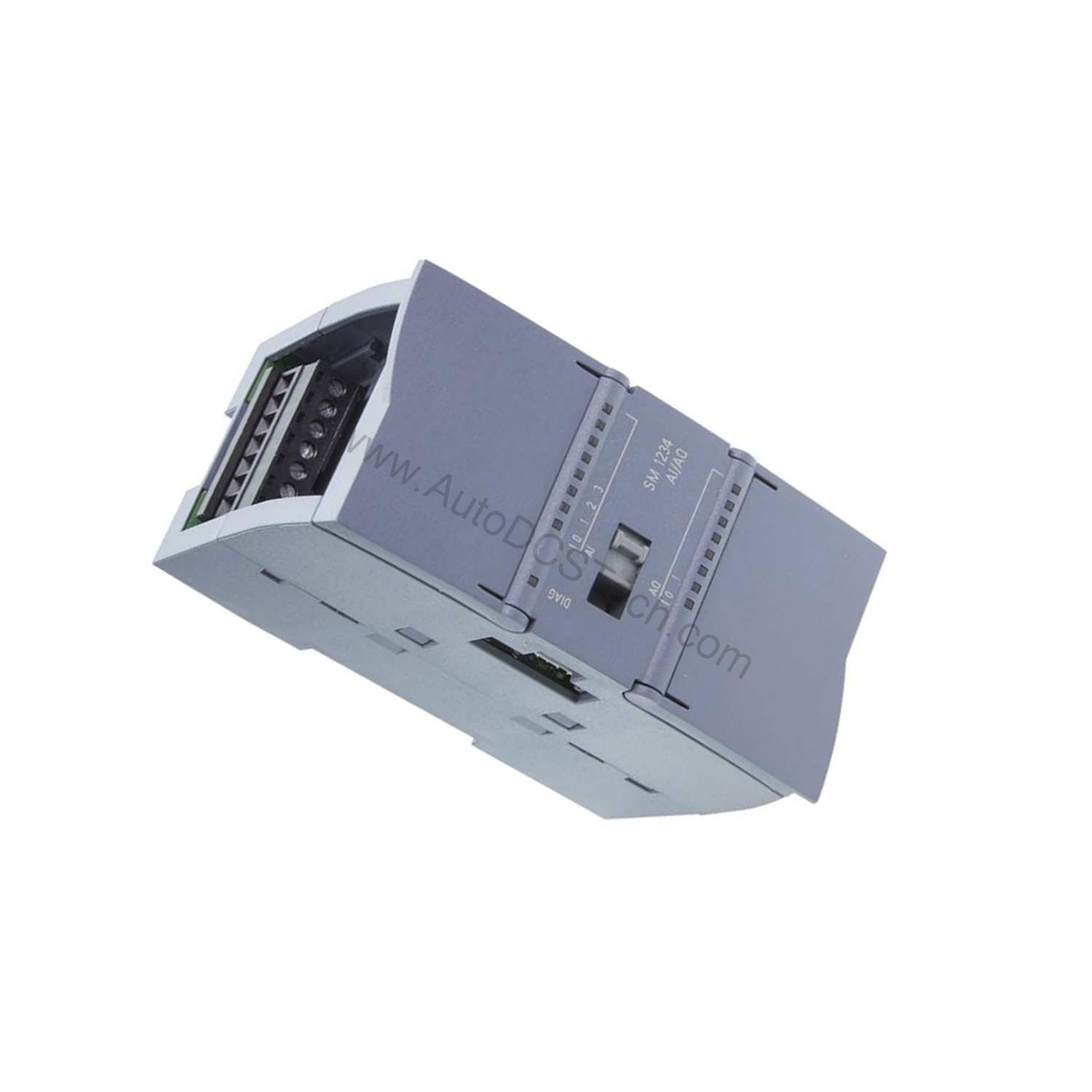

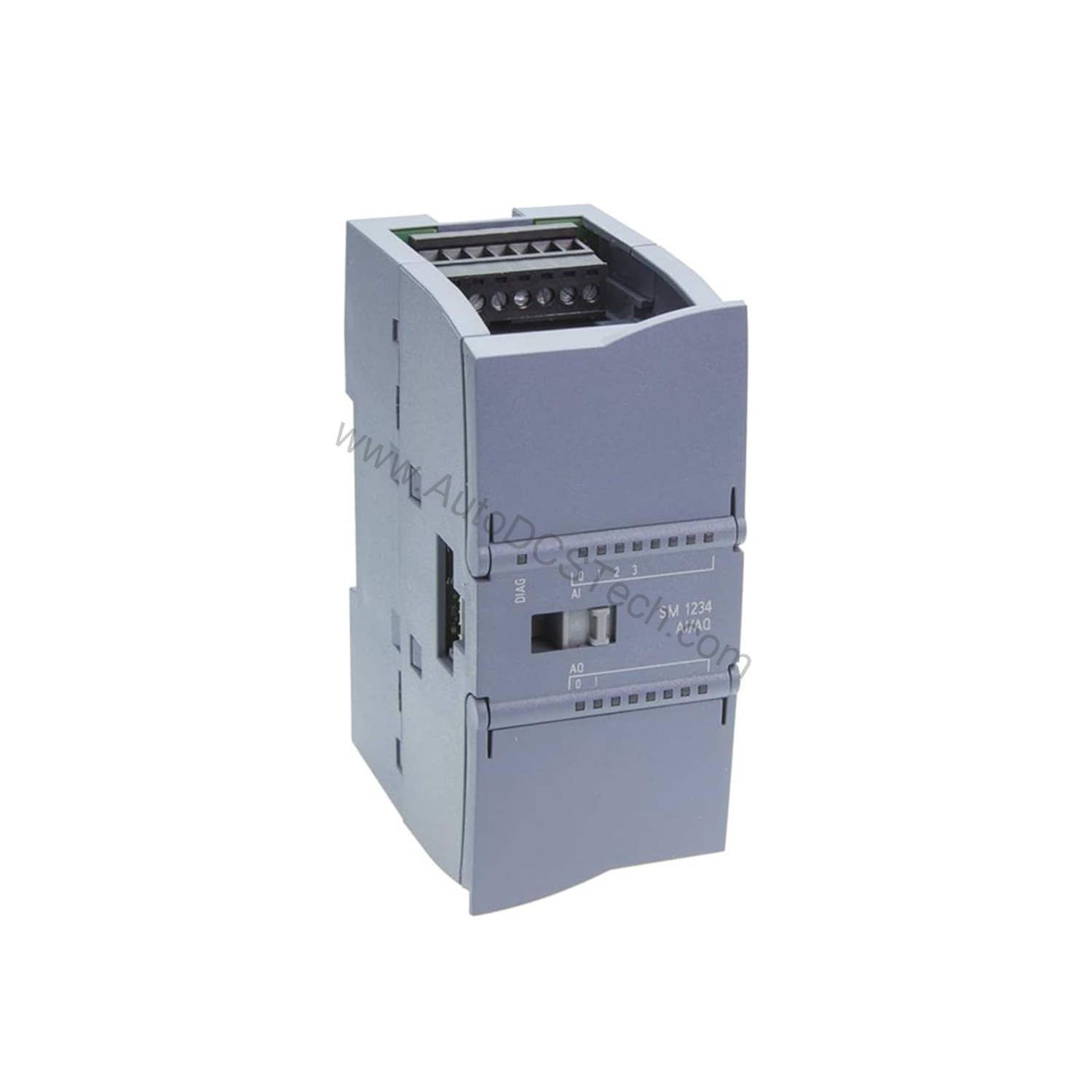

6ES7234-4HE32-0XB0 Siemens SM 1234 4AI/2AO Analog Module

Introduction to the 6ES7234-4HE32-0XB0

When your S7-1200 system demands precise analog signal handling, the 6ES7234-4HE32-0XB0 from Siemens provides a reliable solution.

Designed for industrial environments, this module operates on a 24 V DC supply and consumes only 60 mA typical current, with an additional 80 mA from the backplane bus. Its low power loss of 2 W helps maintain thermal stability in dense cabinets.

Key Features and Technical Specifications

The 6ES7234-4HE32-0XB0 supports both voltage and current signals, offering flexibility for various sensors and actuators. Key parameters include:

• Analog inputs: 4 differential inputs (voltage or current)
• Analog outputs: 2 (voltage or current)
• Input voltage ranges: ±10 V, ±5 V, ±2.5 V
• Input current ranges: 0-20 mA, 4-20 mA
• Output voltage range: -10 V to +10 V
• Output current ranges: 0-20 mA, 4-20 mA
• Resolution: 14-bit for voltage outputs, 13-bit for current outputs
• Cycle time: 625 µs for all channels
• Input resistance: ≥9 MΩ for voltage, 280 Ω for current
• Load impedance: min. 1000 Ω (voltage out), max. 600 Ω (current out)

One distinctive feature is the high input resistance of ≥9 MΩ, which minimizes loading effects on voltage sources, ensuring accurate readings even with high-impedance transducers.

Installation and Setup

Mounting the 6ES7234-4HE32-0XB0 is straightforward: it snaps onto a standard DIN rail and connects to the S7-1200 backplane bus via the front connector. Ensure the module is placed in a horizontal or vertical orientation within the specified ambient temperature limits: -20 °C to 60 °C for horizontal, -20 °C to 50 °C for vertical installation.

Use shielded, twisted-pair cables for analog signals, with a maximum length of 100 meters. Proper shielding minimizes electromagnetic interference and maintains signal integrity.

Maintenance and Reliability

Regular inspection of the module's LED indicators helps verify input/output status and maintenance alerts. The IP20 protection rating requires installation in a clean, dry enclosure. With a wide operating temperature range and low power dissipation, the module offers dependable long-term performance.

Periodically check connections for tightness and ensure the ambient humidity stays below 95% at 25 °C without condensation. Following these practices extends service life and reduces unplanned downtime.

Compatibility and Integration

The 6ES7234-4HE32-0XB0 is designed exclusively for the Siemens S7-1200 PLC family. The module supports parameterizable integration time and smoothing filters, allowing you to tailor analog value processing to your process requirements.

Troubleshooting and Common Issues

Common issues include wire-break alarms, which the module detects via its diagnostic function. If you encounter inaccurate readings, verify that the input range matches your sensor's output and that the load impedance meets the specified minimums. For current outputs, ensure the load does not exceed 600 Ω; for voltage outputs, keep the load above 1000 Ω.

If the module fails to communicate, check the backplane bus connection and supply voltage. The diagnostic LED for maintenance provides an early warning of potential faults.

Product Support and Availability

The 6ES7234-4HE32-0XB0 is available through AutoDCSTech. Contact our team for current availability and lifecycle status. We offer fast shipping and dedicated support for your automation needs.

Comparison with Similar Analog Modules

Compared to basic analog input modules, the 6ES7234-4HE32-0XB0 offers integrated output capability, reducing the need for separate modules. While some modules lack diagnostic features, this SM 1234 provides alarms and diagnostics for wire-break, short-circuit, and supply voltage monitoring, enhancing system reliability.
