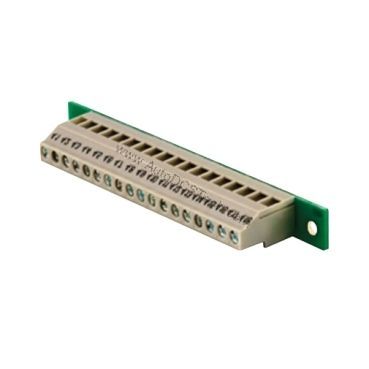

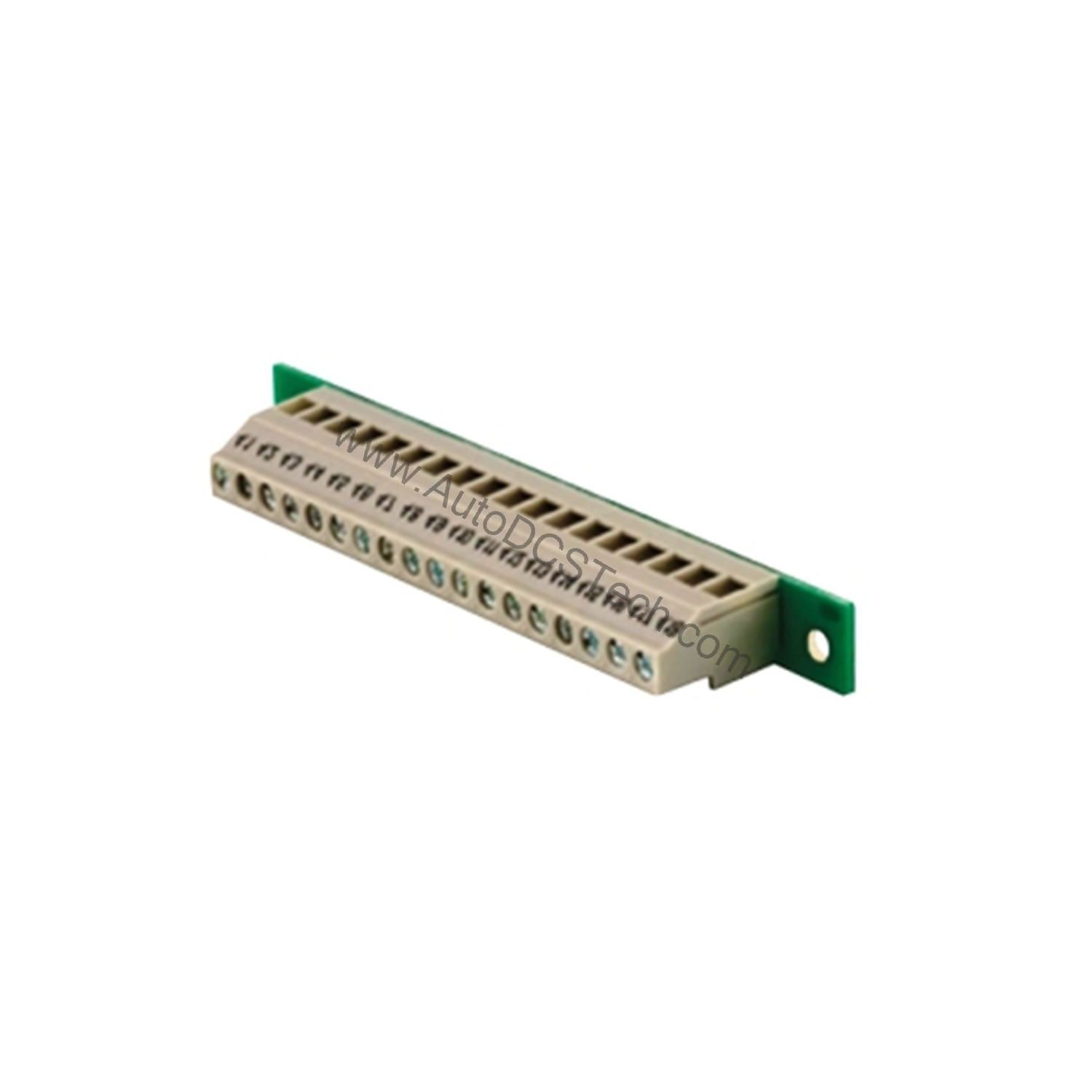

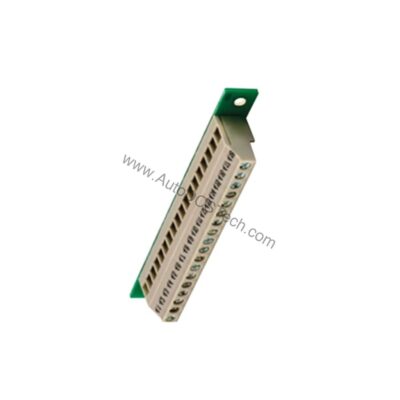

Schneider 170XTS00301 Modicon Momentum Terminal Connector Kit

Technical Specifications Breakdown

Key parameters for the 170XTS00301 are listed below for quick reference:

Industry Applications

The 3-row busbar design supports organized wiring for both discrete and analog I/O modules, reducing installation time and improving troubleshooting efficiency. For engineers managing brownfield upgrades, this accessory simplifies field device integration without requiring panel redesign.

Installation & Setup Guidance

Mount the 170XTS00301 onto a compatible Modicon Momentum discrete or analog I/O base. Ensure the spring-type terminals are fully seated before inserting wires. Use appropriate wire gauges for the current requirements of your field devices. No additional cooling is needed due to natural convection design. Verify ambient temperature stays within 0 to 60 degrees Celsius and humidity below 95% non-condensing.

Maintenance & Reliability

Periodically inspect the terminal connections for signs of corrosion or loosening, especially in high-humidity environments. The CE-compliant construction ensures adherence to European safety and quality standards. The kit's lightweight design (110 g) and compact dimensions (1.42 x 2.24 x 5.05 inches) allow easy access for routine checks.

Robust Connectivity for Modicon Momentum Systems

The Schneider Electric 170XTS00301 terminal connector kit is an essential accessory for the Modicon Momentum automation platform. Designed to provide a common connection for field devices and serve as a protective distribution connector, this kit ensures reliable signal integrity in demanding industrial environments. Its compact form factor and natural convection cooling simplify installation while maintaining performance.

Compatibility & Integration

This accessory is specifically designed for the Modicon Momentum automation platform. It works with both discrete I/O bases and analog I/O bases, providing a common connection point for field devices. The 3-row busbar configuration supports organized power and signal distribution.

Selection Guide & Purchasing Advice

When ordering the 170XTS00301, verify that your existing Modicon Momentum base is compatible. AutoDCSTech stocks this terminal connector kit and can advise on lifecycle status and availability. For large projects, consider ordering multiple units to ensure consistent wiring practices across panels.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
