6ES7350-1AH03-0AE0 500 kHz Counter Module FM 350-1

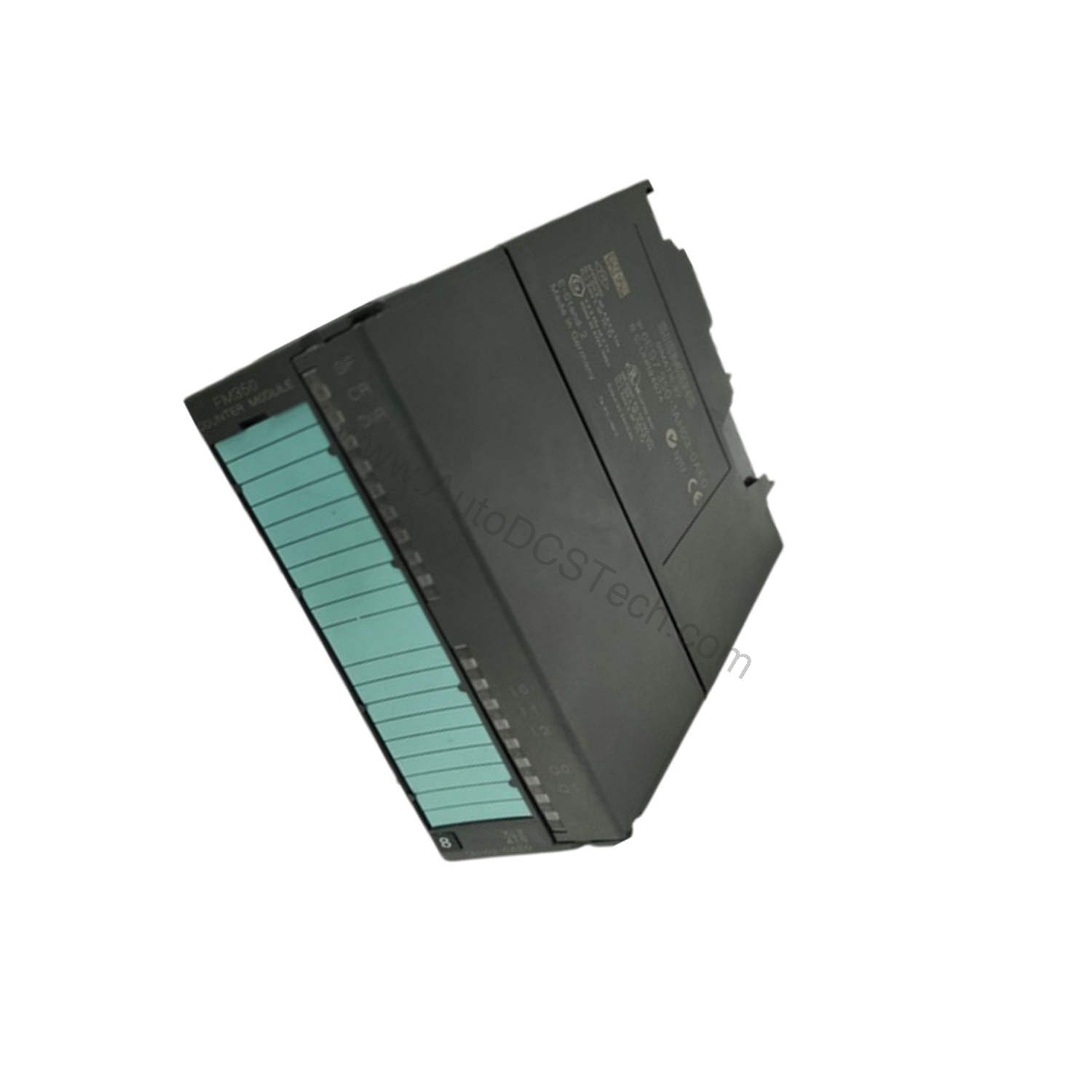

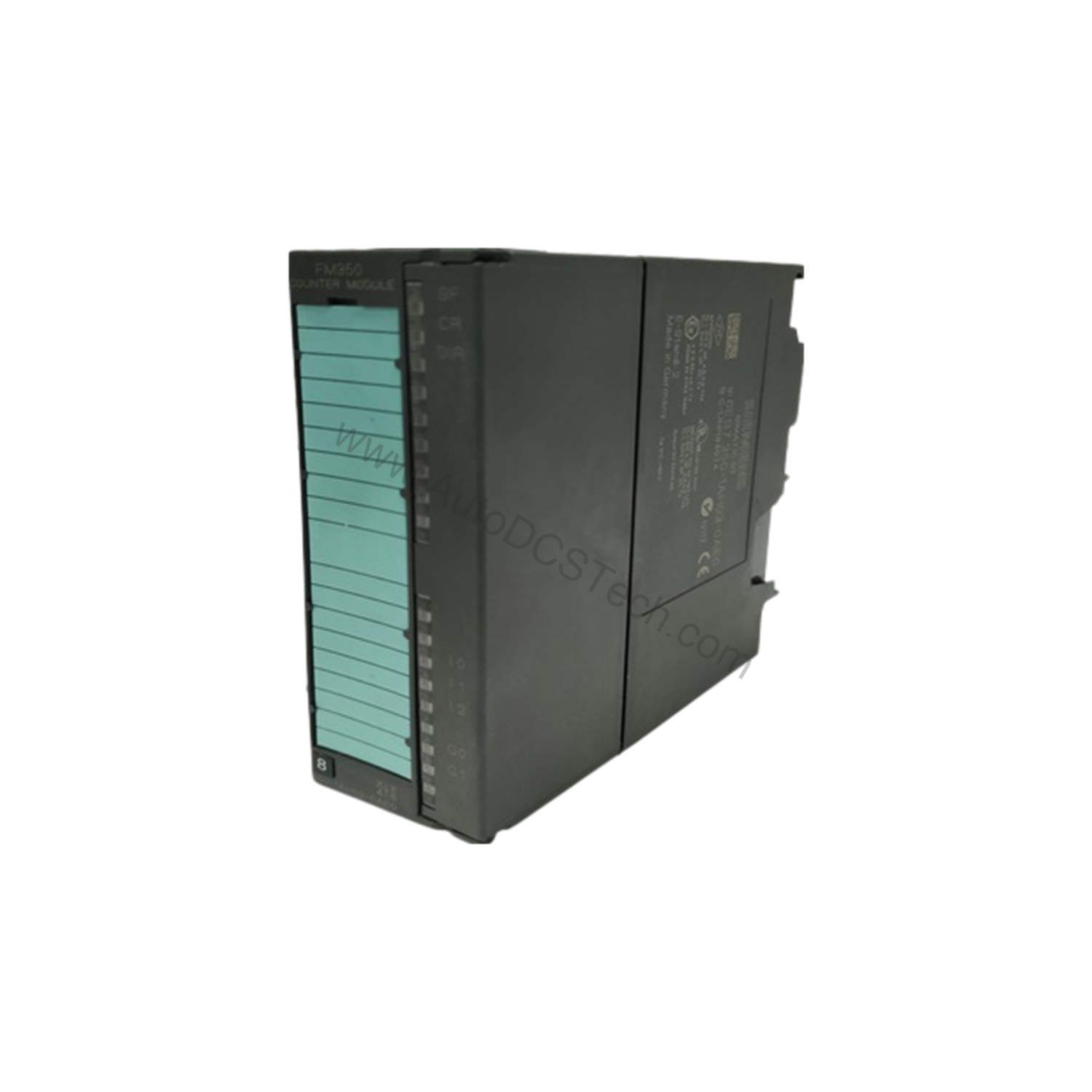

Introduction to the Siemens 6ES7350-1AH03-0AE0 Counter Module

When high-speed counting accuracy is non-negotiable, the 6ES7350-1AH03-0AE0 from Siemens delivers. This SIMATIC S7-300 counter module, part of the FM 350-1 family, is engineered for applications that demand precise pulse counting from incremental encoders. With support for both 5 V and 24 V encoders, it offers flexibility across diverse industrial setups.

The module operates with a rated supply voltage of 24 V DC, accepting a permissible range from 20.4 V to 28.8 V DC. It draws a maximum of 40 mA from the load voltage and 160 mA from the backplane bus, ensuring efficient power usage within your control cabinet.

Key Features and Technical Specifications

This counter module is built for performance. Its standout capability is a maximum counting frequency of 500 kHz on the 5 V RS 422 input, making it suitable for high-speed motion control and position feedback. The 24 V input supports up to 200 kHz, with a minimum pulse width of 2.5 µs.

• Counter inputs: 1 channel, 32-bit or ±31-bit resolution.
• Encoder supply: 5 V (5.2 V ±2%) with max 300 mA output; 24 V (1L+ -3 V) with max 400 mA output.
• Digital inputs: 3 inputs for gate start, gate stop, and counter setting.
• Digital outputs: 2 outputs with short-circuit protection and clocked electronic limiting.
• Isolation: Optocoupler isolation between channels and backplane bus; tested at 500 V.
• Power loss: Typical 4.5 W.
• Dimensions: 40 mm width, 125 mm height, 120 mm depth; weight approx. 250 g.

One distinctive feature is the isochronous mode, which enables synchronized data acquisition with the PLC cycle, critical for applications requiring deterministic response.

Applications and Use Cases

Its ability to handle both symmetrical and asymmetrical incremental encoders makes it versatile. For instance, in a cut-to-length application, the module's 500 kHz counting frequency ensures accurate measurement even at high line speeds, reducing waste and improving throughput.

Installation and Setup

Mounting the module is straightforward: it fits on a standard S7-300 DIN rail and requires a 1x 20-pin front connector. Ensure the supply voltage is within the specified range (20.4 V to 28.8 V DC) and that the encoder wiring matches the selected input type (5 V RS 422 or 24 V). The module's configuration package on CD simplifies parameter setup, allowing you to define counting modes and gate functions quickly.

Maintenance and Reliability

Routine checks should focus on the integrity of encoder connections and the condition of the front connector. Because the module has no moving parts, maintenance is minimal, but periodic inspection of the power supply and signal wiring is recommended to prevent intermittent faults. The optocoupler isolation protects the backplane bus from voltage spikes, enhancing long-term reliability.

Compatibility and Integration

It supports isochronous mode for real-time applications and connects to 5 V and 24 V incremental encoders. The module also interfaces with 24 V initiators and directional elements, providing broad encoder compatibility.

Troubleshooting and Common Issues

If counting errors occur, verify that the encoder supply voltage is within tolerance (5.2 V ±2% or 24 V -3 V). Check the input signal levels: for signal "0", the range is -28.8 to +5 V; for signal "1", it is +11 to +28.8 V. Ensure the terminating resistor (220 Ω) is properly set for RS 422 connections. If outputs fail, confirm the load does not exceed 0.6 A and that the inductive shutdown voltage is limited to 2L+ (-39 V).

Product Support and Availability

The Siemens 6ES7350-1AH03-0AE0 is available through AutoDCSTech. Please verify current lifecycle status and availability with our team before ordering. We are ready to assist with any technical questions.
