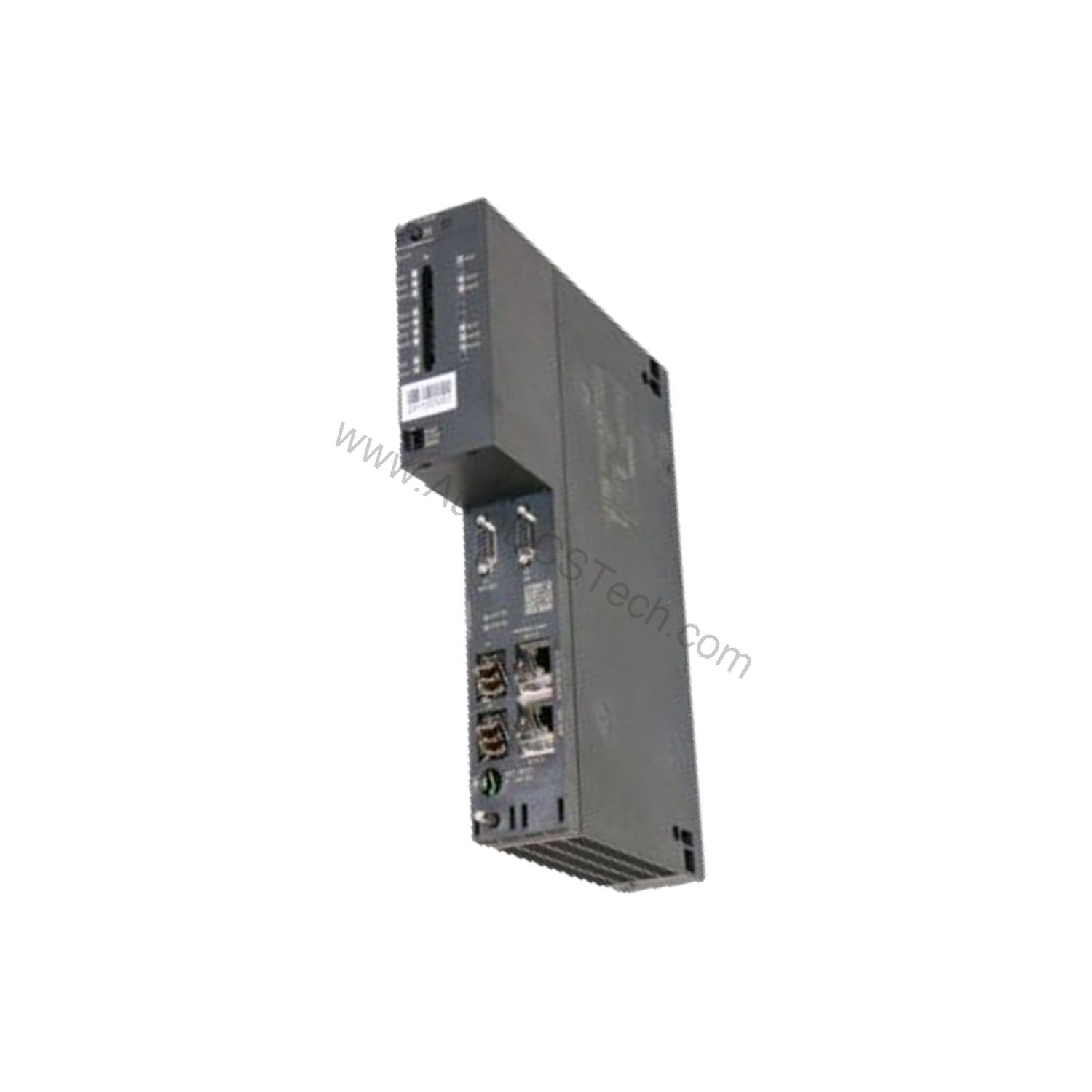

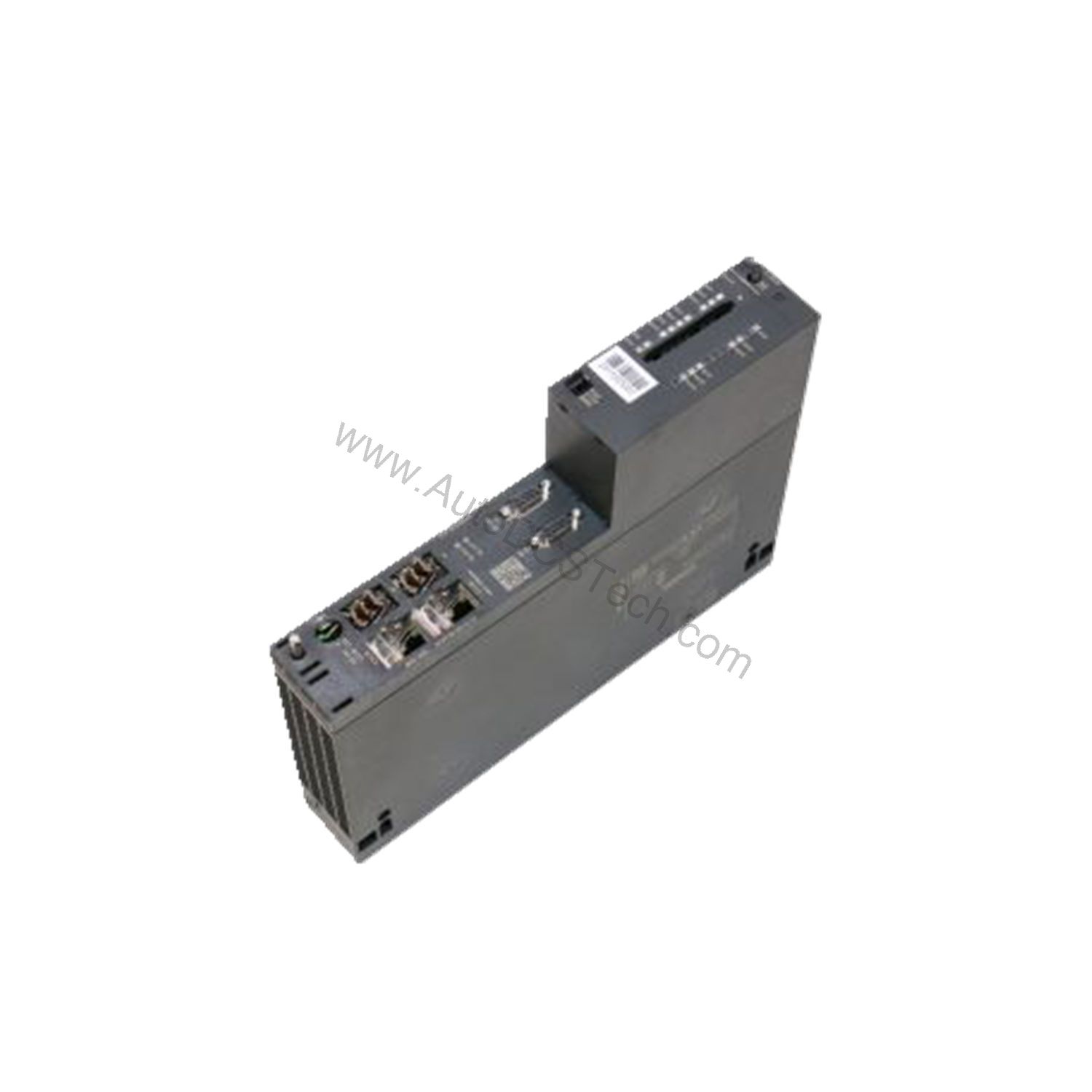

6ES7414-3XJ00-0AB0 Overview: A S7-400 CPU
When your application demands robust processing power and reliable multi-network connectivity, the 6ES7414-3XJ00-0AB0 from Siemens delivers. This SIMATIC S7-400 CPU is engineered for complex automation tasks, offering 768 KB of integrated working memory (384 KB for code, 384 KB for data). It is designed to handle large programs and fast control loops, making it a solid choice for mid-to-large-scale industrial processes.
The CPU features a 24 V DC rated supply, with a typical power loss of 7.5 W. Its backplane bus current consumption is 1.5 A typical (1.6 A max) at 5 V DC, and 450 mA max at 24 V DC. These specifications ensure efficient operation within your control cabinet.
Key Features and Technical Specifications
The 6ES7414-3XJ00-0AB0 is packed with features that enhance performance and flexibility. Below are the core specifications you need to know:
- Working Memory: 768 KB integrated (384 KB code, 384 KB data), not expandable.
- Load Memory: Expandable up to 64 MB via FEPROM or RAM Memory Cards.
- Processing Times: 0.1 µs for bit, word, and fixed-point operations; 0.6 µs for floating-point arithmetic.
- Interfaces: 1st interface MPI/DP (12 Mbit/s), 2nd interface PROFIBUS DP (12 Mbit/s), and a 3rd interface slot for IF 964-DP plug-in module.
- DP Master Capability: Integrated DP master on both interfaces, supporting up to 32 slaves (1st IF) and 96 slaves (2nd IF).
- I/O Address Area: 8 KB inputs and 8 KB outputs, with adjustable process image.
- Digital Channels: Up to 65,536 inputs and 65,536 outputs.
- Analog Channels: Up to 4,096 inputs and 4,096 outputs.
- Communication Services: PG/OP communication, routing, S7 communication, global data communication, and more.
- Dimensions: 50 mm width, 290 mm height, 219 mm depth; weight approx. 1,070 g.
One distinctive feature is the Configuration in RUN (CiR) capability, allowing you to modify certain hardware configurations while the CPU remains operational. This minimizes downtime during system changes, a significant advantage for continuous production lines.
Applications and Use Cases
The 6ES7414-3XJ00-0AB0 is well-suited for a variety of industrial sectors. In manufacturing, it can coordinate multiple assembly stations with its two PROFIBUS DP networks. For process industries, its fast floating-point processing supports complex control algorithms. The CPU's ability to handle up to 4 CPUs in multicomputing mode (with UR1 or UR2 racks) makes it scalable for larger systems. Furthermore, its support for isochronous mode (application synchronized up to terminal) ensures precise motion control applications, such as packaging or printing machinery.
Installation and Setup Guidance
When installing the 6ES7414-3XJ00-0AB0, ensure it is properly seated in a S7-400 rack (it requires 2 slots). Connect the 24 V DC power supply to the CPU's terminals, observing correct polarity. For the MPI/DP and PROFIBUS DP interfaces, use appropriate bus connectors and terminate the network correctly. The 3rd interface slot accepts an IF 964-DP plug-in module, which provides an additional PROFIBUS DP interface. Always follow the SIMATIC S7-400 installation manual for detailed wiring and configuration steps.
Maintenance and Reliability
To maintain reliable operation, periodically inspect the CPU's diagnostic buffer (up to 3,200 entries) for any error messages. Check the backup battery status; the CPU supports a backup battery for retentive data storage, with a typical backup current of 40 µA. Ensure adequate ventilation around the module to keep temperatures within specified limits. Regular firmware updates, if available, can improve performance and fix known issues. Always follow Siemens' recommended maintenance procedures.
Compatibility and Integration
The 6ES7414-3XJ00-0AB0It supports programming with STEP 7, and languages include LAD, FBD, STL, SCL, CFC, GRAPH, and HiGraph. It can communicate via MPI (32 connections), PROFIBUS DP (master/slave), and S7 communication (client/server). The CPU also supports S5-compatible communication via CPs and function blocks. For expansion, it can connect up to 21 expansion units (including 6 ERs with K-bus) and up to 6 interface modules. This flexibility makes it easy to build a comprehensive automation solution.
Troubleshooting Common Issues
If the CPU does not start, check the power supply and the RUN/STOP switch position. For communication problems, verify the PROFIBUS address settings and cable termination. If the process image is not updating, ensure the configured process image size matches your I/O requirements. The diagnostic buffer is your first tool for identifying faults; use STEP 7 to read and interpret entries. For persistent issues, consult the Siemens support documentation or contact AutoDCSTech for assistance.
Product Support and Availability
The 6ES7414-3XJ00-0AB0 is available from AutoDCSTech. Please verify current lifecycle status and availability with our team before ordering. We are ready to assist with your automation needs.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7414-3XJ00-0AB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
