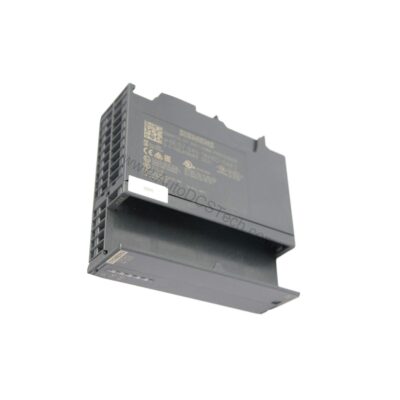

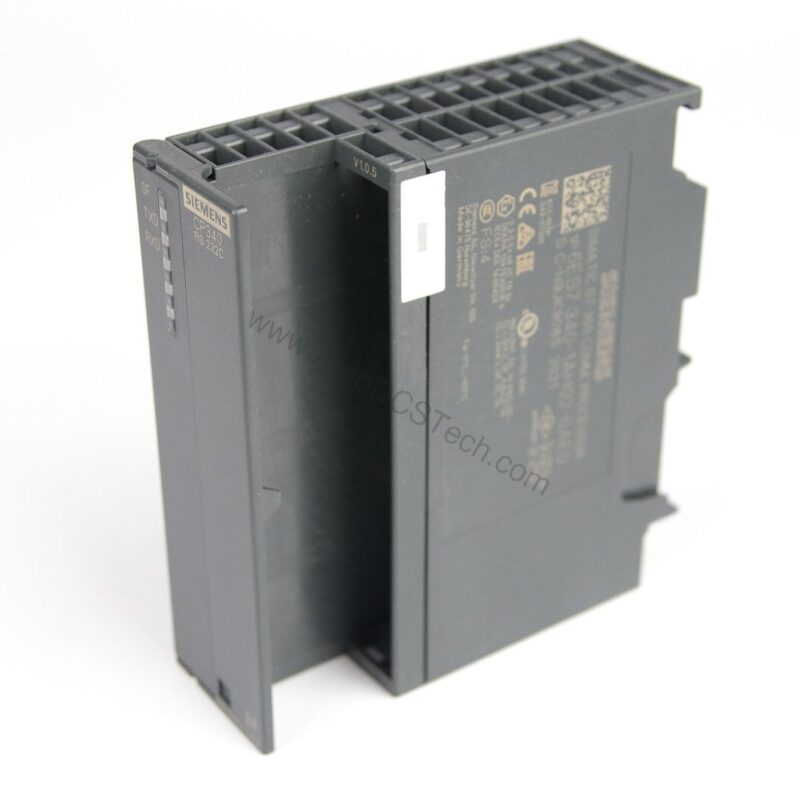

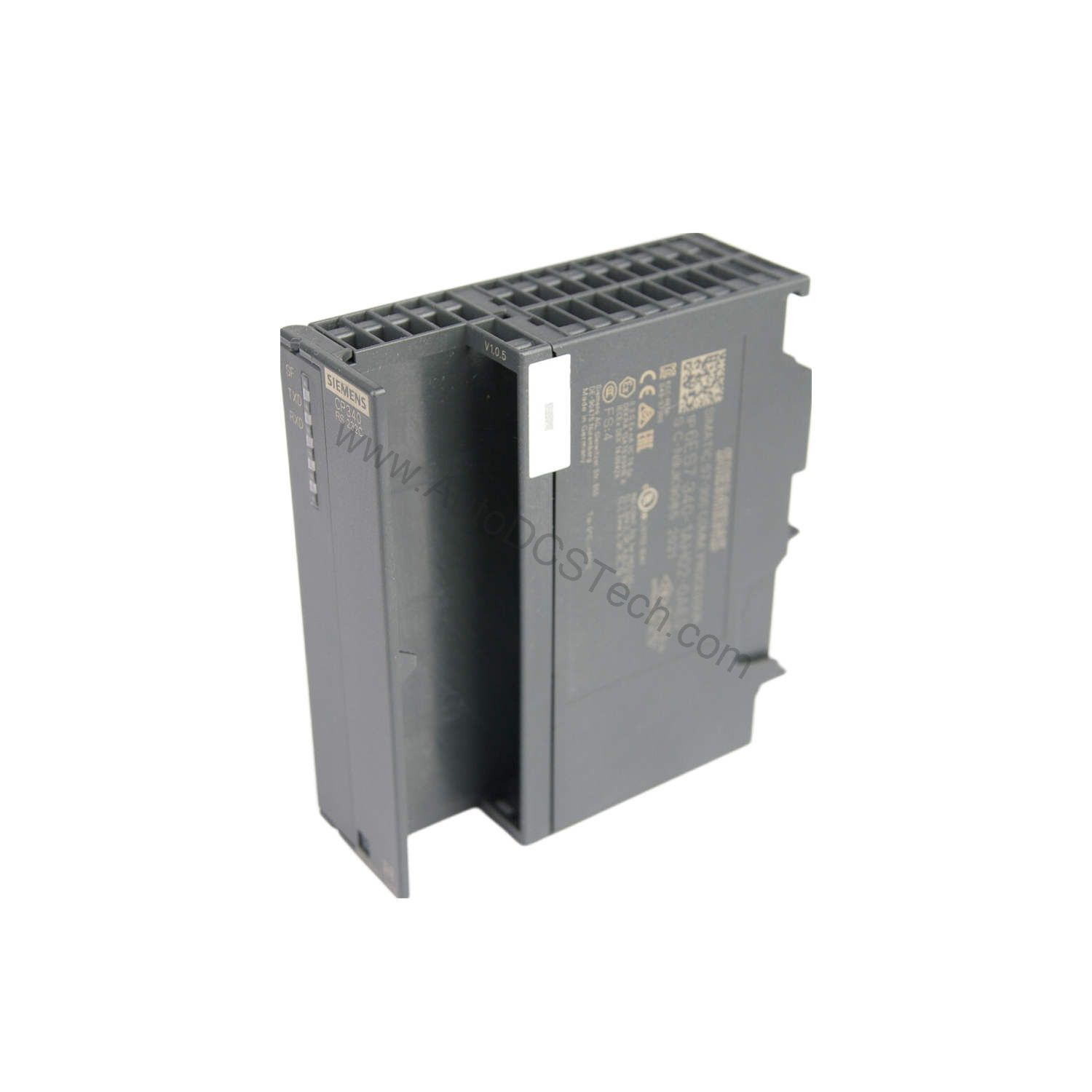

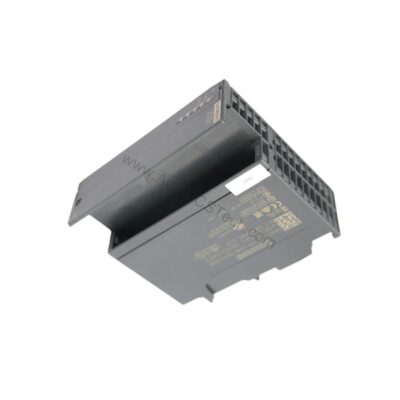

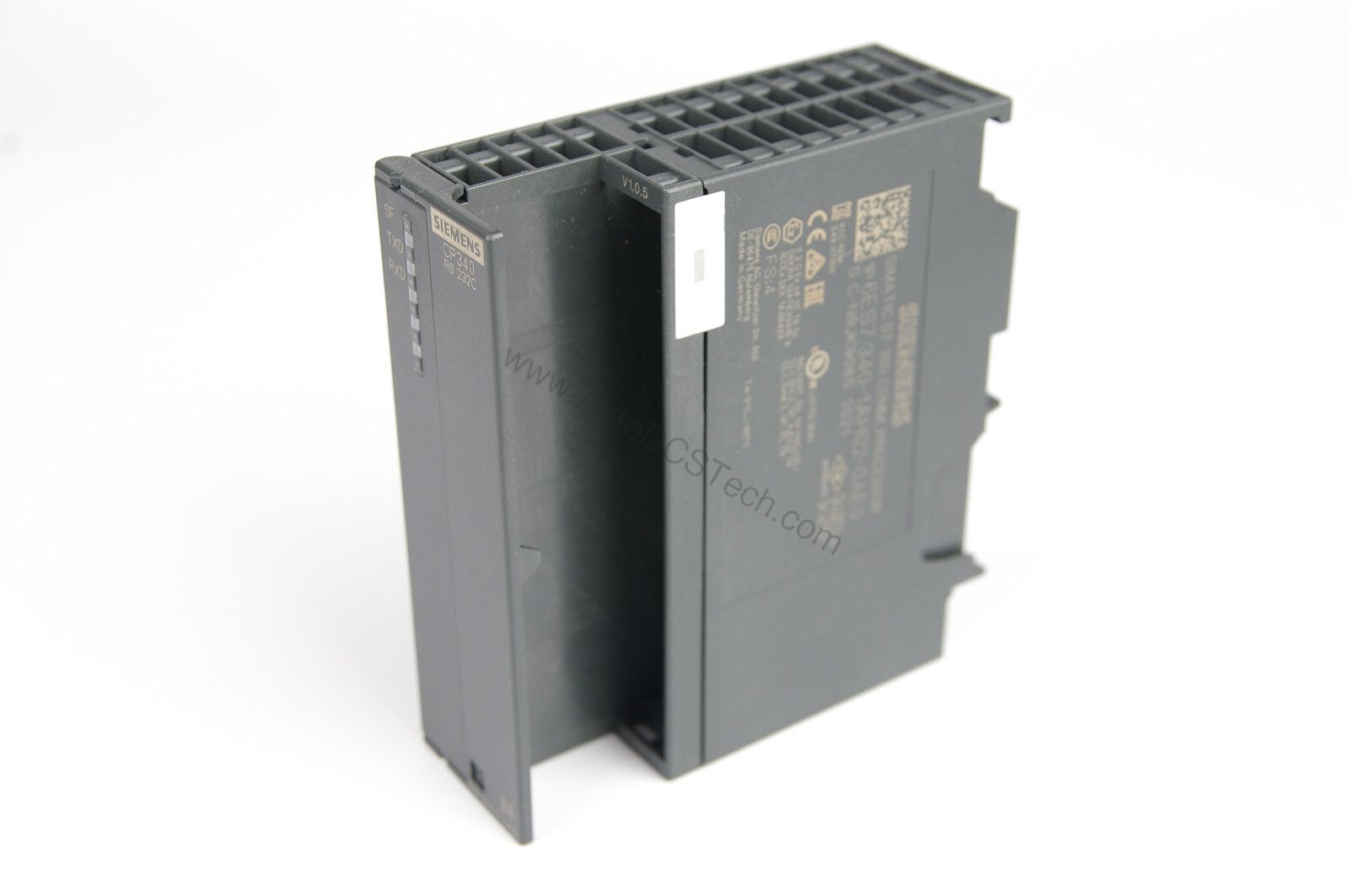

6ES7340-1AH02-0AE0 RS232C CP 340 Communication Processor

Introduction to the 6ES7340-1AH02-0AE0

When reliable serial communication is critical, the 6ES7340-1AH02-0AE0 from Siemens provides a robust solution. This CP 340 communication processor integrates an isolated RS232C (V.24) interface, enabling dependable point-to-point links in SIMATIC S7-300 environments.

Key Features and Technical Specifications

The 6ES7340-1AH02-0AE0 is engineered for performance and durability. Its key parameters include:

• Supply voltage: Powered via backplane bus at 5 V DC (no external 24 V DC required).
• Input current: Maximum 165 mA from the backplane bus.
• Power loss: Typical 0.6 W, maximum 0.85 W.
• Interfaces: One isolated RS232C (V.24) interface.
• Transmission rate: Minimum 2.4 kbit/s, maximum 19.2 kbit/s.
• Cable length: Up to 15 meters.
• Connector: 9-pin sub D connector.
• Supported printers: HP-Deskjet, HP-Laserjet, IBM-Proprinter, and user-defined types.
• Integrated protocols: 3964 (R) and ASCII; RK512 and customer-specific drivers are not supported.
• Telegram length: Maximum 1,024 bytes for both 3964 (R) and ASCII protocols.
• Transmission speed with 3964 (R): Up to 19.2 kbit/s.
• Transmission speed with ASCII: Up to 9.6 kbit/s.
• Printer driver speed: Up to 9.6 kbit/s.
• Ambient temperature: 0 °C to 60 °C during operation.
• Software block: FB length in RAM up to 2,700 bytes for data communication (sending and receiving).
• Dimensions: 40 mm width, 125 mm height, 120 mm depth.
• Weight: Approximately 300 g.

One standout feature is the isolated RS232C interface, which helps prevent ground loops and enhances signal integrity in noisy industrial settings. This isolation is crucial for maintaining error-free communication over longer distances.

Applications and Use Cases

The 6ES7340-1AH02-0AE0For instance, it can drive an HP-Laserjet printer for batch reporting or interface with an user-defined device using ASCII protocol. Its support for 3964 (R) protocol ensures compatibility with Siemens-based point-to-point networks, making it a versatile choice for retrofit projects.

Installation and Setup

Mounting the 6ES7340-1AH02-0AE0 is straightforward: it plugs directly onto the S7-300 backplane bus, receiving both power and communication. The included configuration CD simplifies parameterization. Ensure the 9-pin sub D connector is securely fastened and the cable length does not exceed 15 meters to maintain signal quality. Always follow the installation guidelines in the SIMATIC S7-300 manual.

Maintenance and Reliability

To ensure long-term reliability, periodically inspect the module for dust accumulation and verify that all connections remain tight. The module's low power loss (maximum 0.85 W) reduces heat buildup, contributing to a longer service life. Operating within the specified temperature range (0 °C to 60 °C) is essential for consistent performance.

Compatibility and Integration

As part of the SIMATIC S7-300 family, the 6ES7340-1AH02-0AE0It supports the 3964 (R) and ASCII protocols, enabling communication with a wide range of serial devices. The module is not compatible with RK512 or customer-specific drivers, so verify your device's protocol before deployment.

Troubleshooting Common Issues

If communication fails, first check the cable connection and ensure the baud rate matches the connected device. Confirm that the protocol settings (3964 (R) or ASCII) are correctly configured in the software. If using a printer, verify that the printer type is supported (HP-Deskjet, HP-Laserjet, IBM-Proprinter, or user-defined). For persistent issues, consult the Siemens documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 6ES7340-1AH02-0AE0 is available from AutoDCSTech, an industrial automation parts supplier. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and ensure the module meets your application requirements.
