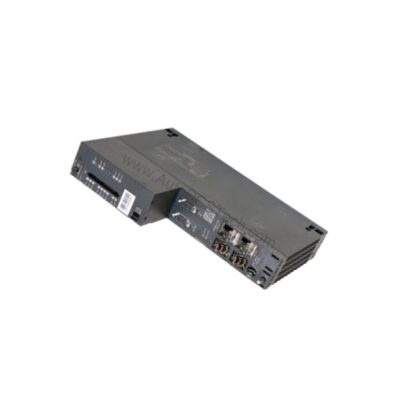

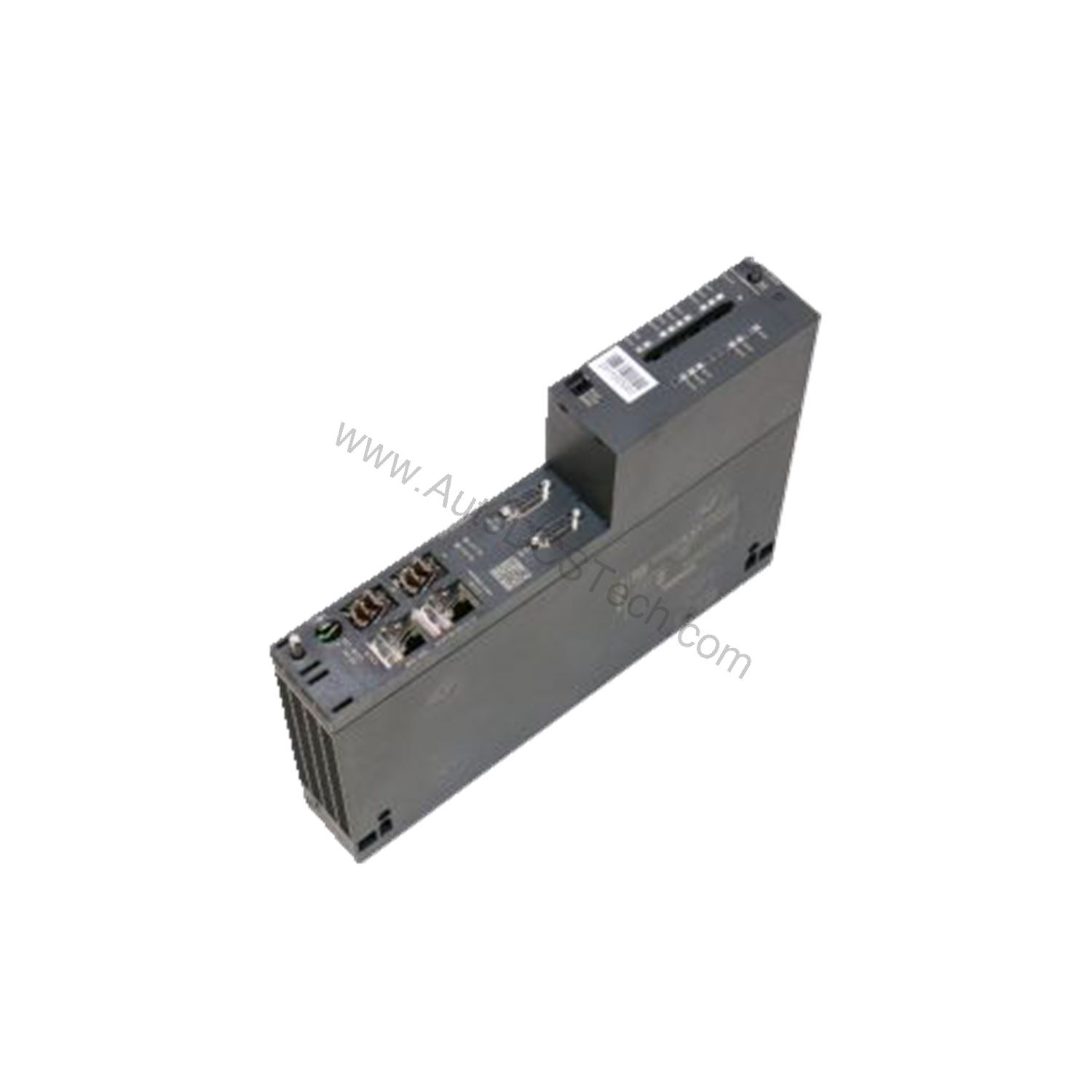

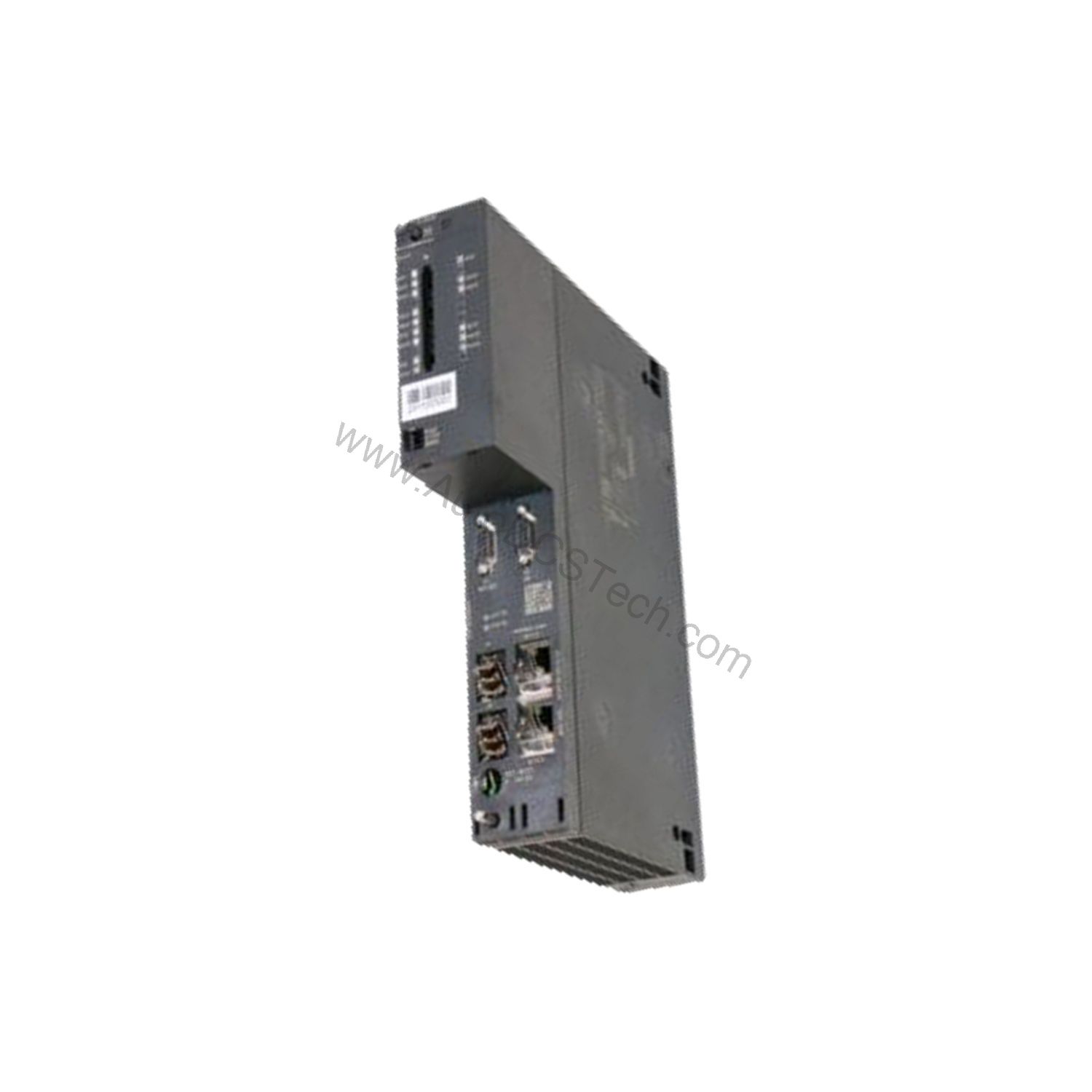

6ES7414-5HM06-0AB0 4MB CPU 414-5H PN/DP

Key Features and Technical Specifications

The 6ES7414-5HM06-0AB0 is packed with features that support demanding industrial environments. Below are the core specifications extracted from the official datasheet.

• Product type: CPU 414-5H PN/DP, firmware V6.0
• Work memory: 4 Mbyte integrated (2 Mbyte program, 2 Mbyte data)
• Load memory: expandable FEPROM up to 64 Mbyte, integrated RAM 512 kbyte
• Interfaces: 1x MPI/PROFIBUS DP, 1x PROFIBUS DP, 1x PROFINET (2 ports), 2x sync module interfaces
• Supply voltage: via system power supply (5 V DC, typ. 1.6 A; 24 V DC, max. 150 mA per DP interface)
• Power loss: typ. 7.5 W
• Processing times: bit operations typ. 18.75 ns, floating point arithmetic typ. 37.5 ns
• Digital channels: 65,536 inputs and outputs (central)
• Analog channels: 4,096 inputs and outputs (central)
• Dimensions: 50 mm x 290 mm x 219 mm; weight approx. 995 g

One distinctive spec is the isochronous mode—it is not supported. This means the CPU is not intended for applications requiring equidistant cycle synchronization. However, for standard fault-tolerant control, it

Applications and Use Cases

The 6ES7414-5HM06-0AB0In a typical redundant configuration, two CPUs operate in parallel, and if one fails, the other takes over . For example, in a continuous casting plant, the CPU ensures that process data remains consistent across redundant controllers. Additionally, its PROFINET interface supports up to 256 IO devices, making it suitable for distributed architectures. The CPU also supports S7 communication as client and server, enabling integration with SCADA systems.

Installation and Setup Guidance

Proper installation is crucial for reliable operation. The 6ES7414-5HM06-0AB0 requires two slots in the S7-400H rack. Ensure that the power supply is connected via the system power supply, and that the backplane bus current does not exceed the specified limits (5 V DC, max. 1.9 A). For the sync modules, use only the specified types: 6ES7960-1AA06-0XA0 or 6ES7960-1AB06-0XA0. When configuring the PROFINET interface, set the transmission rate to 100 Mbit/s (autosensing is supported). Always follow the S7-400H installation manual for detailed wiring and grounding instructions.

Maintenance and Reliability Tips

To ensure long-term reliability, perform regular inspections of the CPU and its environment. Check that the backup battery is functional; the CPU supports a backup current of typ. 180 µA, and without battery, data is not retained. Keep the ambient temperature within the specified range to avoid excessive power loss (typ. 7.5 W). Periodically verify that the firmware version V6.0 is up to date with Siemens recommendations. For safety-related systems (S7-400F/FH), follow the manufacturer's safety manual for inspection intervals. Avoid cleaning contacts with solvents; instead, use dry, anti-static methods.

Why the 6ES7414-5HM06-0AB0 Is Critical for Fault-Tolerant Control

The 6ES7414-5HM06-0AB0 from Siemens addresses this challenge directly. As a central processing unit for S7-400H and S7-400F/FH systems, it is engineered to maintain control even when one component fails. With 4 MB of integrated work memory (2 MB for program, 2 MB for data), it provides the capacity needed for complex redundancy logic without external memory expansion.

This CPU is part of the SIMATIC S7-400H family, designed for high-availability applications. Its five interfaces—one MPI/DP, one DP, one PROFINET, and two for sync modules—enable robust communication and redundancy synchronization. For engineers seeking to minimize downtime, this module offers a solid foundation.

Compatibility and Integration

The 6ES7414-5HM06-0AB0 integrates with a wide range of Siemens components. It supports PROFIBUS DP master (up to 96 slaves on the third interface) and PROFINET IO Controller (up to 256 devices). It is compatible with STEP 7 V5.5 SP2 with HF1 for programming. Communication protocols include MPI, PROFIBUS DP, PROFINET, open IE (TCP/IP, UDP, ISO-on-TCP), and S7 communication. The CPU supports up to 64 connections overall, with 62 for open IE communication. For redundant mode, use the specified sync modules.

Troubleshooting Common Issues

One common issue is communication failure on the PROFIBUS DP interface. Check the transmission rate (max. 12 Mbit/s) and ensure that the number of DP slaves does not exceed the limit (32 on the first interface, 96 on the third). If the CPU does not start, verify that the backup battery is present and that the memory card is properly inserted. For PROFINET issues, confirm that the IP address is set correctly and that the device is reachable on the network. The diagnostic buffer can store up to 3,200 entries, which helps identify faults.

Product Support and Availability

The 6ES7414-5HM06-0AB0 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical inquiries and provide documentation. Contact us for a quote.
