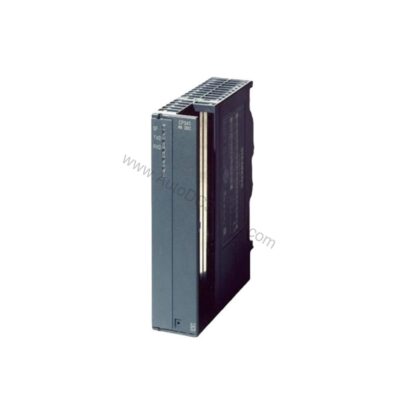

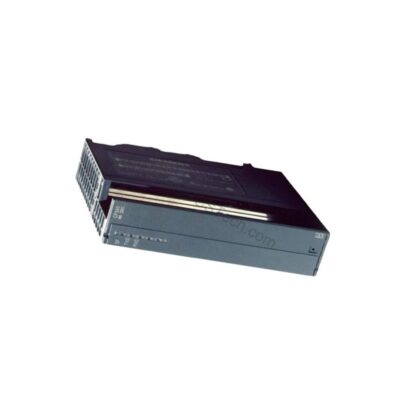

6ES7341-1BH01-0AE0 20mA TTY CP341 Communication Processor

Introduction to the Siemens 6ES7341-1BH01-0AE0

When your S7-300 system demands dependable serial communication, the 6ES7341-1BH01-0AE0 from Siemens delivers a robust solution. With its isolated interface and support for multiple protocols, this module ensures stable data transfer over long distances.

Key Features and Technical Specifications

• Supply voltage: 24 V DC rated, with a maximum input current of 200 mA from L+.
• Backplane bus current: 70 mA at 5 V DC.
• Power loss: maximum 4.8 W.
• One isolated 20 mA (TTY) interface with a 9-pin sub-D connector.
• Transmission rates from 0.3 kbit/s up to 19.2 kbit/s (standard), and up to 76.8 kbit/s with protocols like 3964(R), ASCII, and RK512.
• Maximum cable length: 1000 meters.
• Integrated protocol drivers: 3964(R), ASCII, RK512, and reloadable customer-specific drivers.
• Maximum telegram length: 1024 bytes for all supported protocols.
• Dimensions: 40 mm width, 125 mm height, 120 mm depth; weight approx. 300 g.

The 20mA TTY interface is a distinctive feature, offering superior noise immunity and long-distance communication—up to 1000 meters—which is critical for distributed automation setups.

Applications and Use Cases

This communication processor is well-suited for connecting S7-300 PLCs to serial devices such as barcode scanners, printers, weigh scales, and legacy machinery with TTY interfaces. Its support for ASCII and RK512 protocols makes it versatile for various industrial protocols. For example, in a packaging line, the module can reliably transmit production data to a central monitoring system over long cable runs, ensuring minimal data loss even in electrically noisy environments.

Installation and Setup

Installing the 6ES7341-1BH01-0AE0 is straightforward: mount it on a standard S7-300 DIN rail, connect the 24 V DC supply to the screw terminals (L+, M, GND), and attach the TTY cable to the 9-pin sub-D connector. Ensure proper grounding and shielding for the TTY line to maintain signal integrity. The configuration package on CD simplifies initial setup, allowing you to define protocol parameters and telegram structures.

Maintenance and Reliability

From a maintenance engineer's perspective, the 6ES7341-1BH01-0AE0 is designed for long-term reliability. The isolated interface protects the module from ground loops and voltage spikes, reducing the risk of damage. Periodic inspection of the cable connections and terminal tightness is recommended to prevent intermittent communication faults. With no moving parts and a robust design, this module offers extended service life, minimizing downtime and maintenance costs.

Compatibility and Integration

It supports multiple communication protocols, including 3964(R), ASCII, and RK512, allowing connectivity to a wide range of third-party devices. The reloadable customer-specific drivers offer flexibility for proprietary protocols, making it a future-proof choice for evolving communication needs.

Troubleshooting and Common Issues

Common issues with serial communication modules often stem from wiring errors or incorrect parameter settings. If communication fails, first verify the 24 V DC supply and the terminal connections. Check that the transmission rate matches the connected device's settings. For long cable runs, ensure proper termination and shielding to avoid signal reflections. The module's diagnostic LEDs (if present) can provide status indications; refer to the manual for detailed troubleshooting steps.

Product Support and Availability

The Siemens 6ES7341-1BH01-0AE0 is available at AutoDCSTech. Please verify current lifecycle status and availability with our team before ordering. We are ready to assist with your automation needs.
