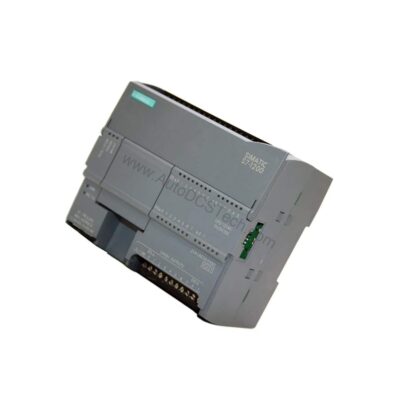

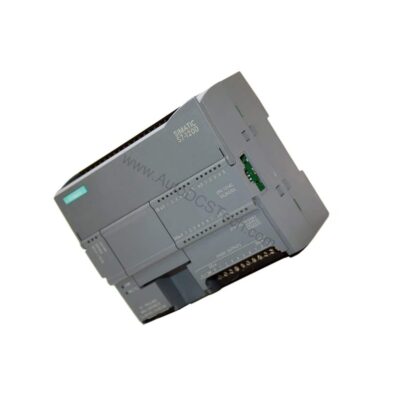

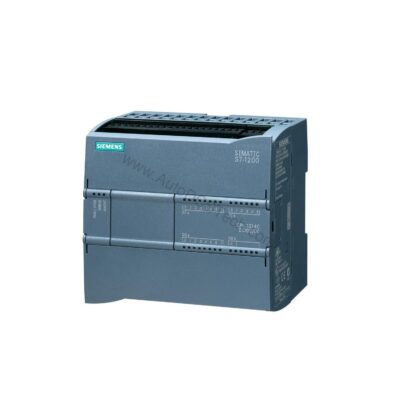

6ES7214-1AG31-0XB0 14DI/10DO/2AI CPU 1214C

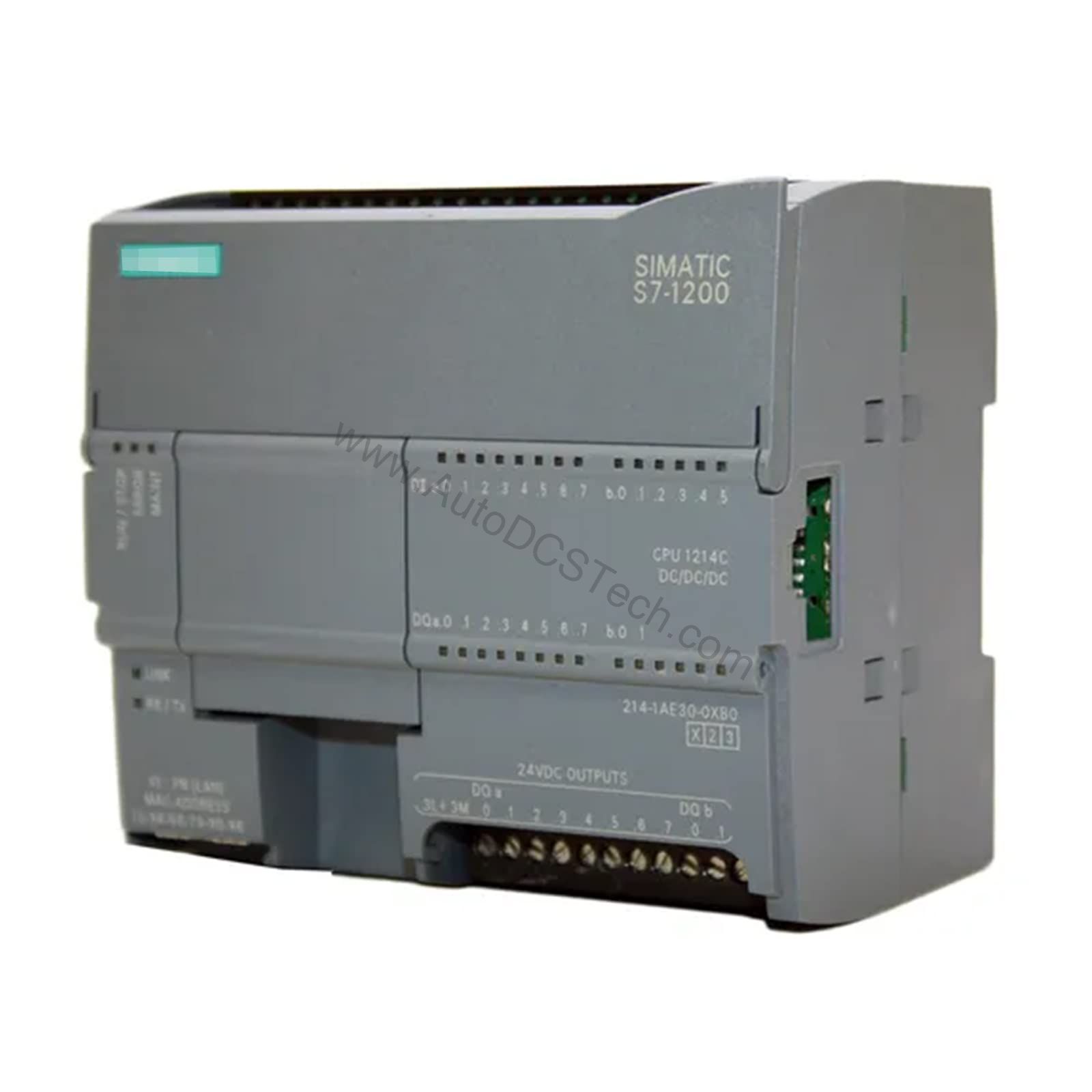

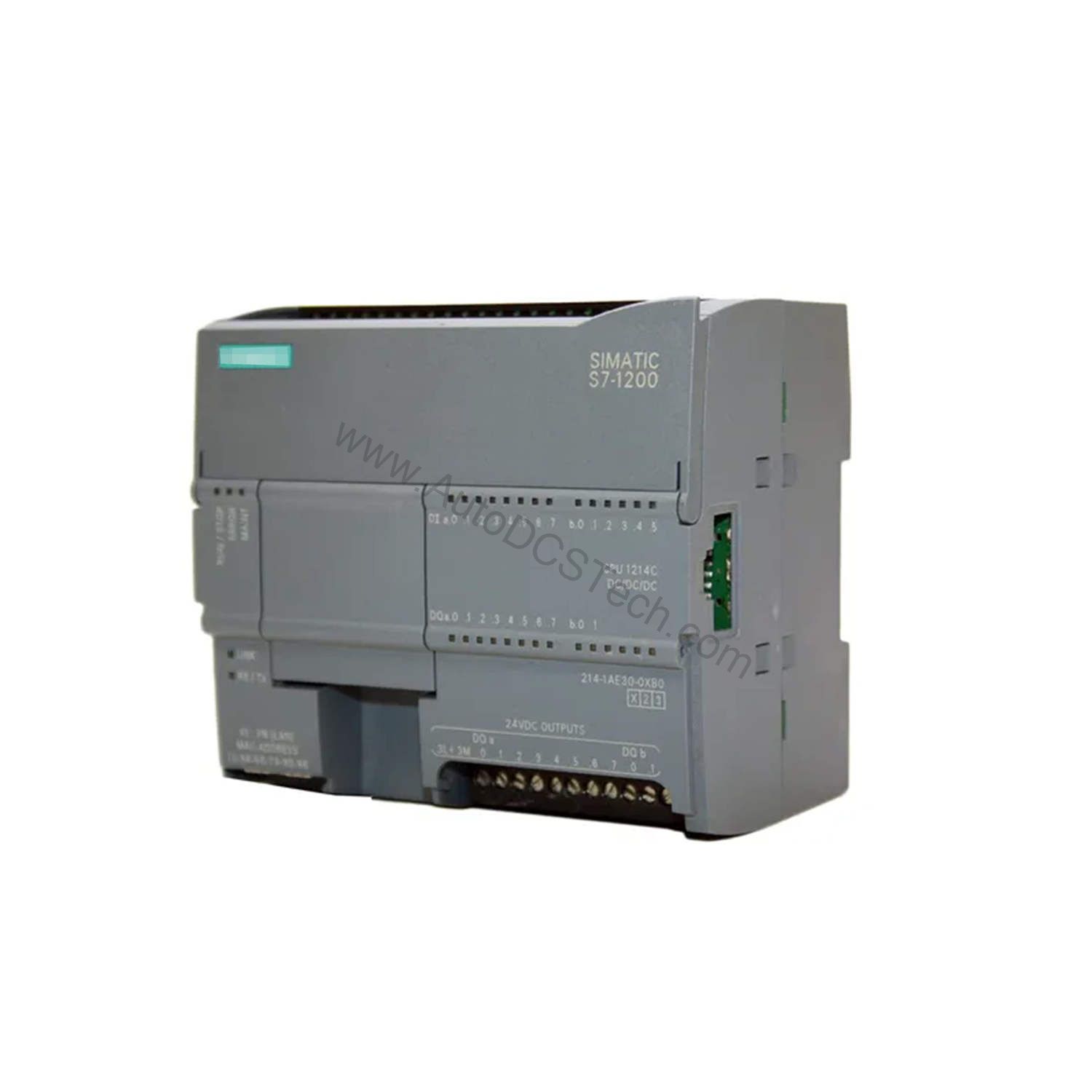

Introduction to the Siemens 6ES7214-1AG31-0XB0

When your control system demands a compact yet powerful CPU, the 6ES7214-1AG31-0XB0 from Siemens delivers. This SIMATIC S7-1200 CPU 1214C is a DC/DC/DC unit with onboard I/O: 14 digital inputs at 24V DC, 10 digital outputs at 24V DC, and 2 analog inputs (0-10V DC). It operates on a 20.4-28.8V DC power supply and provides 75 KB of program/data memory.

Designed for reliability, this CPU handles a wide range of industrial applications. Its compact form factor fits easily into existing panels, and its robust construction ensures long service life. For maintenance engineers, the 6ES7214-1AG31-0XB0 simplifies troubleshooting with clear diagnostics and easy access to key parameters.

Key Features and Technical Specifications

The 6ES7214-1AG31-0XB0 includes a rich set of features that support efficient machine control. Below are the core specifications extracted from the datasheet:

• Supply voltage: DC 20.4-28.8V (rated 24V DC)
• Digital inputs: 14 (6 usable for technological functions), input current 1 mA typical
• Digital outputs: 10 (4 high-speed outputs), output current 0.5A per channel
• Analog inputs: 2, voltage range 0-10V DC, 10-bit resolution
• Program/data memory: 75 KB (work memory), load memory 4 MB
• Processing times: bit ops 0.085 µs, word ops 1.7 µs, floating point 2.5 µs
• Retentive data: 10 KB total, flags up to 8 KB
• Digital input delay: 0.2 ms to 12.8 ms (parameterizable)
• Output delay: 1 µs (0 to 1), 5 µs (1 to 0)
• Switching frequency (pulse outputs): up to 100 kHz
• Galvanic isolation: digital inputs in groups of 1, digital outputs not isolated between channels
• Interference immunity: ESD 8 kV air, 6 kV contact; surge on supply lines per IEC 61000-4-5
• Degree of protection: IP20
• Operating temperature: -20°C to 60°C (horizontal), -20°C to 50°C (vertical)
• Dimensions (WxHxD): 110 x 100 x 75 mm
• Weight: approx. 415 g

One standout feature is the high-speed pulse outputs, which can operate at up to 100 kHz. This makes the CPU suitable for simple motion control or frequency generation without additional modules.

Applications and Use Cases

Its onboard I/O reduces the need for expansion modules, saving space and cost. For example, in a labeling machine, the 14 digital inputs can handle sensors and pushbuttons, while the 10 outputs drive actuators and indicators. The 2 analog inputs can read temperature or pressure transmitters (0-10V), enabling closed-loop control.

Because it supports PROFINET (as an IO controller), the CPU can integrate into larger networks, communicating with remote I/O and HMIs. This flexibility makes it a solid choice for both standalone and distributed architectures.

Installation and Setup

Mounting the 6ES7214-1AG31-0XB0 is straightforward. It snaps onto a standard 35 mm DIN rail (not included). Ensure adequate clearance for ventilation and wiring. Connect the DC power supply (20.4-28.8V) to the L+ and M terminals, observing polarity. For digital inputs, use shielded cables up to 500 m; for unshielded, up to 300 m. Outputs can drive resistive loads up to 0.5A per channel; for lamp loads, keep power below 5W.

Configuration is done via Siemens TIA Portal software. Set the IP address for PROFINET communication and download the program. The CPU supports LAD, FBD, and SCL programming languages, giving you flexibility in coding style.

Maintenance and Reliability

From a maintenance engineer's perspective, the 6ES7214-1AG31-0XB0 is built for minimal downtime. Its solid-state outputs have no moving parts, reducing wear. The real-time clock has a battery-free backup of 480 hours, so time stamps survive power loss. The diagnostic buffer stores events, helping you quickly identify faults.

Regular inspection should include checking the supply voltage stays within 20.4-28.8V DC, verifying that ambient temperature does not exceed 60°C (horizontal) or 50°C (vertical), and ensuring that dust does not block ventilation. The IP20 rating means it is not sealed against moisture, so keep it in a clean, dry enclosure.

Compatibility and Integration

This CPU is part of the SIMATIC S7-1200 family and communicates via PROFINET. It supports S7 communication (as server and client), open IE communication (TCP/IP, ISO-on-TCP, UDP), and a built-in web server for remote diagnostics. It can connect to Siemens HMIs, other S7-1200/1500 controllers, and third-party devices that support PROFINET.

For expansion, you can add signal boards or communication modules, but note that the work memory is not expandable. The integrated 4 MB load memory is sufficient for most programs.

Troubleshooting and Common Issues

If the CPU fails to start, check the power supply voltage. It must be between 20.4V and 28.8V DC. If the RUN/STOP LED is red, use the diagnostic buffer to read the error code. For digital inputs not responding, verify the input delay settings; the default may be too long for fast sensors. For outputs, ensure the load current does not exceed 0.5A per channel; otherwise, the output may overheat.

For analog inputs, confirm the signal is within 0-10V DC. The 10-bit resolution means a 0-10V signal is divided into 1024 steps, so small changes may be quantized. Use shielded cables (max 100 m) to avoid noise.

Product Support and Availability

The 6ES7214-1AG31-0XB0 is available at AutoDCSTech. Please verify current lifecycle status and availability with our team before ordering, as an updated version (6ES7214-1AG40-0XB0) exists. We are ready to assist with your automation needs.
