Introduction: Evolution of Process Control

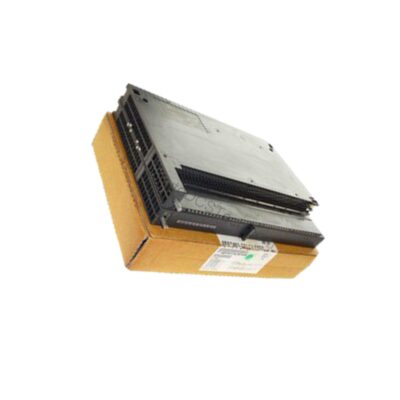

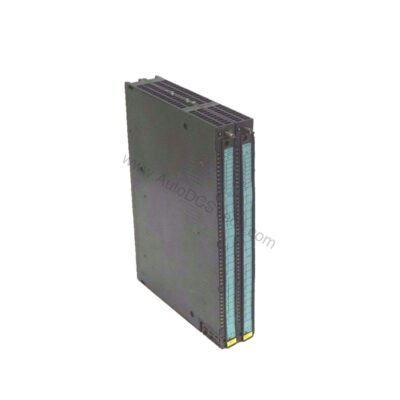

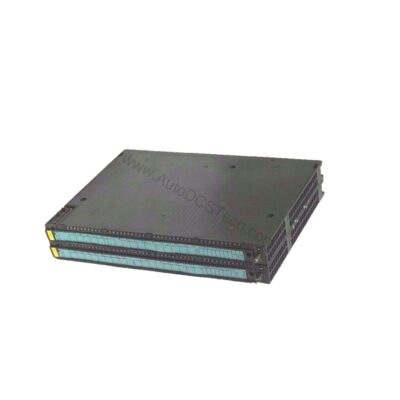

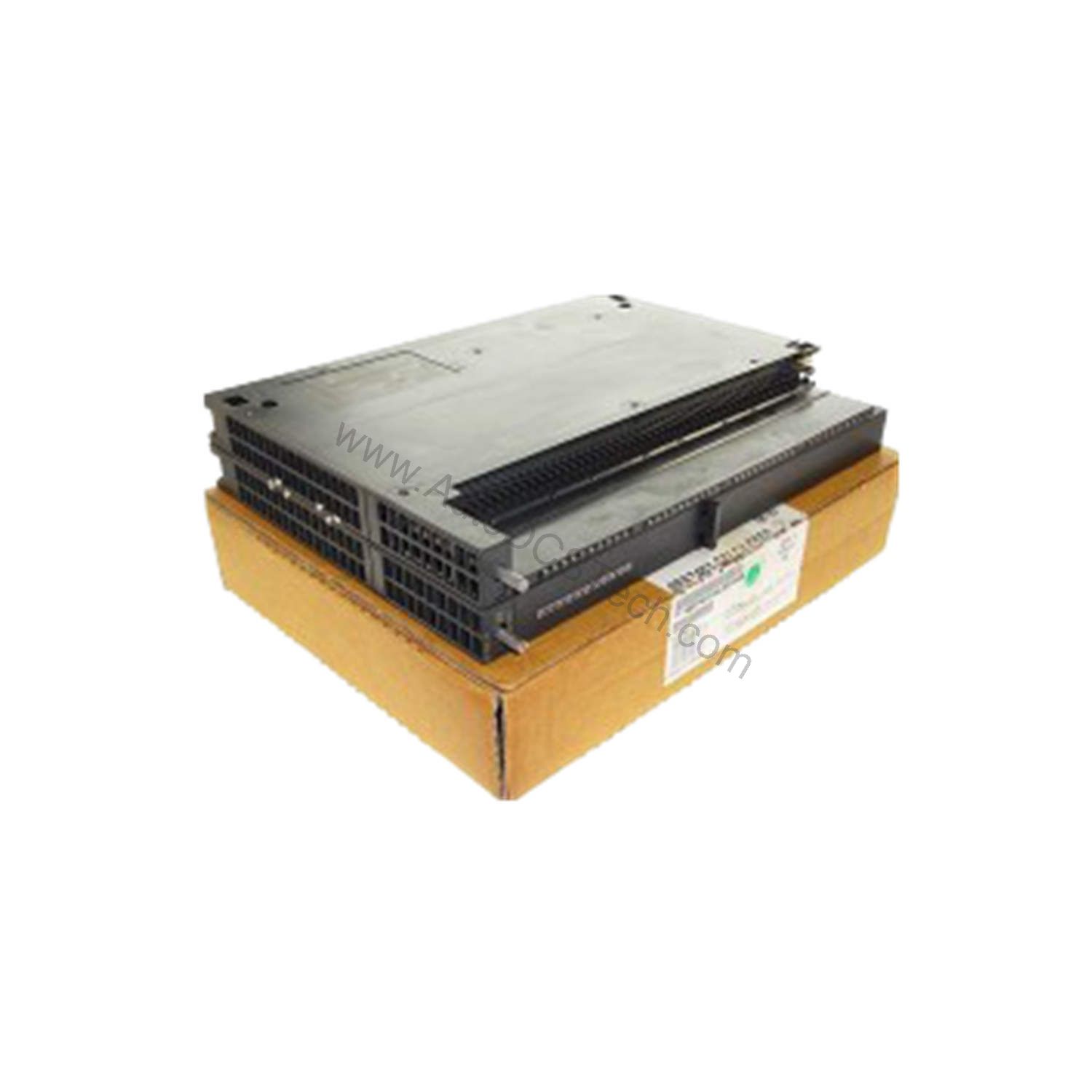

Industrial automation has evolved from simple relay logic to sophisticated closed-loop control systems. The Siemens 6ES7455-0VS00-0AE0 represents this advancement, combining analog and digital I/O in a single module. It is designed for demanding applications where accuracy and reliability are critical.
It provides a compact solution for continuous process control, reducing cabinet space and wiring complexity.

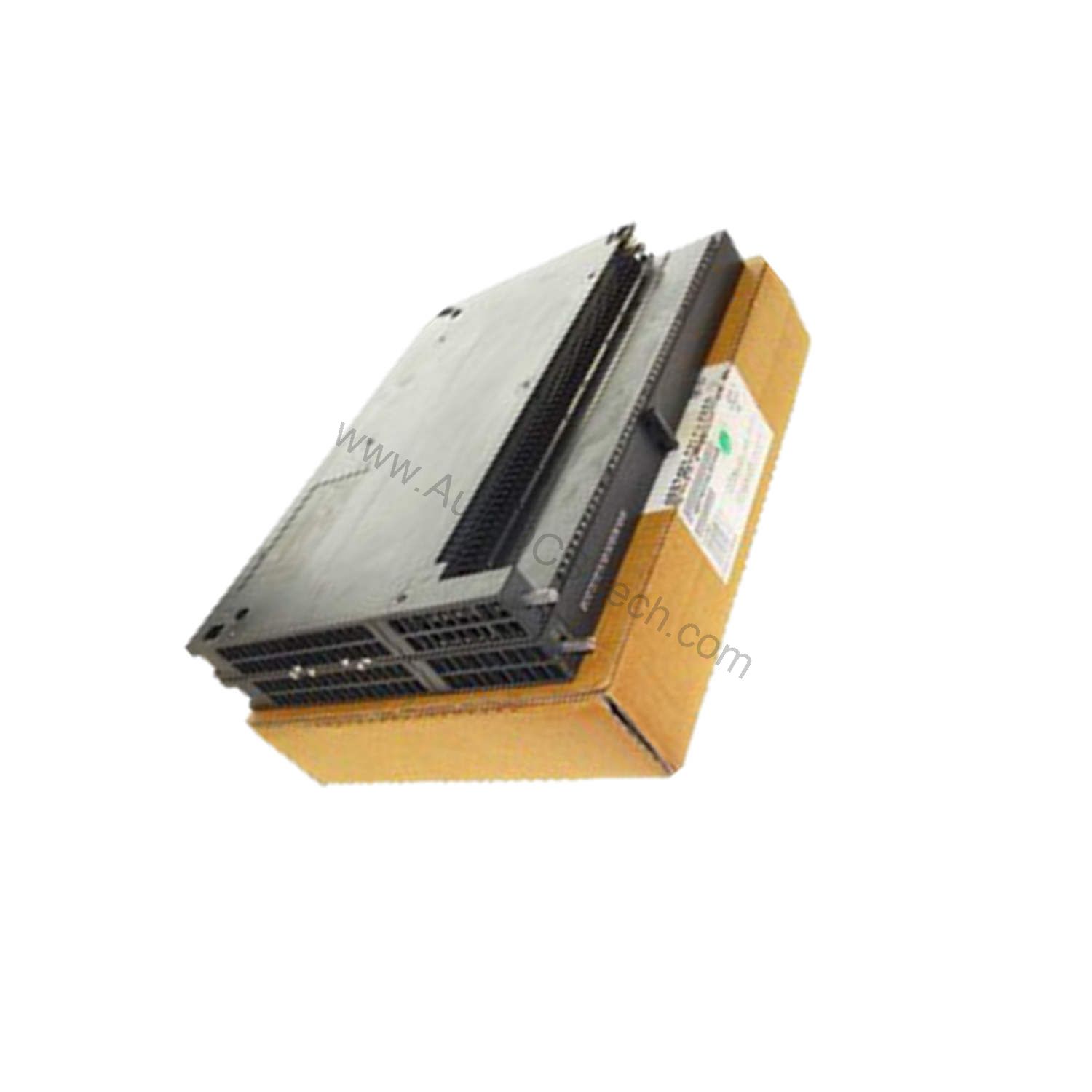

Key Features & Technical Specifications
The 6ES7455-0VS00-0AE0 offers a versatile set of features that enhance process control capabilities:
- 16 analog inputs support voltage, current, thermocouple, and resistance thermometer signals.
- 16 digital inputs comply with IEC 61131 type 2, accepting 24 V DC signals.
- 16 analog outputs provide voltage or current signals for actuator control.
- Input voltage range: 20.4 to 28.8 V DC (rated 24 V DC).
- Power loss: typically 12 W, maximum 17.3 W.
- Input current from load voltage: typically 370 mA, maximum 440 mA.
- Isolation between channels and backplane bus via optocoupler, tested at 500 V DC.
- Dimensions: 50 mm width, 290 mm height, 210 mm depth; weight approximately 1400 g.
One distinctive feature is the ability to configure 16 closed-loop controllers when using thermocouples or 2-wire connections, or 8 controllers with Pt100 or 4-wire connections. This flexibility allows engineers to tailor the module to specific process requirements.
Applications & Use Cases
In a chemical plant, it can manage multiple PID loops simultaneously, ensuring stable operation. Similarly, in a food processing line, it can handle temperature profiling and batch control with high accuracy.
Moreover, the module's ability to accept thermocouples (types B, J, K, R, S) and Pt100 sensors makes it suitable for extreme temperature environments. Its analog outputs can drive valves, transducers, and recorders, providing a complete control solution.
Installation & Setup
Proper installation is crucial for optimal performance. The module requires a 2x 48-pin front connector (not included). Ensure the backplane bus is clean and the module is securely latched. Connect the load voltage L+ within the permissible range of 20.4 to 28.8 V DC. Use shielded cables for analog signals, with maximum lengths as specified: 200 m for analog inputs/outputs (50 m for 80 mV and thermocouple ranges), and 1000 m shielded or 600 m unshielded for digital inputs.
Before commissioning, verify that all wiring matches the module's terminal assignments. Incorrect wiring can lead to measurement errors or damage. Follow the installation manual for detailed steps.
Maintenance & Reliability
Regular inspection ensures long-term reliability. Check for loose connections, signs of overheating, or contamination on the front connector. The module's power loss of up to 17.3 W generates heat; ensure adequate ventilation in the control cabinet.
Periodically verify the accuracy of analog inputs and outputs using a calibrated source. If drift is observed, recalibrate according to Siemens guidelines. The module's robust design minimizes downtime, but proactive maintenance extends its service life.
Compatibility & Integration
The 6ES7455-0VS00-0AE0 is designed for the SIMATIC S7-400 PLC system. It integrates with the backplane bus, allowing communication with the CPU and other I/O modules. It supports up to 16 analog inputs, 16 digital inputs, and 16 analog outputs, making it a dense I/O solution.
For engineering, use STEP 7 software to configure the module's parameters, such as input ranges and controller settings. The module supports parameterizable temperature compensation (internal or external via Pt100) and characteristic linearization for thermocouples and Pt100.
Troubleshooting & Common Issues
If analog readings are inaccurate, check the input range configuration and ensure the sensor is correctly wired. For digital inputs, verify that the signal voltage is within the defined thresholds: signal "0" is -3 to +5 V, signal "1" is 13 to 30 V. If outputs are not responding, confirm the load impedance is within limits (voltage outputs: min 1 kΩ; current outputs: max 500 Ω).
In case of communication errors, inspect the backplane bus connection and module seating. Use the diagnostic functions in STEP 7 to read status information. If problems persist, consult the Siemens support documentation or contact AutoDCSTech for assistance.
Product Support & Availability
AutoDCSTech offers the Siemens 6ES7455-0VS00-0AE0 as a genuine product. It is available for immediate shipment. Contact our team for pricing and delivery details.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7455-0VS00-0AE0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
