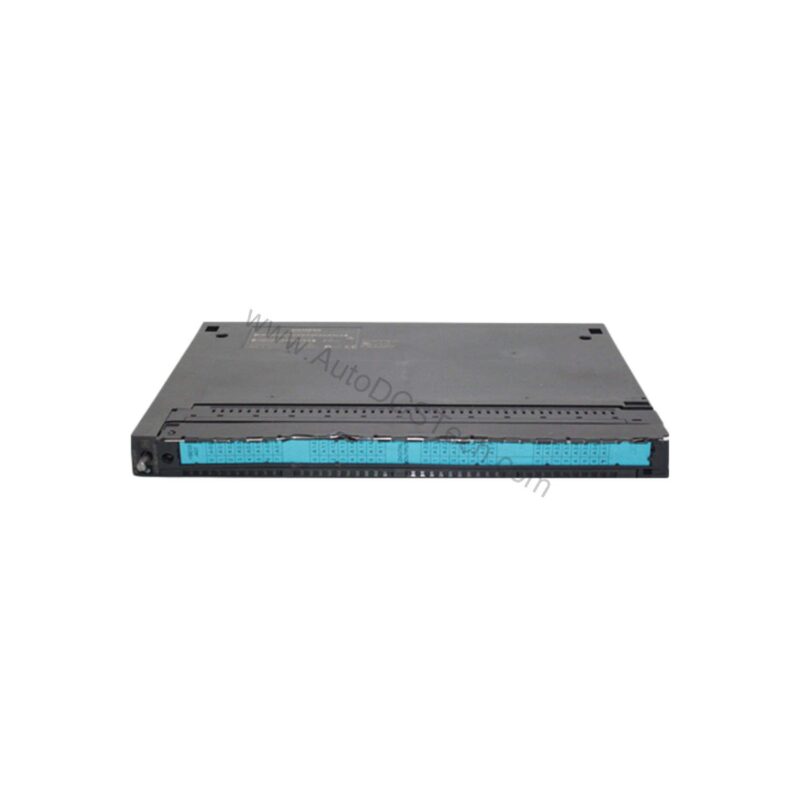

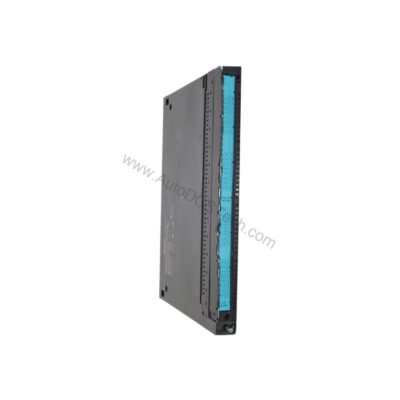

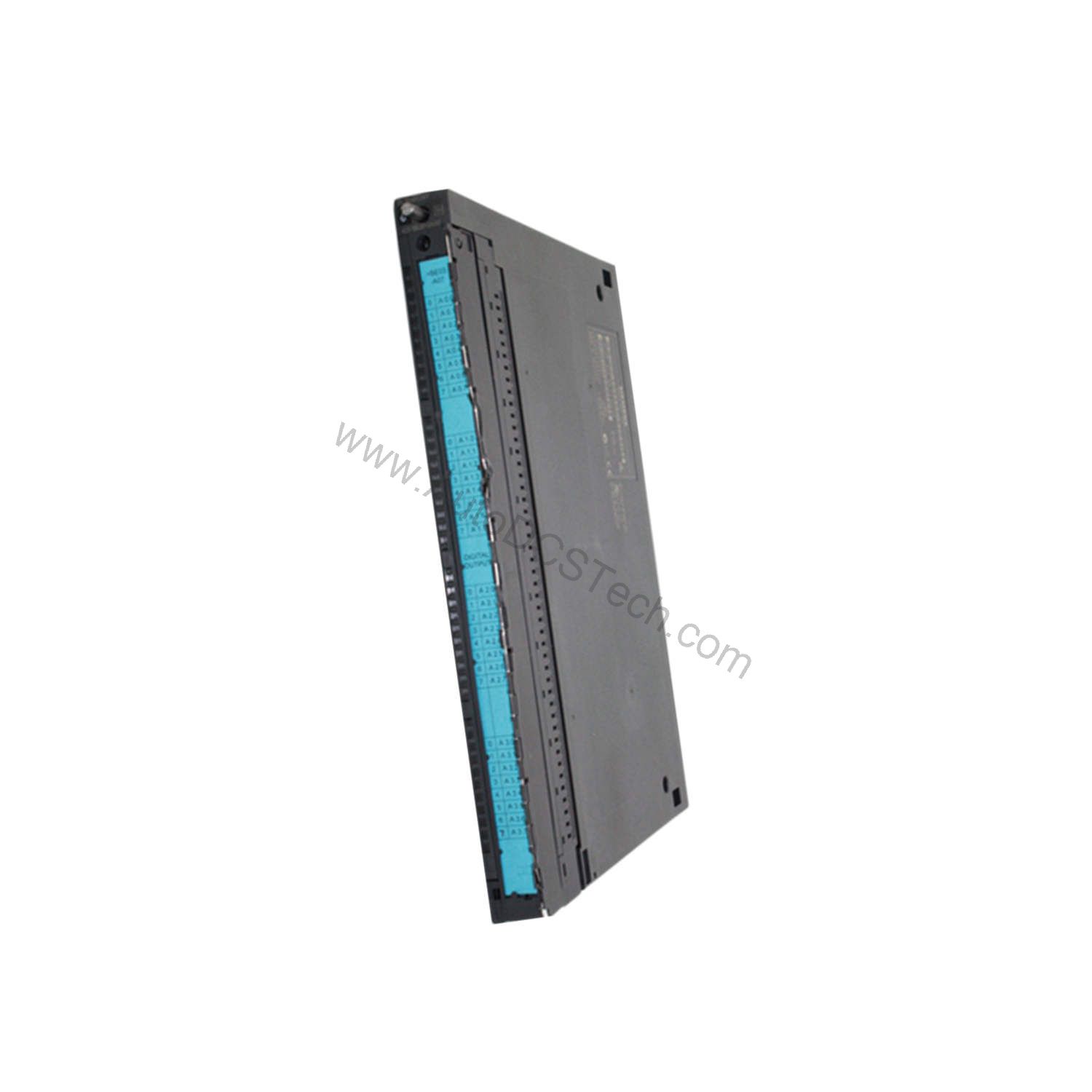

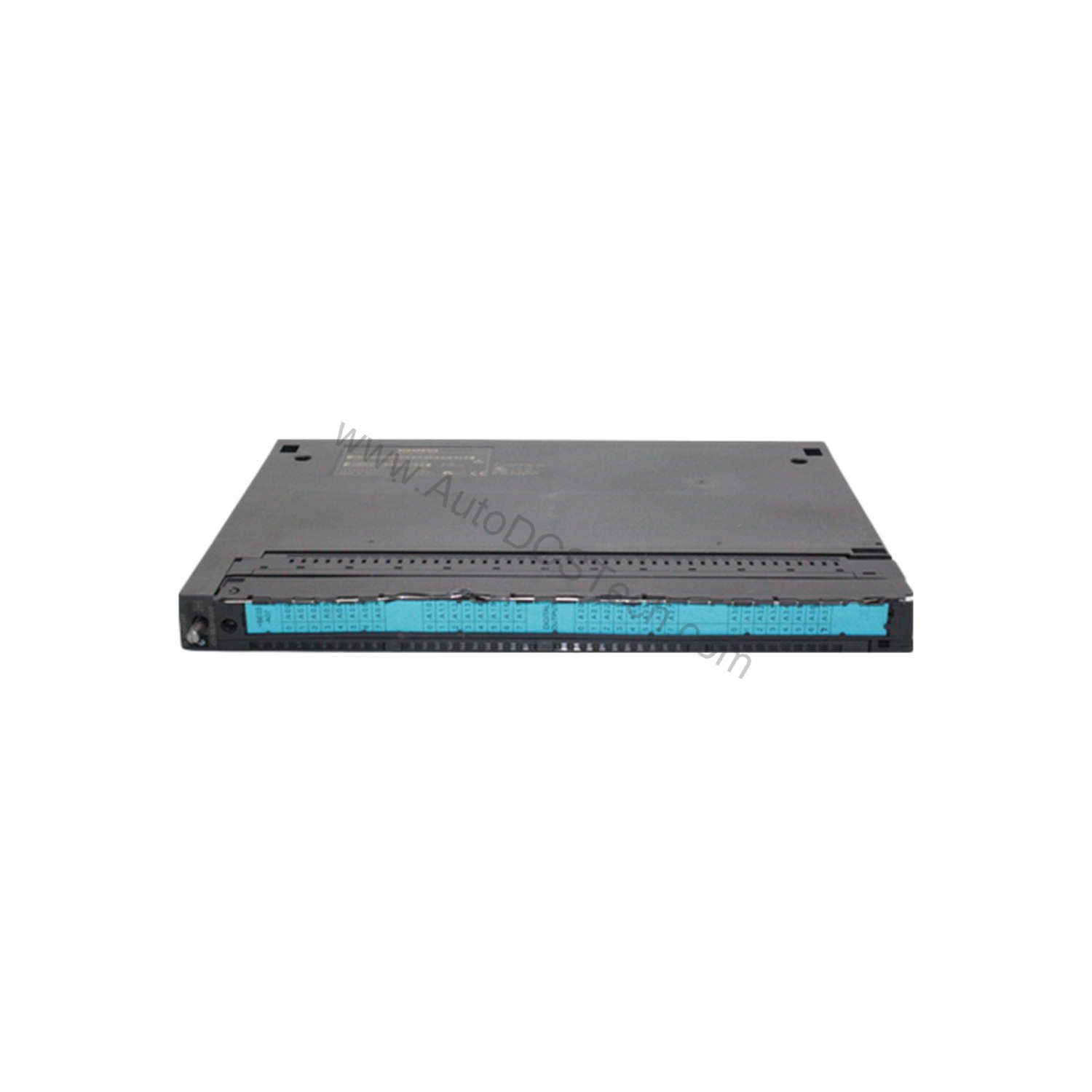

6ES7451-3AL00-0AE0 3-Channel Positioning Module

Introduction: The Evolution of Motion Control

In the ever-evolving landscape of industrial automation, precise positioning has become the backbone of modern manufacturing. From the early days of relay logic to today's sophisticated servo systems, the demand for accuracy and repeatability has never been higher. The 6ES7451-3AL00-0AE0 from Siemens represents a significant step in this journey, offering a dedicated solution for rapid and slow traverse drives within the SIMATIC S7-400 family.

Key Features & Technical Specifications

The 6ES7451-3AL00-0AE0 is engineered with precision in mind. Below are the core specifications that define its performance:

• Supply Voltage: Rated at 24 V DC, ensuring compatibility with standard industrial power supplies.
• Input Current: Typical consumption of 550 mA, allowing for efficient power budgeting.
• Encoder Supply: Provides both 5 V (max 210 mA) and 24 V (max 300 mA) outputs, supporting a wide range of encoders.
• Power Loss: Typical 3.6 W, minimizing heat generation within the control cabinet.
• Digital Inputs: 12 inputs (4 per axis) with functions like reference cams, reversing cams, and flying actual value setting.
• Digital Outputs: 12 outputs (4 per axis) for rapid traverse, creep, run right, and run left commands.
• Encoder Interfaces: Supports incremental (symmetrical and asymmetrical) and absolute (SSI) encoders, with input frequencies up to 1 MHz for symmetrical types.
• Ambient Temperature: Operates from 0 °C to 55 °C, suitable for most industrial environments.

One of the most distinctive features is the module's ability to handle absolute SSI encoders with a clock frequency up to 1.25 MHz and a cable length of up to 300 meters at 156 kbit/s. This capability ensures accurate position feedback even in large-scale installations, reducing the risk of signal degradation over long distances.

Real-World Applications

In practice, the 6ES7451-3AL00-0AE0For instance, in material handling systems, the module can control the rapid traverse of a carriage to a target position, then switch to slow creep for final alignment. This dual-speed approach minimizes overshoot and improves throughput.

Moreover, its support for flying actual value setting allows for on-the-fly position updates, which is particularly useful in continuous processes like printing or packaging, where synchronization is key. The module's versatility also extends to machine tools, where it can manage tool changers or axis positioning with high repeatability.

Installation & Setup

Installing the 6ES7451-3AL00-0AE0 requires a 48-pin front connector (not included) and a free slot in an S7-400 rack. When mounting, ensure adequate airflow around the module to maintain optimal operating temperatures. The module's dimensions (50 mm width, 290 mm height, 210 mm depth) allow for straightforward integration into standard cabinets.

For wiring, it is essential to follow the pinout diagram provided in the manual. The encoder connections must be shielded to prevent electromagnetic interference, especially for high-frequency signals. The 5 V encoder supply is limited to 210 mA, so verify that the total current draw of connected encoders does not exceed this value. Similarly, the 24 V supply can deliver up to 300 mA, which is sufficient for most SSI encoders.

Maintenance & Reliability

To ensure long-term reliability, periodic inspection of the module and its connections is recommended. Check for loose terminals, signs of overheating, or dust accumulation that could affect performance. The module's power loss of 3.6 W is relatively low, but in high-density cabinets, ensure adequate ventilation.

Given the module's robust design, it is built to withstand typical industrial conditions. However, regular firmware updates and system diagnostics can help identify potential issues before they cause downtime. Always refer to the manufacturer's guidelines for specific maintenance procedures.

Compatibility & Integration

The 6ES7451-3AL00-0AE0 is part of the SIMATIC S7-400 family, ensuring seamless integration with other S7-400 components. It communicates via the backplane bus, requiring no additional network configuration. The module is compatible with a variety of encoders, including incremental and absolute types, making it a flexible choice for diverse applications.

For system integrators, the included configuration package on CD simplifies the setup process, allowing for quick parameterization of channels and encoder types. This ease of integration reduces commissioning time and accelerates time-to-market.

Troubleshooting & Common Issues

One common issue when using positioning modules is incorrect encoder wiring, leading to erratic position readings. To avoid this, double-check the wiring against the manual and ensure proper shielding. Another potential problem is exceeding the encoder supply current limits, which can cause voltage drops and signal errors. Always calculate the total current draw of all connected encoders.

If the module fails to communicate with the CPU, verify that it is properly seated in the rack and that the front connector is securely attached. Additionally, check the power supply voltage to ensure it is within the specified range of 24 V DC.

Product Support & Availability

The 6ES7451-3AL00-0AE0 is available through AutoDCSTech, a trusted supplier of industrial automation parts. While the module may be subject to lifecycle changes, AutoDCSTech can provide current availability and support. Contact them for pricing and delivery options.
