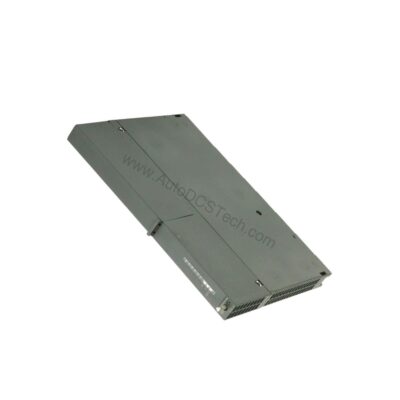

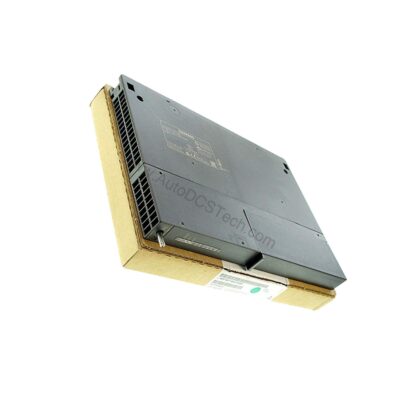

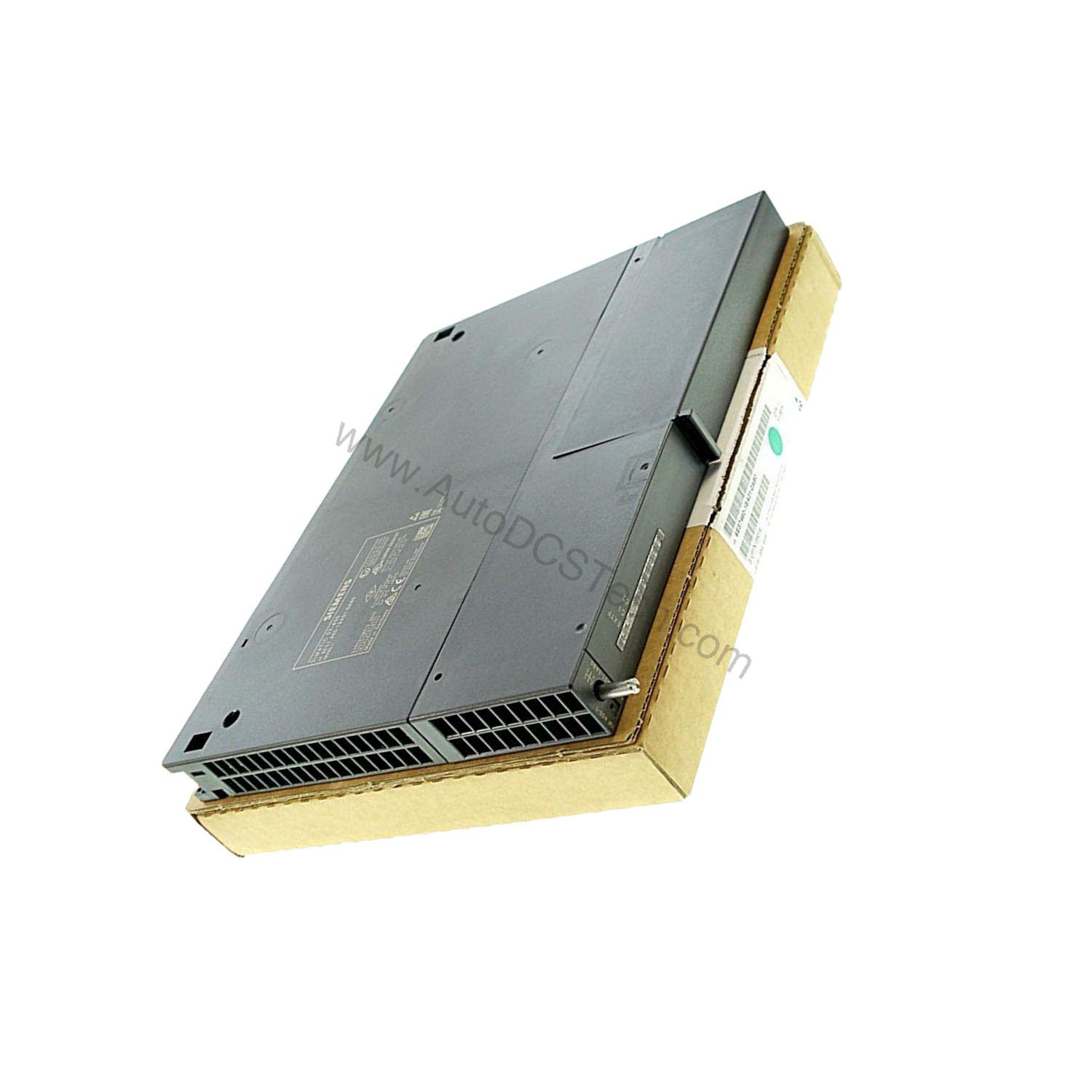

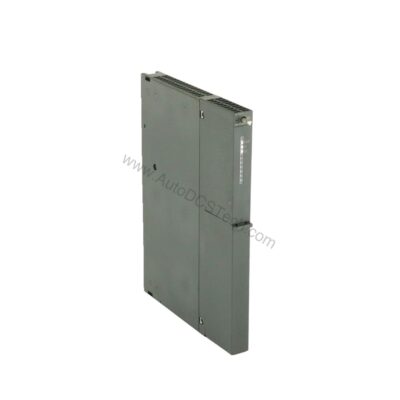

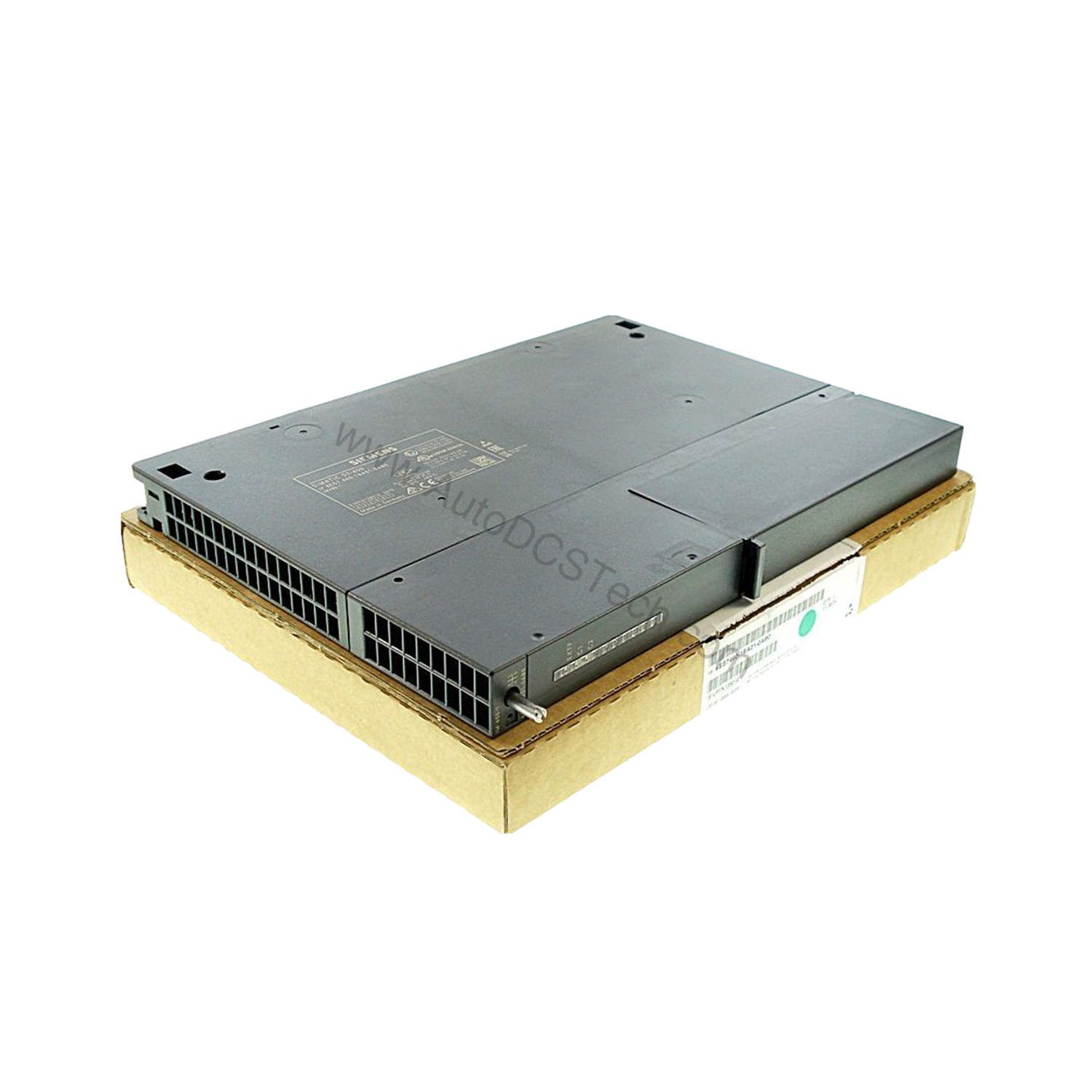

6ES7460-3AA01-0AB0 102m Interface Module

Introduction to the 6ES7460-3AA01-0AB0

When your S7-400 system demands reliable distributed I/O across long distances, the 6ES7460-3AA01-0AB0 from Siemens delivers. This interface module, part of the SIMATIC S7-400 family, is engineered for distributed coupling up to 102 meters.

With a compact 25 mm width and a robust design, this module fits easily into your existing control panel. Its low power loss of 7,750 mW keeps heat generation minimal, contributing to system stability. For engineers seeking to extend their automation network without sacrificing performance, the 6ES7460-3AA01-0AB0 is a dependable choice.

Key Features and Technical Specifications

The 6ES7460-3AA01-0AB0 is built to handle demanding industrial environments. Below are the critical specifications that define its performance:

• Input current from backplane bus: 5 V DC, max. 1,550 mA
• Power loss: max. 7,750 mW
• Cable length between first and last interface module: max. 102.25 m
• Connection method: termination plug 6ES7461-3AA0-7AA0
• Dimensions: 25 mm width, 290 mm height, 280 mm depth
• Weight: approx. 630 g

These specs highlight the module's efficiency and space-saving design. The low power loss means less heat in your cabinet, which can extend the life of surrounding components. The 102.25 m cable length capability allows you to place I/O racks far from the CPU, optimizing your plant layout.

Applications and Use Cases

In large-scale manufacturing, the 6ES7460-3AA01-0AB0For instance, in a bottling plant, you can place the CPU in a central control room while locating I/O modules near the production lines. This reduces long cable runs and simplifies troubleshooting. Additionally, in material handling systems, the module's long-distance coupling enables you to position sensors and actuators exactly where needed, improving response times.

Moreover, the module's compatibility with the C-bus ensures consistent data transfer, which is critical for synchronized operations. Whether you are upgrading an existing line or designing a new system, this interface module provides the flexibility to scale your automation architecture.

Installation and Setup Considerations

Proper installation is key to maximizing the performance of the 6ES7460-3AA01-0AB0. First, ensure that the module is securely seated in the S7-400 rack, as a loose connection can cause intermittent faults. The termination plug 6ES7461-3AA0-7AA0 must be attached correctly to the last module in the chain to ensure proper signal termination. Also, verify that the backplane bus voltage is within the specified 5 V DC range to avoid overcurrent conditions.

When planning cable routing, keep the total distance between the first and last interface module within 102.25 m. Exceeding this limit can degrade signal integrity and lead to communication errors. Therefore, measure your cable paths carefully before finalizing the layout.

Maintenance and Reliability

Routine maintenance of the 6ES7460-3AA01-0AB0 is straightforward. Periodically inspect the module for dust accumulation, which can impede airflow and increase operating temperatures. Use a soft, dry cloth to clean the exterior; avoid solvents that may damage the plastic housing. Also, check that all connectors are tight and free from corrosion, especially in humid environments.

Because the module has no moving parts, its reliability is high. However, as with any electronic component, heat is the primary enemy. Ensure that your cabinet has adequate ventilation to keep the ambient temperature within the specified range. By following these simple steps, you can extend the service life of the module and minimize unplanned downtime.

Compatibility and Integration

The 6ES7460-3AA01-0AB0 is designed for use with the SIMATIC S7-400 programmable logic controllers. It communicates via the C-bus, which is a high-speed backplane bus that connects multiple interface modules. This module is typically paired with the IM 461-3 receiving module (not included) to complete the distributed coupling link.

For seamless integration, ensure that your S7-400 CPU firmware supports the IM 460-3 functionality. Additionally, use only Siemens-approved cables and connectors to maintain signal integrity. The termination plug 6ES7461-3AA0-7AA0 is required for proper operation, so order it alongside the module if you do not already have it.

Troubleshooting Common Issues

If you encounter communication faults with the 6ES7460-3AA01-0AB0, start by checking the backplane bus current. If it exceeds 1,550 mA, you may have too many modules drawing power from the same bus. In that case, redistribute the load or add a power supply.

Another common issue is loose connections. Verify that the module is fully inserted into the rack and that the termination plug is firmly attached. Also, inspect the cable for cuts or kinks that could cause signal reflection. If the problem persists, consult the Siemens S7-400 manual or contact AutoDCSTech for technical support.

Product Support and Availability

At AutoDCSTech, we stock the 6ES7460-3AA01-0AB0 to ensure quick delivery for your projects. Our team can assist with technical questions and provide documentation upon request. Contact us today to check availability and pricing.
