Key Features and Technical Specifications
- Transmission rates: 9.6, 19.3, and 187.5 kbit/s, set via DIP switch.
- Protocol support: PPI (10/11 bit) and ASCII (Freeport).
- LED indicators: Tx (green) for RS-232 transmit, Rx (green) for RS-232 receive, and PPI (green) for RS-485 transmit.
- Potential separation: Built-in isolation for reliable communication.
- Weight: Approximately 300 g.
The cable’s multi-master capability allows multiple masters on the PPI network, which is essential for systems where both a PC and an HMI need to access the S7-200 simultaneously. The DIP switch configuration simplifies setup, letting you match the baud rate to your application without additional software.
Applications and Use Cases
In industrial settings, the 6ES7901-3CB30-0XA0 is commonly used for programming S7-200 PLCs, downloading logic, and monitoring real-time data. It also enables connection to GSM modems for remote diagnostics and control, a critical feature for distributed or unmanned installations. Moreover, its Freeport support allows custom ASCII communication with third-party devices such as barcode scanners or weigh scales, expanding the S7-200’s connectivity options.
Installation and Setup
To install the cable, connect the RS-232 end to your PC’s serial port and the RS-485 end to the S7-200’s programming port. Ensure the DIP switches are set to the desired baud rate—matching the PC’s communication settings. The cable is powered from the CPU, so no external power supply is required. Always verify the pinout and polarity before powering up to avoid communication errors.
Maintenance and Reliability
Because the cable has no moving parts, maintenance is minimal. Periodically inspect the connectors for dust or corrosion, especially in harsh environments. The built-in potential separation protects against ground loops, reducing the risk of data corruption. For long-term reliability, avoid bending the cable sharply and store it in a dry place when not in use.

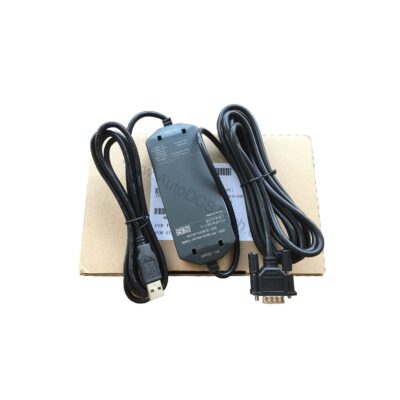

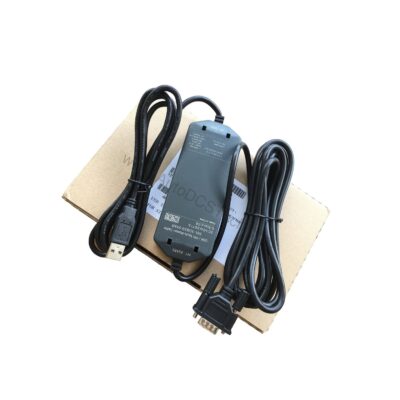

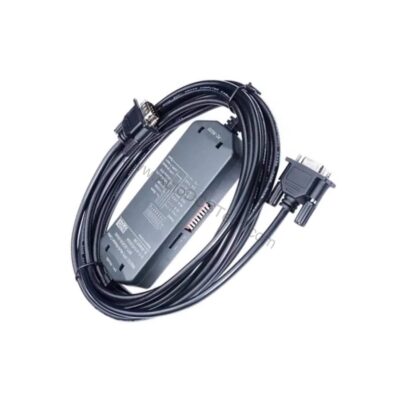

Overcoming Serial Connectivity Challenges with the 6ES7901-3CB30-0XA0

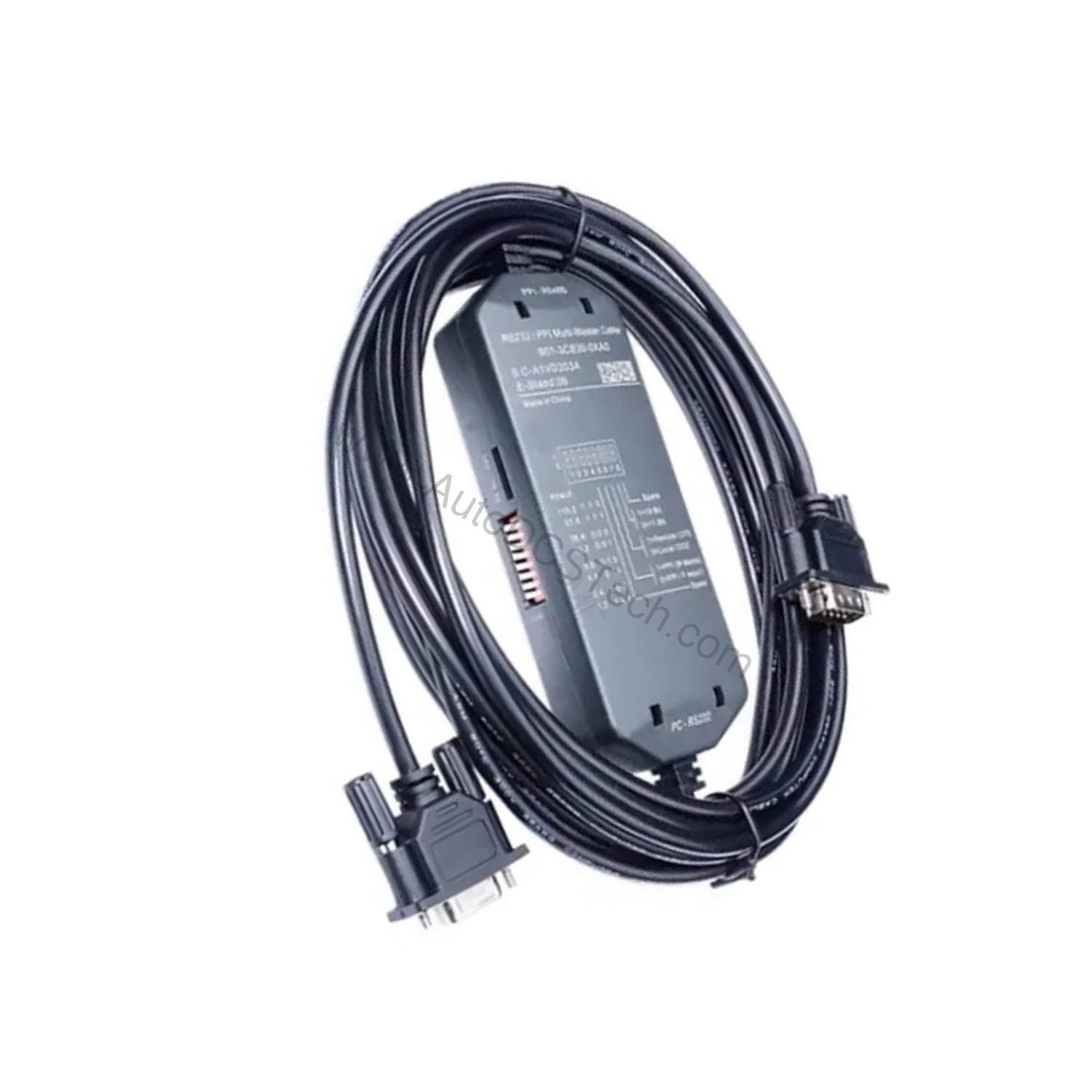

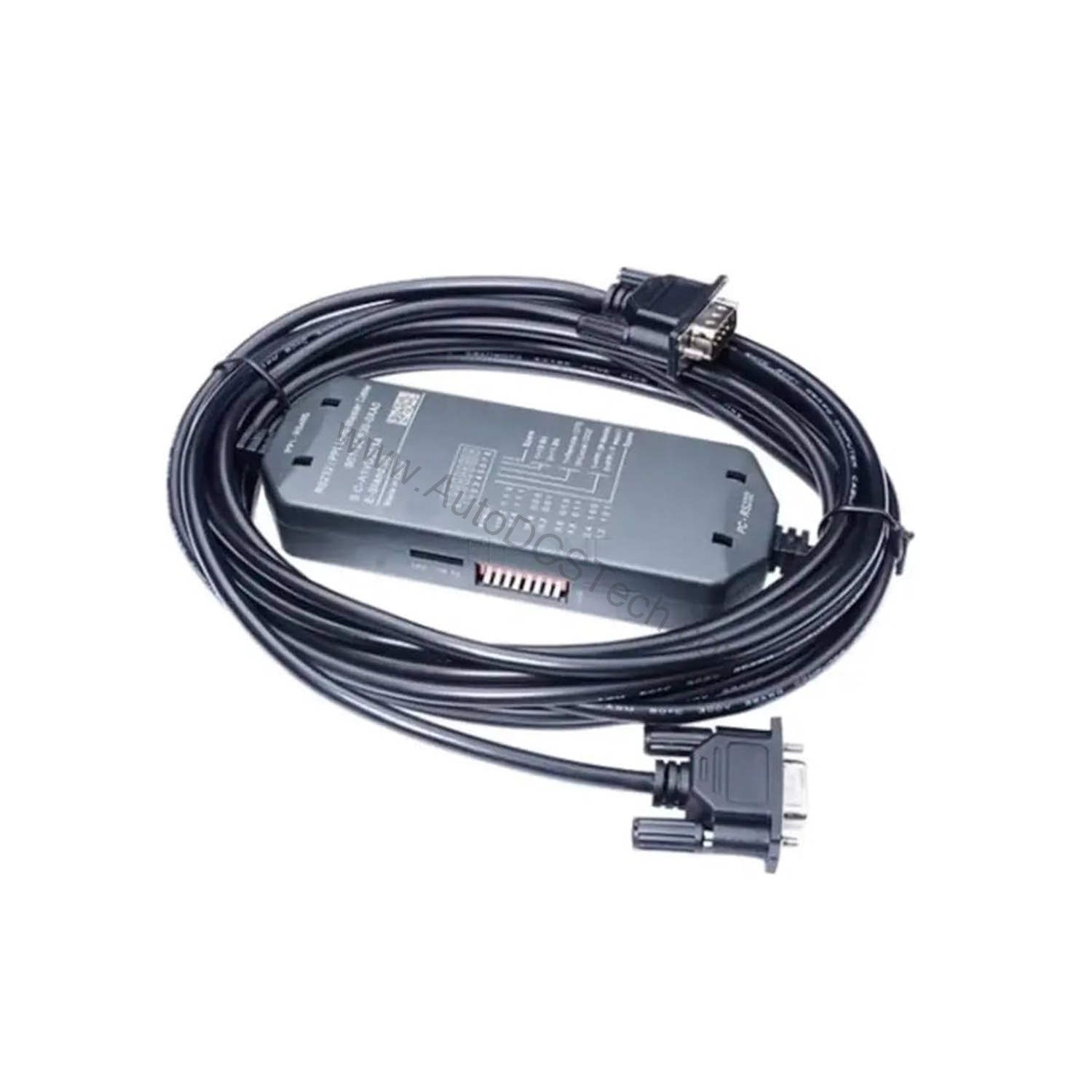

The 6ES7901-3CB30-0XA0 from Siemens solves this by providing a dedicated PC/PPI multi-master cable that bridges the RS-232 serial interface of a PC to the RS-485 port of the S7-200. This cable supports multiple transmission rates—9.6, 19.3, and 187.5 kbit/s—selectable via a DIP switch, ensuring flexible integration with various host systems. Additionally, it supports both PPI and Freeport protocols, making it suitable for GSM modem connections and custom ASCII communications.
Compatibility and Integration
This cable is designed specifically for the Siemens SIMATIC S7-200 PLC family. It works with any PC that has a standard RS-232 serial port. The PPI protocol is native to S7-200, while Freeport mode allows integration with non-Siemens devices. For GSM modem connectivity, the cable supports the necessary handshaking signals, making remote access straightforward.
Troubleshooting Common Issues
If communication fails, first check the DIP switch settings against the baud rate configured in your PC software. Verify that the correct COM port is selected and that no other program is using it. Ensure the S7-200 is powered and the programming port is active. If the PPI LED does not light, the cable may be faulty or the connection reversed. Refer to the official Siemens manual for detailed diagnostics.
Product Support and Availability
The 6ES7901-3CB30-0XA0 is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and ensure you receive the correct cable for your application.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7901-3CB30-0XA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
