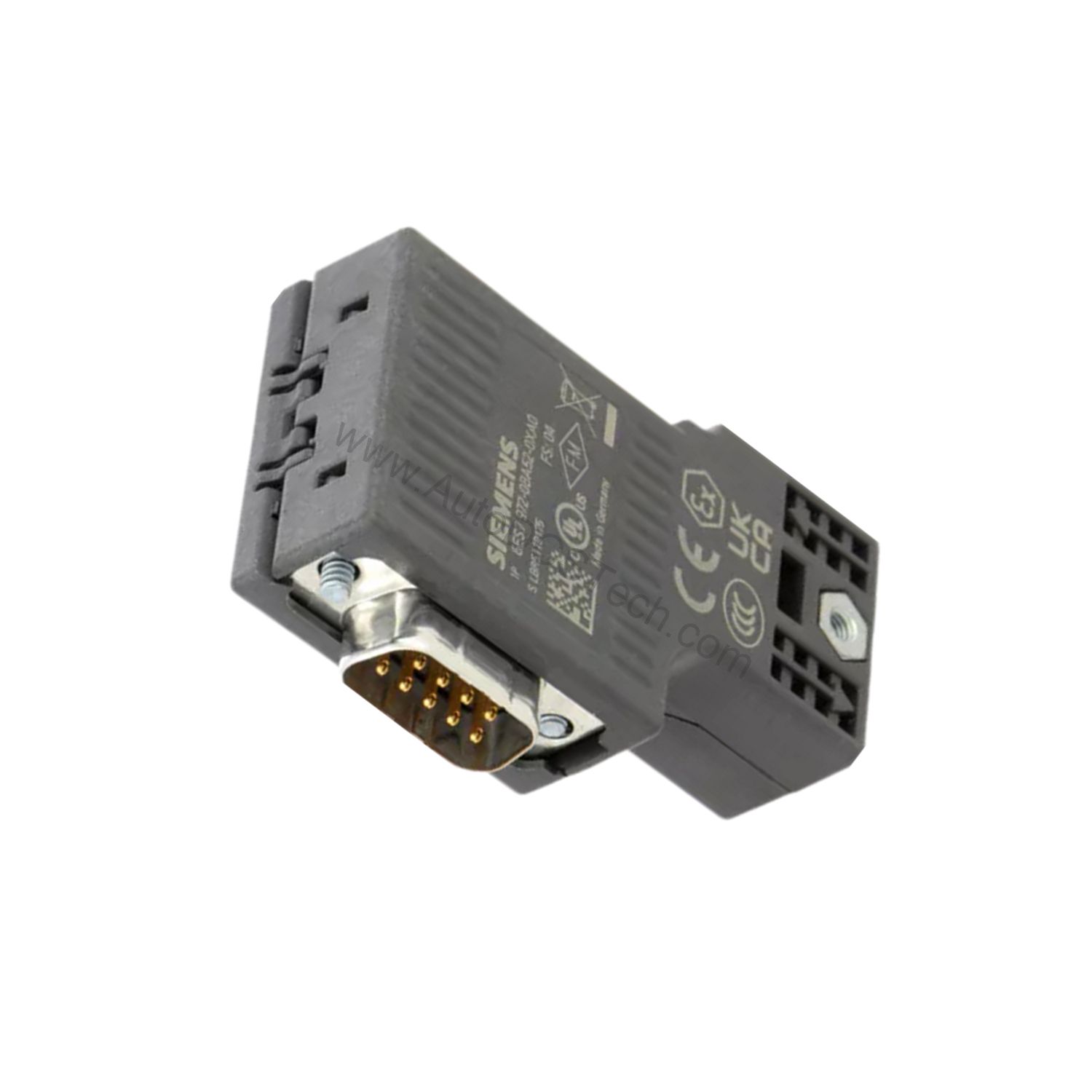

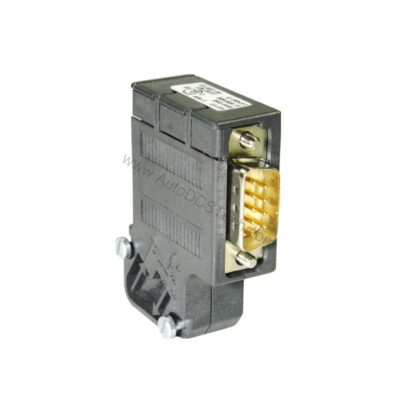

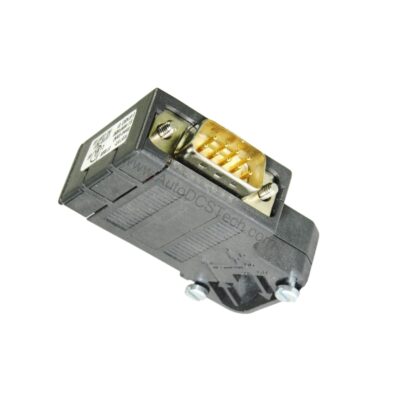

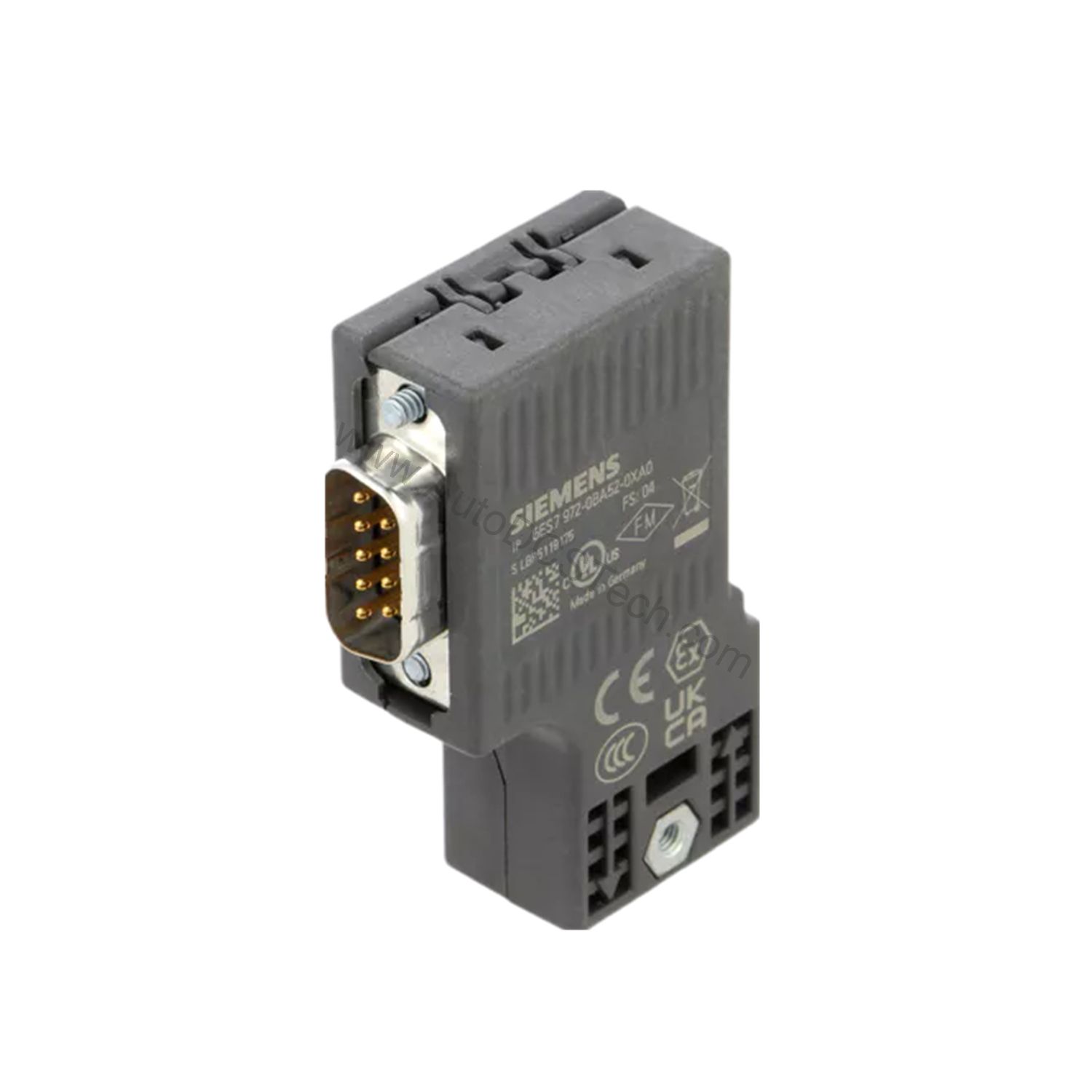

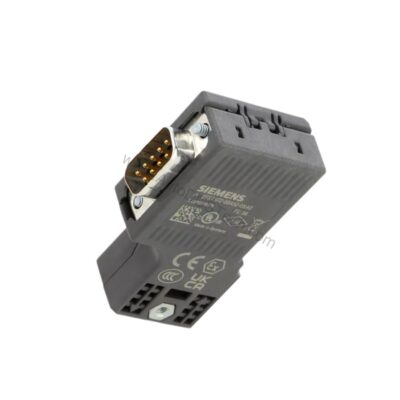

Introduction to the Siemens 6ES7972-0BA52-0XA0
When a PROFIBUS network loses signal integrity, production lines halt and diagnostics become a nightmare. The 6ES7972-0BA52-0XA0 from Siemens is engineered to prevent those failures. This RS485 bus connector delivers reliable data transmission for PROFIBUS DP networks, using insulation displacement technology for fast, secure wiring.
Key Features and Technical Specifications
The 6ES7972-0BA52-0XA0 is built for demanding industrial environments. Its compact design and robust construction ensure long service life. Below are the essential parameters derived directly from the datasheet:
- Transfer rate: 9.6 kbit/s to 12 Mbit/s (PROFIBUS DP)
- Electrical connections: 2 for PROFIBUS cables, 1 for network components or terminal equipment
- Connection type: Integrated insulation displacement terminals for 2-core PB FC installation cables; 9-pin sub-D connector for equipment
- FastConnect: Yes
- Cable outlet: 90° angle for space-saving installation
- Dimensions (W x H x D): 15.8 x 59 x 35.6 mm
- Net weight: 36 g
- Ambient temperature (operation): -25 to +60 °C
- Ambient temperature (storage/transport): -40 to +70 °C
- Protection class: IP20
- Silicon-free: Yes
- Strain relief: Yes
- PG socket: No
- Terminating resistor: Integrated, connectable via slide switch
- Certifications: RoHS compliant, UL approved
Applications and Use Cases
The 6ES7972-0BA52-0XA0For example, in a bottling plant, this connector links PLCs to remote I/O modules, ensuring real-time control of conveyor speeds. Its wide operating temperature range makes it suitable for both indoor and outdoor enclosures. Additionally, the silicon-free construction is critical for automotive paint shops where silicone contamination can ruin finishes.
Installation and Setup
Installing the 6ES7972-0BA52-0XA0 is straightforward. First, route the PROFIBUS cable into the connector housing. Then, use the integrated insulation displacement terminals to make contact without stripping the wire. Secure the cable with the strain relief mechanism to prevent pull-out. Finally, connect the 9-pin sub-D connector to the PROFIBUS station. Always verify the transfer rate settings on the network to match the connector's capability.
Maintenance and Reliability
Routine inspection of the connector is essential to maintain network integrity. Periodically check that the screws are tight and the cable is not stressed. The connector's IP20 rating means it should be protected from dust and moisture; install it in an appropriate enclosure. Because the terminating resistor is integrated, there are no external components to lose or damage. With proper care, this connector provides years of trouble-free operation.
Compatibility and Integration
This connector is part of the Siemens SIMATIC DP family and is designed for PROFIBUS networks. It works with any PROFIBUS DP device that uses a 9-pin sub-D interface. The FastConnect feature is compatible with Siemens PROFIBUS FC cables, ensuring a secure and reliable connection.
Troubleshooting Common Issues
If you experience intermittent communication errors, check the following: ensure the terminating resistor switch is set correctly at both ends of the network. Verify that the cable is fully inserted into the insulation displacement terminals. Confirm that the 9-pin connector is firmly seated. Also, inspect the cable for cuts or kinks that could cause impedance mismatches. Following these steps resolves most connectivity problems.
Product Support and Availability
The 6ES7972-0BA52-0XA0 is available from AutoDCSTech. We stock this connector and can ship it promptly to minimize downtime. Contact our team for pricing and delivery details.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7972-0BA52-0XA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
