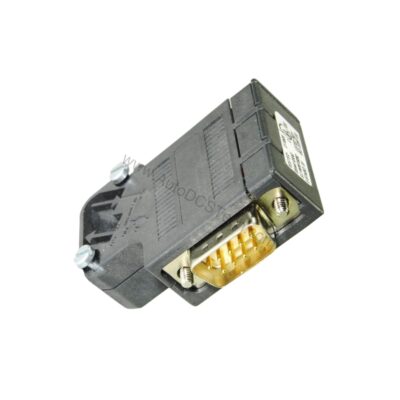

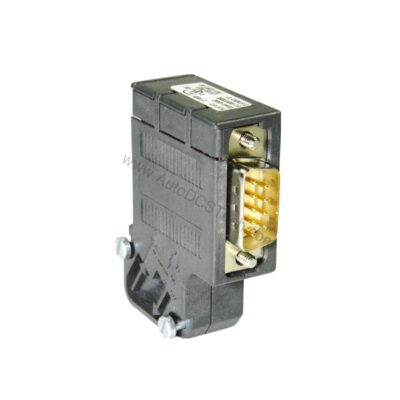

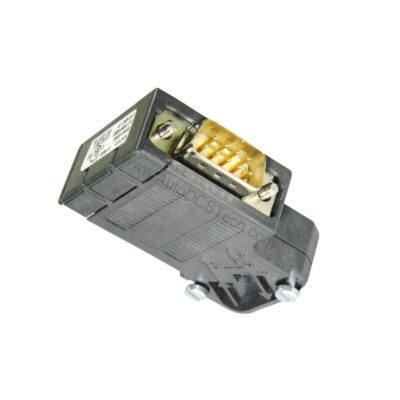

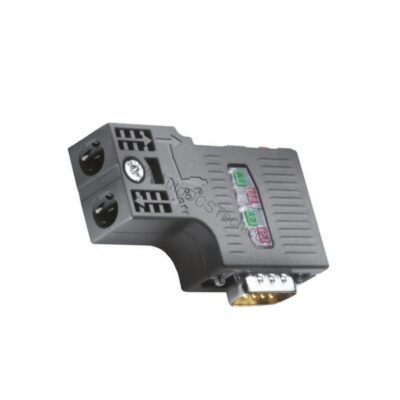

6ES7972-0BB41-0XA0 12 Mbit/s PROFIBUS Connector

Introduction to the 6ES7972-0BB41-0XA0 PROFIBUS Connector

The 6ES7972-0BB41-0XA0 from Siemens addresses this with a robust, angled bus connector designed for reliable data transmission up to 12 Mbit/s. This connector is engineered for industrial environments where space is tight and performance is non-negotiable.

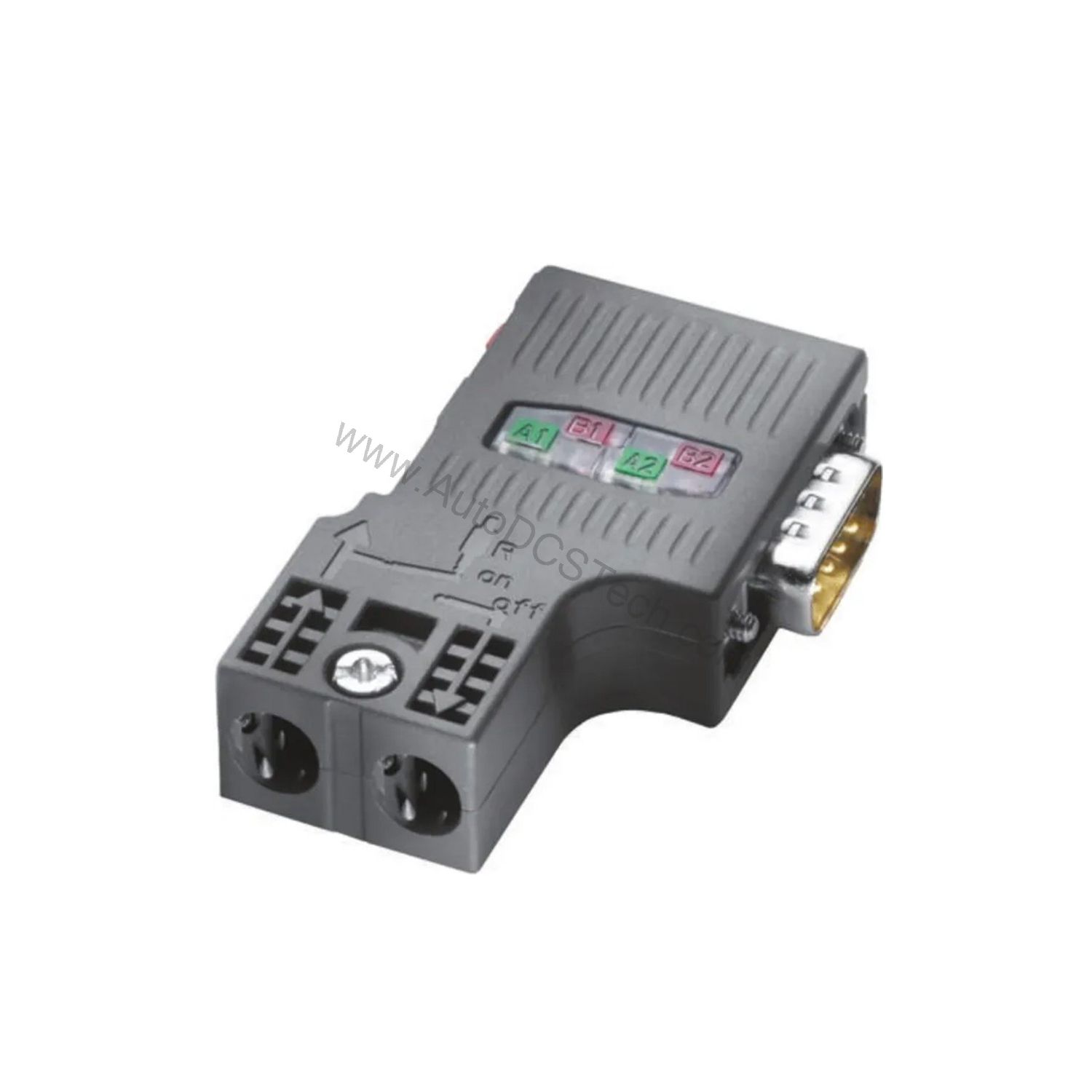

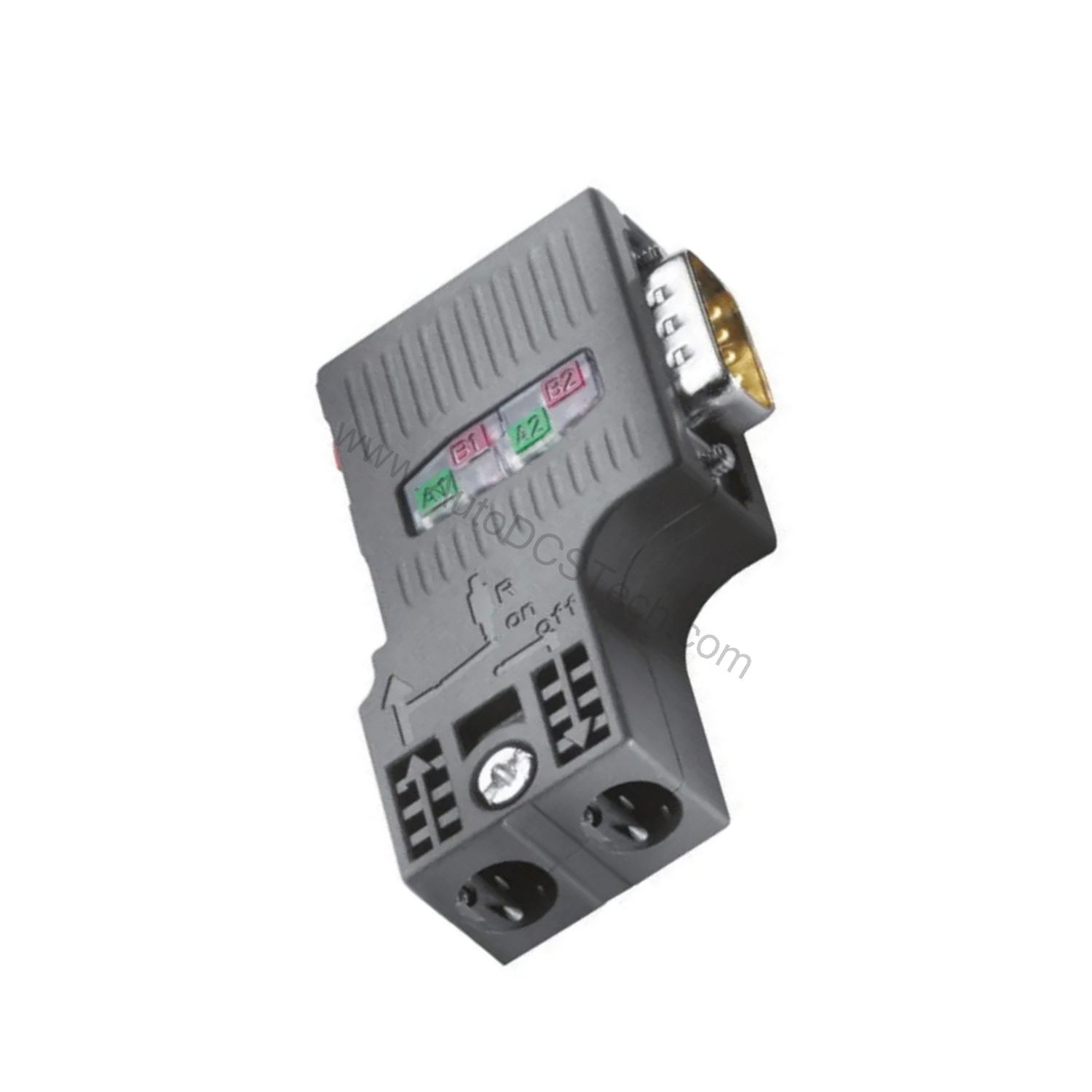

Part of the Siemens SIMATIC DP family, this connector features a 35° cable outlet, allowing neat routing in control panels. Its screw-type connection ensures a secure, vibration-resistant termination, while the integrated terminating resistor with isolating function simplifies network setup.

Key Features and Technical Specifications

The 6ES7972-0BB41-0XA0 is built for dependable PROFIBUS communication. Below are the core specifications extracted from the official datasheet:

• Transfer rate: 9.6 kbit/s to 12 Mbit/s (PROFIBUS DP)
• Electrical connections: 2 for PROFIBUS cables, 1 for network components/terminal equipment
• Connection type: Screw terminals for bus cables; 9-pin sub-D for programming port
• Cable outlet: 35° angled
• Dimensions (WxHxD): 15.8 x 54 x 39.5 mm
• Net weight: 34 g
• Ambient temperature (operation): -25 °C to +60 °C
• Storage/transport temperature: -40 °C to +70 °C
• Protection class: IP20
• Product features: Silicon-free, PG connection socket, strain relief
• Certifications: RoHS compliant, UL approved

One standout feature is the integrated terminating resistor, which can be activated via a slide switch. This simplifies network termination and reduces the risk of signal reflections—a common cause of communication errors.

Applications and Use Cases

For maintenance engineers, the screw terminals allow quick and secure wiring, minimizing downtime during installation or troubleshooting.

In a typical scenario, the 6ES7972-0BB41-0XA0 is used to link PLCs, drives, and remote I/O devices to a PROFIBUS DP network. The PG port enables on-site diagnostics without disconnecting the bus, which is invaluable for system commissioning and maintenance.

Installation and Setup Guidance

Proper installation is critical for reliable PROFIBUS communication. Follow these steps for optimal performance:

• Strip the PROFIBUS cable insulation carefully and connect the wires to the screw terminals, ensuring a tight fit.
• Set the terminating resistor slide switch to the correct position—ON at both ends of the bus segment.
• Use the 35° cable outlet to route cables neatly, avoiding sharp bends that could damage the cable.
• Secure the connector to the device using the locking mechanism (screwed joint) to prevent accidental disconnection.

Always verify the transfer rate settings on your PROFIBUS master and slaves to match the connector's capability (up to 12 Mbit/s).

Maintenance and Reliability

From a maintenance perspective, the 6ES7972-0BB41-0XA0 is designed for longevity. The plastic enclosure is silicon-free, reducing contamination risks in sensitive environments. The strain relief feature protects the cable from mechanical stress, extending service life.

Periodically inspect the connector for signs of wear, such as loose screws or damaged cables. Because the connector supports hot-swapping (with proper precautions), you can replace a faulty unit without shutting down the entire network, minimizing downtime.

Compatibility and Integration

This connector is compatible with PROFIBUS DP networks operating at 9.6 kbit/s to 12 Mbit/s. It works with any standard PROFIBUS cable and is suitable for use with Siemens SIMATIC S7 PLCs and other PROFIBUS DP masters. The 9-pin sub-D PG port allows connection of a programming device for diagnostics.

Common Issues and Troubleshooting

If you experience communication errors, check the following:

• Ensure the terminating resistor is set correctly at both ends of the bus.
• Verify that the screw terminals are tight and the cable shield is properly grounded.
• Check the transfer rate settings—mismatched rates can cause intermittent faults.

If problems persist, consult the official Siemens documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 6ES7972-0BB41-0XA0 is available from AutoDCSTech. Contact our team for current stock and delivery options. We are here to help you keep your PROFIBUS network running smoothly.
