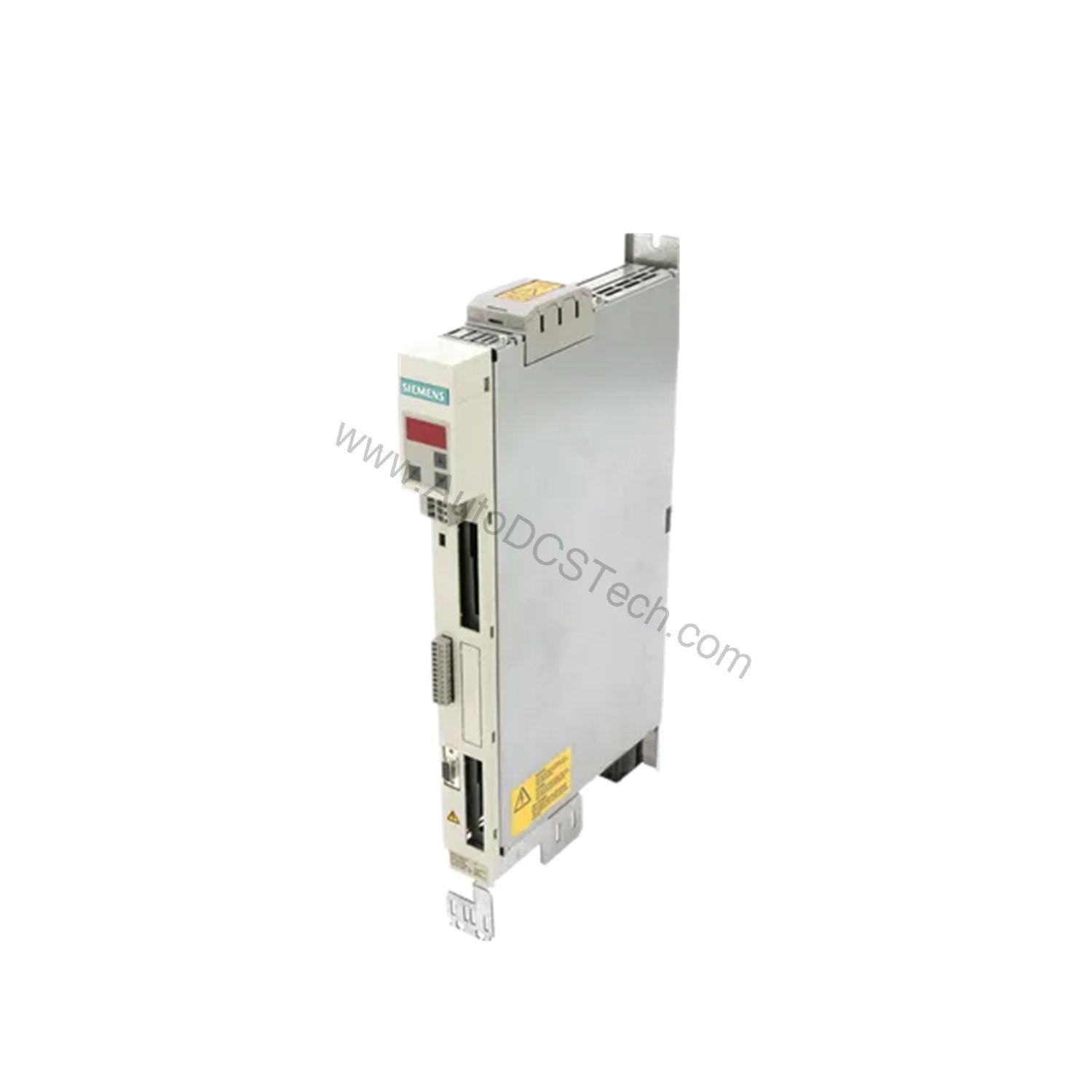

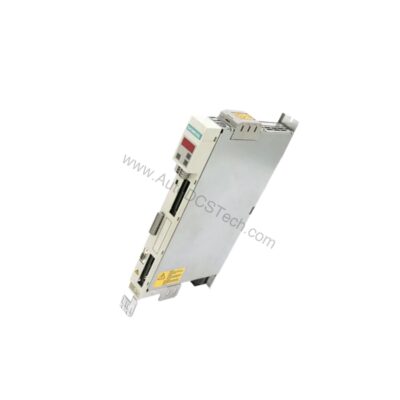

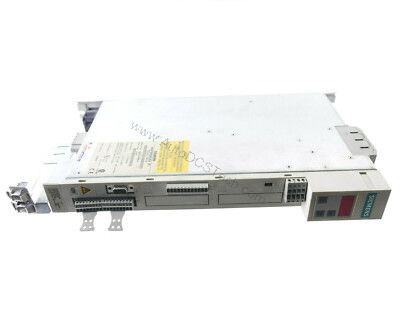

6SE7012-0TP60-Z 0.75 kW Vector Control Inverter

Introduction to the 6SE7012-0TP60-Z

When production lines demand precise speed control and dependable operation, the 6SE7012-0TP60-Z from Siemens provides a proven solution. This vector control inverter is part of the SIMOVERT MASTERDRIVES family, engineered for industrial applications that require accurate torque and speed regulation. With a compact footprint and robust IP20 protection, it fits neatly into standard control cabinets while handling demanding motor loads.

As a 3-phase input device, the 6SE7012-0TP60-Z operates on a 50/60 Hz mains supply, making it versatile across global installations. Its nominal output current of 2 A and power rating of 0.75 kW (1 HP) suit small to medium motor applications, from conveyors to pumps and fans. The unit's vector control algorithm ensures high dynamic response, reducing energy waste and improving process consistency.

Key Features and Technical Specifications

Understanding the exact capabilities of the 6SE7012-0TP60-Z is essential for proper selection. The table below summarizes the core parameters extracted from the official datasheet.

The 6SE7012-0TP60-Z operates at 480 VAC input, a common industrial voltage level. Its IP20 rating means it is protected against solid objects larger than 12 mm, making it suitable for indoor, clean environments. The unit's compact dimensions and light weight simplify mounting and reduce cabinet space requirements.

Applications and Use Cases

Vector control inverters excel in applications requiring precise speed regulation and high starting torque. The 6SE7012-0TP60-Z is well-suited for conveyor systems, where consistent belt speed prevents product damage. In pumping applications, the inverter adjusts motor speed to match flow demand, cutting energy consumption significantly.

Furthermore, the drive handles fan loads efficiently, reducing wear on mechanical components. Its 3-phase input design ensures balanced power draw, which is beneficial for facilities with three-phase mains. Because the unit is obsolete, engineers often use it as a replacement part in existing MASTERDRIVES installations, maintaining system continuity without redesign.

Installation and Setup Guidance

Proper installation ensures the 6SE7012-0TP60-Z operates safely and reliably. First, verify that the supply voltage matches the unit's 480 VAC rating. Then, mount the inverter on a flat, vertical surface inside a cabinet that meets IP20 requirements. Ensure adequate clearance around the unit for heat dissipation, as power electronics generate heat during operation.

Wire the input phases according to the terminal markings, and connect the motor leads to the output terminals. Use appropriately rated cables and fuses as per local electrical codes. After wiring, perform a thorough check of all connections before energizing the drive. For detailed parameter settings, refer to the official Siemens MASTERDRIVES manual.

Maintenance and Reliability Considerations

Although the 6SE7012-0TP60-Z is built for longevity, periodic inspection is recommended. Check for dust accumulation on the heatsink and cooling fan, as blocked airflow can cause overheating. Verify that all terminal screws remain tight, especially after thermal cycling. Listen for unusual noises from the fan, which may indicate bearing wear.

Since the product is obsolete, sourcing spare parts may become challenging. Therefore, proactive maintenance is crucial to extend the drive's service life. Keeping a spare unit in stock can minimize downtime. Always follow the manufacturer's safety guidelines when performing any maintenance work.

Compatibility and Integration

The 6SE7012-0TP60-Z is designed to work with standard 3-phase induction motors. It integrates into existing MASTERDRIVES systems, allowing seamless replacement of older drives. The inverter accepts analog and digital control signals, enabling connection to PLCs and other automation controllers.

However, the provided data does not specify communication protocols. For network integration, consult the official documentation or contact AutoDCSTech for guidance. The drive's vector control capability ensures compatibility with a wide range of motor types, from standard squirrel-cage to high-efficiency models.

Buyer's Guide: Evaluating the 6SE7012-0TP60-Z

When considering the 6SE7012-0TP60-Z, evaluate your motor's power requirements. The 0.75 kW rating suits small to medium loads. Check that your supply voltage matches 480 VAC. Confirm that the output current of 2 A meets your motor's full-load current. The IP20 protection is adequate for indoor cabinets, but not for dusty or wet environments.

Because the product is obsolete, verify availability with AutoDCSTech before ordering. Consider whether your application benefits from vector control, which offers better performance than V/f control. If you need communication capabilities, confirm whether the unit supports your protocol through optional modules.

Product Support and Availability

AutoDCSTech supplies the Siemens 6SE7012-0TP60-Z as a replacement part for existing systems. While the product is obsolete, we maintain stock to support your operations. Contact our team to confirm current availability and lead times. We are committed to helping you keep your automation running smoothly.
