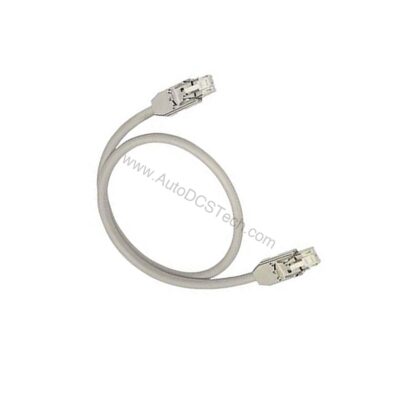

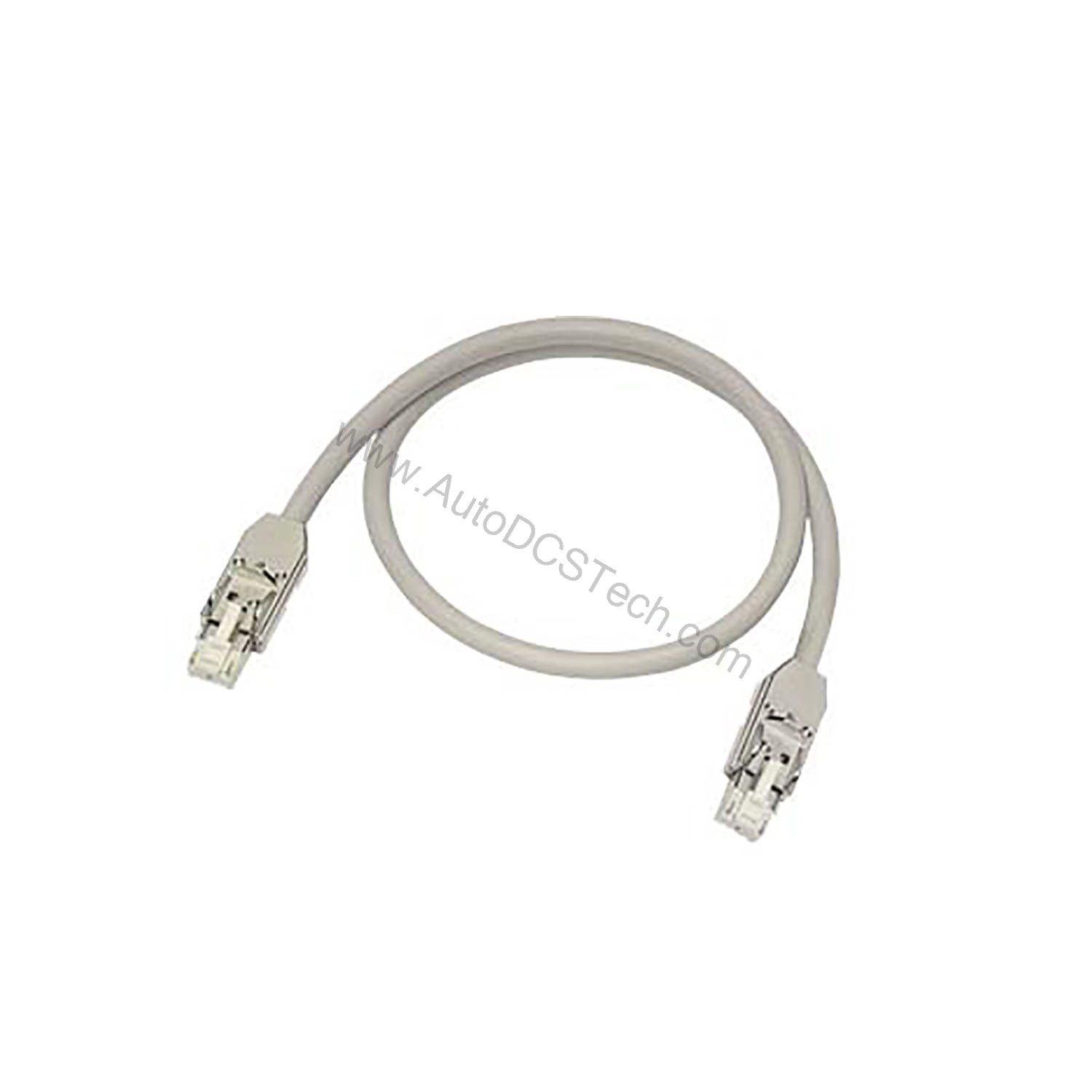

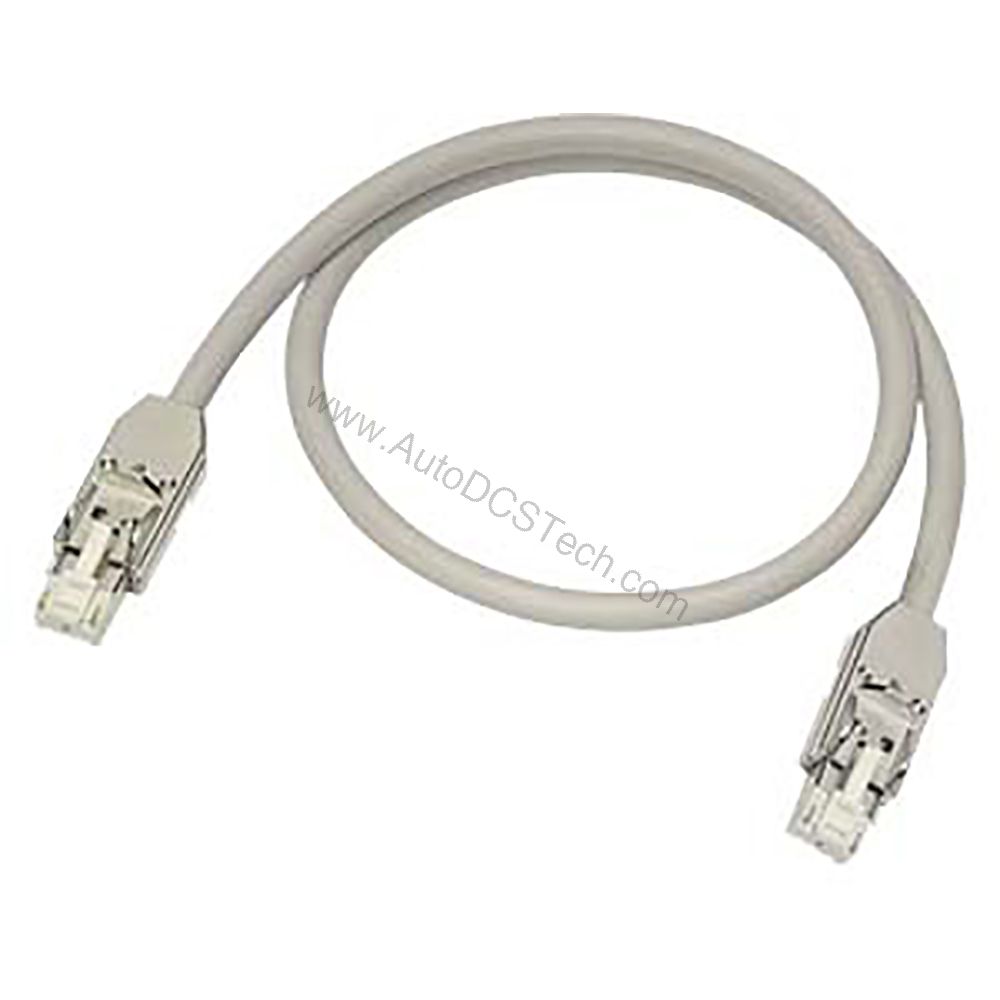

6SL3060-4AJ20-0AA0 2.8m Drive-CliQ Signal Cable

Introduction to the 6SL3060-4AJ20-0AA0

When a drive system loses communication, production stops and troubleshooting becomes urgent. The 6SL3060-4AJ20-0AA0 from Siemens provides a dependable link between Drive-CliQ components, reducing the risk of signal faults. This 2.8-meter cable is part of the Drive-CliQ series, engineered for SINAMICS S120 drives. It connects via RJ45 connectors on both ends, ensuring a secure and consistent interface.

For maintenance engineers, this cable offers a straightforward replacement option. Its straight connectors on both ends simplify routing in control cabinets. The IP20 rating on both ends protects against solid objects larger than 12 mm, which is typical for indoor industrial environments.

Key Features and Technical Specifications

The 6SL3060-4AJ20-0AA0 is a signal cable designed for high-integrity data transmission. Below are the core specifications extracted from the manufacturer's data:

• Cable Length: 2.8 meters
• Connector Type (End 1): RJ45
• Connector Type (End 2): RJ45
• Connector Angle (End 1): Straight
• Connector Angle (End 2): Straight
• IP Rating: IP20/IP20
• Series: Drive-Cliq Series

These specifications ensure compatibility with SINAMICS S120 Drive-CliQ networks. The straight connectors allow for easy installation in tight spaces, while the 2.8-meter length provides flexibility in cabinet layout. The IP20 rating indicates protection against touch and objects larger than 12 mm, suitable for standard industrial use.

Applications and Use Cases

In a typical manufacturing line, the 6SL3060-4AJ20-0AA0 connects drive units to control modules, enabling real-time data exchange. For example, a maintenance engineer can use this cable to link a Control Unit to a Motor Module, ensuring accurate speed and torque commands.

Furthermore, the cable's robust design minimizes signal degradation, which is critical for high-speed communication. In applications where vibration is present, the secure RJ45 locking mechanism prevents accidental disconnection. This reliability reduces downtime and improves overall system availability.

Installation and Setup

Installing the 6SL3060-4AJ20-0AA0 is straightforward. First, verify that both devices are powered off to avoid electrical hazards. Then, connect one RJ45 end to the Drive-CliQ port on the first device and the other end to the second device. Ensure the connectors click into place to confirm a secure fit.

Since both connectors are straight, plan the cable route to avoid sharp bends. Use cable ties to secure the cable along the cabinet frame, but do not overtighten. This practice prevents strain on the connectors and maintains signal integrity. Always follow the manufacturer's installation guidelines for your specific SINAMICS S120 configuration.

Maintenance and Reliability

From a maintenance perspective, the 6SL3060-4AJ20-0AA0 requires minimal care. Periodically inspect the cable for signs of wear, such as cuts or abrasions, especially near the connectors. Verify that the RJ45 connectors are clean and free of dust, as contamination can affect signal quality.

Because the cable is a passive component, its lifespan is typically long. However, environmental factors like extreme temperatures or chemical exposure can degrade the jacket. Therefore, keep the cable within the specified operating conditions. If you notice intermittent communication errors, check the cable connection first before replacing other components. This simple step can save time and reduce replacement costs.

Compatibility and Integration

The 6SL3060-4AJ20-0AA0 is designed for the SINAMICS S120 drive family, specifically for Drive-CliQ communication. It is compatible with any device that uses the Drive-CliQ interface, such as Control Units, Motor Modules, and Sensor Modules. The RJ45 connectors are standard, ensuring an universal fit within the Drive-CliQ ecosystem.

When integrating this cable, ensure that the total cable length in the Drive-CliQ network does not exceed the maximum allowed by the system design. Refer to the SINAMICS S120 documentation for length limits. This cable is a direct replacement for original Siemens parts, offering the same performance and reliability.

Troubleshooting Common Issues

If you encounter communication faults, the 6SL3060-4AJ20-0AA0 may be the culprit. Start by checking the physical connection at both ends. A loose RJ45 connector is a common cause of intermittent faults. Re-seat the connectors and listen for the click.

Another issue is cable damage, which can occur if the cable is bent sharply or pinched during installation. Inspect the entire length for kinks or cuts. If damage is visible, replace the cable immediately. Also, verify that the cable is not routed near high-voltage power lines, as electromagnetic interference can disrupt signals. Following these steps helps maintain a stable Drive-CliQ network.

Product Support and Availability

The 6SL3060-4AJ20-0AA0 is available through AutoDCSTech, an industrial automation parts supplier. We maintain a stock of genuine Siemens cables to support your maintenance needs. Contact our team for current pricing and lead times.
