Product Overview

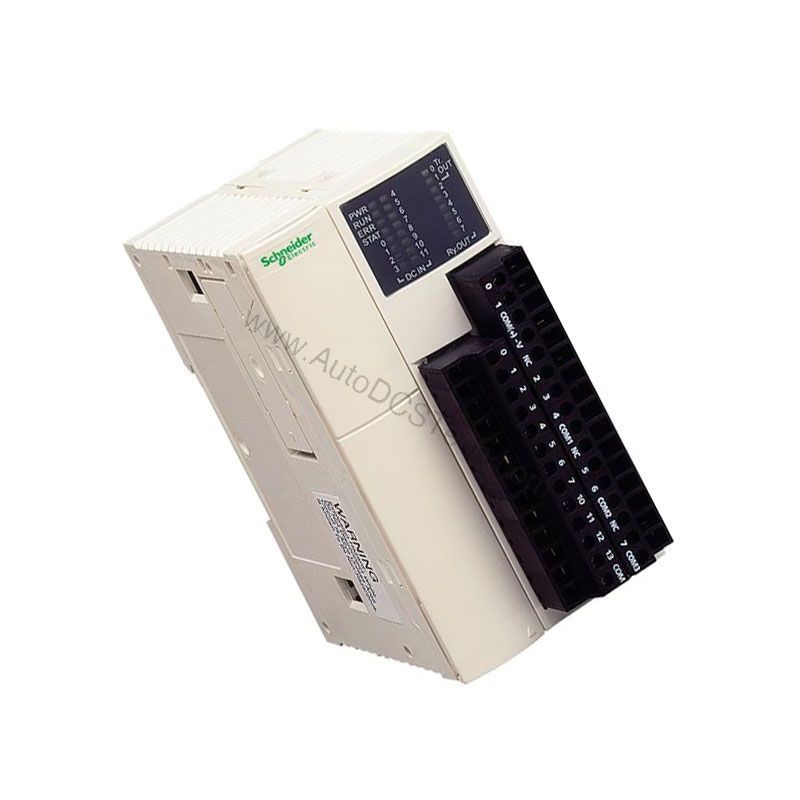

When building a flexible and cost-effective automation system, the Schneider Electric TWDLMDA20DRT modular base controller provides a solid foundation. Part of the Twido product range, this controller integrates 12 discrete inputs (24 V DC, sink or source logic) and 8 discrete outputs—6 relay and 2 transistor (source). Its compact design supports up to 7 I/O expansion modules, allowing you to scale your system as needed. With 2 free slots for a 32 K or 64 K memory cartridge and a real-time clock, the TWDLMDA20DRT adapts to diverse control tasks.
Technical Specifications Breakdown
The TWDLMDA20DRT operates on a 24 V DC rated supply voltage (limits 20.4...26.4 V). Discrete inputs draw 7 mA (for I0.8 to I0.11 and I0.2 to I0.5) or 5 mA (for I0.6 to I0.7 and I0.0 to I0.1), with input impedance ranging from 4700 Ohm to 5700 Ohm depending on the channel. Filter times vary from 35 µs to 150 µs, ensuring reliable signal detection. For outputs, transistor channels deliver 0.36 A per channel with a response time of 5 µs, while relay outputs handle up to 2 A per channel (8 A per common) and offer mechanical durability of ≥20,000,000 cycles. The controller includes a non-isolated serial link (mini DIN) supporting Modbus/character mode master/slave RTU/ASCII (RS485) half duplex at 38.4 kbit/s.
Industry Applications
This modular base controller suits applications requiring mixed I/O types. For example, in a packaging machine, the 6 relay outputs can drive solenoids and motors, while the 2 transistor outputs handle high-speed signaling. The 12 inputs accommodate sensors and pushbuttons. With 2 high-speed counting channels (up to 20 kHz, 32 bits) and PWM/PLS positioning functions (2 channels at 7 kHz), the controller also fits simple motion control tasks. Its IP20 rating and 0...55 °C operating temperature range make it suitable for cabinet-mounted industrial environments.
Installation & Setup Guidance
Mount the TWDLMDA20DRT on a 35 mm symmetrical DIN rail or a panel using a fixing kit. Connect I/O via removable screw terminal blocks. Ensure the supply voltage stays within 20.4...26.4 V DC. The controller includes an internal fuse for power protection. For expansion, use HE-10 connectors or spring terminal blocks depending on the module type. Configure the serial link for Modbus communication with other devices.
Maintenance & Reliability
Routine inspection of terminal connections and environmental conditions helps maintain reliability. The controller’s internal lithium battery preserves internal RAM for up to 30 days (charging time 15 h, battery life 10 yr). With electrical durability of ≥100,000 cycles for relay outputs and a power consumption of ≤19 W (base + 4 expansion modules), the TWDLMDA20DRT offers long service life in continuous operation.
Compatibility & Integration
The TWDLMDA20DRT integrates with Twido expansion modules via its I/O bus, supporting up to 244 I/O points with HE-10 connectors. The built-in Modbus serial link enables connection to HMIs, drives, and other controllers. The controller also supports PID and event processing functions, enhancing its capability for process control.
Selection Guide & Purchasing Advice
Before ordering, verify your required I/O count and memory capacity. The TWDLMDA20DRT accepts a 32 K or 64 K memory cartridge for larger programs. SpareTechPLC stocks this controller and can assist with compatible accessories. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
