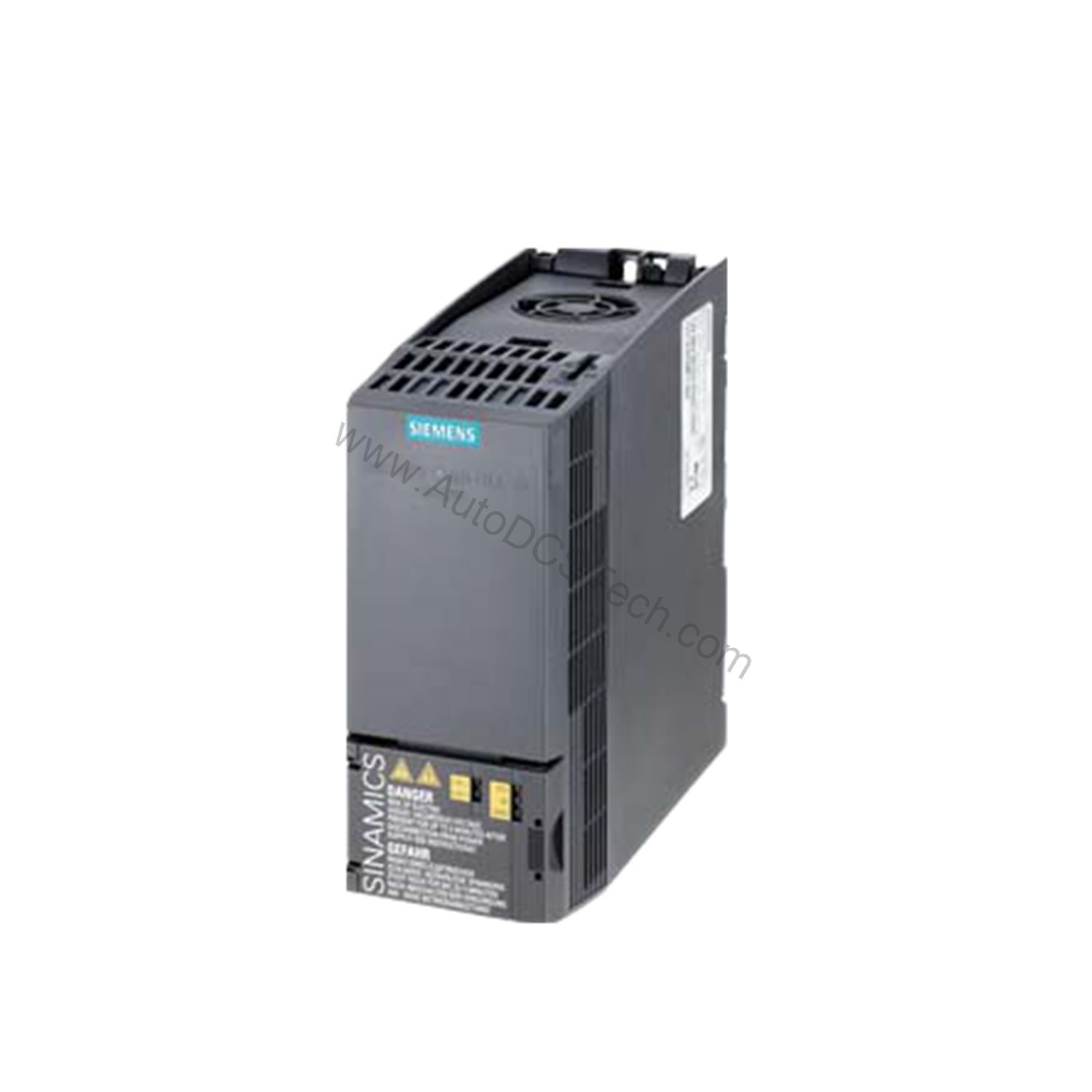

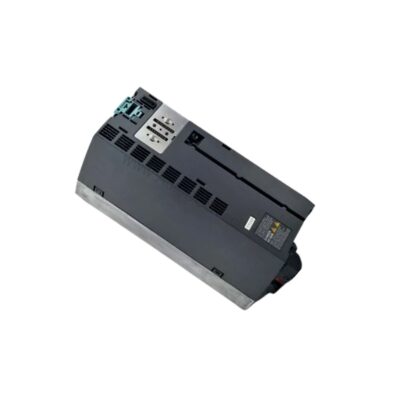

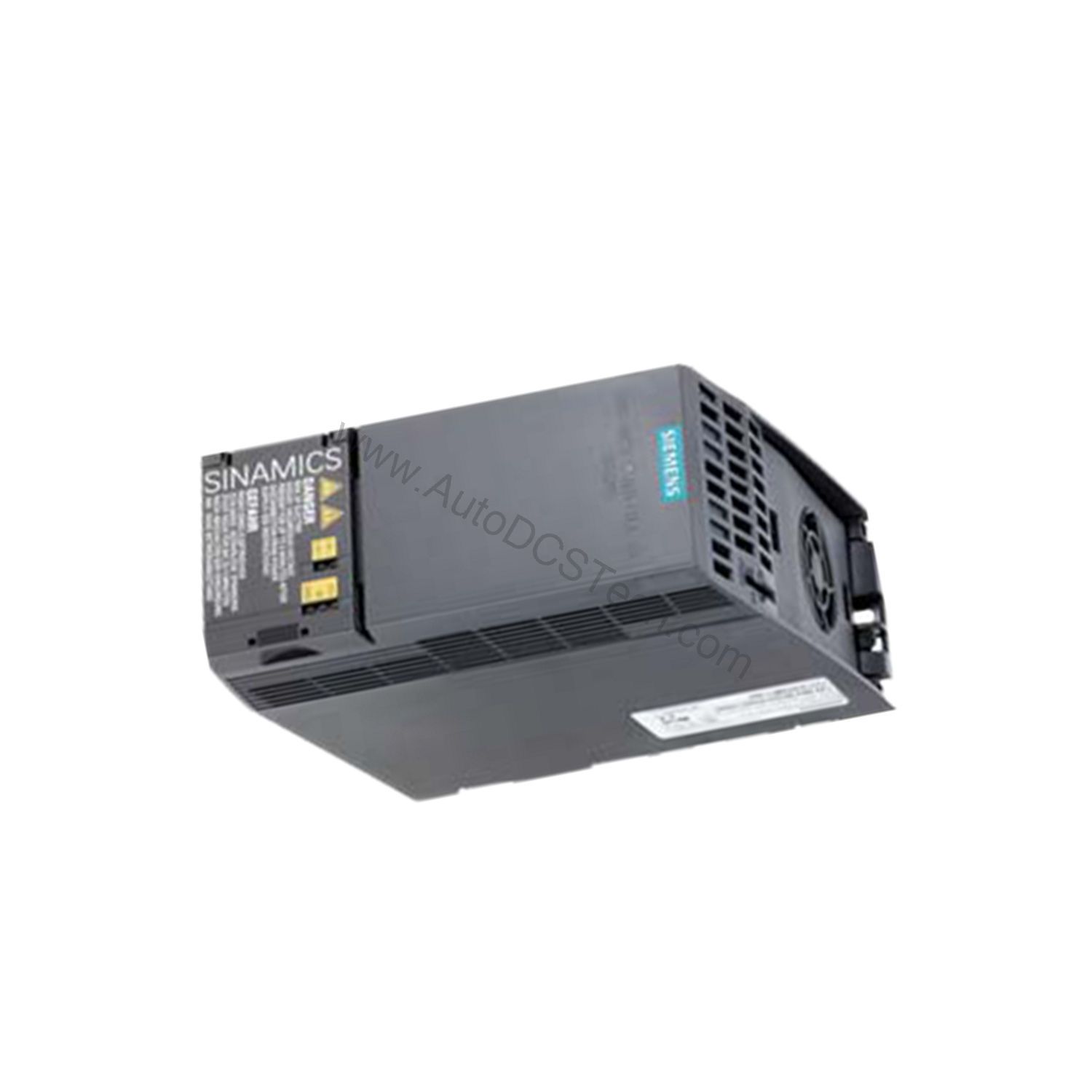

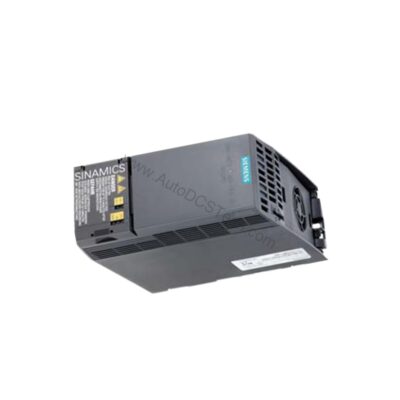

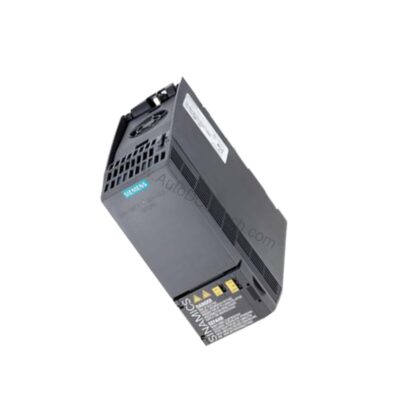

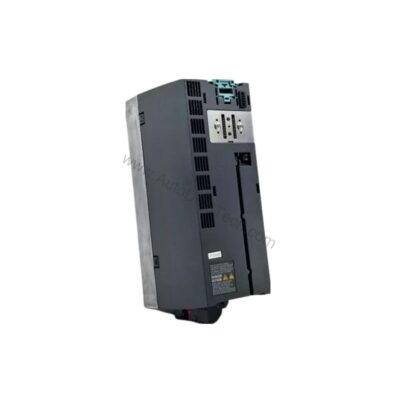

Key Features and Technical Specifications
The 6SL3210-5BE22-2CV1 is built for robust operation across a wide range of conditions. Below are the core parameters that define its capability:
- Input voltage: 380–480 V AC, 3-phase, -15% / +10%
- Line frequency: 47–63 Hz
- Rated power (LO/HO): 2.20 kW (3.00 hp)
- Rated current (LO/HO): 5.60 A
- Output frequency: 0–550 Hz
- Overload capability: 110% for 60 s (LO), 150% for 60 s (HO)
- Integrated filter: Class A (C3)
- Protection: IP20 / UL open type
- Dimensions (WxHxD): 90 x 166 x 145.5 mm
- Weight: 1.10 kg
One distinctive feature is the high overload capability of 150% for 60 seconds. This allows the drive to handle short bursts of extra torque, which is critical for applications like conveyors or mixers that may experience temporary load spikes. The integrated braking unit further enhances control during deceleration, making it a versatile choice for dynamic processes.
Real-World Applications
In a typical scenario, a bottling plant uses the 6SL3210-5BE22-2CV1 to control the speed of a filling pump. The drive's compact size allows it to be mounted side-by-side with other equipment, saving valuable floor space. Its wide input voltage range ensures stable operation even in facilities with fluctuating power supply. Furthermore, the built-in USS and Modbus RTU communication protocols enable seamless integration with PLCs and SCADA systems, allowing operators to monitor and adjust parameters remotely. Whether it's a simple fan or a complex packaging machine, this drive adapts to the demands of the application.
Installation and Setup
Mounting the 6SL3210-5BE22-2CV1 is straightforward. It supports wall mounting or side-by-side mounting, giving you flexibility in cabinet design. The drive's IP20 protection means it is suitable for indoor, controlled environments. When installing, ensure adequate clearance for airflow, as the drive uses an external fan for cooling. The maximum motor cable length is 10 m for shielded cables and 50 m for unshielded cables, which should be considered when planning the layout. For initial setup, the built-in Basic Operator Panel (BOP) allows you to configure parameters quickly without needing an external tool.
Maintenance and Reliability
Routine maintenance of the 6SL3210-5BE22-2CV1 is minimal but essential. Periodically inspect the cooling fan and ensure that air vents are free from dust and debris. The drive operates in ambient temperatures from -10°C to 60°C, but derating may be required at higher temperatures. By keeping the environment clean and within specified limits, you can extend the service life of the drive and reduce unplanned downtime. The high efficiency of 0.98 also contributes to lower energy costs over time, making it a cost-effective choice in the long run.
Solving the Challenge of Compact, Reliable Motor Control
This SINAMICS V20 drive handles 3-phase motors with a rated power of 2.2 kW, fitting neatly into a 90 mm wide footprint. Its integrated filter C3 reduces electromagnetic interference, helping you meet EMC requirements without adding external components. For engineers facing tight panel layouts and strict performance targets, this drive offers a dependable solution.
Compatibility and Integration
The 6SL3210-5BE22-2CV1 supports USS and Modbus RTU fieldbus protocols, making it easy to connect to a wide range of industrial networks. This allows for centralized control and diagnostics, reducing the need for on-site intervention. The drive also provides 4 digital inputs, 2 digital outputs (one relay changeover, one transistor), 2 analog inputs (which can be used as additional digital inputs), and 1 analog output. These I/O points give you flexibility to connect sensors, switches, and indicators directly to the drive, simplifying your control architecture.
Troubleshooting Common Issues
If the drive fails to start, first check the input power supply and ensure that the line voltage is within the specified range of 380–480 V AC. Verify that all wiring connections are secure and that the motor cable is not short-circuited. If the drive trips on overload, confirm that the motor current does not exceed the rated current of 5.60 A for extended periods. For communication issues, check the RS485 wiring and ensure that the correct protocol (USS or Modbus RTU) is selected. Always refer to the official Siemens documentation for detailed fault codes and troubleshooting steps.
Product Support and Availability
The 6SL3210-5BE22-2CV1 is available from AutoDCSTech, a trusted supplier of industrial automation parts. We maintain a ready inventory to support your projects. Please verify current lifecycle status and availability with our team before ordering, as product availability may change.
Availability & Condition at AutoDCSTech
| Part Number | 6SL3210-5BE22-2CV1 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
