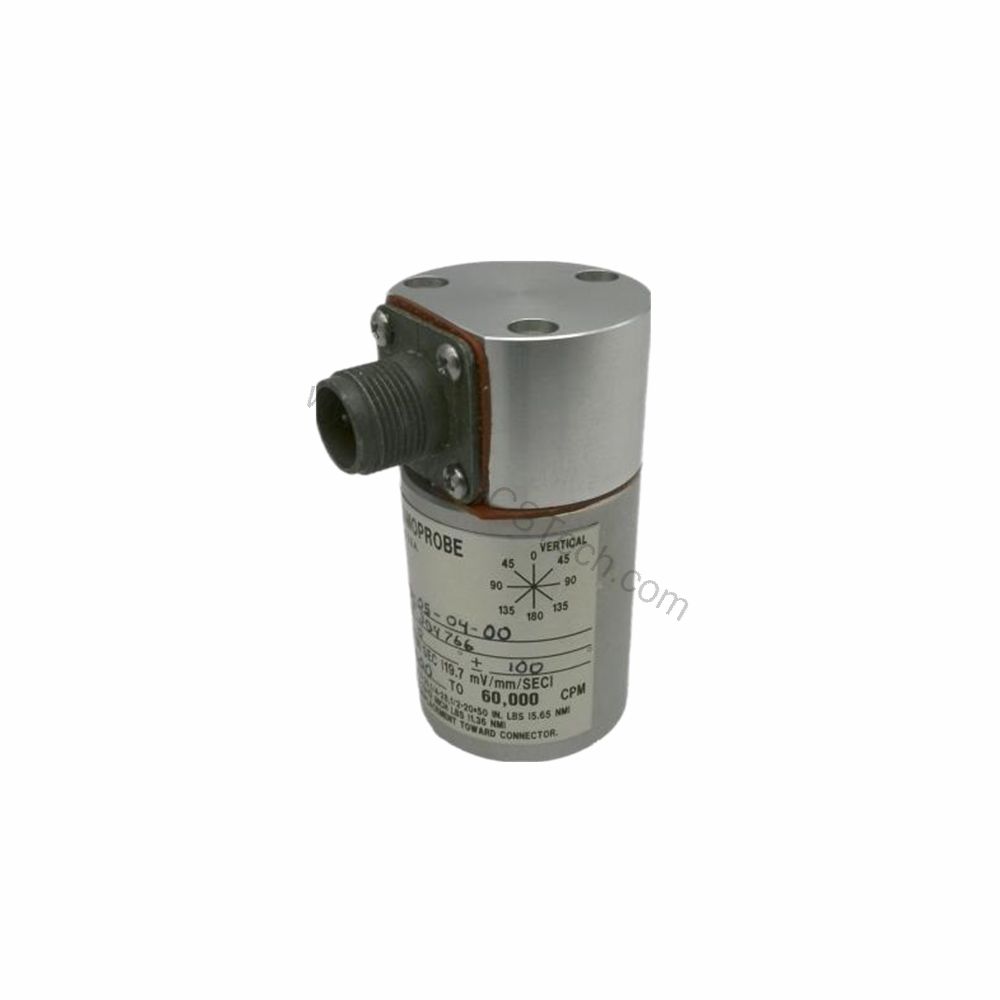

Introduction to the 74712-06-05-04-01
When machinery operates in extreme heat, standard transducers often fail. The 74712-06-05-04-01 from Bently Nevada is engineered for high-temperature environments, providing accurate velocity measurements even at +204°C. This two-wire transducer is part of the 74712 series, designed for continuous monitoring in demanding industrial applications.
Key Features and Technical Specifications
The 74712-06-05-04-01 offers a robust set of specifications that ensure reliable performance:
- Operating Temperature Range: -29°C to +204°C (-20°F to +400°F) for both operating and storage.
- Sensitivity: 20 mV/mm/s (500 mV/in/s) ±5% when properly terminated and oriented at the calibration angle.
- Calibration Load: 10 kΩ across terminals A and B.
- Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement.
- Velocity Range: 25 mm/s (1 in/s) at +22°C casing vibration at 100 Hz with a 10 kΩ load.
- Coil Resistance: 1.25 kΩ ±5%.
- Locked Coil Inductance: 125 mH typical.
- Amplitude Linearity: ±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100 Hz (6000 CPM).
- Shock Resistance: Withstands 50 g peak maximum acceleration along non-sensitive axis.
- Transverse Sensitivity: ±10% maximum of the sensitive axis sensitivity at 100 Hz and 1.0 in/s (2.54 cm/s).
- Polarity: Pin A goes positive with respect to Pin B when the transducer case velocity is towards the connector.
- Lead Wire Length: 305 meters (1,000 feet) maximum between the transducer and 3300 or Bently Nevada™ 3500 Monitor.
- Relative Humidity: Up to 95% noncondensing; 100% non-submerged when ordered with integral cable.
- Maximum Use Altitude: 2000 m (6,561 ft) above sea level.
- Mounting Torque: 5.6 N•m (50 in•lb) for 1/2-20, 1/4-20, 1/4-28, 5/8-18, or M10X1 mounting base options; 1.41 N•m (12.5 in•lb) for 8-32 threaded studs.
Applications and Use Cases
The 74712-06-05-04-01 is ideal for monitoring vibration in turbines, compressors, and other rotating machinery that operate at elevated temperatures. In petrochemical plants, for instance, this transducer can be mounted on pumps and motors where ambient temperatures exceed typical limits. Its high-temperature rating ensures continuous operation without performance degradation, reducing unplanned downtime.
Installation and Setup
Proper mounting is critical for accurate measurements. The transducer features a 1/2-in 20 UNF-3A stud mounting base option (option 05) and a side-mount connector (option 04). Ensure the mounting surface is clean and flat, and apply the specified mounting torque to avoid mechanical stress. The transducer should be oriented at the calibration angle (0 ±100) to maintain sensitivity specifications. For lead wire lengths up to 305 meters, consult the manual for frequency roll-off considerations.
Maintenance and Reliability
Routine inspection of the transducer and its cabling is recommended to ensure long-term reliability. Check for physical damage, loose connections, and signs of corrosion, especially in harsh environments. The transducer's sealed construction protects against humidity up to 95% noncondensing, and its shock resistance of 50 g peak ensures durability in high-vibration settings. Regular verification of output sensitivity against a known reference can help detect drift.
Compatibility and Integration
The 74712-06-05-04-01 is designed to work with Bently Nevada 3300 and 3500 monitoring systems. The two-wire configuration simplifies wiring, and the output is taken across pins A and B. The transducer's sensitivity temperature coefficient of 0.2%/°C should be accounted for in applications with wide temperature swings.
Hazardous Area Approvals
This model carries cNRTLus approval for Class I, Division 1, Groups A, B, C, and D T6; Class II, Division 1, Groups E, F, and G; and Class III. It also meets Ex ia IIC T6 Ga and Ex ec IIC T6 Gc requirements. For Ex/AEx ia, the entity parameters are Ui = 28 VDC, Ii = 16 mA, Pi = 1.0 W, Ci = 0, L/Ri = 110 µH/Ω, and Li = 131.25 mH. For Ex/AEx ec, V = 24 VDC and I = 24 mA.
Product Support and Availability
For pricing and availability, contact AutoDCSTech. We are a trusted supplier of industrial automation parts, and we can help you verify the current lifecycle status of the 74712-06-05-04-01. Please confirm specifications and compatibility with your system before ordering.
