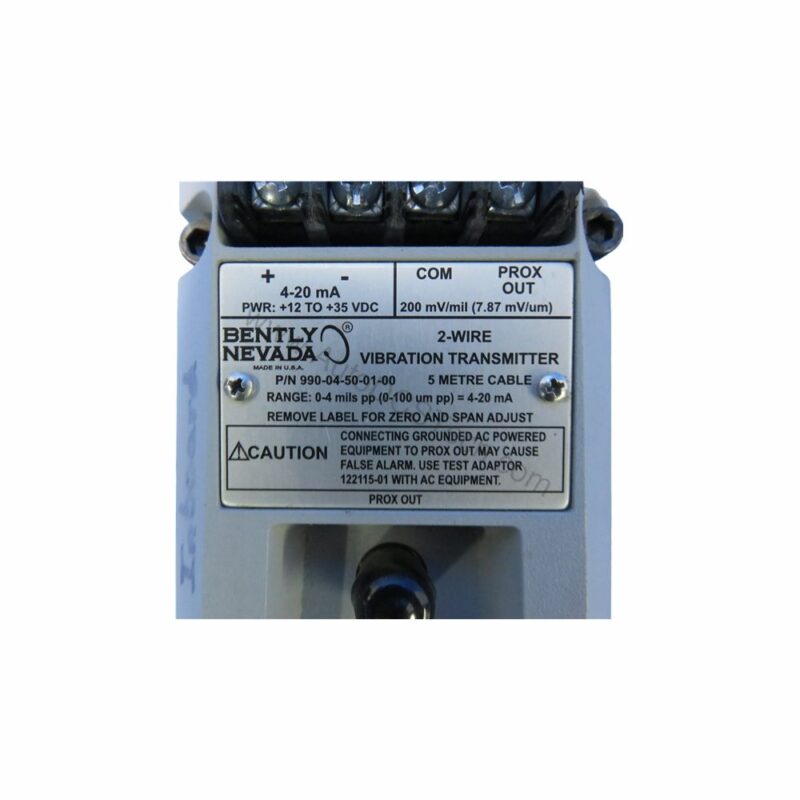

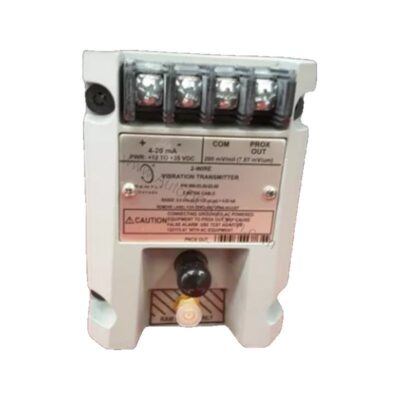

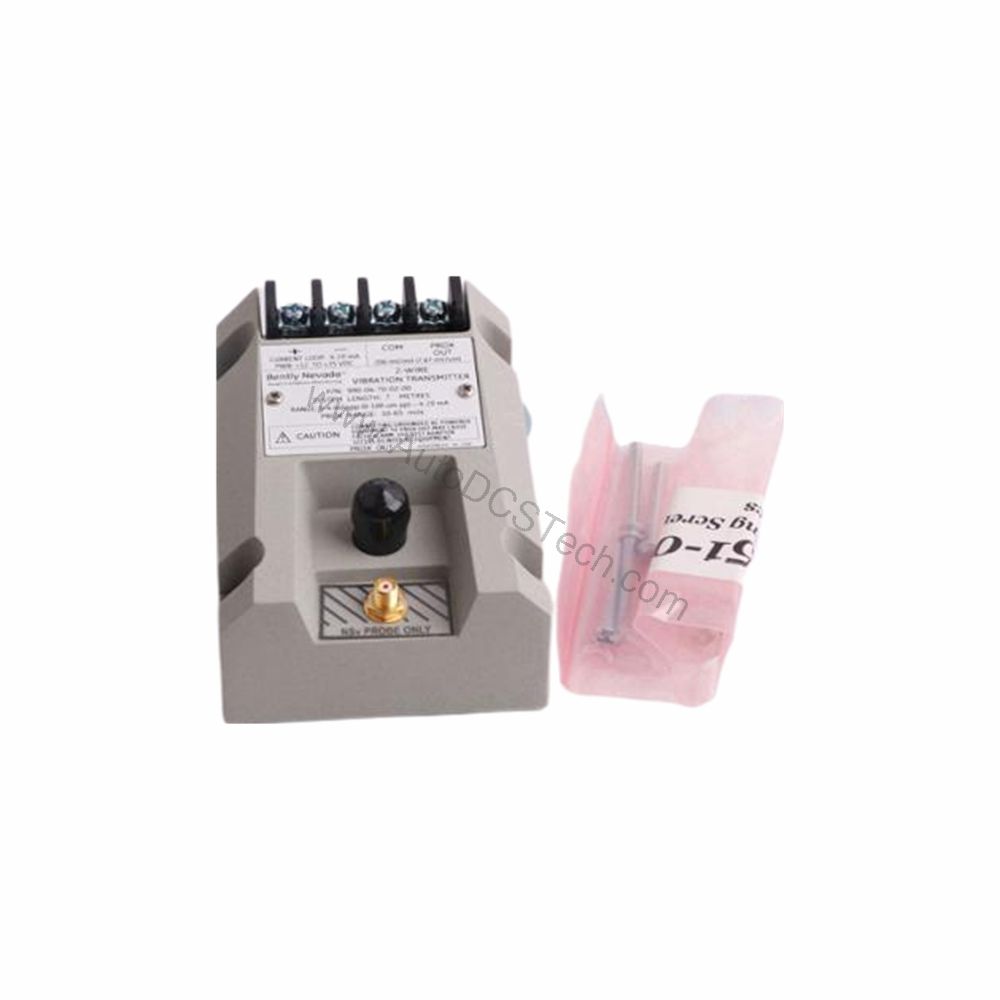

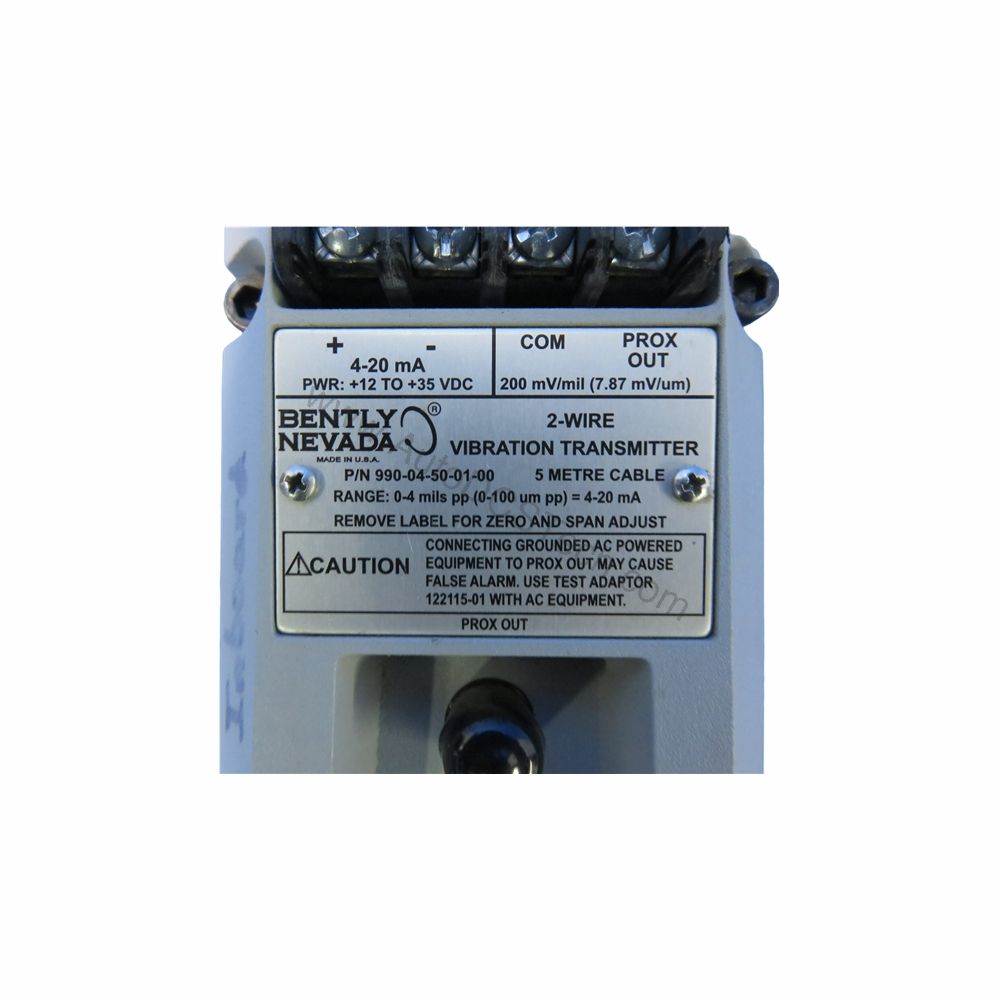

990-04-50-03-05 Vibration Transmitter Overview
When rotating machinery experiences unexpected vibration, unplanned downtime can cost thousands per hour. The 990-04-50-03-05 from Bently Nevada provides a reliable, cost-effective solution. This 990 Vibration Transmitter converts proximity probe signals into a standard 4-20 mA output, enabling continuous monitoring without complex setups.
Designed for industrial environments, the 990-04-50-03-05 accepts one non-contacting 3300 NSv Proximity Probe and extension cable. Its compact DIN-rail mounting simplifies installation. With a full-scale range of 0-4 mils pp (0-100 μm pp), it suits applications requiring precise vibration measurement.
Key Features and Technical Specifications
- Full-scale option: 0-4 mils pp (0-100 μm pp).
- System length: 5.0 metres (16.4 feet).
- Mounting: DIN clips and screws.
- Input: accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
- Power: +12 to +35 Vdc input at transmitter terminal.
- Maximum loop resistance: 1,000 Ω including cable at 35 Vdc.
- Current limiting: 23 mA typical.
- 4-20 mA signal output in 2-wire configuration.
- Loop accuracy: within ±1.5% over full-scale range.
- Probe gap: 0.5 to 1.75 mm (20 to 55 mils).
- Frequency response: 5 Hz to 6,000 Hz +0, 3 dB.
- Minimum target size: 9.5 mm (0.375 in) diameter.
These specifications directly impact cost. For instance, the ±1.5% accuracy reduces false alarms, saving maintenance expenses. The 23 mA current limiting protects the loop, preventing damage to connected equipment.
Cost-Benefit Analysis of the 990-04-50-03-05
Investing in the 990-04-50-03-05 yields long-term savings. Its robust design minimizes downtime, while the 4-20 mA output integrates easily with existing PLCs and DCS systems, avoiding costly retrofits. The non-interacting zero and span adjustments reduce calibration time, lowering labor costs.
Furthermore, the NOT OK/signal defeat feature forces the output below 3.6 mA within 100 µs after a fault, enabling rapid shutdown and preventing catastrophic failures. This proactive protection reduces repair and replacement expenses.
Installation and Setup
Mount the 990-04-50-03-05 using the provided DIN clips and screws. Ensure the probe is gapped correctly between 0.5 and 1.75 mm (20 and 55 mils) from the target. Connect the 3300 NSv probe and extension cable to the transmitter input. Power the unit with +12 to +35 Vdc at the transmitter terminal. The maximum loop resistance is 1,000 Ω at 35 Vdc, so verify cable length and resistance during design.
For hazardous areas, the agency approval option includes CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval. This certification simplifies compliance, reducing project delays and associated costs.
Maintenance and Reliability
Regular inspection of the probe and cable is essential. Check the gap periodically to ensure it remains within the specified range. Verify the loop resistance stays below 1,000 Ω. The transmitter's current limiting protects against overcurrent, extending component life. Because the unit is designed for continuous operation, maintenance intervals can be extended, lowering total cost of ownership.
Compatibility and Integration
The 990-04-50-03-05 works with any system accepting 4-20 mA signals. Its 2-wire configuration simplifies wiring, reducing installation costs. The output can feed directly into PLC analog input modules, DCS cards, or standalone monitors. The frequency response of 5 Hz to 6,000 Hz covers most rotating machinery vibration frequencies, making it versatile across pumps, motors, and fans.
Troubleshooting Common Issues
If the output is not at the expected level, first check the probe gap. An incorrect gap causes reduced sensitivity. Next, verify the loop resistance; exceeding 1,000 Ω can cause voltage drop. If the output goes below 3.6 mA, a NOT OK condition exists—check the probe and cable for damage. The signal restores within 2-3 seconds after the fault clears, so allow time for recovery.
Availability and Support
The 990-04-50-03-05 is available through AutoDCSTech. Contact our team for current stock and lead times. We provide technical support to assist with installation and integration, ensuring you get the most from your investment.
