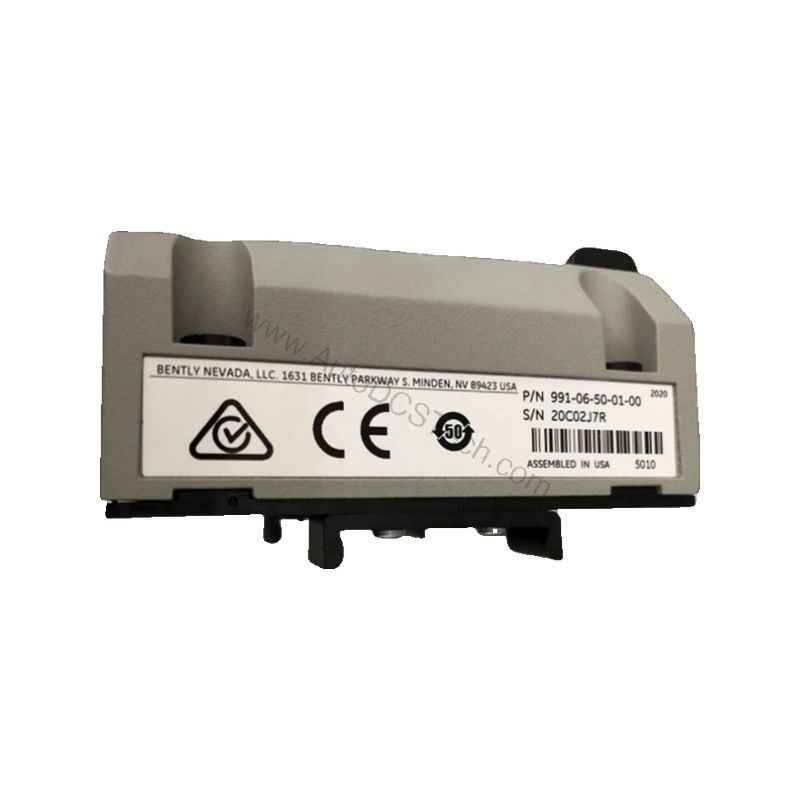

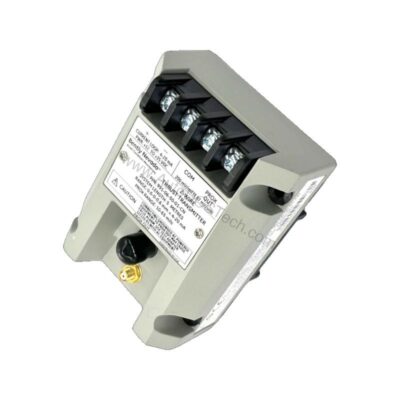

Introduction to the 991-06-50-01-CN
When axial thrust monitoring demands precision and reliability, the 991-06-50-01-CN from Bently Nevada delivers a robust solution. This probe vibration transmitter is engineered to convert non-contacting proximity probe signals into a standard 4-20 mA output, enabling seamless integration with PLCs, DCS, and SCADA systems. Designed for DIN rail mounting, it simplifies installation in existing panels while providing accurate, real-time data on thrust bearing condition.
Key Features and Technical Specifications
The 991-06-50-01-CN is built around a proven architecture that ensures dependable operation in harsh industrial environments. Below are the core specifications extracted from the official datasheet:
- Input: Accepts one non-contacting 3300 NSv proximity probe and extension cable.
- Power Requirement: +12 to +35 Vdc input at the transmitter terminal.
- Output Signal: 4-20 mA DC over the specified full-scale range in a 2-wire configuration.
- Linear Range: 0.25 to 1.65 mm for Prox Out, suitable for 0.6-0-0.6 mm or 25-0-25 mils current loop linear ranges.
- Accuracy: Within ±1.5% over specified full-scale range (typical), rated from TEST signal input to voltage across a 250 Ω loop resistance.
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Zero and Span: Non-interacting external adjustments.
- Not OK/Signal Defeat: Output drops to less than 3.6 mA within 100 µs after a Not OK condition; restored within 0.1 seconds after removal.
These parameters ensure that the transmitter provides a stable, accurate representation of thrust position, critical for protecting rotating machinery from axial displacement damage.
Applications and Use Cases
The 991-06-50-01-CN is primarily used in turbomachinery, compressors, and large pumps where axial thrust monitoring is essential. By converting probe signals to a 4-20 mA loop, it allows operators to trend thrust position over time, detect abnormal wear, and trigger alarms before catastrophic failure occurs. Its DIN rail mounting simplifies retrofits into existing control panels, making it a practical choice for both new installations and upgrades.

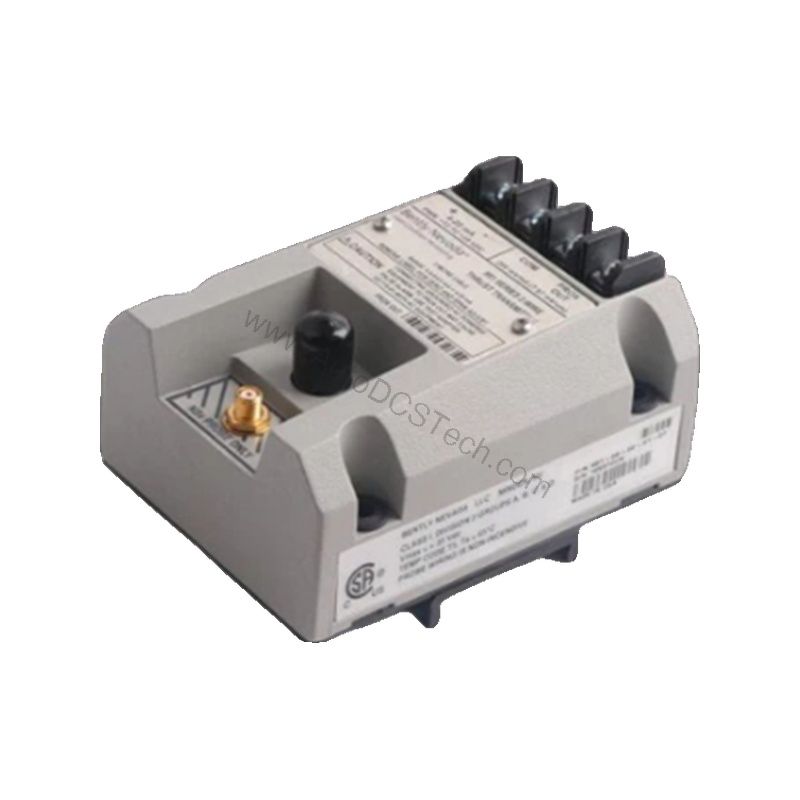

Installation and Setup
Mounting the 991-06-50-01-CN is straightforward with the included 35 mm DIN-rail clips. The transmitter requires a +12 to +35 Vdc power supply at its terminal, and the 4-20 mA output connects in a 2-wire configuration. Ensure that the total loop resistance, including cable, does not exceed 1,000 Ω at 35 Vdc to maintain specified accuracy. The non-interacting zero and span adjustments allow for quick calibration without cross-talk, reducing setup time.
Maintenance and Reliability
Routine inspection of the transmitter and its connections is recommended to ensure long-term reliability. The operating temperature range of -35°C to +85°C (-31°F to +185°F) and storage range of -51°C to +100°C (-60°F to +212°F) make it suitable for demanding environments. The Not OK/Signal Defeat feature provides fast fault indication, helping maintenance teams identify issues promptly. Regular verification of loop resistance and calibration per the manufacturer's manual will sustain accuracy.
Compatibility and Integration
The 991-06-50-01-CN integrates seamlessly with any system that accepts a standard 4-20 mA input, including PLCs, DCS, and dedicated vibration monitors. It is designed to work with Bently Nevada 3300 NSv proximity probes, ensuring signal compatibility. The DIN rail mounting option allows for compact installation alongside other control modules.
Troubleshooting Common Issues
If the output signal is not within the expected range, first verify the power supply voltage is between +12 and +35 Vdc. Check the loop resistance—exceeding 1,000 Ω can cause voltage drop and inaccurate readings. Ensure the probe and extension cable are properly connected and that the probe gap is within the linear range of 0.25 to 1.65 mm. If the output goes below 3.6 mA, a Not OK condition may be present; inspect the probe and wiring for faults.
Product Support and Availability
The 991-06-50-01-CN is available from AutoDCSTech, an industrial automation parts supplier. Contact AutoDCSTech for current lifecycle status and availability before ordering.
