Introduction to the 991-25-70-03-00

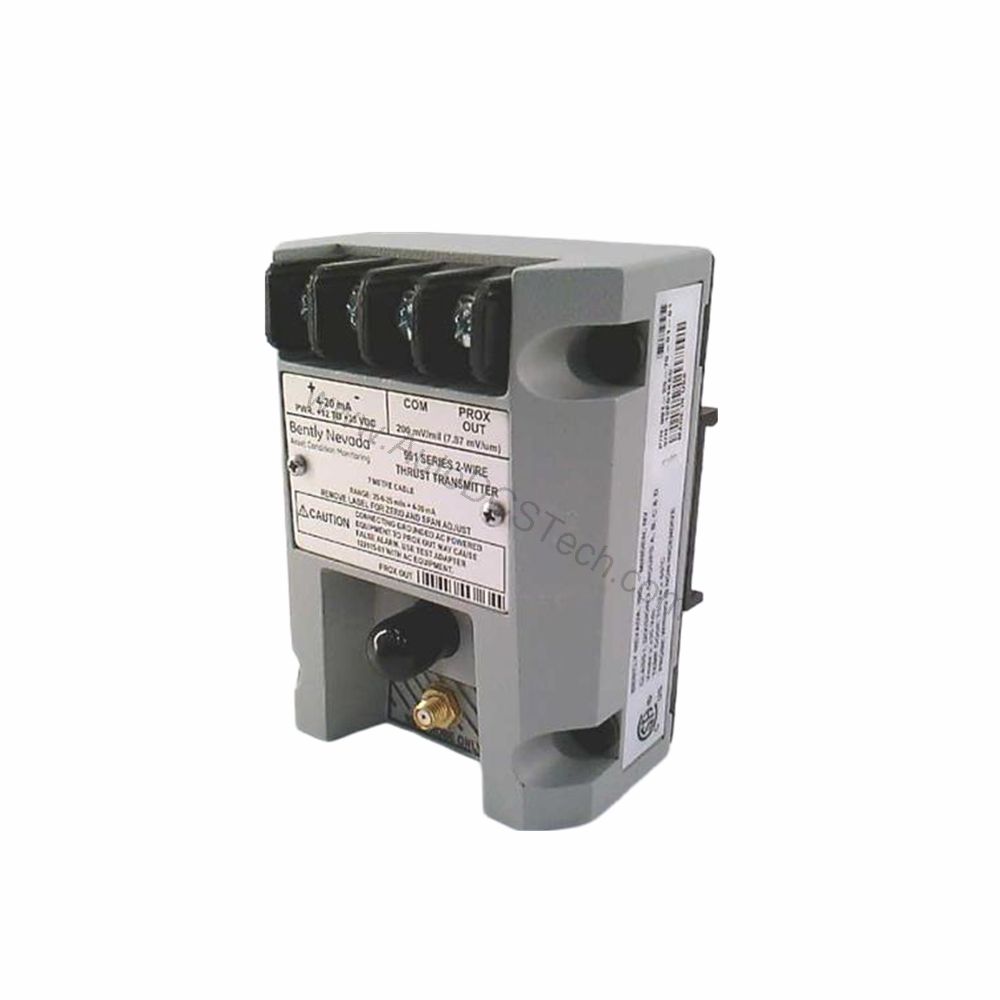

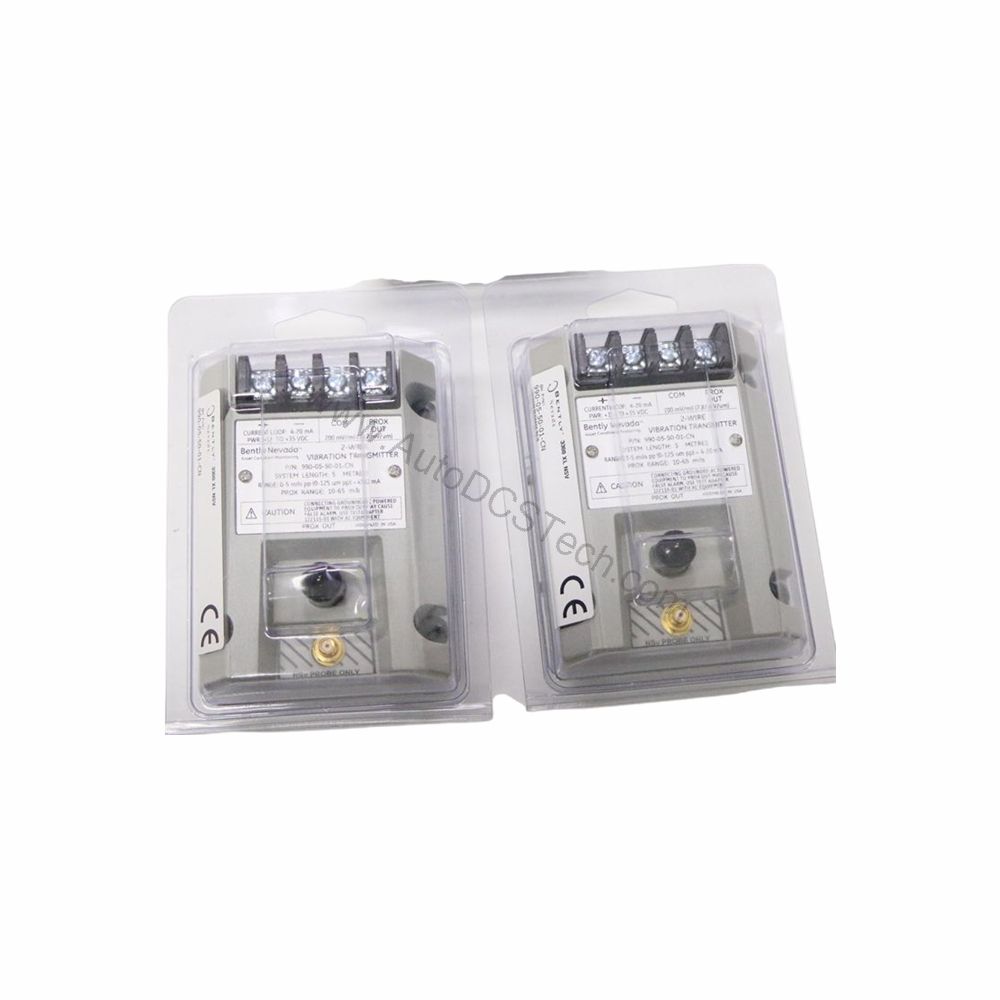

When axial thrust monitoring is critical, the 991-25-70-03-00 from Bently Nevada provides a reliable solution. This probe vibration transmitter converts proximity probe signals into a 4-20 mA output, enabling seamless integration with control systems. Designed for DIN rail mounting, it simplifies installation in industrial cabinets.
Key Features and Technical Specifications
The 991-25-70-03-00 is engineered for precision and durability. Below are its core parameters:
- Full-scale range: 25-0-25 mils (0.6-0-0.6 mm)
- Output signal: 4-20 mA (2-wire configuration)
- Power input: +12 to +35 Vdc at transmitter terminal
- Linear range: 0.25 to 1.65 mm for Prox Out
- Accuracy: ±1.5% of full scale (typical)
- Maximum loop resistance: 1,000 Ω at 35 Vdc
- Current limiting: 23 mA typical
- Operating temperature: -35°C to +85°C
- Storage temperature: -51°C to +100°C
- Weight: 0.43 kg (0.9 lbm)
These specs ensure accurate axial thrust measurement, reducing the risk of undetected mechanical issues that could lead to costly downtime.
Applications and Use Cases
The 991-25-70-03-00 is ideal for turbomachinery, compressors, and pumps where axial displacement must be monitored continuously. Its 4-20 mA output allows direct connection to PLCs, DCS, or SCADA systems. For example, in a steam turbine, this transmitter provides real-time thrust data, enabling operators to detect abnormal wear early and schedule maintenance before failure occurs. This proactive approach minimizes unplanned outages and extends equipment life.
Installation and Setup
Mounting the 991-25-70-03-00 is straightforward with DIN clips and screws. The system length option of 7.0 meters (23.0 feet) offers flexibility in probe placement. Ensure the transmitter is powered with +12 to +35 Vdc and that the loop resistance does not exceed 1,000 Ω. Proper wiring of the 2-wire configuration is essential for accurate signal transmission. Always follow the manufacturer's installation manual for specific wiring diagrams.
Maintenance and Reliability
Routine inspection of the transmitter and probe is recommended to maintain performance. Check for physical damage, loose connections, and ensure the probe gap is within the linear range. The transmitter's wide operating temperature range (-35°C to +85°C) ensures reliable operation in harsh environments. Regular verification of the 4-20 mA output against a known reference can detect drift early, preventing measurement errors that could lead to inefficient operation or equipment damage.
Compatibility and Integration
The 991-25-70-03-00 accepts one non-contacting 3300 NSv proximity probe and extension cable. Its 4-20 mA output is universally compatible with most control systems, making integration straightforward. The Not OK/Signal Defeat feature forces the output below 3.6 mA within 100 µs of a fault, ensuring fail-safe operation in safety-critical applications.
Troubleshooting and Common Issues
If the output signal is erratic, verify the power supply voltage and loop resistance. A reading below 3.6 mA indicates a Not OK condition, which may be caused by probe damage or wiring faults. Check the probe gap and ensure it is within the linear range. For persistent issues, consult the Bently Nevada documentation or contact AutoDCSTech for technical support.
Support and Availability
The 991-25-70-03-00 is available from AutoDCSTech. In stock and ready to ship. Contact AutoDCSTech for pricing and delivery options.
