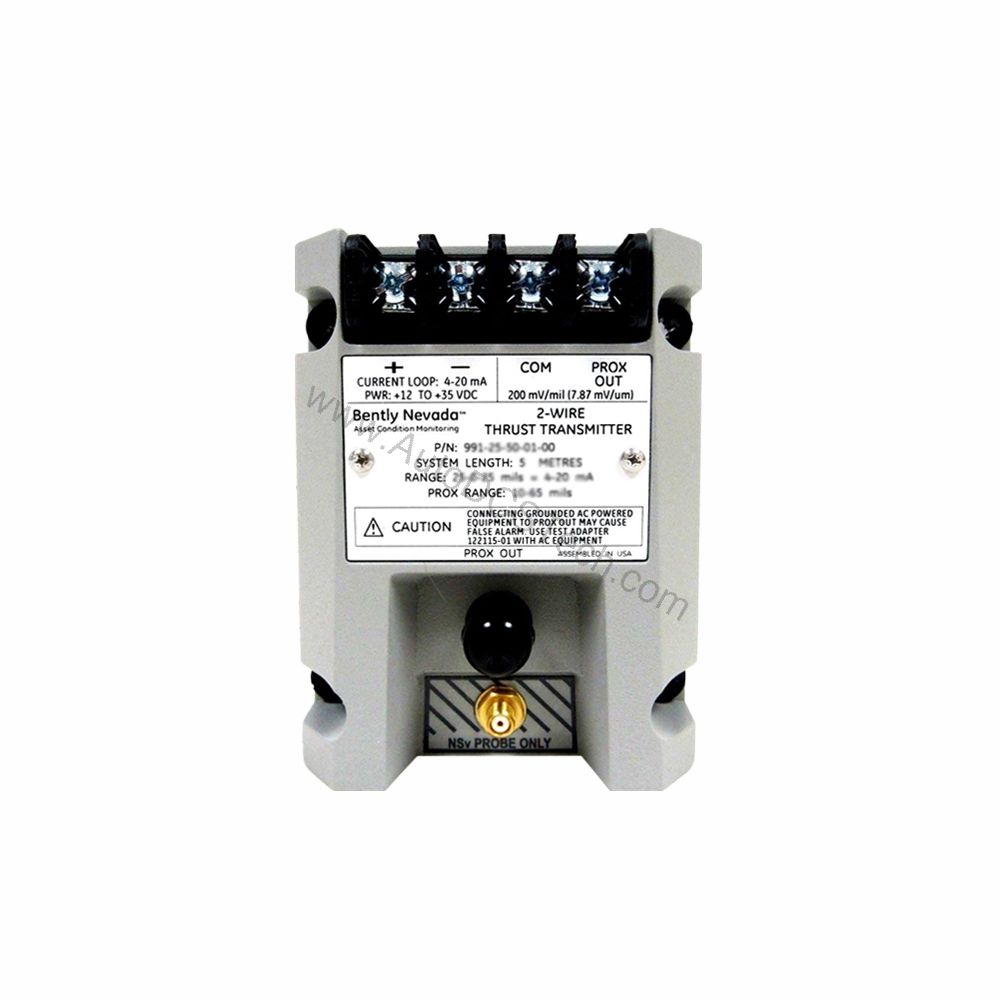

Why Choose the 991-25-50-03-05 for Thrust Monitoring?
When axial thrust exceeds safe limits, machinery can suffer catastrophic damage. The 991-25-50-03-05 from Bently Nevada provides continuous, reliable monitoring to help you avoid unplanned downtime. This probe vibration transmitter converts proximity probe signals into a standard 4-20 mA output, enabling seamless integration with your existing control systems.
Designed for axial use, the 991-25-50-03-05 is part of the trusted Bently Nevada 991 series. It is built for demanding industrial environments, with agency approvals including CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval. This makes it suitable for a wide range of applications, from rotating machinery in petrochemical plants to marine propulsion systems.
Key Features and Technical Specifications
The 991-25-50-03-05 offers a robust set of features tailored for precision thrust measurement. Here are the core specifications you can rely on:
- Full-scale option: 25-0-25 mils, providing a clear reading of axial position.
- System length: 5.0 meters (16.4 feet), offering flexibility in installation.
- Mounting: DIN rail with clips and screws, ensuring secure and simple installation.
- Output signal: 4-20 mA, a standard for industrial control loops.
- Power requirement: +12 to +35 Vdc input at the transmitter terminal.
- Linear range: 0.25 to 1.65 mm for Prox Out, suitable for 0.6-0-0.6 mm or 25-0-25 mils current loop linear ranges.
- Operating temperature: -35°C to +85°C (-31°F to +185°F).
- Storage temperature: -51°C to +100°C (-60°F to +212°F).
- Weight: 0.43 kg (0.9 lbm).
One distinctive feature is the Not OK/Signal Defeat function. If a fault occurs, the output drops to less than 3.6 mA within 100 microseconds, alerting your system immediately. This fast response is critical for preventing damage in high-speed rotating equipment.
Applications and Use Cases
The 991-25-50-03-05 is specifically designed for axial thrust monitoring in turbomachinery. Common applications include compressors, turbines, and pumps where axial position is a key indicator of mechanical health. In addition, its ATEX and CSA approvals make it a safe choice for hazardous areas, such as oil and gas facilities.
For example, in a refinery, the transmitter can be installed on a centrifugal compressor to monitor thrust bearing wear. By providing a continuous 4-20 mA signal, it enables operators to detect abnormal axial movement early and take corrective action before a costly failure occurs.
Installation and Setup
Installing the 991-25-50-03-05 is straightforward. The DIN rail mounting option allows for quick attachment to standard rails, while the included clips and screws ensure a firm hold. The system length of 5.0 meters provides ample reach for the proximity probe connection.
For optimal performance, ensure the transmitter is powered with a stable +12 to +35 Vdc supply. The 4-20 mA loop should be configured in a 2-wire setup, with the maximum loop resistance not exceeding 1,000 ohms at 35 Vdc. Always follow the manufacturer's manual for detailed wiring instructions.
Maintenance and Reliability
Regular inspection is essential to maintain the reliability of the 991-25-50-03-05. Periodically verify that the DIN rail mounting is secure and that all connections are tight. Check the output signal to ensure it is within the expected range, and confirm that the Not OK function operates correctly.
Given its wide operating temperature range, the transmitter is built to withstand harsh environments. However, routine checks in extreme conditions are recommended to ensure long-term accuracy. Following the manufacturer's maintenance guidelines will help extend the service life of the unit.
Compatibility and Integration
The 991-25-50-03-05 accepts a single non-contacting 3300 NSv proximity probe and extension cable. This makes it compatible with Bently Nevada's proven sensor technology. The 4-20 mA output can be easily integrated with PLCs, DCS, or SCADA systems, providing real-time data for monitoring and control.
Because the output is a standard analog signal, you can connect it to any input module that accepts 4-20 mA. This simplifies retrofits and upgrades, allowing you to modernize your monitoring system without replacing the entire infrastructure.
Troubleshooting and Common Issues
If the output signal is not within the expected range, first check the power supply voltage. The transmitter requires +12 to +35 Vdc; if the voltage is too low, the output may be inaccurate. Also, verify that the loop resistance does not exceed 1,000 ohms, as higher resistance can affect the signal.
Another common issue is a Not OK condition, which causes the output to drop below 3.6 mA. This can be triggered by a faulty probe or cable. Inspect the probe and extension cable for damage, and ensure they are properly connected. If the problem persists, consult the Bently Nevada manual or contact AutoDCSTech for support.
Product Support and Availability
The 991-25-50-03-05 is available through AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and ensure you receive the right part for your application.
