The Evolution of Industrial Control: ABB PM891K01
As industrial automation evolved from simple relay logic to complex distributed control systems, the need for powerful, reliable processors became critical. The ABB PM891K01 Processor Unit represents a leap forward in control technology, designed to handle the most demanding applications with precision and speed. This processor unit is built for the ABB 800xA system, version 6.0.2 and onwards, ensuring seamless integration into modern plants.
Product Overview

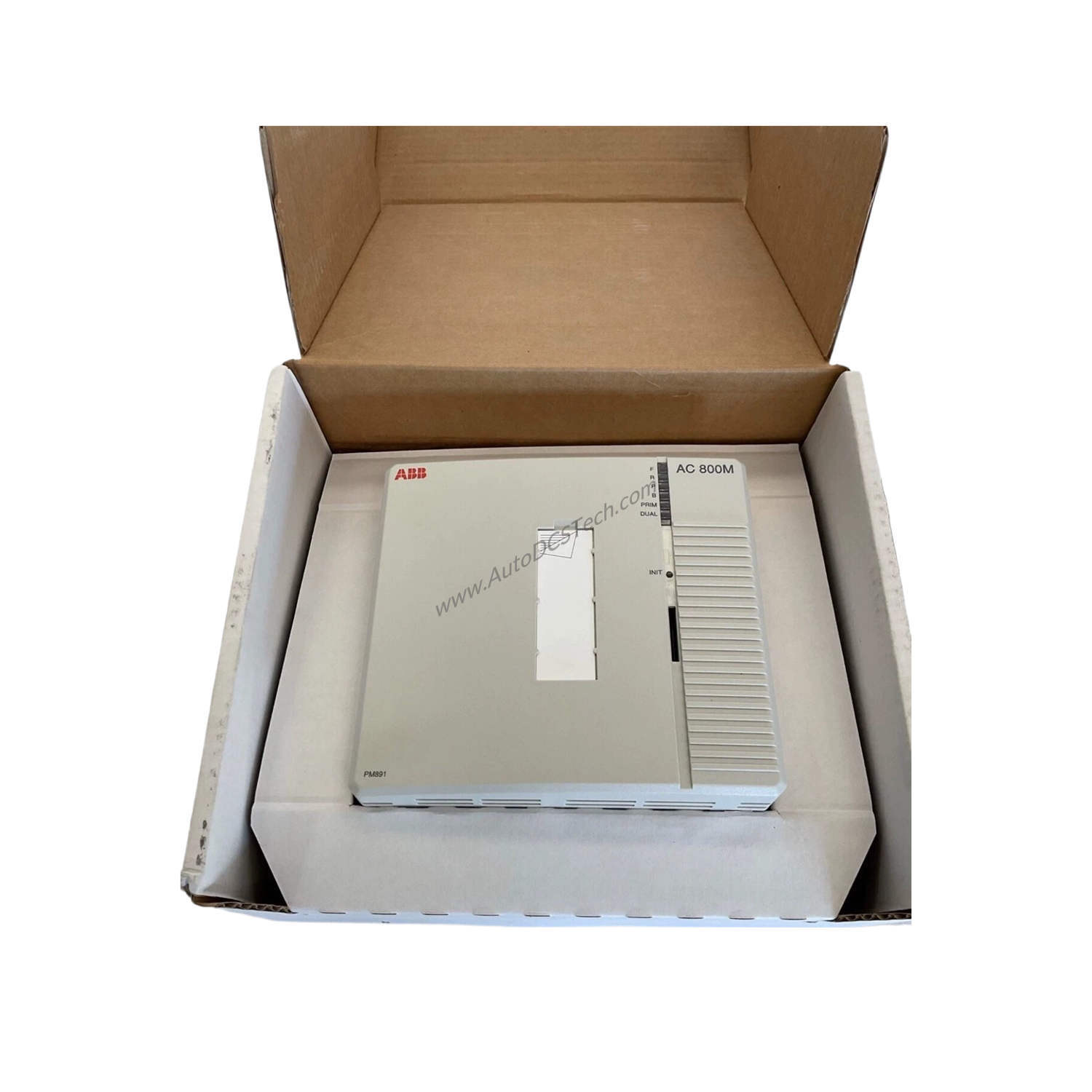

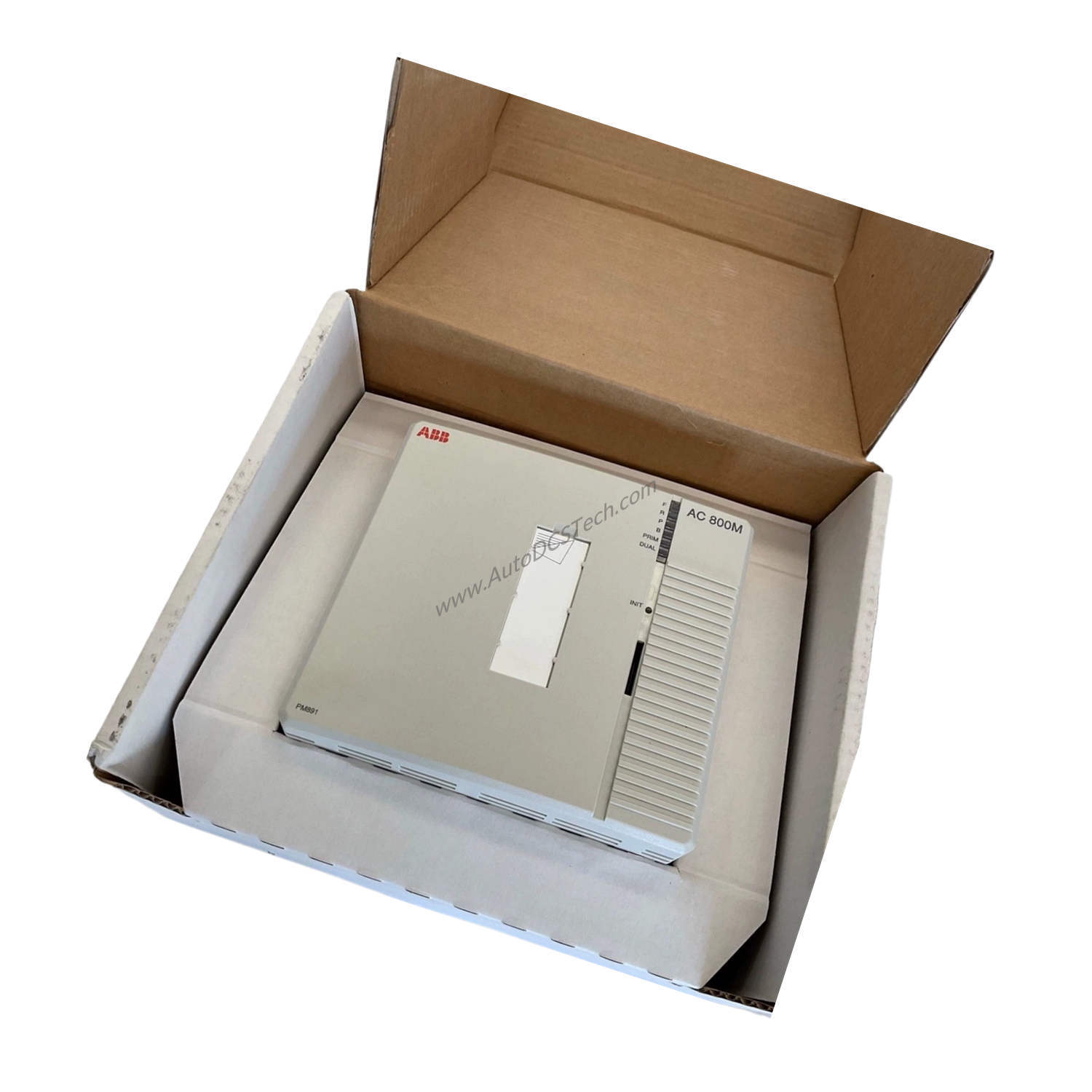

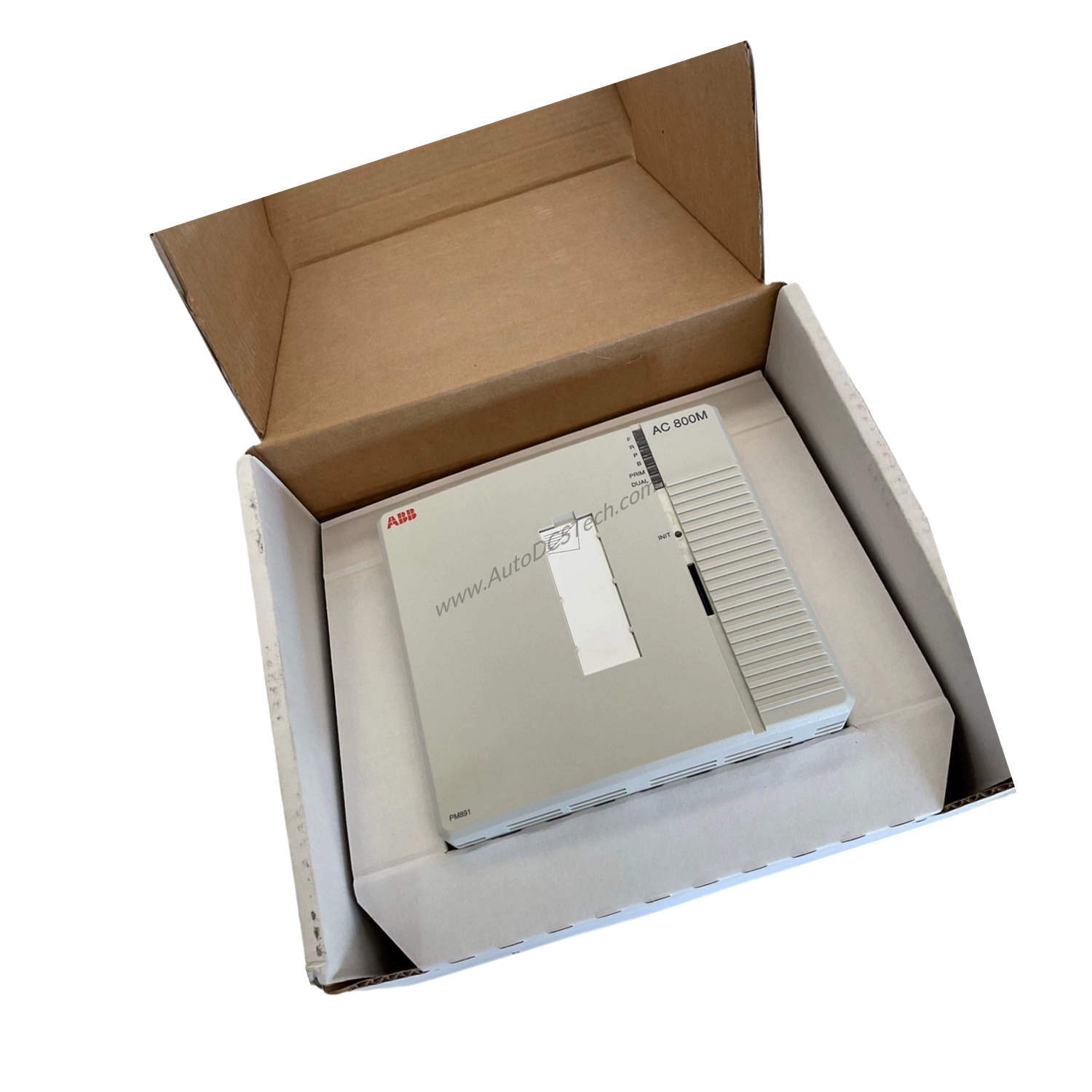

The ABB PM891K01 (part number 3BSE053241R1) is a high-performance processor unit engineered for advanced control tasks. It features a robust MPC8270 processor running at 450 MHz, paired with 256 MB of memory. This unit excels in executing 1000 boolean operations in just 0.043 ms, making it suitable for time-critical processes. The PM891K01 includes two Ethernet channels for network connectivity and operates on a 24 V DC power supply (19.2-30 V DC).
Key Specifications
- Processor Type: MPC8270
- Clock Frequency: 450 MHz
- Memory: 256 MB (208.985 MB RAM available for applications)
- Performance: 0.043 ms for 1000 boolean operations
- Power Supply: 24 V DC (19.2-30 V DC)
- Power Consumption: 660/750 mA typical/max at +24 V
- Power Dissipation: 15.8 W (18 W max)
- Ethernet Channels: 2 (10/100 Mbit/s)
- Dimensions (HxWxD): 18.6 cm x 17.4 cm x 9.4 cm
- Weight: 1600 g (including base)
The PM891K01 supports up to 32 applications per controller and 64 programs per application, with cycle times down to 1 ms. It offers a flash memory for storage and 16 MB flash PROM for firmware.
Industry Applications
In the chemical processing industry, the PM891K01 manages complex batch sequences with its fast cycle times and event queue capacity of up to 3000 events per OPC client. For power generation, its redundant power supply status input and clock synchronization (1 ms between AC800M controllers via CNCP protocol) ensure reliable turbine control. The processor's ability to handle up to 12 communication modules on the CEX bus makes it ideal for large-scale manufacturing lines requiring extensive I/O.
Installation & Setup Guidance
Mount the PM891K01 in a suitable enclosure with IP 20 protection. Ensure the power supply delivers 24 V DC within the 19.2-30 V DC range. Connect the two Ethernet channels to a 100 Mbit/s switched Ethernet backbone for optimal performance. Use the RS-232C interface (COM4) for service tool connection at 9600 baud. The package includes the TB850 CEX-bus terminator and TB853 RCU Control Link Terminator for proper bus termination.
Maintenance & Reliability
The PM891K01 operates in temperatures from 0 to +55 °C and stores from -40 to +70 °C. It withstands vibration up to 0.5 g and is G3 compliant for corrosion protection. Regular inspection of connections and environmental conditions ensures long service life. The unit's power dissipation of 15.8 W (18 W max) requires adequate ventilation. No built-in backup battery means periodic checks of power supply redundancy are recommended.
Compatibility & Integration
This processor unit integrates exclusively with ABB 800xA version 6.0.2 and onwards. It communicates via MMS (Manufacturing Message Service) and IAC (Inter Application Communication) protocols over the Control Network. The PM891K01 supports up to 12 communication modules on the CEX bus and can manage up to 84 I/O modules on the Modulebus. It is not redundant and not high integrity, but supports redundant configurations with a switch-over time of max 10 ms.
Selection Guide & Purchasing Advice
Before purchasing the PM891K01, verify your system runs 800xA 6.0.2 or later. The unit does not include a license, so ensure you have the required software licenses. SpareTechPLC stocks this processor unit and can advise on compatibility with your existing AC800M controllers. The PM891K01 is CE marked and carries marine certificates from ABS, BV, DNV-GL, and LR. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the clock frequency of the PM891K01?
A: The PM891K01 has a clock frequency of 450 MHz.
Q: How much memory does the PM891K01 have?
A: It has 256 MB of memory, with 208.985 MB RAM available for applications.
Q: What power supply does the PM891K01 require?
A: It requires 24 V DC (19.2-30 V DC) and consumes 660/750 mA typical/max at +24 V.
Q: Is the PM891K01 compatible with older 800xA versions?
A: No, it is only compatible with 800xA 6.0.2 and onwards.
Q: Does the PM891K01 support redundant configurations?
A: The unit itself is not redundant, but it can be used in redundant configurations with a switch-over time of max 10 ms.
