Optimizing Remote I/O Networks with the 140CRP93200C

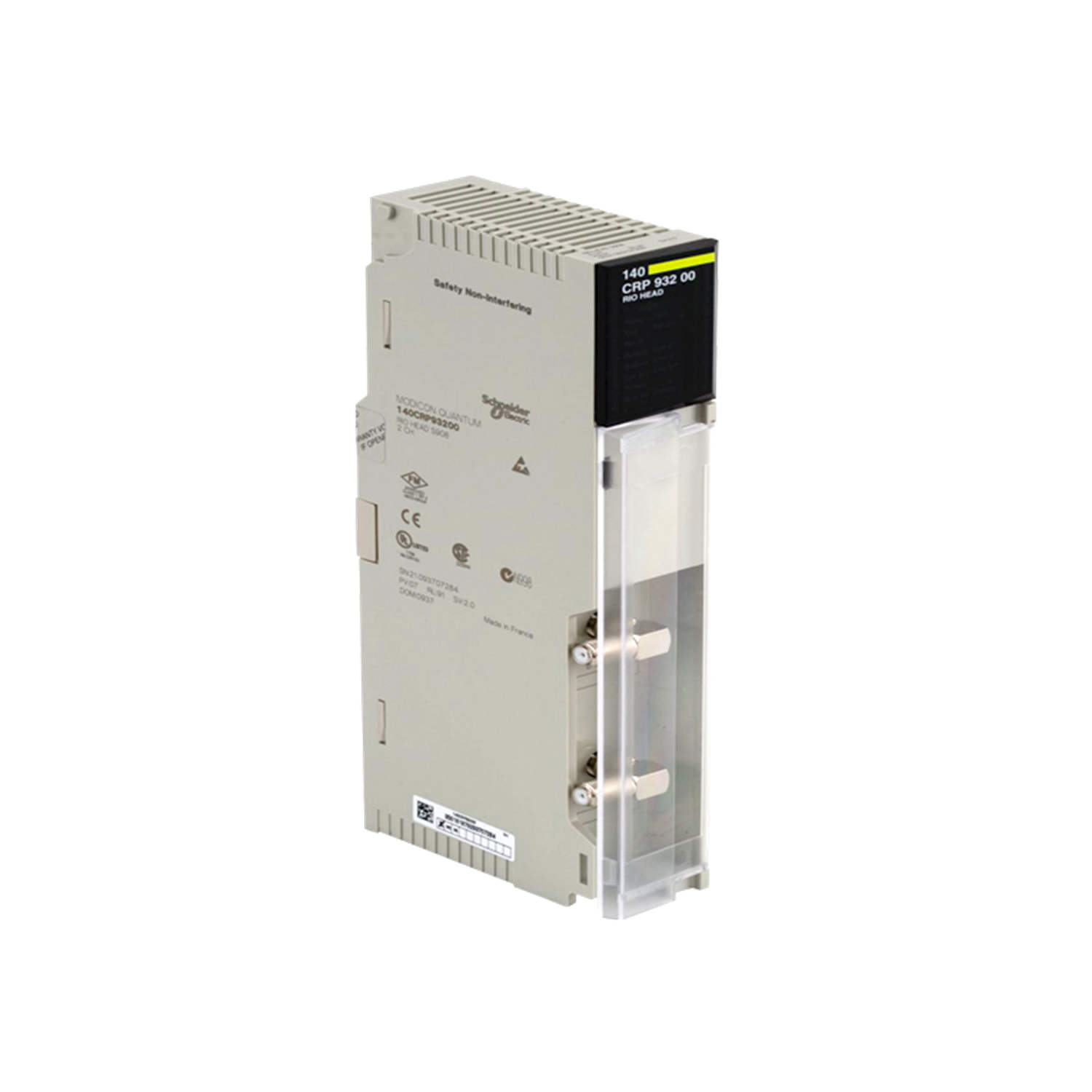

In large-scale industrial automation, managing distributed I/O across multiple drops can introduce latency and signal degradation. The Schneider Electric 140CRP93200C RIO head-end adaptor module, part of the Modicon Quantum platform, solves this by providing a high-speed, reliable interface for remote I/O networks. With support for up to 31 drops per network and 64 input/64 output words per drop, this module enables efficient data collection from numerous field devices without compromising performance.
Technical Specifications Breakdown
Key parameters for the 140CRP93200C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | RIO head-end adaptor module |
| Product Line | Modicon Quantum |
| Part Number | 140CRP93200C |
| Maximum Drops/Network | 31 |
| I/O Words/Drop | 64 I/64 O |
| Cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic Range | 35 dB |
| Isolation Voltage | 500 V DC |
| Power Dissipation | 3 W |
| Marking | CE |
| Format | Standard |
| Ambient Temperature | 0 to 60 °C |
| Standards | UL 508, CUL, CSA |
| Protective Treatment | Conformal coating |
Industry Applications
1. Large-Scale Material Handling Systems
In distribution centers, the 140CRP93200C connects remote I/O racks controlling conveyors, sorters, and scanners. Its 1544 Mbit/s transmission rate ensures real-time coordination across 31 drops, while the 35 dB dynamic range maintains signal integrity over long coaxial cable runs.
2. Process Control in Chemical Plants
With an isolation voltage of 500 V DC and conformal coating protection, this module withstands harsh environments. It reliably interfaces with Quantum 200/500/800 series controllers, managing 64 inputs and 64 outputs per drop for monitoring pumps, valves, and sensors.
3. Water & Wastewater Treatment Facilities
The module's 0 to 60 °C operating range suits outdoor or unconditioned enclosures. Its 75 Ohm coaxial cabling reduces electromagnetic interference, critical for accurate level and flow measurements.

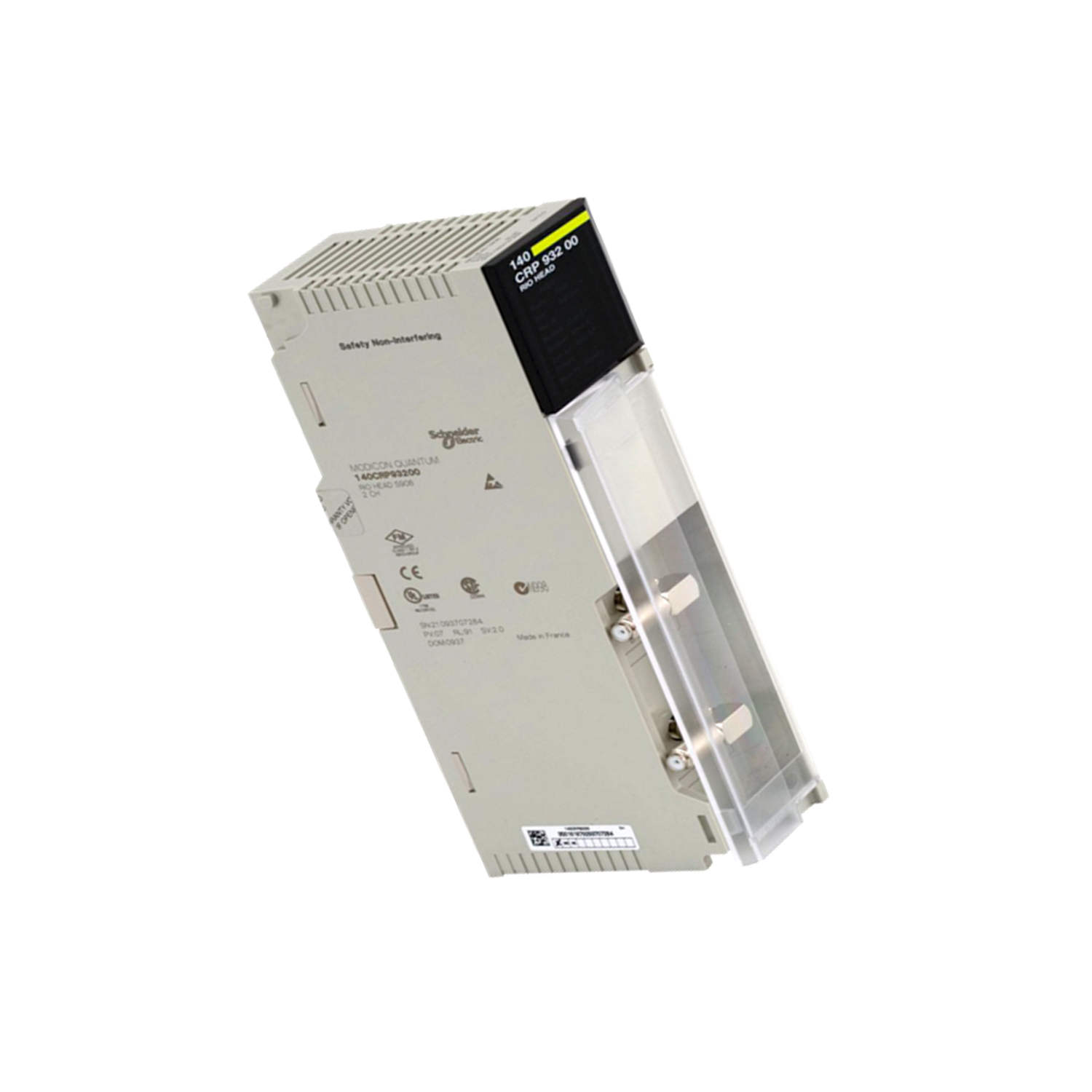

Installation & Setup Guidance
Mount the 140CRP93200C in a standard Quantum backplane slot. Connect the 75 Ohm coaxial cable using the two female F connectors (elbowed, with redundant cable option). Ensure the bus current requirement of 750 mA (for 2 channels) is met by the power supply. During startup, the module performs power-up, LAN controller, and memory checks to verify integrity.
Maintenance & Reliability
Inspect the coaxial connectors periodically for corrosion or looseness. The conformal coating (Humiseal 1A33) protects against moisture and dust, but avoid exposing the module to condensation (95% relative humidity without condensation is allowed). Store spare modules between -40 and 85 °C.
Compatibility & Integration
The 140CRP93200C integrates with Symax (any mix) and Quantum 200/500/800 series controllers. It supports CE marking and complies with UL 508, CUL, and CSA C22.2 No 142. For hazardous locations, it holds FM Class 1 Division 2 certification.
Selection Guide & Purchasing Advice
When building a remote I/O network, confirm that your controller supports the 31-drop topology. The 140CRP93200C is available at SpareTechPLC, your trusted source for industrial automation parts. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
- No communication: Check coaxial cable continuity and connector tightness. Verify that the bus current supply meets 750 mA.
- Intermittent errors: Ensure the dynamic range of 35 dB is not exceeded by long cable runs or poor terminations.
- Overheating: The module dissipates only 3 W, but ensure ambient temperature stays within 0 to 60 °C.
