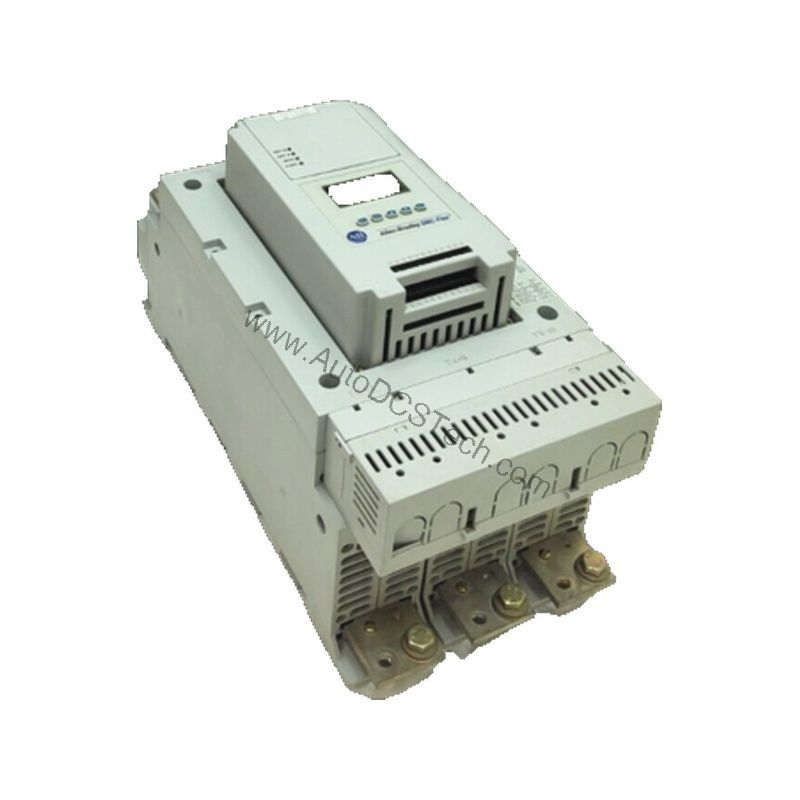

Allen-Bradley 150-F135FBD SMC-Flex Solid State Controller 135A IP65

Technical Specifications Breakdown

Key parameters for the 150-F135FBD are listed below for quick reference:

Industry Applications

Water and Wastewater Pump Control

Pumping stations often experience high ambient moisture and occasional flooding. The IP65 enclosure of this solid state controller protects internal electronics, while the 135 A rating supports large pump motors up to 100 Hp at 460V AC. Soft starting reduces water hammer and mechanical stress on pipes.

Food and Beverage Processing

Washdown environments demand equipment that resists corrosion and water jets. The 150-F135FBD meets Type 4/12 requirements, allowing installation near mixing tanks or conveyor lines without additional protective cabinets. The 400-460V AC input matches common global industrial voltages.

HVAC and Refrigeration Systems

Large chillers and air handlers benefit from controlled acceleration to prevent belt slippage and compressor damage. The SMC-Flex series provides smooth starts, and the 50/60 Hz compatibility ensures global deployment flexibility.

Installation and Setup Guidance

Mount the controller on a flat, vertical surface to maintain proper drainage through the enclosure. Use appropriate conduit fittings rated for IP65 to preserve the seal integrity. Verify that the control voltage (100-240V AC) matches the available auxiliary supply. Connect three-phase power to the input terminals as per the wiring diagram on the unit label. Ensure the motor full-load current does not exceed 135 A. For optimal performance, configure the starting parameters (soft start time, initial torque) using the integrated keypad or remote communication interface.

Maintenance and Reliability

Periodically inspect the enclosure gasket for cracks or compression set. Clean the exterior with mild detergent and water; avoid high-pressure sprays directly at the label or vent areas. Check torque on all power connections annually, as thermal cycling can loosen terminals. The solid state design has no moving contacts, reducing wear-related failures. Monitor the ambient temperature to stay within the controller's operating range.

Robust Motor Control for Demanding Environments

In many industrial facilities, standard motor starters fail prematurely due to dust, moisture, or washdown requirements. The Allen-Bradley 150-F135FBD SMC-Flex Solid State Controller addresses this challenge directly. With its IP65 (Type 4/12) enclosure, this component withstands water ingress and particulate contamination, making it suitable for food processing, automotive assembly, and wastewater treatment plants where reliability is non-negotiable.

Compatibility and Integration

The 150-F135FBD integrates with standard three-phase induction motors rated for 460V AC. It accepts 100-240V AC control signals from PLCs or pushbutton stations. The SMC-Flex line supports optional communication modules for network connectivity, though this unit ships with basic I/O. Confirm compatibility with existing motor starters or bypass contactors if used in retrofit applications.

Selection Guide and Purchasing Advice

When selecting a solid state controller, match the continuous current rating to the motor nameplate. The 150-F135FBD covers motors up to 135 A full-load current. For higher horsepower, consider the next size in the SMC-Flex family. AutoDCSTech stocks this model and can advise on lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team provides technical support to ensure the correct fit for your application.
