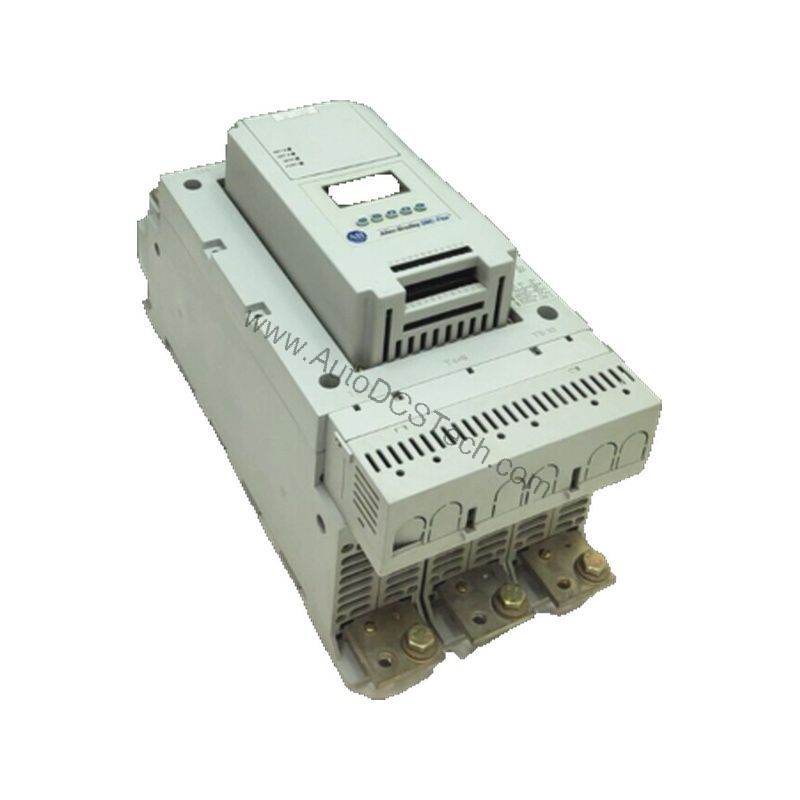

Allen-Bradley 150-F135FCD SMC-Flex Solid State Controller, 135A, IP65

Technical Specifications Breakdown

Key parameters for the 150-F135FCD are listed below for quick reference:

Industry Applications: Built for Tough Environments

In wastewater treatment plants, the 135 A rating supports large pump motors, while the 100 Hp @ 460V AC capability handles conveyor systems in aggregate and mining operations. The wide input voltage range of 500-575V AC accommodates global installations without additional transformers.

Installation & Setup Guidance

When installing this controller, ensure the mounting surface supports its 225 lb weight. Use appropriately rated cables for the 135 A continuous current. The control voltage input accepts 100-240V AC, simplifying integration with existing control panels. Always follow local electrical codes and verify that the supply voltage matches the 500-575V AC, 3-phase requirement. For optimal performance, maintain proper ventilation around the IP65 enclosure to prevent heat buildup during high-load cycles.

Maintenance & Reliability

The sealed IP65 enclosure protects internal components from moisture and dust, reducing maintenance frequency. Inspect the enclosure gaskets annually for signs of wear. Check all power connections for tightness after initial installation and during routine shutdowns. The solid-state design eliminates contact wear, but periodic thermal imaging can identify loose connections or overloaded phases before they cause failures.

The Evolution of Motor Control: Robustness Meets Precision

Industrial motor control has evolved from simple electromechanical starters to sophisticated solid-state systems that handle demanding loads while protecting equipment. The Allen-Bradley 150-F135FCD SMC-Flex Solid State Controller exemplifies this progression, offering a rugged IP65 (Type 4/12) enclosure that withstands washdowns and dusty environments. With a controller rating of 135 A and 100 Hp @ 460V AC, this module delivers reliable starting and stopping for medium-voltage motors in water treatment, mining, and manufacturing.

Compatibility & Integration

The 100-240V AC control voltage allows direct connection to PLC outputs or pushbutton stations. For communication, consult the SMC-Flex documentation for optional network modules. The controller supports both 50 and 60 Hz systems, making it suitable for international projects.

Selection Guide & Purchasing Advice

When selecting a solid-state controller, match the current rating (135 A) and horsepower (100 Hp @ 460V AC) to your motor nameplate. The IP65 enclosure is essential for wet or dusty environments. AutoDCSTech offers this 150-F135FCD with fast shipping and expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
