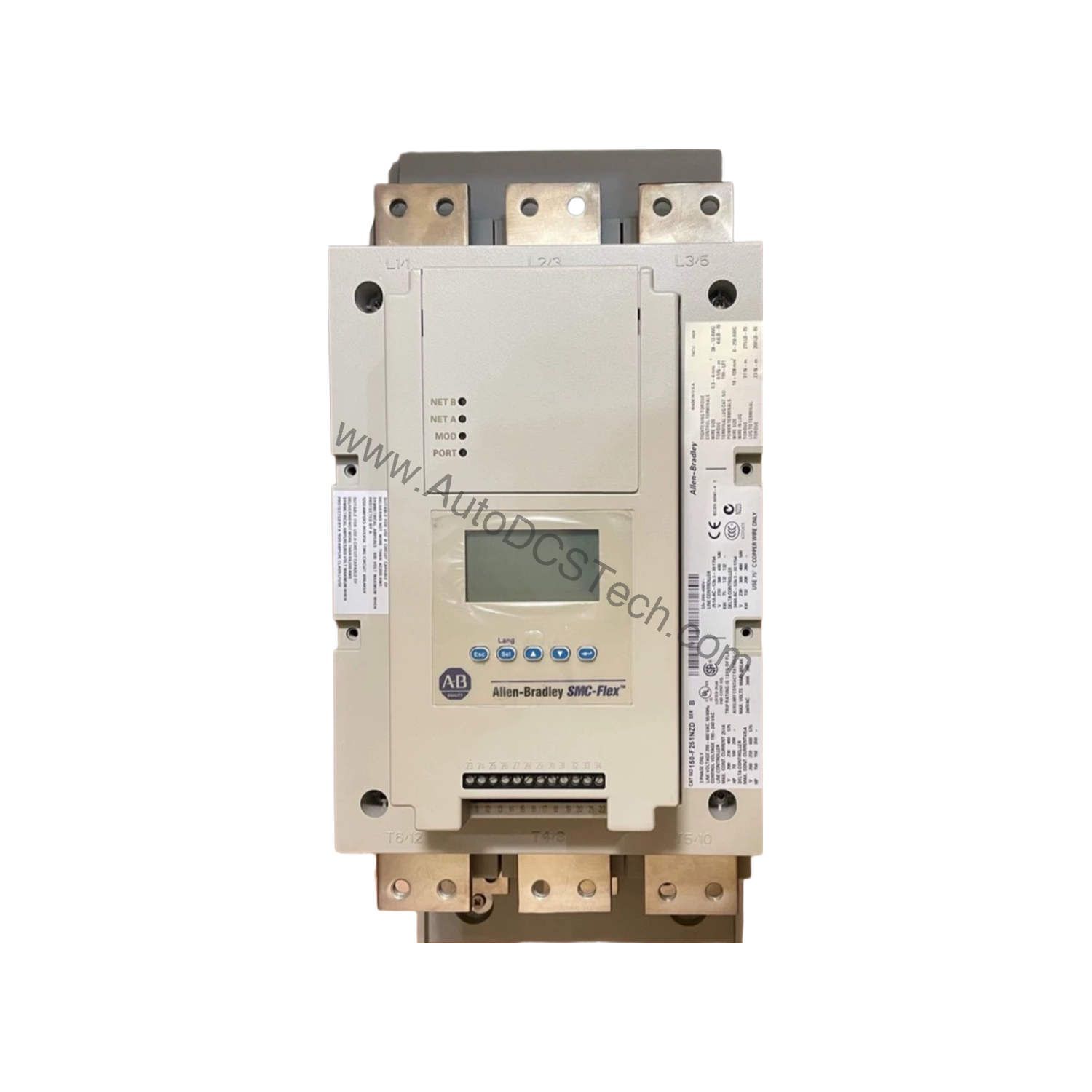

Allen-Bradley 150-F361NZD SMC-Flex Solid State Controller 361A 300HP

Optimize Motor Control and Reduce Operational Costs with the Allen-Bradley 150-F361NZD

Industrial facilities constantly face the challenge of balancing motor performance with energy efficiency. The Allen-Bradley 150-F361NZD SMC-Flex Solid State Controller directly addresses this by providing precise, solid-state control for induction motors, reducing inrush current and mechanical stress. This translates to lower energy bills and extended equipment life, offering a clear return on investment.

Technical Specifications Breakdown

Key parameters for the 150-F361NZD are listed below for quick reference:

Real-World Applications and Cost Benefits

By using solid-state switching, it eliminates the wear and tear of electromechanical contactors, reducing maintenance costs. The ability to program output voltage settings allows facilities to match motor starting characteristics precisely, minimizing energy waste during startup. This controller's 300 HP rating at 460V AC makes it suitable for large machinery, where even a 5% reduction in energy consumption can yield significant annual savings.

Installation and Setup Guidance

Installation of the open enclosure 150-F361NZD should be performed by qualified personnel following all local electrical codes. Ensure the input line voltage (230-690V AC, 3-phase) matches the facility supply. The control voltage (100-240V AC) must be supplied separately. Mount the unit on a clean, dry surface with adequate ventilation. Configure onboard controls per motor specifications; no external programming devices are required, streamlining setup and reducing labor costs.

Maintenance and Reliability

The solid-state design of the SMC-Flex controller inherently improves reliability by eliminating moving parts. Periodic inspection of connections and cooling fans (if present) is recommended. The open enclosure allows easy visual checks for dust or debris buildup. Keeping the unit clean and ensuring proper airflow will maximize lifespan and prevent costly downtime.

Compatibility and Integration

Its three-phase input and output design ensures compatibility with standard industrial induction motors. The adjustable input line frequency (50 or 60 Hz) allows use in global facilities without additional converters, reducing procurement complexity.

Selection Guide and Purchasing Advice

When selecting a solid state controller, verify that the current rating (361 A) and horsepower (300 HP at 460V AC) match your motor's full-load amps. The open enclosure is cost-effective for indoor installations in clean environments. For immediate availability and competitive pricing, contact AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
