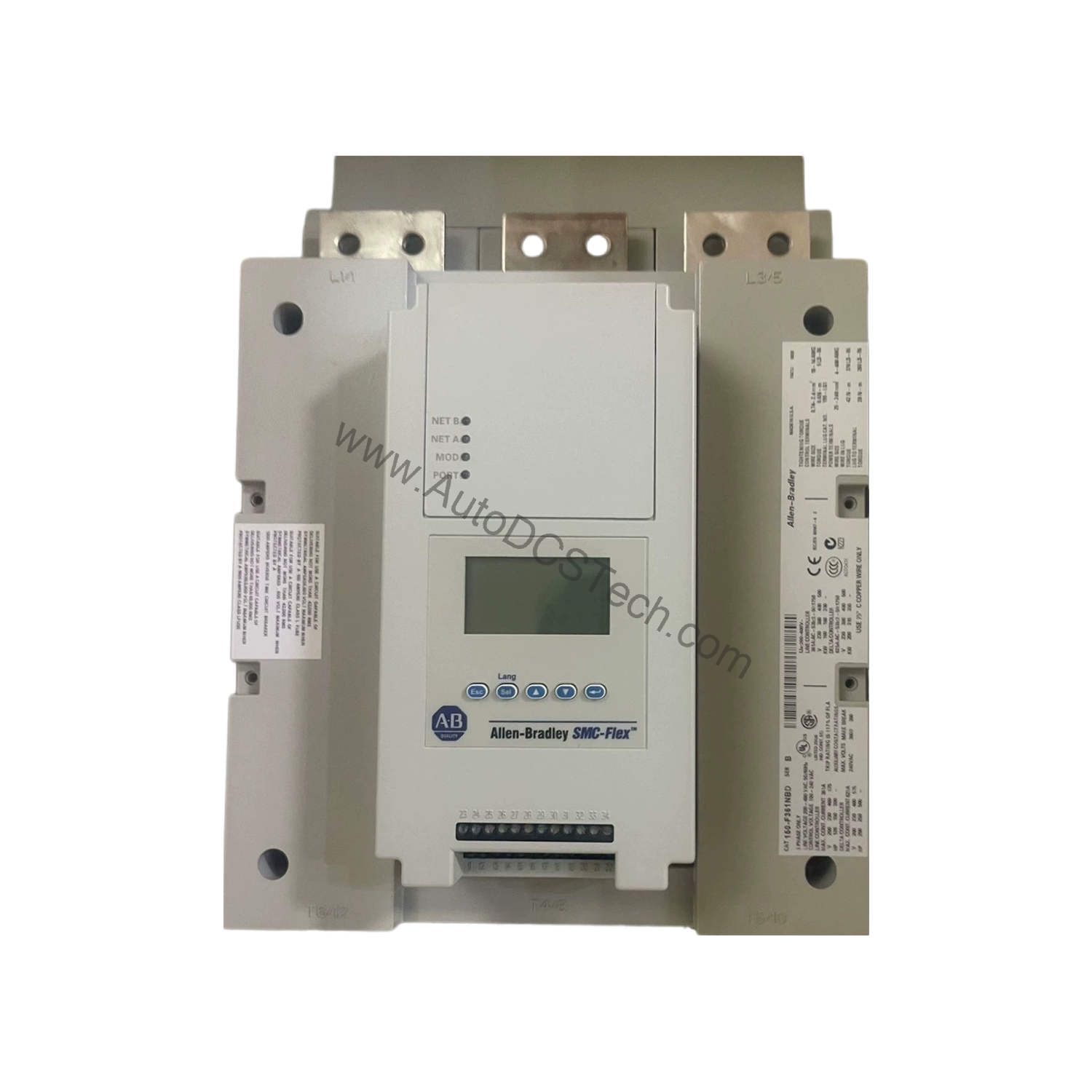

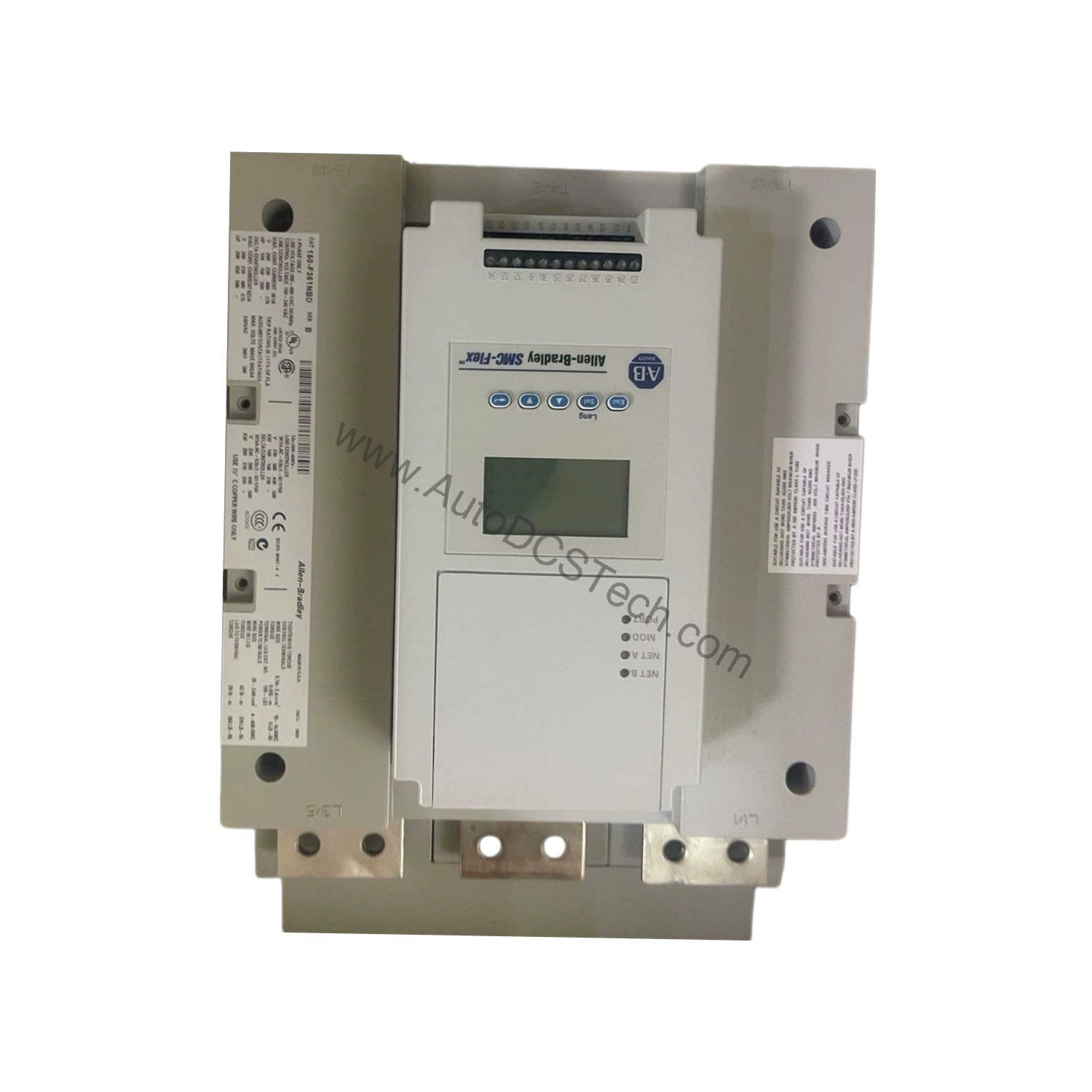

Allen-Bradley 150-F43NBR SMC-Flex Solid State Controller 43A

Technical Specifications Breakdown

Key parameters for the 150-F43NBR are listed below for quick reference:

Industry Applications for the Solid State Controller

This component is well-suited for pumps, conveyors, and fans where gradual acceleration extends mechanical life. In water treatment facilities, the soft start with selectable kickstart mode reduces pipeline hammer. For material handling, current limit starting prevents belt slippage. The Dual Ramp start feature accommodates varying load conditions, such as starting a loaded versus empty conveyor. The 30 Hp rating at 460V AC makes it a strong fit for medium-duty industrial machinery.

Installation & Setup Guidance

Proper mounting and wiring are critical for reliable operation. The open enclosure requires installation in a suitable electrical cabinet. Users must follow typical wiring patterns as specified in the manual. An isolator contactor circuit breaker type is recommended on the line side to protect against faults. Ensure the controller is not undersized for the motor load, as application errors can damage components and shorten product life. The built-in keypad and LCD display allow local programming, while the HIM LCD human interface module offers remote configuration.

Maintenance & Reliability

The module includes thermal memory that remains active even when control power is removed, providing consistent overload protection. Quality power and recommended temperature ranges should be maintained to prevent malfunction. Periodic inspection of connections and enclosure integrity is advised. Since this unit meets requirements for a motor overload protective device, it reduces the need for separate overload relays.

Solving Inrush Current Challenges with the Allen-Bradley 150-F43NBR

Industrial motor startups often cause voltage sags, mechanical stress, and nuisance tripping. The Allen-Bradley 150-F43NBR SMC-Flex solid state controller addresses these issues directly. This 43 A unit provides controlled acceleration for standard three-phase squirrel cage induction and 6-lead motors, reducing wear on driven equipment and electrical systems.

Selection Guide & Purchasing Advice

When selecting a solid state controller, match the controller rating to the motor full-load current. The 150-F43NBR handles 43 A continuous. For motors with higher starting torque demands, verify compatibility with the available starting modes. AutoDCSTech stocks this Allen-Bradley SMC-Flex controller and can advise on lifecycle status and availability before ordering. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
