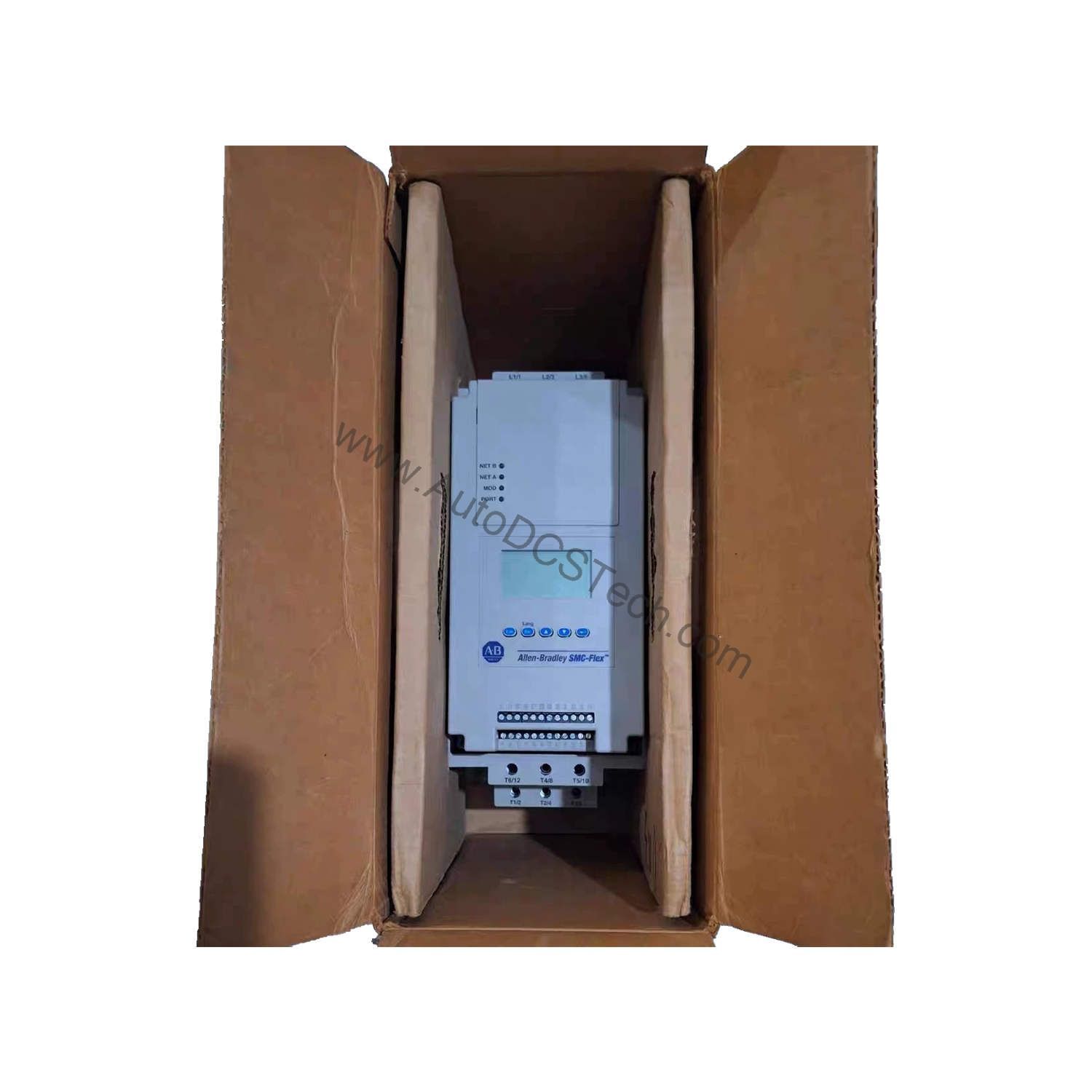

Allen-Bradley 150-F43FHD SMC-Flex Solid State Controller 43A

Technical Specifications Breakdown

Key parameters for the 150-F43FHD are listed below for quick reference:

Application Versatility

Typical uses include conveyors, pumps, fans, and compressors in industries like water treatment, mining, and manufacturing. Its seven standard operating modes—soft start, selectable kickstart, current limit start, dual ramp start, full voltage start, linear speed acceleration, and preset slow speed—allow precise tuning to match load characteristics. Optional pump control and braking control further extend its utility.

Installation and Setup Guidance

Mount the controller in a location that allows adequate airflow and access to the LCD display and keypad. Ensure the incoming power matches the 200-208V AC, 3-phase, 50/60 Hz input specification. A separate 100-240V AC single-phase control source is required for the controller logic. For fan operation, provide a dedicated 120V or 240V single-phase supply. Use appropriately rated conductors and torque all terminals per the manufacturer's recommendations. The built-in SCR bypass or run contactor simplifies wiring by eliminating external contactors.

Maintenance and Reliability

The IP65 enclosure protects internal components from moisture and particulate ingress, reducing maintenance frequency. Periodically inspect the enclosure seals and verify that cooling fans operate freely. The integrated electronic motor overload protection eliminates the need for separate overload relays, simplifying upkeep. Monitor the LCD display for fault codes and use the keypad for parameter adjustments without opening the enclosure.

Robust Motor Control for Harsh Environments

The Allen-Bradley 150-F43FHD is a solid state controller from the SMC-Flex series, designed to deliver reliable starting and stopping for three-phase AC induction motors. With a rugged IP65 (Type 4/12) enclosure, this unit withstands dust, water, and corrosive environments, making it suitable for demanding industrial settings. The controller is rated for 43 A and provides 30 Hp at 460V AC, handling substantial motor loads efficiently.

Compatibility and Integration

The 150-F43FHD features DPI communication for optional connection to communication modules and human interface devices. This allows integration with PLCs and SCADA systems using protocols such as DeviceNet, ControlNet, or EtherNet/IP via add-on modules. The four programmable auxiliary contacts provide flexibility for interlocking and status indication.

Selection Guide and Purchasing Advice

When selecting the 150-F43FHD, verify that the motor full-load current does not exceed 43 A and that the supply voltage matches 200-208V AC three-phase. For higher voltage applications, consider the 460V AC rating for 30 Hp output. AutoDCSTech stocks this controller and can assist with lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
